32 Channel Servo Control Board Support PS2 WIFI with USB Cable
Available:In Stock
- Product SKU: KG355
₹ 3,999
₹ 4,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
32-Channel Servo Robot Controller Board (PS2, WiFi, USB)
The 32-Channel Servo Motor Controller is engineered for advanced robotics applications and delivers the flexibility needed for any modern robot controller setup. Its powerful STM32 ARM Cortex-M3 microcontroller and 16MB onboard memory make it an excellent choice for projects involving multi-axis movement, especially when working with a robot arm with controller mechanisms. Because it supports up to 230 action groups, this board is widely used in automation labs, robotic shows, and detailed motion simulations.
With the ability to operate 32 servos simultaneously, this compact system is also suitable for developers building large robotic assemblies or designing a robotic arm controller. Furthermore, its graphical PC debugging interface simplifies testing, allowing real-time tuning for educational setups, demonstrations, and DIY engineering projects. This makes it ideal for anyone exploring robotics automation through a reliable and scalable robot controller platform.
With the ability to operate 32 servos simultaneously, this compact system is also suitable for developers building large robotic assemblies or designing a robotic arm controller. Furthermore, its graphical PC debugging interface simplifies testing, allowing real-time tuning for educational setups, demonstrations, and DIY engineering projects. This makes it ideal for anyone exploring robotics automation through a reliable and scalable robot controller platform.
Features
- Controls up to 32 servo motors simultaneously
- Equipped with ARM Cortex-M3 STM32 microcontroller
- 16MB onboard memory stores up to 230 action groups
- Supports PS2 handle, WiFi, and Bluetooth extensions
- Graphical PC interface for online debugging and control
- Over-current and surge protection for all channels
- Supports secondary development and serial communication
- Compact board with easy-to-use Mini USB connectivity
Technical Details
- Dimensions: 61 mm × 52 mm
- Mounting Hole Spacing: 44.5 mm × 53.5 mm
- Communication Interface: Mini USB
- Control Channels: 32
- Remote Handle: PS2 support
- External Modules Supported: Bluetooth, WiFi, MP3, and wireless modules
- Voltage Alarm: Supported
- Power Switch: External
- Secondary Development: Supported
- Serial Communication: Supported
- Local Storage: Supported
- Offline Operation: Supported
32-Channel Controller Highlights
- Real-time handle control and remote action group execution
- Supports WiFi, Bluetooth, MP3, and wireless mode synchronization
- Secondary development-ready with reserved serial interface
- Low-voltage alarm and offline execution capabilities
- Multi-layer voltage regulation and anti-surge protection
- Includes rich tutorials and example codes for beginners
Interface Diagram
Power Supply Connection
Secondary Development
Detailed Display
Applications
- Ideal for multi-axis robot controller systems
- Perfect for building a robotic arm controller with synchronized motion
- Supports PS2 joystick for manual testing and adjustments
- Great for servo-driven mechatronics and robot arm with controller designs
- Automation systems, animatronics, and smart robotics
- Education, research labs, and engineering experiments
- Prototyping servo-controlled mechanisms
Physical Attributes
- Board Dimensions: 61 mm × 52 mm
- Mounting Hole Spacing: 44.5 mm × 53.5 mm
- Weight: 50 g
- Material: PCB with protective coating
- Connector Type: Mini USB + Servo pin headers
Notes
- USB cable and power supply are included
- Use regulated power input for stable servo operation
- Color or silkscreen pattern may vary slightly due to manufacturing batches

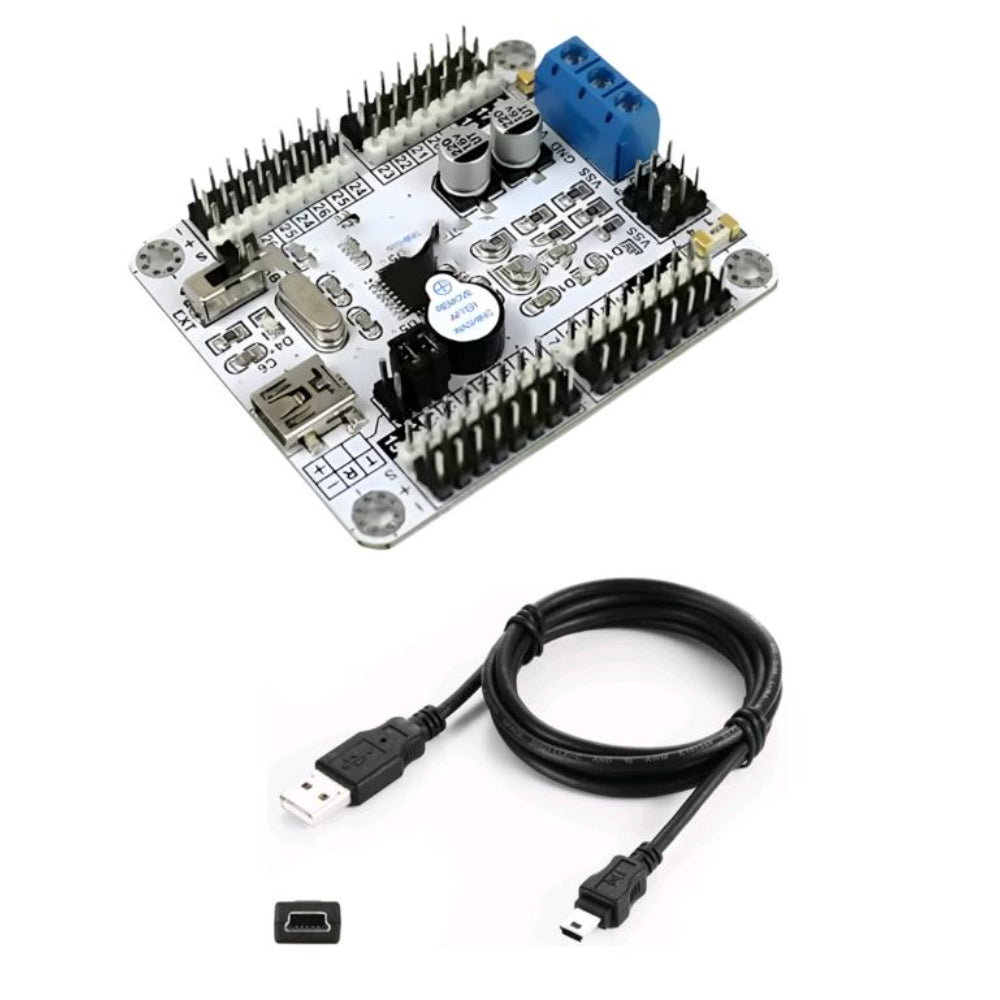

Package Includes
- 1 × 32-Channel Servo Motor Controller Board

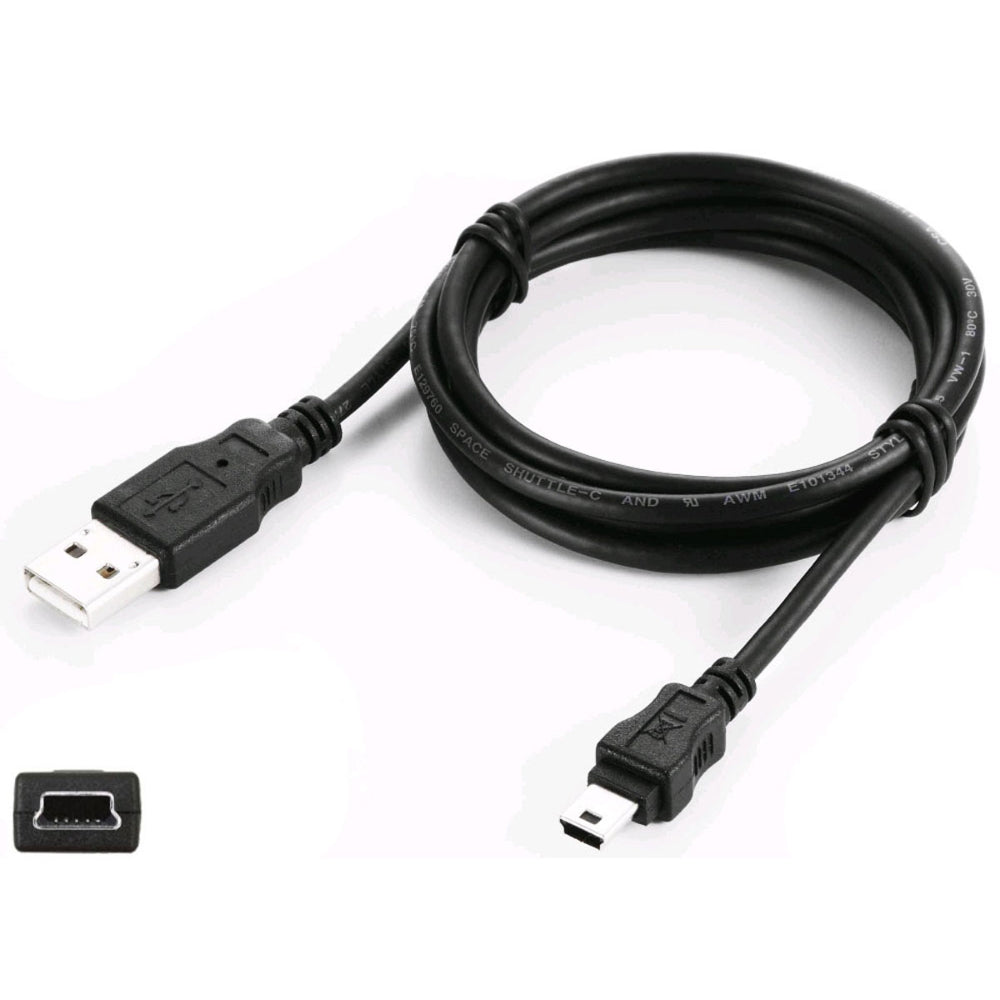

- 1 × Mini USB Cable
