Operating on 36V DC with a rated output of 250 watts, the MY1016Z2 motor offers a great balance of speed and torque for lightweight electric vehicle applications. It is compatible with a variety of components such as 36V motor controllers, twist throttles, and electronic brakes, simplifying integration into custom builds or upgrades. Whether you're working on an e-bike or a robotic platform, this motor provides consistent performance, durability, and smooth operation across a wide range of use cases.
-17%
36V 250W MY1016Z2 Electric E-BIKE Brush Motor
Available:In Stock
- Product SKU: KGEB059
₹ 2,899
₹ 3,499
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

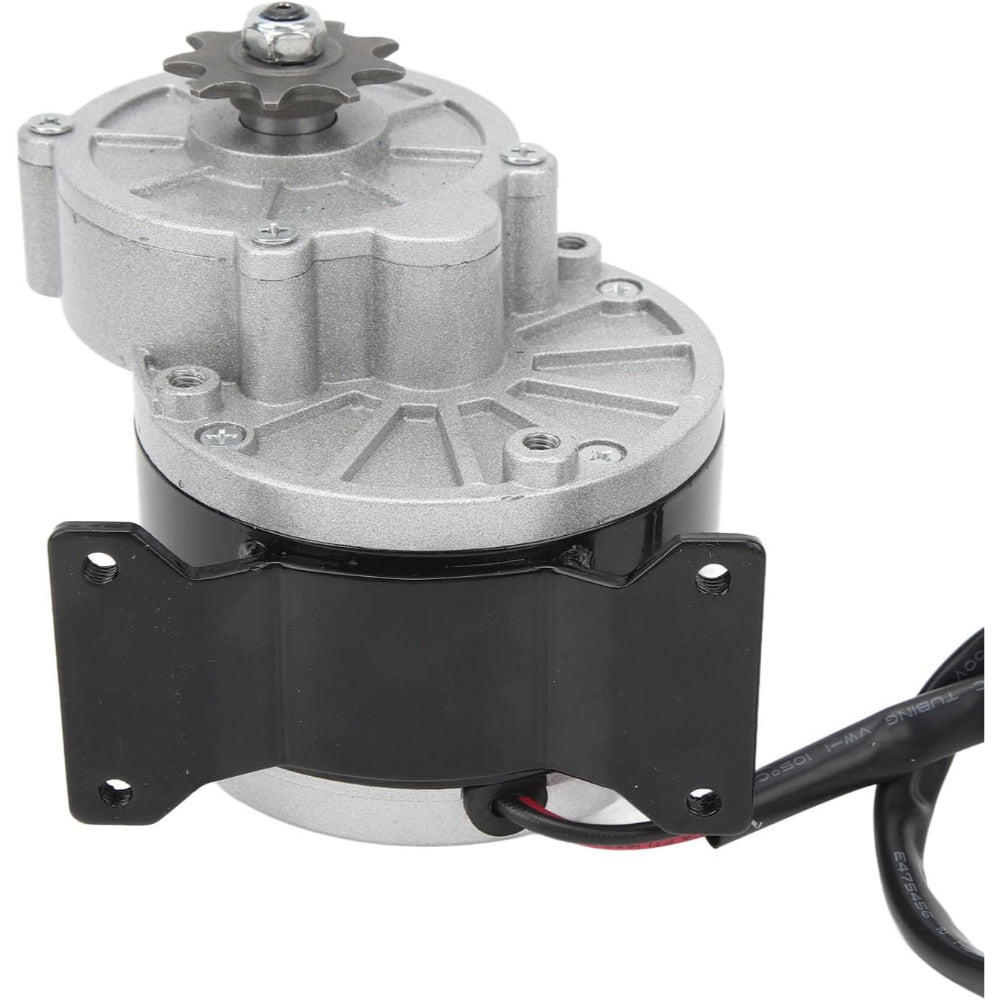

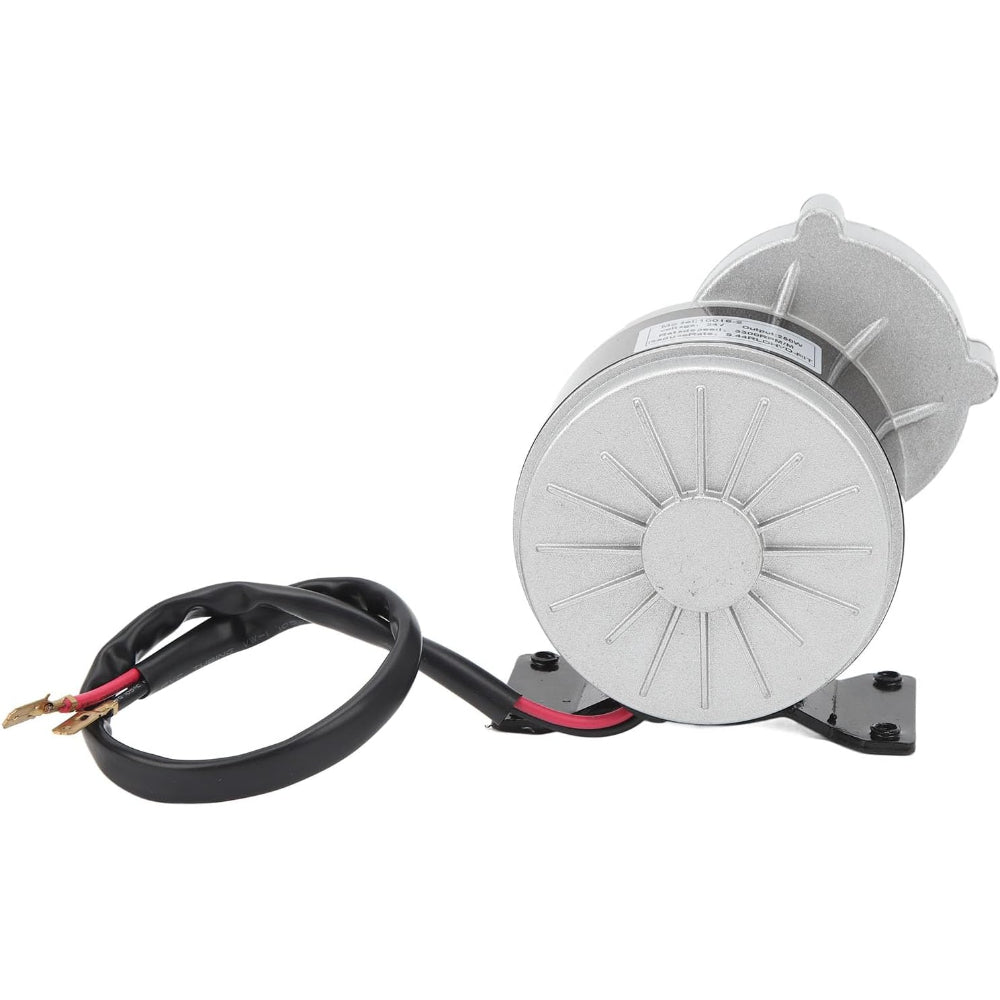

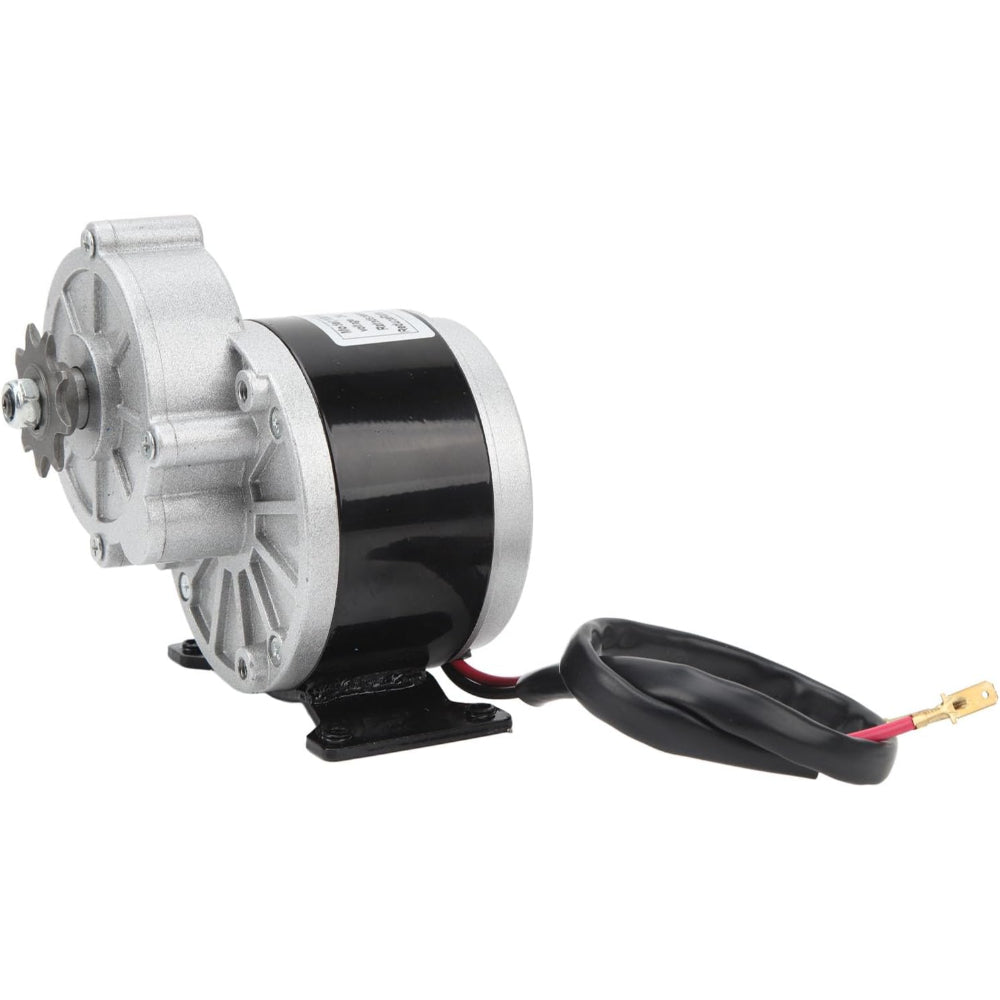

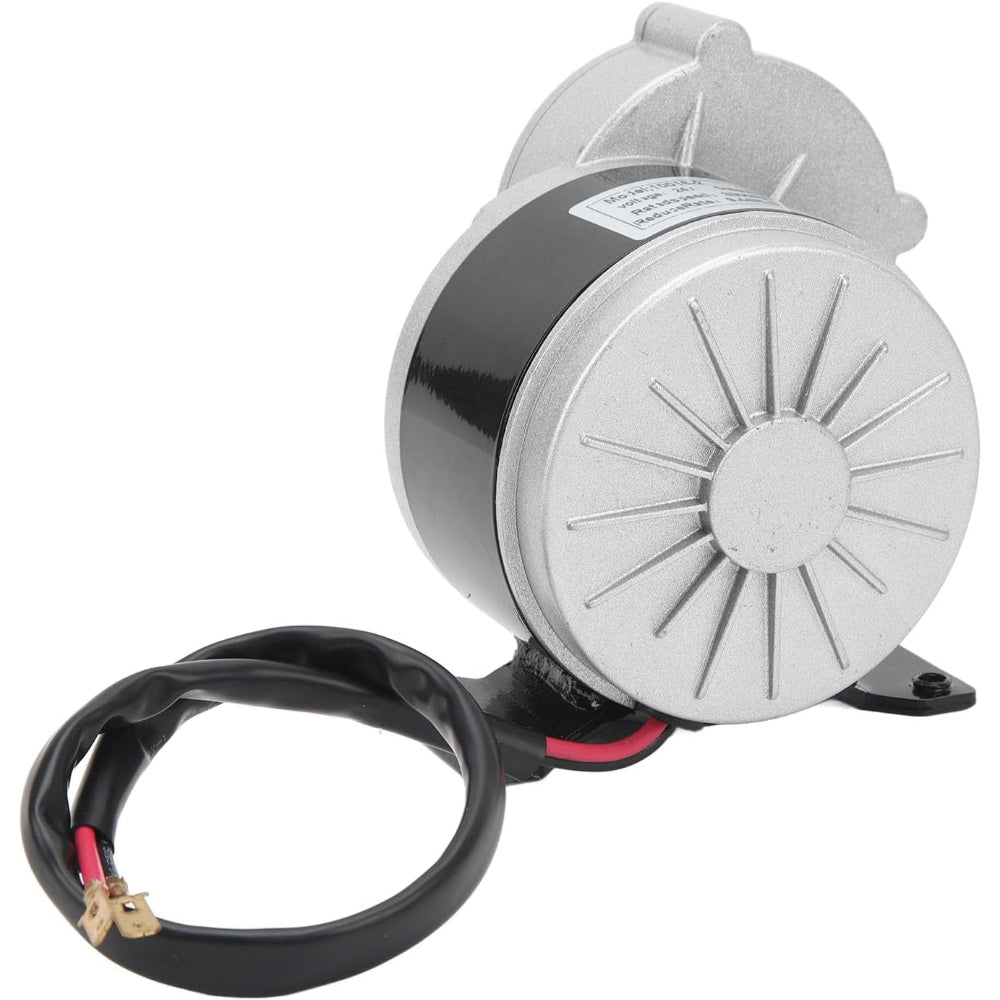

36V 250W MY1016Z2 Electric E-BIKE Brush Motor
The MY1016Z2 36V 250W Geared DC Motor is a powerful and efficient brushed motor designed for electric bikes, scooters, and various DIY mobility projects. Featuring a built-in gear reduction system, this motor delivers excellent torque and steady performance, making it ideal for mid-range electric vehicles and personal transport systems. Its rugged construction and compact form factor make it a preferred choice for hobbyists building e-carts, ATVs, Segways, and robotic vehicles. The standard mounting design ensures easy installation and replacement when needed.Operating on 36V DC with a rated output of 250 watts, the MY1016Z2 motor offers a great balance of speed and torque for lightweight electric vehicle applications. It is compatible with a variety of components such as 36V motor controllers, twist throttles, and electronic brakes, simplifying integration into custom builds or upgrades. Whether you're working on an e-bike or a robotic platform, this motor provides consistent performance, durability, and smooth operation across a wide range of use cases.
Technical Details
- Model: MY1016Z2
- Voltage: 36V DC
- Power: 250W
- Rated Speed: 2750 RPM
- Rated Current: Approx. 8.3 A
- Motor Type: Brushed DC Motor
- Gear Reduction Ratio: 9.78:1 (with built-in gearbox)
- Output Shaft: Sprocket (for chain drive)
- Direction of Rotation: Reversible (by changing polarity)
- Mounting Type: Base plate with pre-drilled holes
- Cooling: Natural air cooling
- Applications: E-bikes, scooters, small EVs, DIY mobility projects
- Gearbox: Integrated
- Sprocket: 9 teeth (standard)
- Cable Length: Around 0.5 m
- Weight: 2298 grams
Drawing
Features
- Compact and efficient brushed DC motor
- Designed for 36V battery systems
- Built-in high-torque reduction gearbox (9.78:1 ratio)
- Low noise and smooth operation
- Durable metal casing for long life
- High torque output suitable for uphill and load-bearing use
- Easy installation with standard mounting base
- Reversible motor direction by changing polarity
- Compatible with common e-bike and scooter controllers
- Reliable performance for continuous and intermittent operation
Features
- Electric bicycles (e-bikes)
- Electric scooters
- Electric skateboards
- Mini bikes and go-karts
- Electric tricycles and cargo bikes
- Mobility scooters and wheelchairs
- Motorized trolleys or carts
- DIY electric vehicle conversions
- Portable transport systems
- Educational and robotics projects
Package Includes
- 1 x 36V 250W MY1016Z2 Electric E-BIKE Brush Motor
