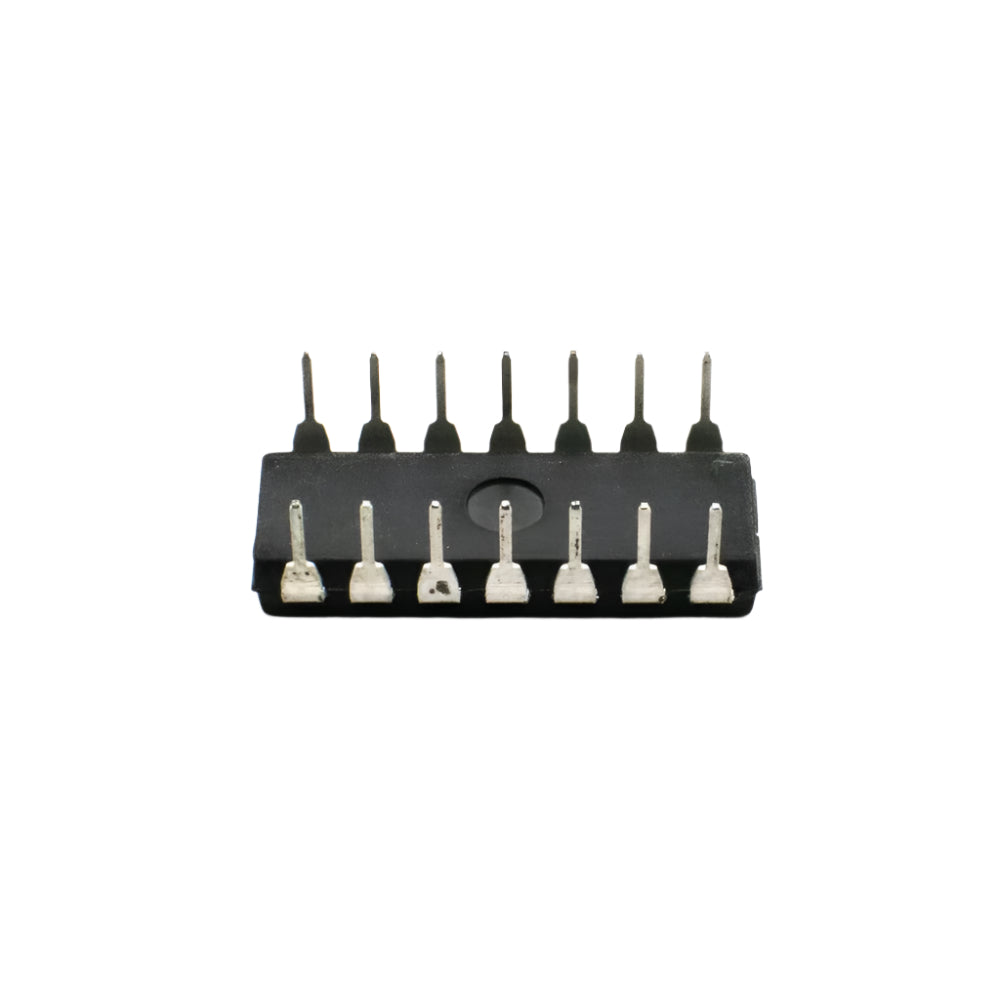

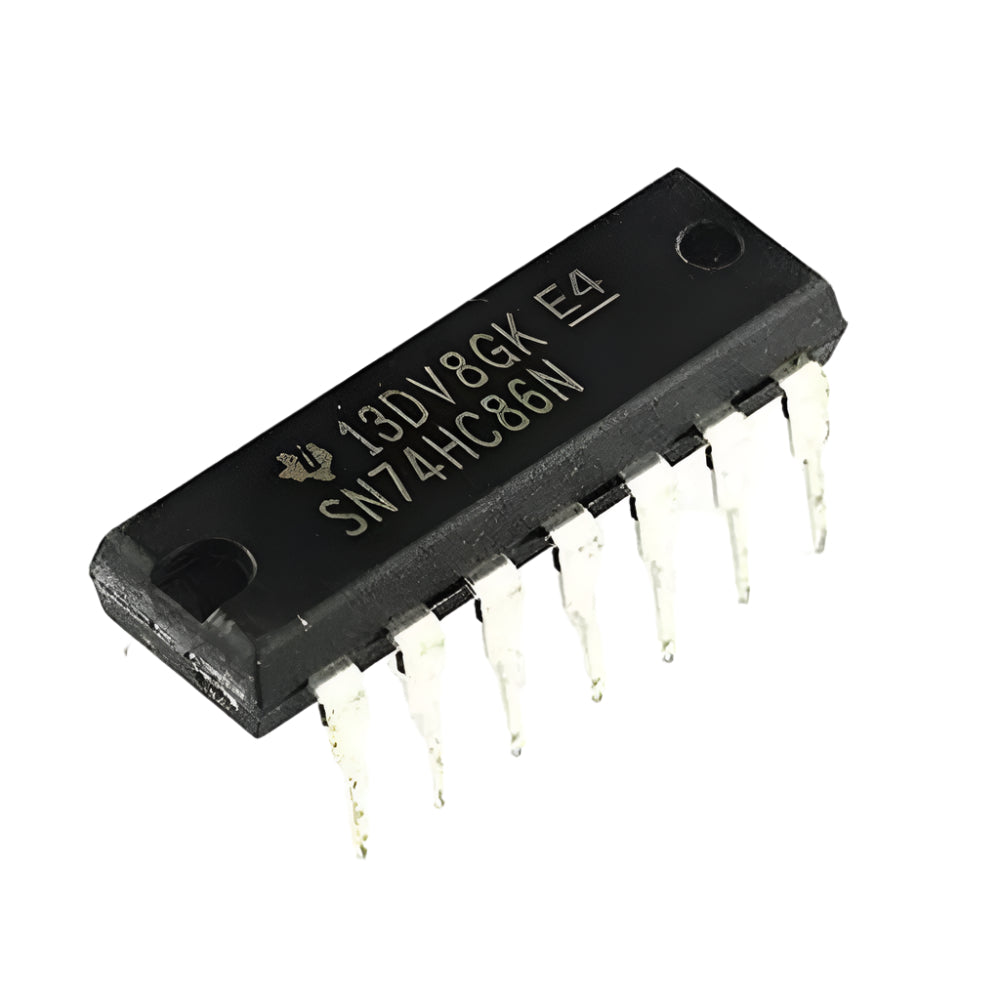

74HC86D XOR Gate IC – High-Speed, Low Power, SMD DIP-14 Package
The 74HC86; 74HCT86 is a quad 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current-limiting resistors to interface inputs to voltages over VCC.Technical Details
- IC Type: Gate IC
- Gate IC Type: XOR
- Supply Voltage (V): −0.5 to +7
- Input Clamping Current: ±20 mA
- Output Clamping Current: ±20 mA
- Storage Temperature (°C): −65 to +150
- Power Dissipation (mW): 500
Features
- Multiple package options
- Complies with JEDEC standard no. 7A
Applications
Digital Logic Circuits – Ideal for basic digital processing tasksArithmetic Logic Units (ALUs) – Used in performing binary calculations
Signal Processing – Suitable for encoding and decoding operations
Embedded Systems – Common in microcontroller-based logic design
Physical Attributes
- Dimensions: ~19.3mm x 6.4mm x 4.5mm (L x W x H)
- Weight: ~1g
Package Includes
- 1 x 74HC86D XOR Gate IC – High-Speed, Low Power, SMD DIP-14 Package
