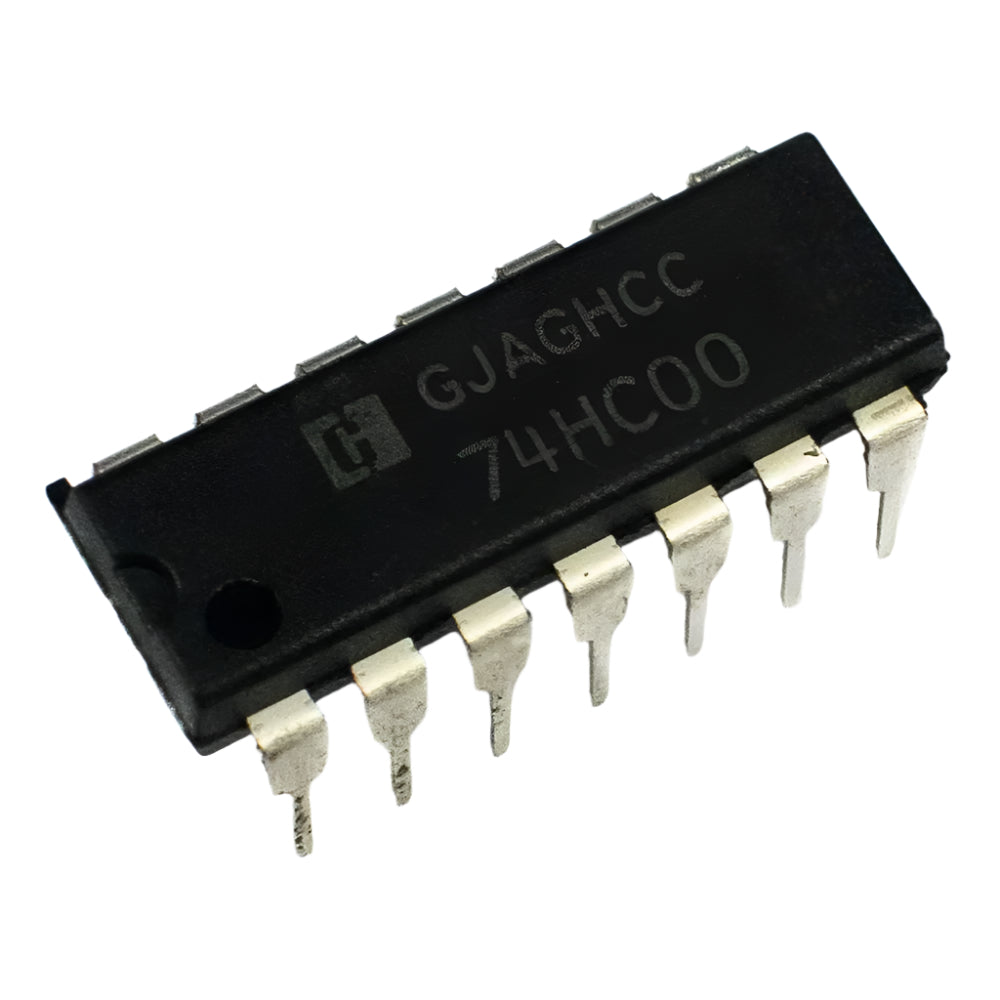

![74HC00D Dual 2-Input NAND Gate IC in 14-pin SMD package-1]()

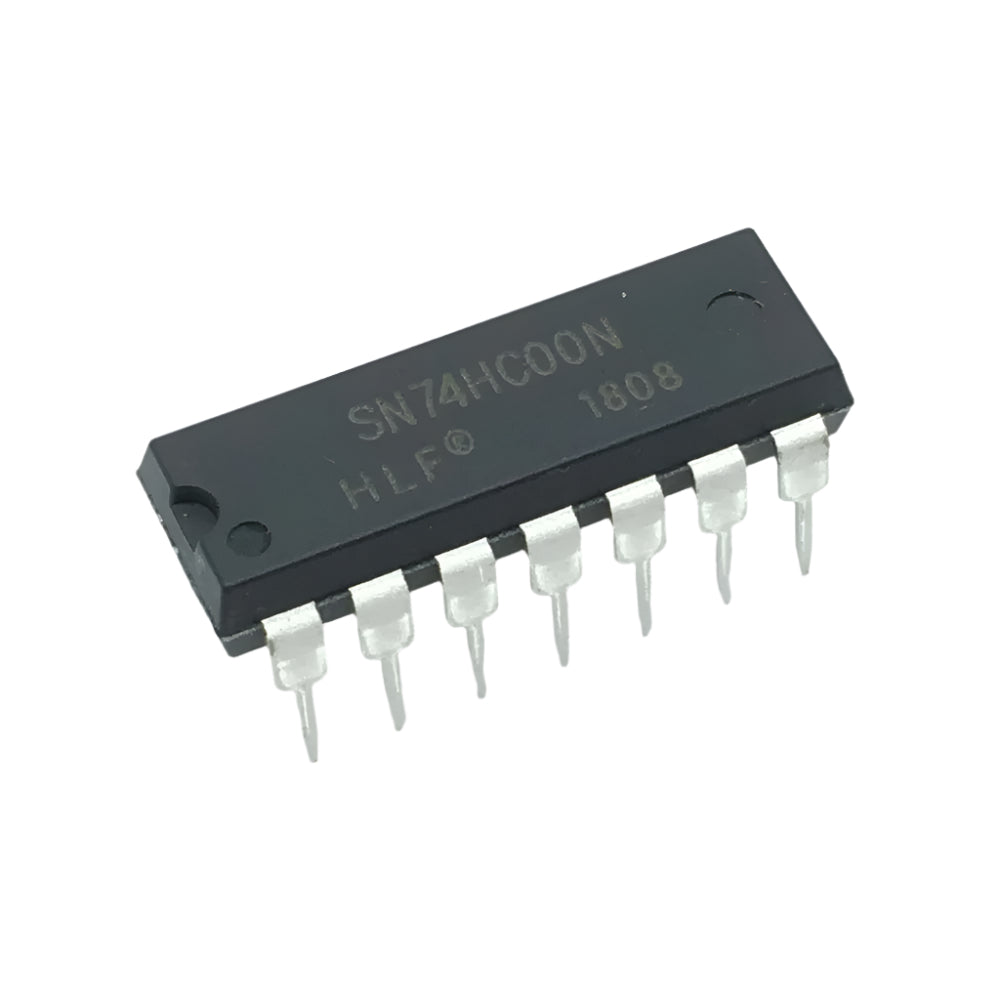

![74HC00D Dual 2-Input NAND Gate IC in 14-pin SMD package-2]()

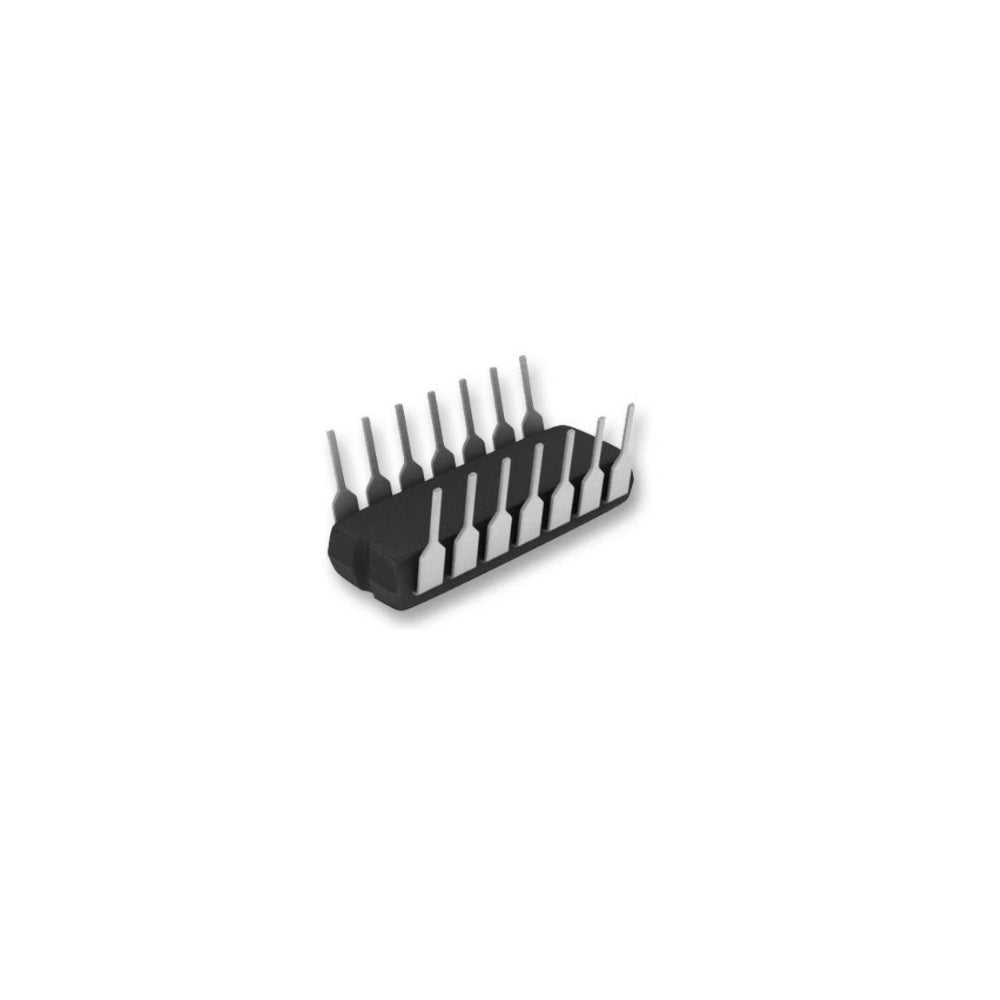

![74HC00D Dual 2-Input NAND Gate IC in 14-pin SMD package-3]()
![74HC00D Dual 2-Input NAND Gate IC in 14-pin SMD package-1]()
![74HC00D Dual 2-Input NAND Gate IC in 14-pin SMD package-2]()
![74HC00D Dual 2-Input NAND Gate IC in 14-pin SMD package-3]()
Arithmetic Logic Units (ALUs) – Used in performing binary calculations
Signal Processing – Suitable for encoding and decoding operations
Embedded Systems – Common in microcontroller-based logic design
-55%
74HC00D Dual 2-Input NAND Gate IC – 14-Pin SMD, CMOS Logic Circuit
Available:In Stock
- Product SKU: INTEG331
₹ 13
₹ 29
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
74HC00D Dual 2-Input NAND Gate IC – 14-Pin SMD, CMOS Logic Circuit:
The 74HC00D is a high-speed si-gate CMOS device that complies with the JEDEC standard no. 7A. It is also pin-compatible with Low-power Schottky TTL (LSTTL). The 74HC00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current-limiting resistors to interface inputs to voltages over Vcc.Technical Details
- IC Type: Gate IC
- Gate IC Type: NAND
- No. of Inputs: 2
- No. of Pins: 14
- Technology: CMOS
Features
- CMOS level
- ESD protection
- Multiple package options
Applications
Digital Logic Circuits – Ideal for basic digital processing tasksArithmetic Logic Units (ALUs) – Used in performing binary calculations
Signal Processing – Suitable for encoding and decoding operations
Embedded Systems – Common in microcontroller-based logic design
Physical Attributes
- Dimensions: ~19.3mm x 6.4mm x 4.5mm (L x W x H)
- Weight: ~1g
Package Includes
- 1 x 74HC00D Dual 2-Input NAND Gate IC – 14-Pin SMD, CMOS Logic Circuit
