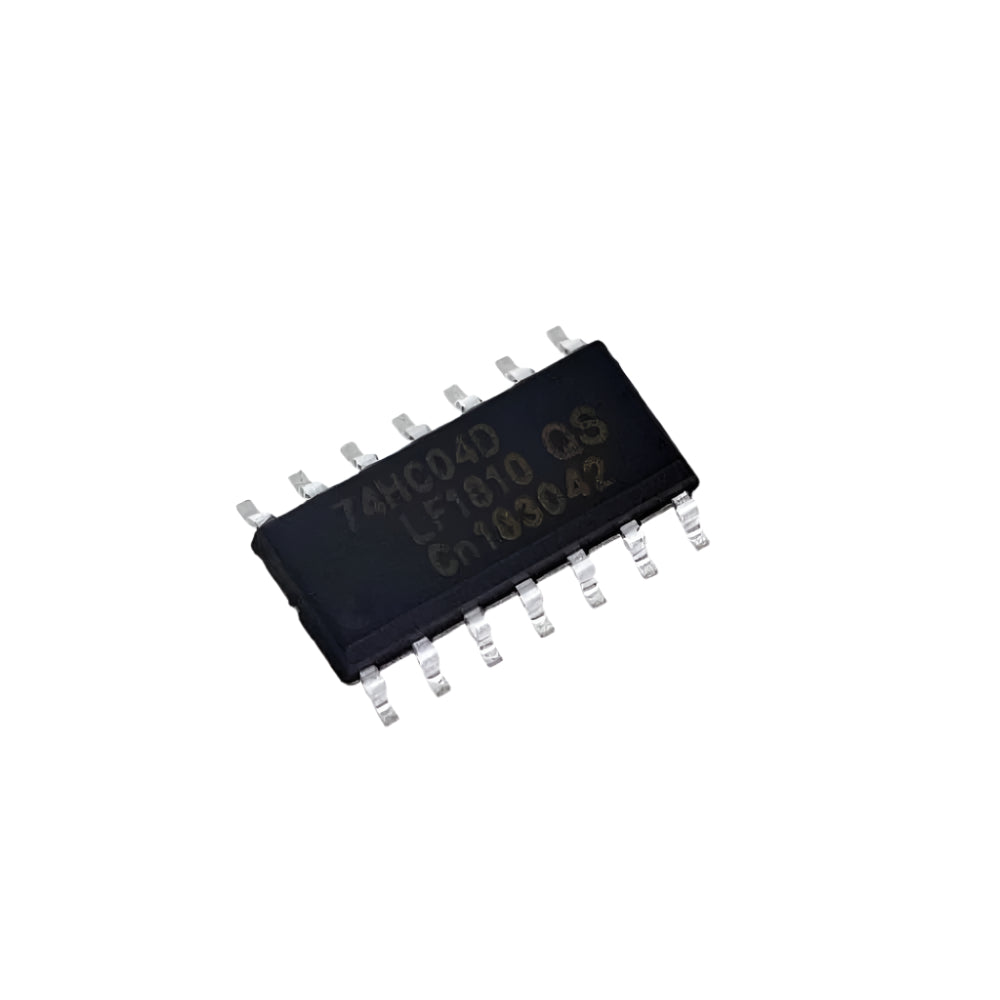

![Original 74HC04D CMOS hex inverter IC used in logic circuits-1]()

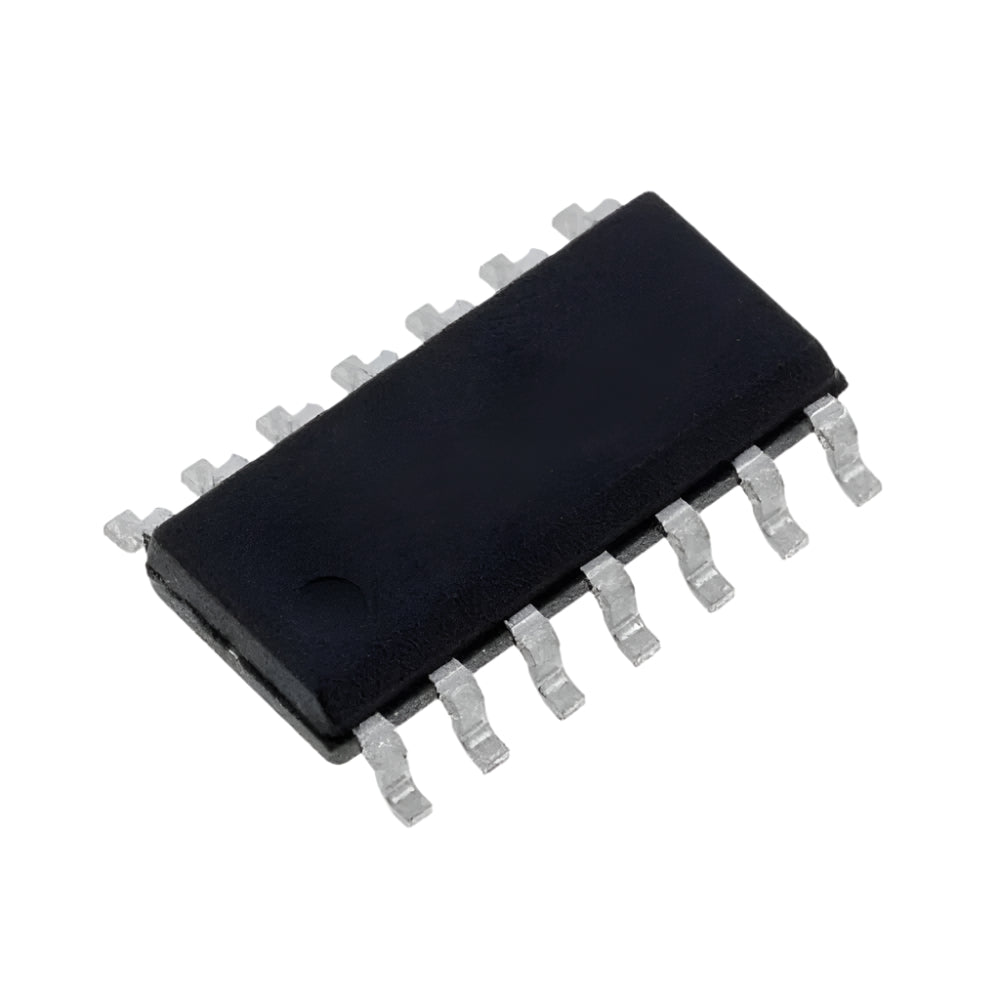

![Original 74HC04D CMOS hex inverter IC used in logic circuits-2]()

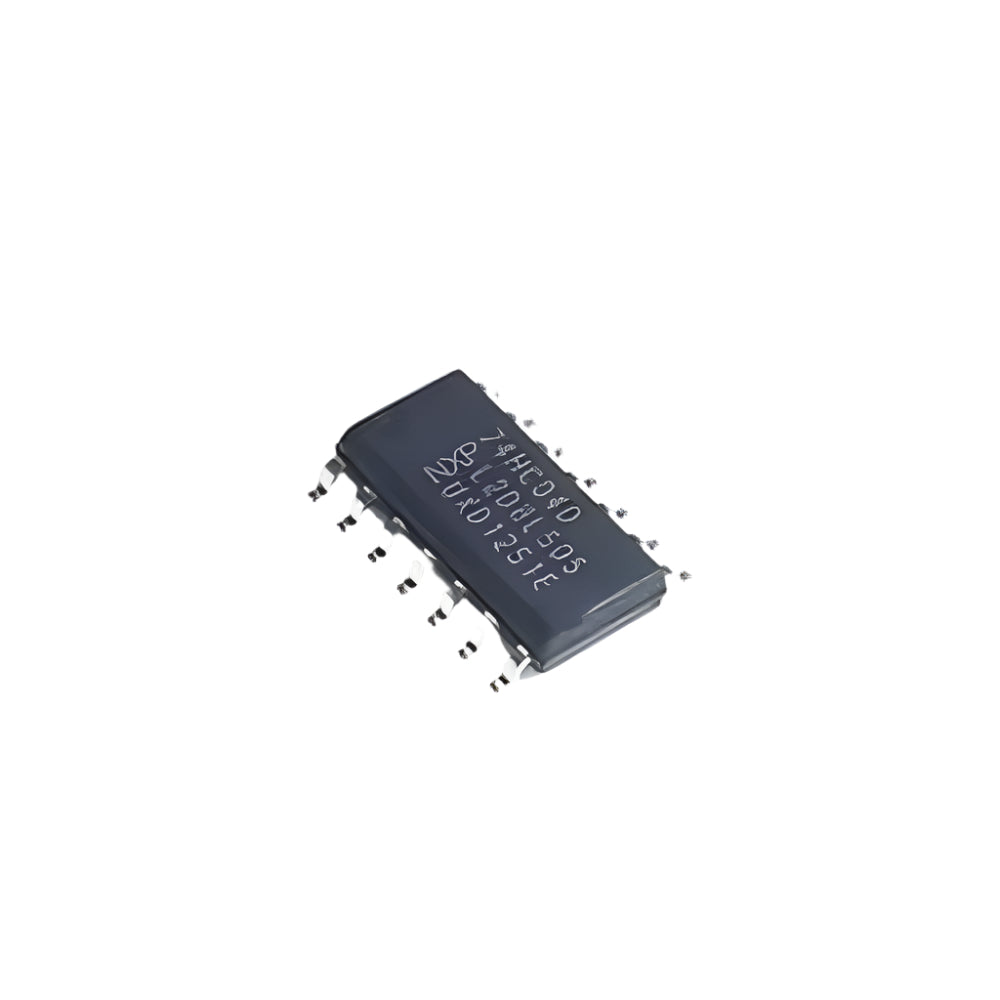

![Original 74HC04D CMOS hex inverter IC used in logic circuits-3]()
![Original 74HC04D CMOS hex inverter IC used in logic circuits-1]()
![Original 74HC04D CMOS hex inverter IC used in logic circuits-2]()
![Original 74HC04D CMOS hex inverter IC used in logic circuits-3]()
Arithmetic Logic Units (ALUs) – Used in performing binary calculations
Signal Processing – Suitable for encoding and decoding operations
Embedded Systems – Common in microcontroller-based logic design
-47%
74HC04D CMOS Hex Inverter IC – 14-Pin SMD, High-Performance Logic Circuit
Available:In Stock
- Product SKU: INTEG332
₹ 10
₹ 19
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
74HC04D CMOS Hex Inverter IC – 14-Pin SMD, High-Performance Logic Circuit:
The 74HC04D is a high-speed CMOS six-way inverter logic control chip housed in an SOP-14 SMD package. It features six independent NOT gates, each capable of inverting input signals with minimal delay. Designed for low power consumption, it operates over a wide voltage range of 2V to 6V, making it suitable for various digital logic applications. The chip provides reliable performance with high noise immunity and fast switching times. Ideal for compact circuit designs, it supports applications like signal processing, data manipulation, and general logic control. Its small form factor makes it perfect for space-constrained SMD designs.Technical Details
- IC Type: Gate IC
- Logic Function: Inverter
- Logic IC Family: 74HC
- Maximum Output Current: 5.2mA
- No. of Elements: Hex
- No. of Inputs: 1
- Number of Pins: 14
- Package/Case: 14-pin SOP
- Supply Voltage: 2–6V
Features
- High-Speed CMOS Logic
- Six Independent Inverters
- 2V to 6V Operating Voltage
- Low Power Dissipation
- 14-pin SOP Package
- Fast Switching Speeds
- Latch-Up Protection
- Lead-Free and RoHS Compliant
Applications
Digital Logic Circuits – Ideal for basic digital processing tasksArithmetic Logic Units (ALUs) – Used in performing binary calculations
Signal Processing – Suitable for encoding and decoding operations
Embedded Systems – Common in microcontroller-based logic design
Physical Attributes
- Dimensions: ~19.3mm x 6.4mm x 4.5mm (L x W x H)
- Weight: ~1g
Package Includes
- 1 x 74HC04D CMOS Hex Inverter IC – 14-Pin SMD, High-Performance Logic Circuit
