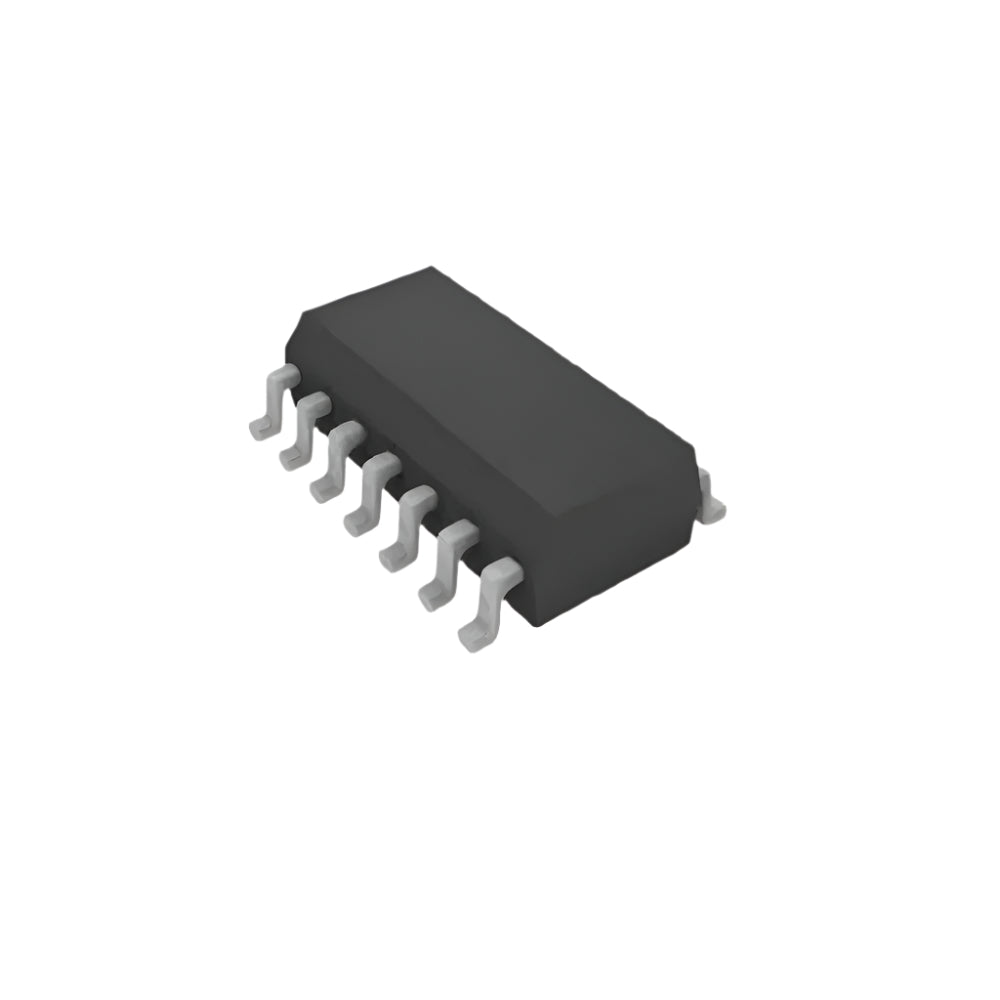

![74HC126D 14-pin SMD buffer IC for signal control and data buses-1]()

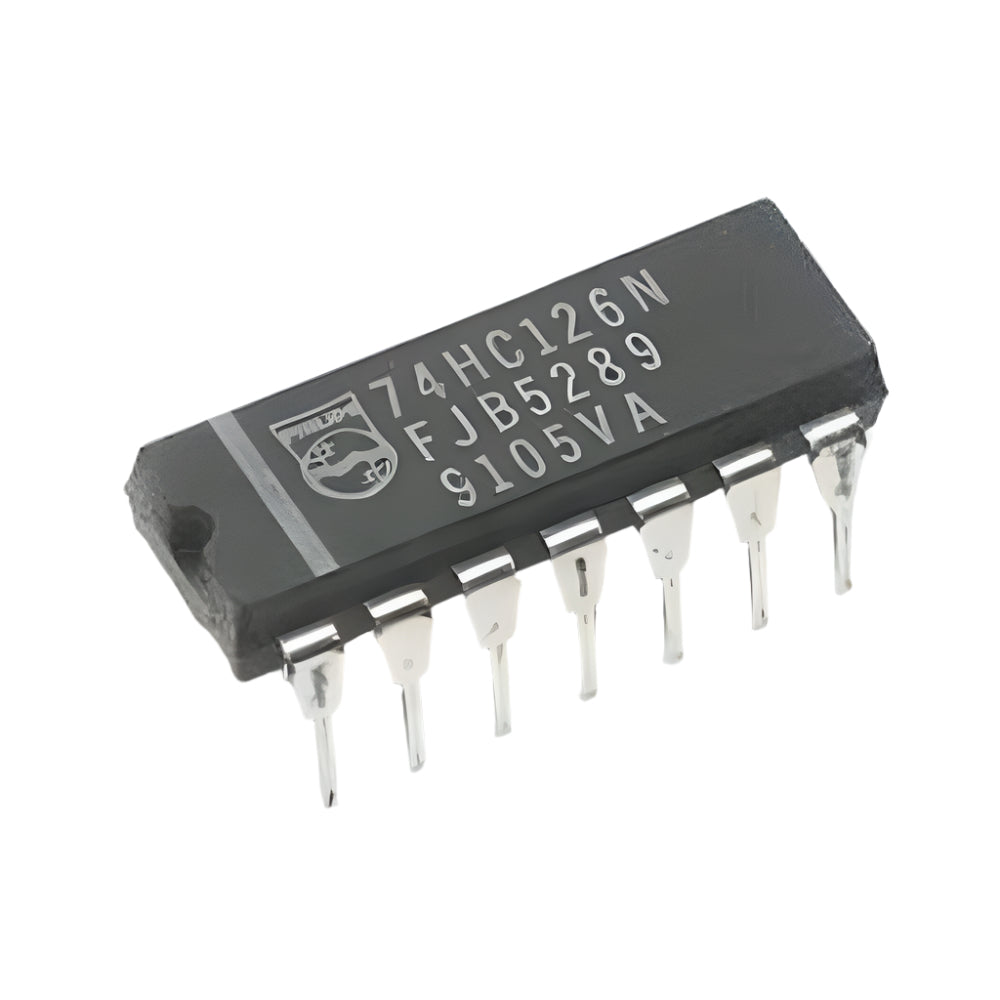

![74HC126D 14-pin SMD buffer IC for signal control and data buses-2]()

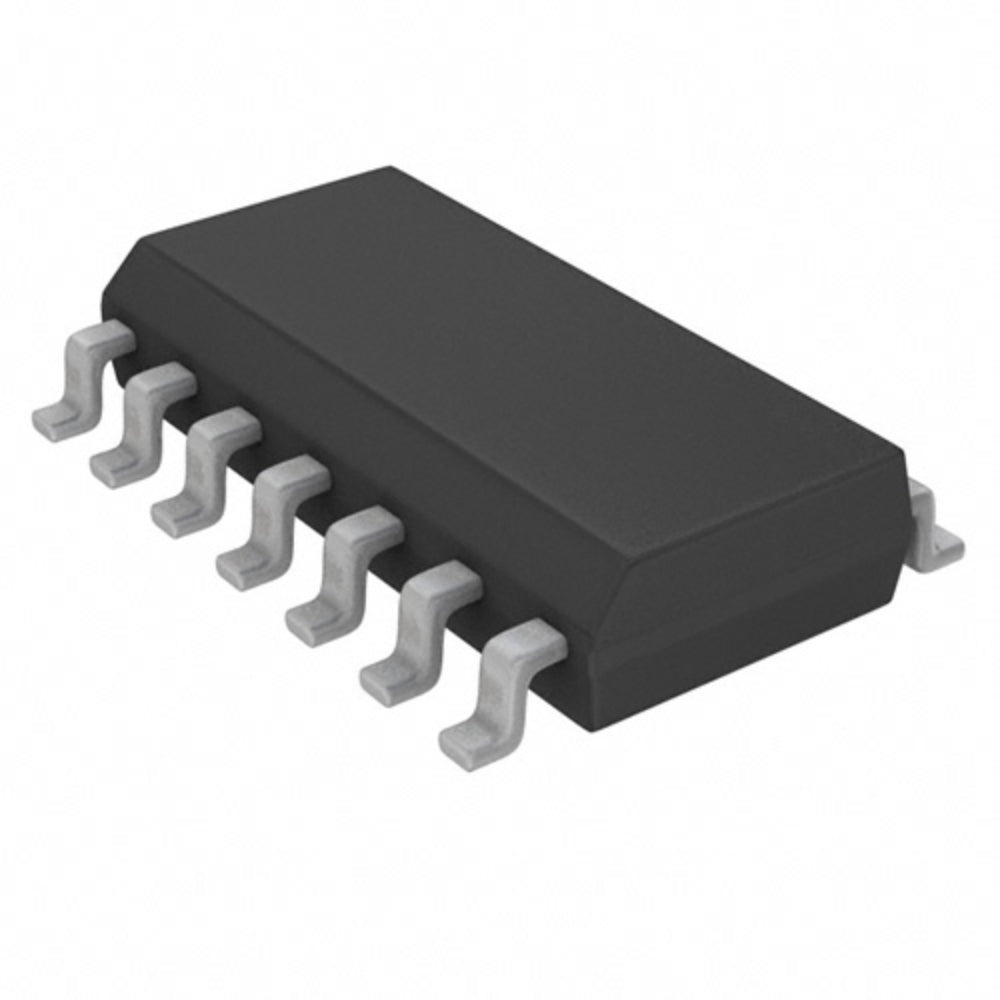

![74HC126D 14-pin SMD buffer IC for signal control and data buses-3]()
![74HC126D 14-pin SMD buffer IC for signal control and data buses-1]()
![74HC126D 14-pin SMD buffer IC for signal control and data buses-2]()
![74HC126D 14-pin SMD buffer IC for signal control and data buses-3]()
Arithmetic Logic Units (ALUs) – Used in performing binary calculations
Signal Processing – Suitable for encoding and decoding operations
Embedded Systems – Common in microcontroller-based logic design
-41%
74HC126D Quad Buffer IC – Tri-State Output, High-Speed CMOS Logic, 14-Pin SMD
Available:In Stock
- Product SKU: INTEG336
₹ 17
₹ 29
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
74HC126D Quad Buffer IC – Tri-State Output, High-Speed CMOS Logic, 14-Pin SMD :
The 74HC126D,653 is a Quad Buffer/Line Driver IC, designed to provide reliable buffering and driving capabilities in digital circuits. It features 3-state outputs and is part of the HC (High-Speed CMOS) logic family, offering low power consumption, fast switching speeds, and versatile functionality for use in a wide range of digital systems.Technical Details
- Model Name: 653, 74HC126D
- Case/Package: SMD 14
- Operating Supply Current: 160 µA
- Operating Supply Voltage: 2V to 6V
- Propagation Delay Time: 100 ns
- No. of Output Lines: 4
- No. of Input Lines: 4
Features
- Number of Channels: 4 independent channels
- Number of Input Lines: 4 input lines
- Number of Output Lines: 4 output lines
- Propagation Delay Time: 100 ns
- Operating Supply Voltage: 2V to 6V
- Operating Supply Current: 160 µA
Applications
Digital Logic Circuits – Ideal for basic digital processing tasksArithmetic Logic Units (ALUs) – Used in performing binary calculations
Signal Processing – Suitable for encoding and decoding operations
Embedded Systems – Common in microcontroller-based logic design
Physical Attributes
- Dimensions: ~19.3mm x 6.4mm x 4.5mm (L x W x H)
- Weight: ~1g
Package Includes
- 1 x 74HC126D Quad Buffer IC – Tri-State Output, High-Speed CMOS Logic, 14-Pin SMD
