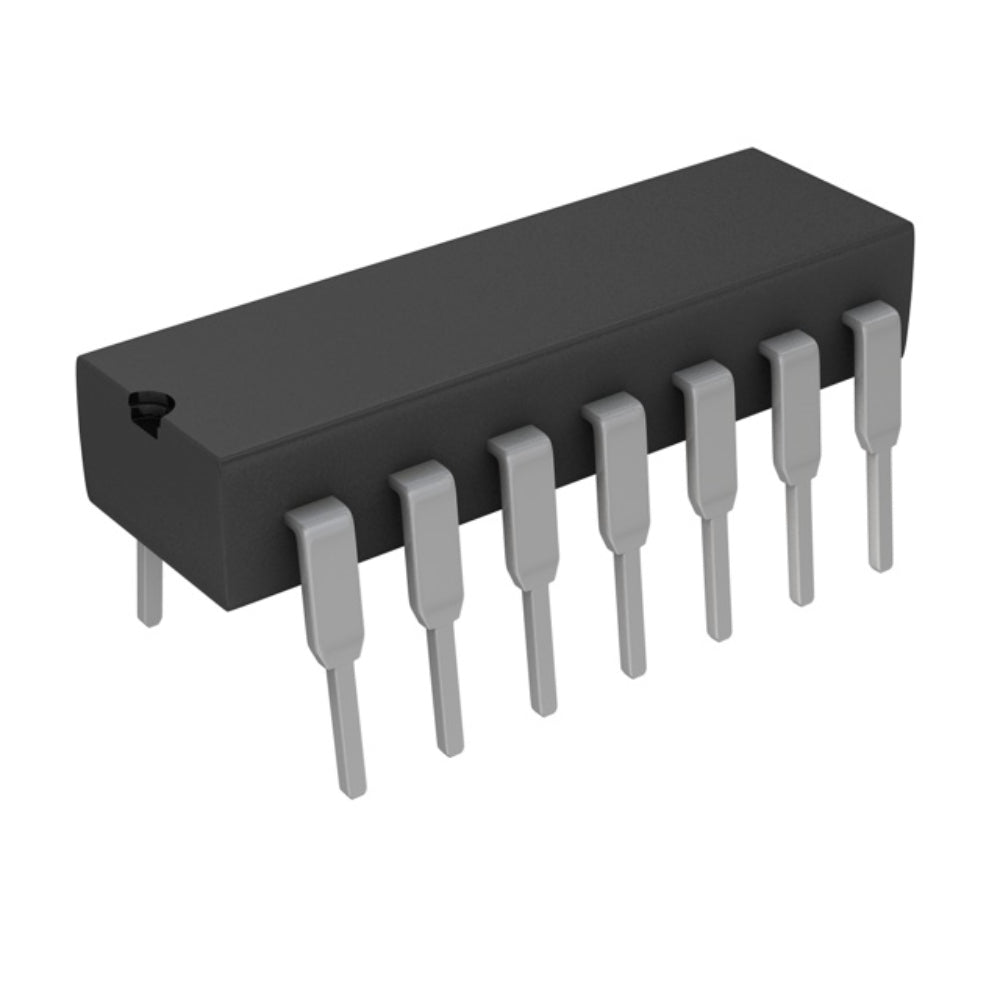

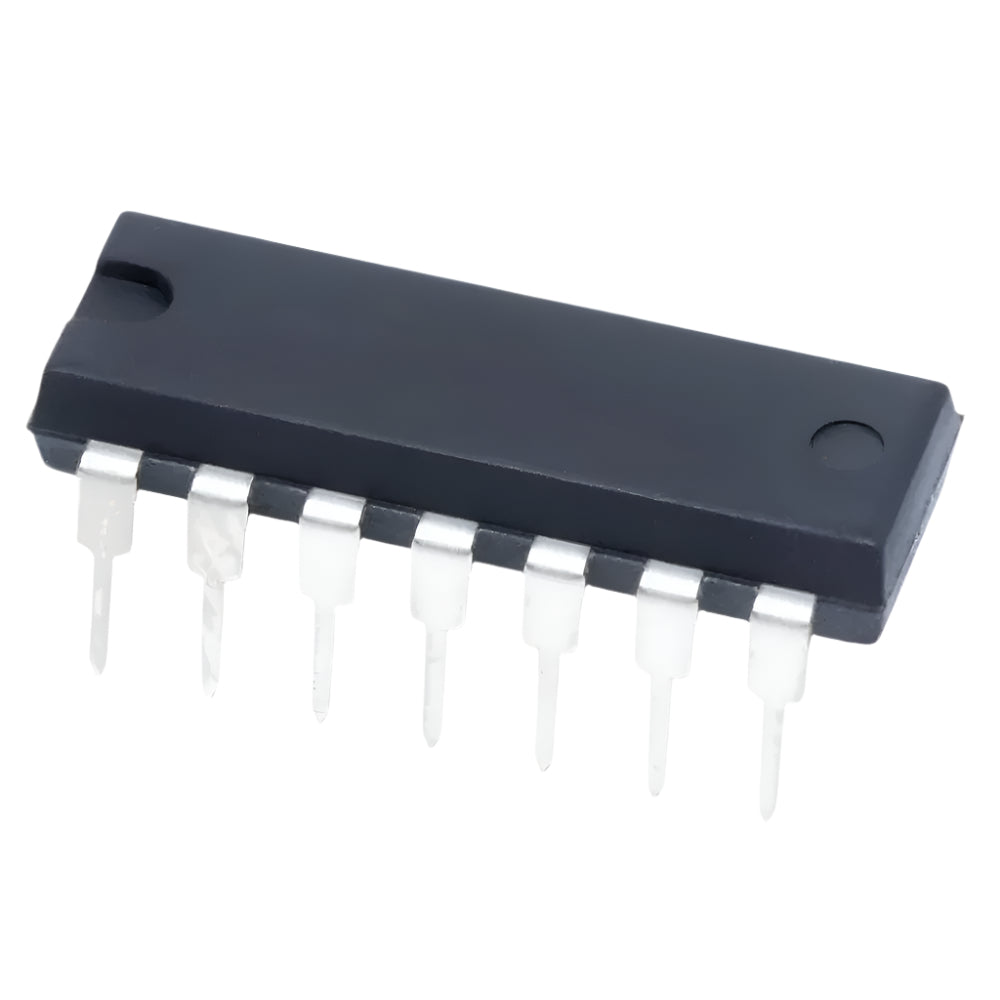

SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14
![SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14]()
![SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14_3]()
![SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14-back]()
![SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14]()
![SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14_3]()
![SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14-back]()
The IC comes in a standard DIP-14 through-hole package and is ideal for level shifting, driving high-current/high-voltage loads, and TTL to CMOS interfacing.
-50%
SN74LS07N Hex Buffer with Open-Collector Outputs DIP-14
Available:In Stock
- Product SKU: INTEG239
₹ 39
₹ 79
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
SN74LS07N Hex Buffer with Open-Collector Outputs – DIP-14
The SN74LS07N is a hex buffer/driver IC from the 74LS TTL logic family featuring open-collector outputs capable of withstanding output voltages up to 30V. It contains six non-inverting buffers designed for interfacing TTL logic to high-voltage loads such as relays, lamps, or bus lines via external pull-up resistors.The IC comes in a standard DIP-14 through-hole package and is ideal for level shifting, driving high-current/high-voltage loads, and TTL to CMOS interfacing.
Technical Details
- IC Name: SN74LS07N
- Function: Hex Non-Inverting Buffer
- Logic Family: 74LS (Low Power Schottky TTL)
- Number of Buffers: 6
- Output Type: Open-collector (supports up to 30V via pull-up)
- Supply Voltage: 4.75V to 5.25V
- Input HIGH Voltage: ≥ 2.0V
- Input LOW Voltage: ≤ 0.8V
- Output LOW Voltage: ≤ 0.4V @ 16mA
- Output Voltage Range: 0V to 30V (with external pull-up)
- Max Output Sink Current: 40mA per channel
- Propagation Delay: ~10ns typical
- Operating Temperature Range: 0°C to +70°C
- Package: DIP-14 (Dual Inline Package)
Features
- Six independent non-inverting buffers
- Open-collector outputs support up to 30V
- TTL-compatible logic inputs
- Can drive lamps, relays, or high-voltage logic
- Allows wired-AND logic functions
- Low power consumption with Schottky technology
- Standard DIP-14 package for easy prototyping
Applications
- Driving high-voltage loads (up to 30V)
- Relay and LED drivers
- TTL to CMOS level shifting
- Bus interface and buffering
- Wired-AND logic
- Interfacing with external power circuits
Physical Attributes
- Package Type: DIP-14 (Through-hole)
- Pin Count: 14
- Dimensions: ~19.3mm x 6.4mm x 4.5mm (L x W x H)
- Mounting Type: Through-hole
- Weight: ~1g
Package Includes
- 1 x SN74LS07N Hex Buffer with Open-Collector Outputs – DIP-14
