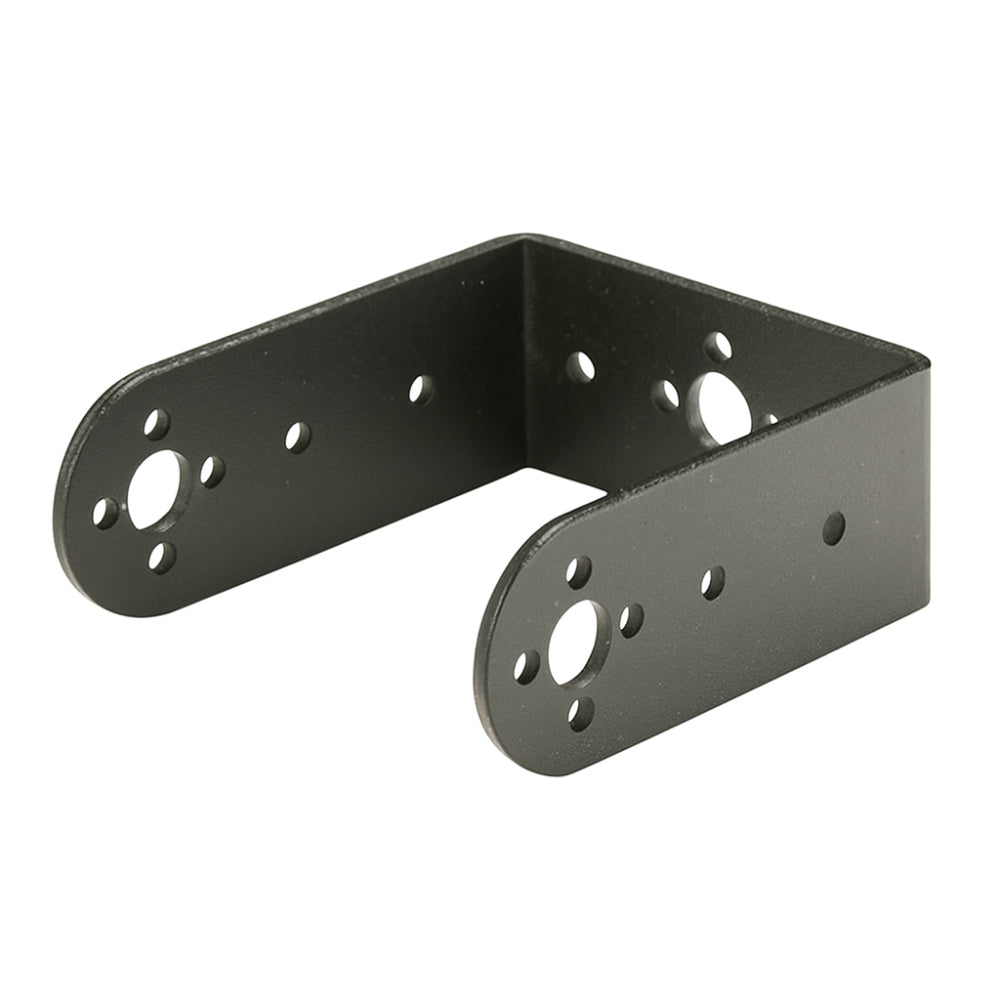

Black long U bracket front view

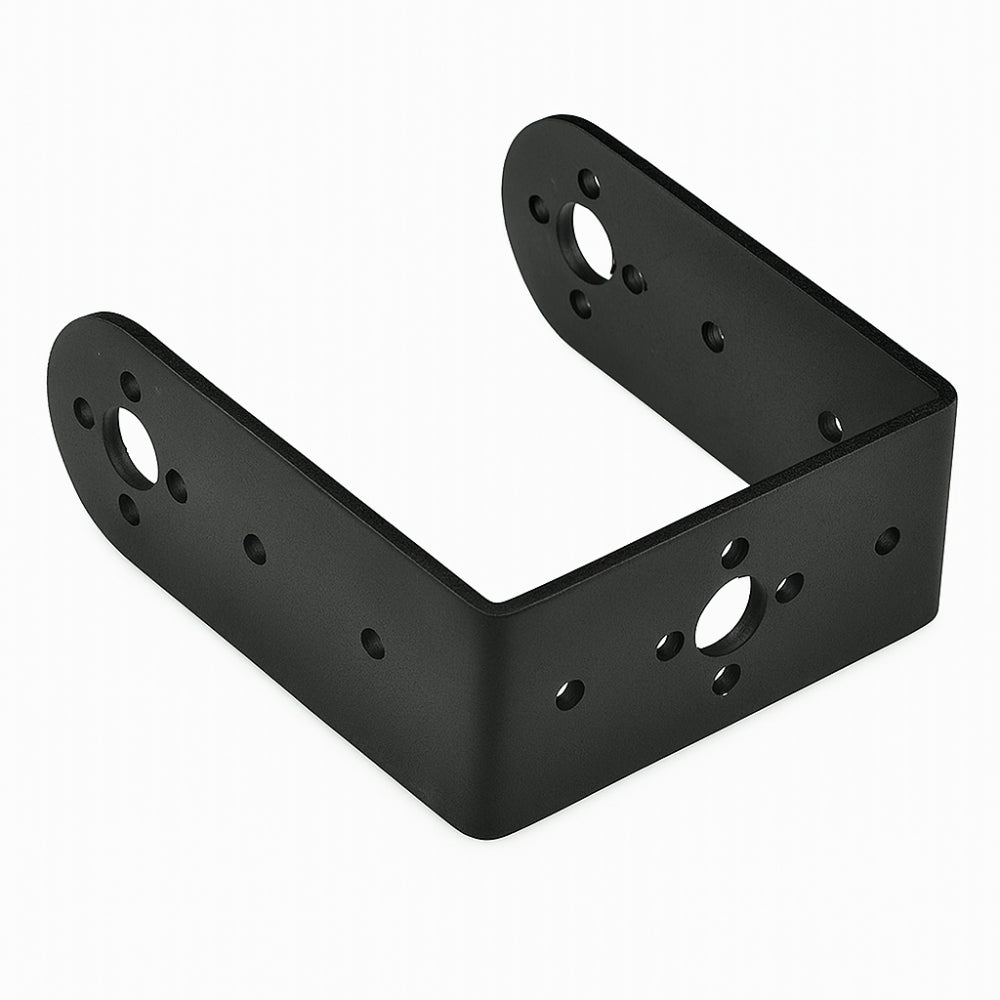

Bracket for servo motor mounts

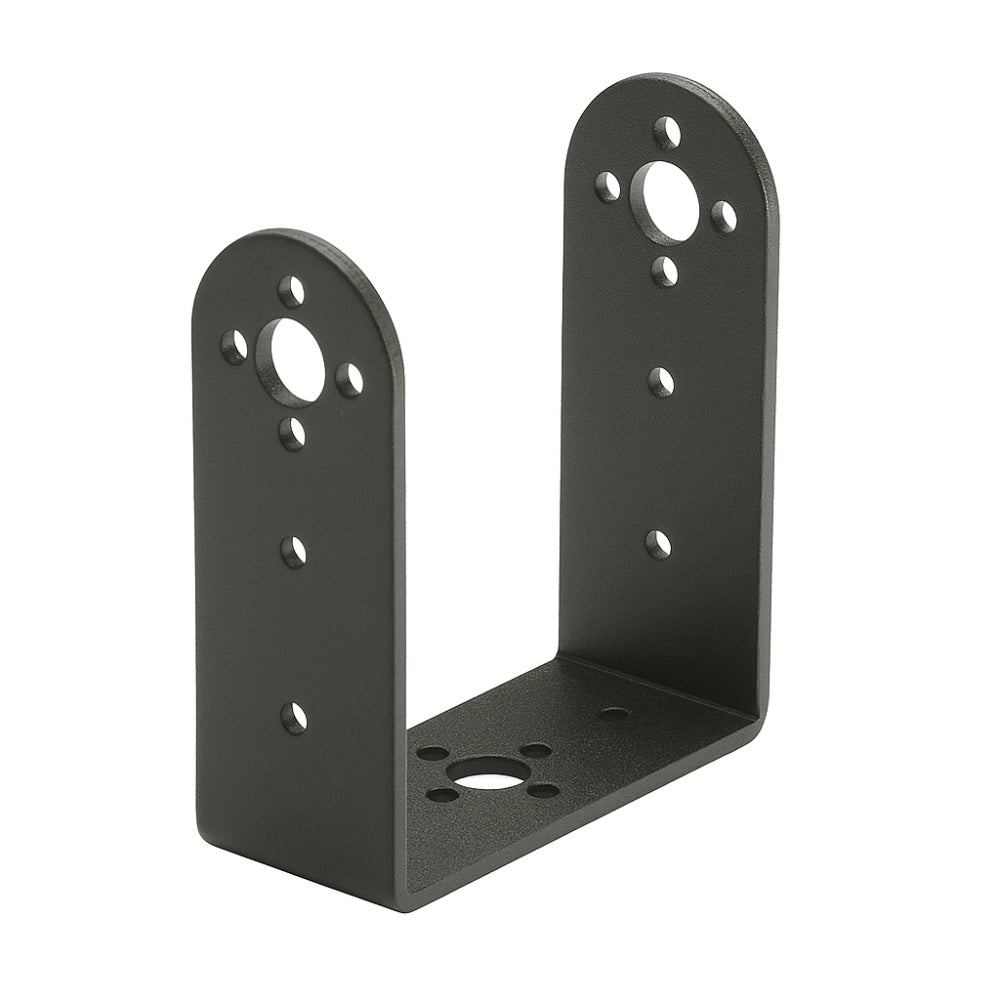

long-u-bracket-dof-robotics
Black long U bracket front view
Bracket for servo motor mounts
long-u-bracket-dof-robotics

Black Long U-Shaped Bracket Without Screw

Available:Out of Stock
  • Product SKU: LGRO119
Wishlist
₹ 99 ₹ 139
Pre-order
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

Black Long U-Shaped Bracket for Robot Arm / Servo Joint (Without Screw)

This strong metal bracket is designed for robotic arms where durability and precision are essential. It easily supports servo motor mounts, while also improving dof in robotics for multi-axis movement. Because of its long U-frame structure, this bracket is ideal for high-torque joints in humanoid robots and advanced linkage systems. The universal hole pattern makes this bracket compatible with MG995, MG996, DS3218, and similar servos. Additionally, it allows stable installation of gears and shafts, ensuring smooth function of servo motor mounts and helping projects achieve greater dof in robotics performance.

Technical Details

  • Material: High-strength metal (black coated)
  • Bracket Style: Long U-shaped frame
  • Side Panel Height: 55 mm
  • Bottom Plate Length: 50 mm
  • Width (Inner): 25 mm
  • Servo Horn Hole: Ø14 mm
  • Mounting Holes: Ø3 mm and Ø8 mm mixed pattern
  • Servo Hole Spacing: Standard 25T pattern
  • Thickness: 2 mm
  • Servo Compatibility: MG995 / MG996 / DS3218 / 25T horns
  • Mounting Hardware: Not included

Features

  • High-strength long U-frame bracket for solid structural support
  • Stable layout for servo motor mounts in many platforms
  • Black-coated surface improves durability and corrosion resistance
  • Enhances dof in robotics with reliable joint alignment
  • Multiple mounting holes allow flexible installation
  • Ideal for large robotic arm configurations

Applications

  • Robotic arm joints and grippers
  • Humanoid robot limbs and legs
  • Large servo-driven automation mechanisms
  • DIY robotics and STEM engineering
  • Multi-DOF robotic prototypes

Physical Attributes

  • Material: Black coated metal
  • Shape: Long U-frame structure
  • Side Height: 55 mm
  • Inner Width: 25 mm
  • Thickness: 2 mm
  • Color: Matte Black
  • Weight: 23 grams

Package Includes

  • 1 × Black Long U-Shaped Bracket
  • Note: Screws are not included
