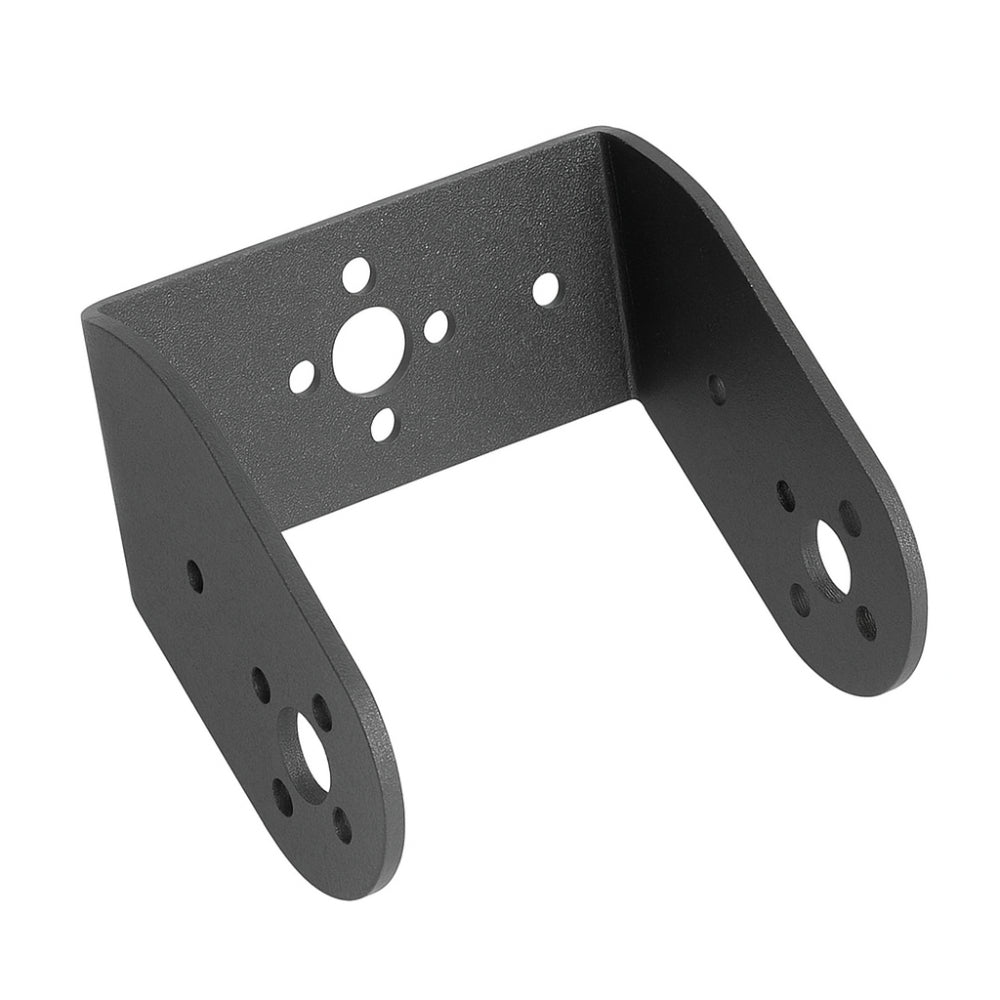

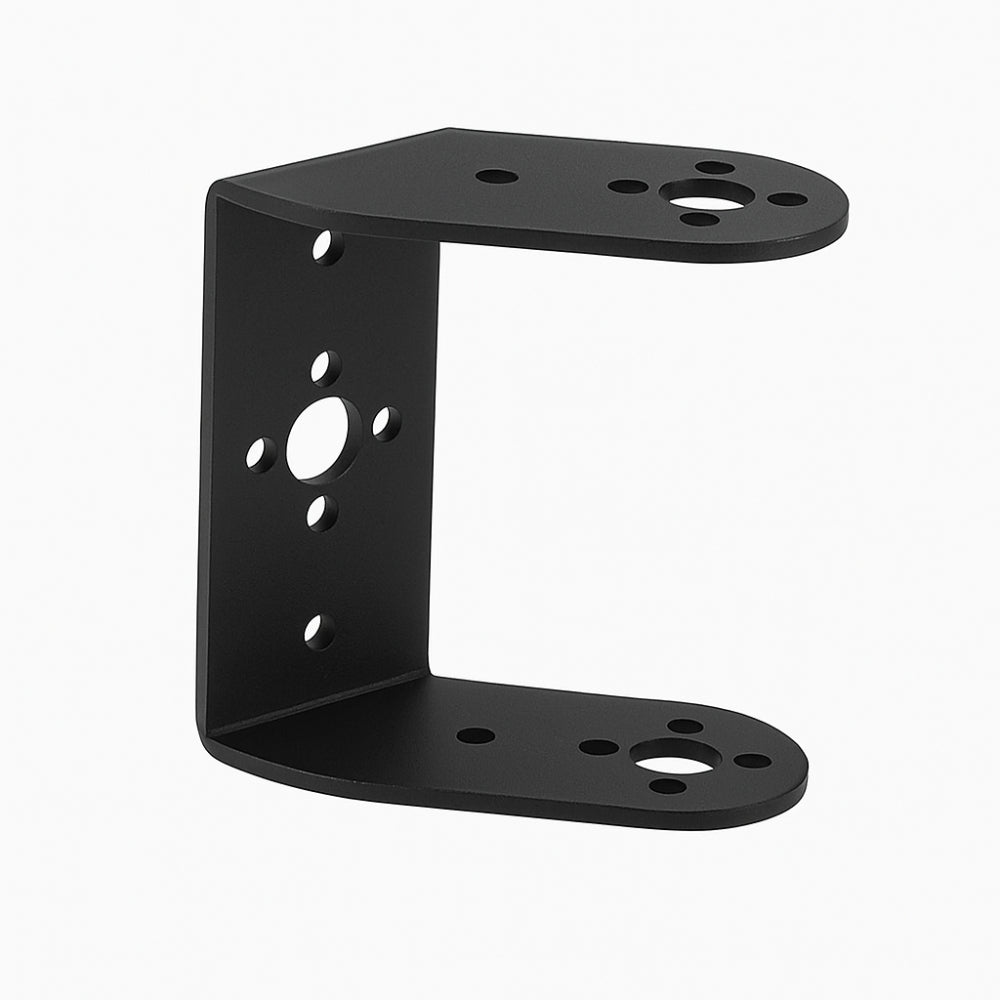

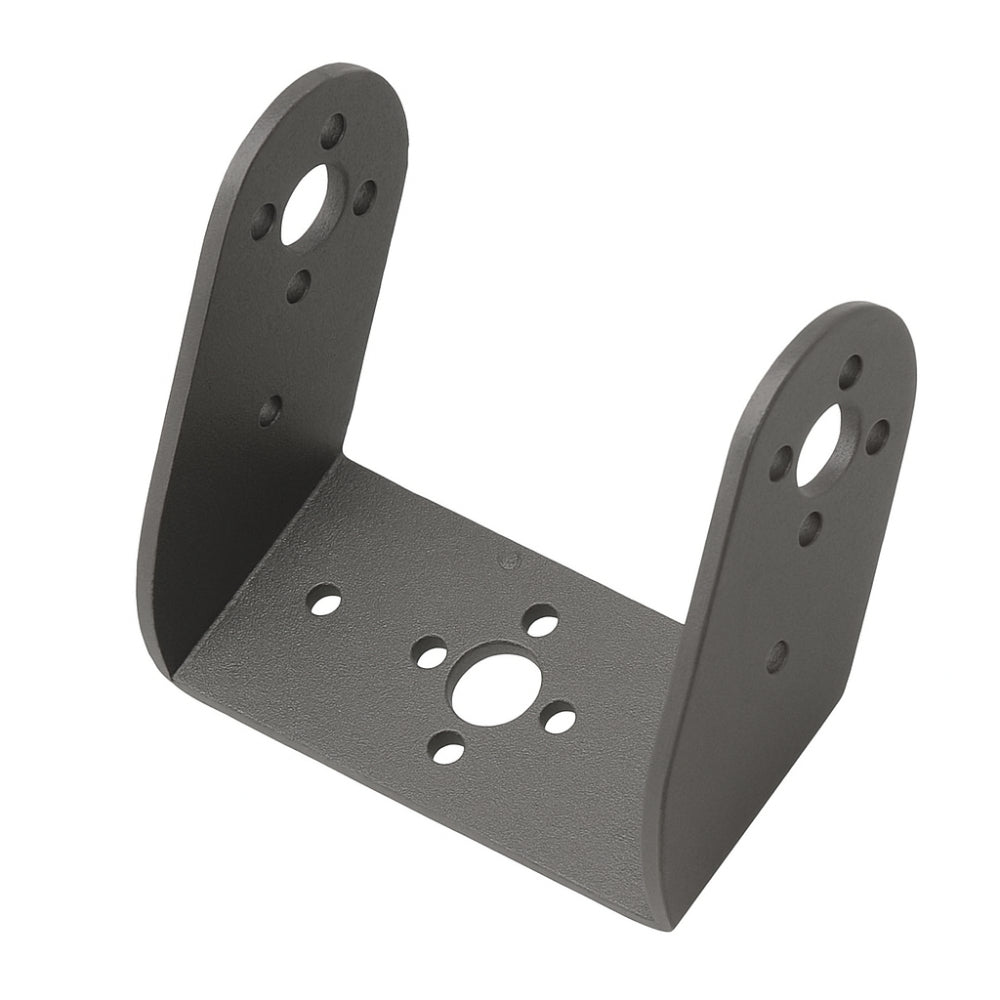

Black U-Shaped Bracket for Robot Arm / Servo Joint (Without Screw)

This heavy-duty bracket is engineered for robotic arms, humanoid robots, and articulated mechanisms. It supports standard servo motor mounts and enables smooth motion in complex dof in robotics projects. Its sleek black-coated metal frame ensures strength and longevity while providing a stable foundation for joint assemblies. With a universal hole pattern compatible with MG995, MG996, DS3218 and standard 25T servo horns, this bracket offers flexibility for various builds. It allows secure alignment of servos and mechanical linkages, making it ideal for both hobbyist robotics and advanced automation setups.

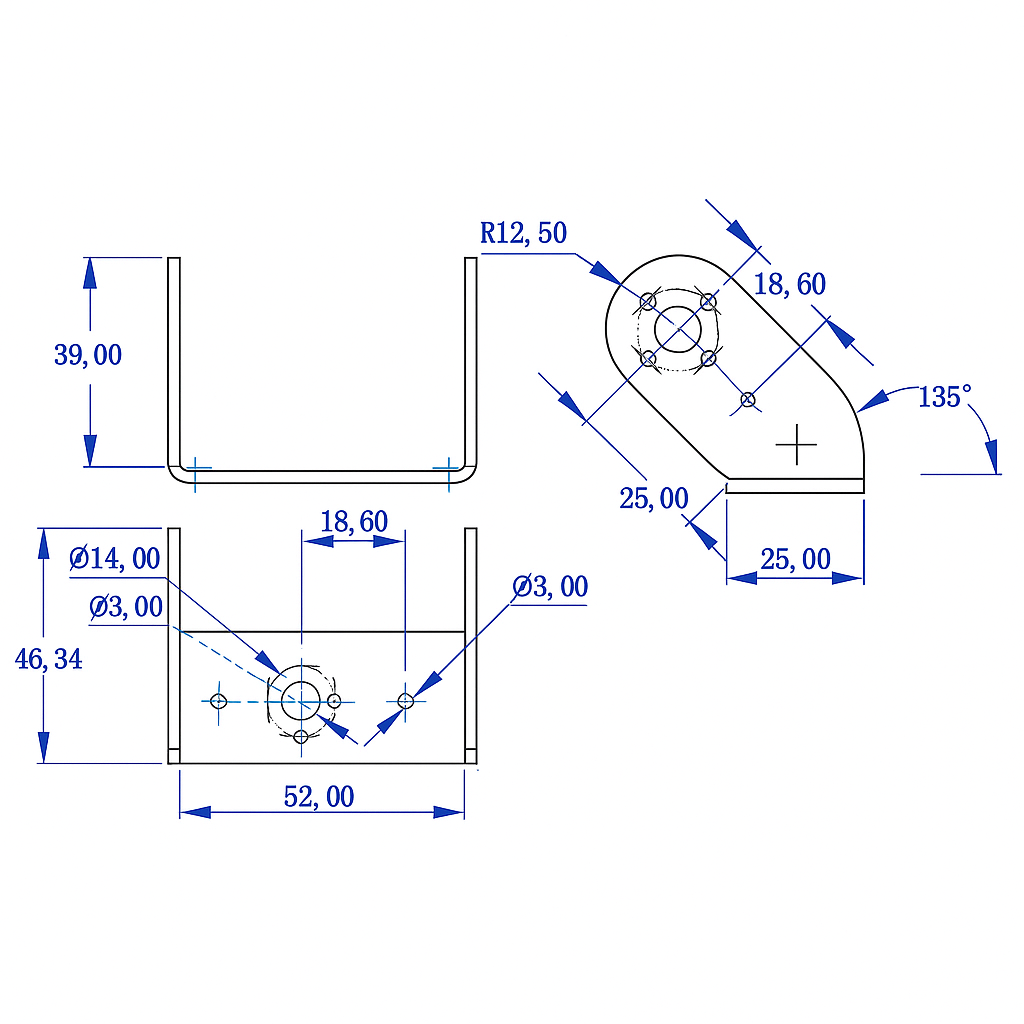

Technical Details

  • Material: High-strength metal (black coated)
  • Bracket Style: Oblique U-shaped frame
  • Total Width: 52 mm
  • Side Height: 39 mm
  • Front Plate Height: 46.34 mm
  • Bottom Width: 25 mm
  • Top Curve Radius: R12.50 mm
  • Large Hole Diameter: Ø14 mm
  • Medium Hole Diameter: Ø8 mm
  • Small Hole Diameter: Ø3 mm
  • Servo Hole Spacing: 18.60 mm (standard 25T)
  • Oblique Mounting Angle: 135°
  • Thickness: 2 mm
  • Servo Compatibility: MG995 / MG996 / DS3218 / 25T horns
  • Mounting Hardware: Not included

Features

  • Strong U-frame bracket for durable builds
  • Compatible with common servo motor mounts
  • Supports multi-axis motion for advanced dof in robotics
  • Precision drilling for reliable alignment
  • Black coated finish resists corrosion
  • Ideal for robotic arms, joints, and linkages

Applications

  • Robotic arm joints and servo-driven mechanisms
  • Humanoid robot limbs and articulated joints
  • Multi-axis servo mechanisms and custom builds
  • DIY robotics and STEM educational kits
  • Mechanisms requiring strong structural support

Physical Attributes

  • Material: Metal with black coating
  • Shape: Oblique U-frame bracket
  • Width: 52 mm
  • Side Height: 39 mm
  • Front Plate Height: 46.34 mm
  • Bottom Width: 25 mm
  • Mounting Angle: 135° oblique
  • Thickness: 2 mm
  • Weight: 18 g
  • Color: Matte Black

Package Includes

  • 1 × Black U-Shaped Bracket (no screws included)
