Black U-Shape Beam Without Screw
Available:In Stock
- Product SKU: LGRO114
₹ 139
₹ 199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

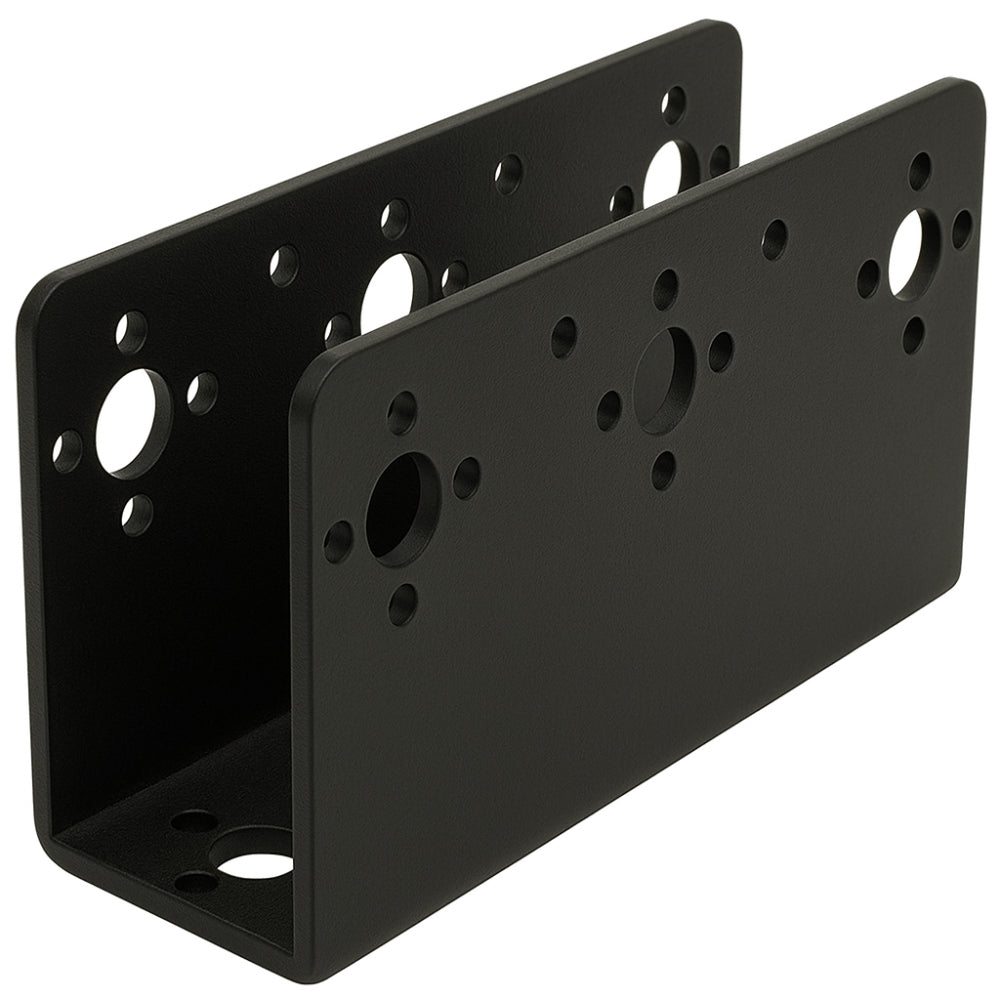

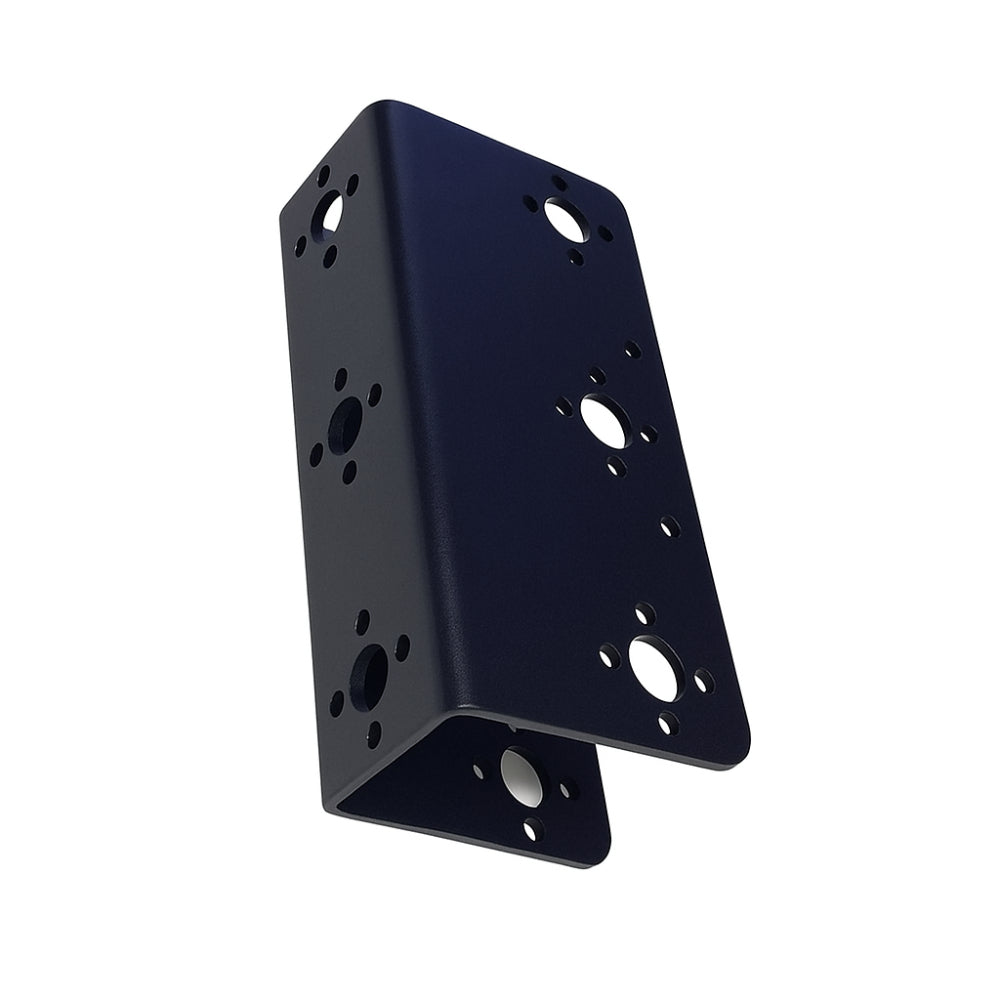

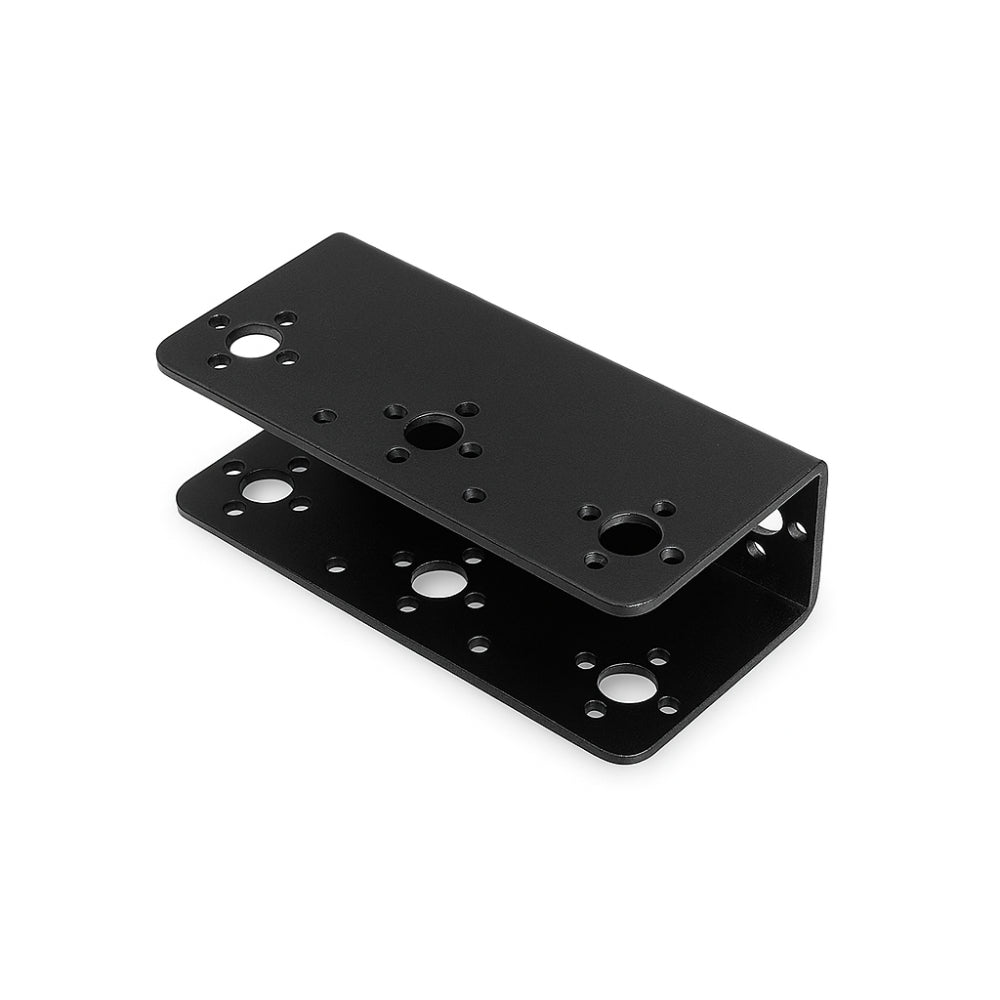

Black U-Shape Bracket for Servo Motor / Robot Arm (Without Screws)
This sturdy bracket is crafted from black-coated metal, offering reliable support for robotic frames and arm constructions. It works well for servo motor mounts and supports flexible dof in robotics, making it ideal for custom humanoid joints, mechanical linkages, or sensor platforms. With multiple precisely drilled holes and a smart U-shape design, this bracket simplifies assembly and ensures stable alignment. Therefore it becomes an essential structural component for DIY robotics, automation prototypes, or educational projects where strength and precision matter.Technical Details

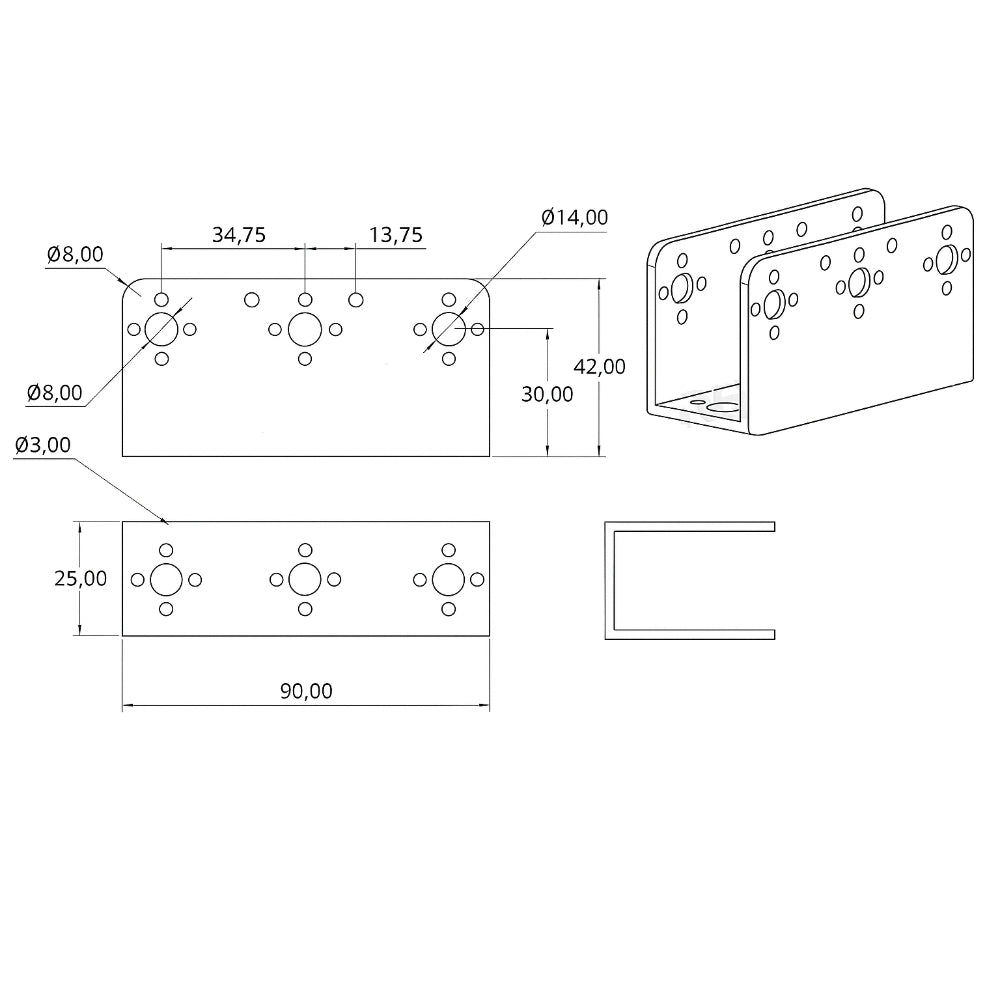

- Material: High-strength metal (black powder coated)
- Beam Type: U-shaped structural bracket
- Total Length: 90 mm
- Height: 42 mm
- Side Panel Height: 30 mm
- Inner Width: 25 mm
- Large Hole Diameter: Ø14 mm
- Medium Hole Diameter: Ø8 mm
- Small Hole Diameter: Ø3 mm
- Hole Spacing (center): 34.75 mm & 13.75 mm
- Servo Compatibility: MG995 / MG996 / DS3218 and 25T horn servos
- Mounting Hardware: Not included
Features
- Heavy-duty metal construction for robust builds
- Precise hole pattern for flexible connection points
- Suitable for servo motor mounts in robotic joints
- Corrosion-resistant black coating for longevity
- Ideal for multi-DOF setups requiring stable dof in robotics
- Lightweight yet structurally strong for compact robot frames
Applications
- Robot arm frames and joint structures
- Humanoid robot limbs and body assemblies
- Servo-driven mechanisms requiring stable bracket support
- STEM robotics projects and DIY automation kits
- Custom frames and mechanical prototypes for robots
Physical Attributes
- Material: Metal (black coated)
- Shape: U-frame structural bracket
- Length: 90 mm
- Height: 42 mm
- Inner Width: 25 mm
- Thickness: 2 mm
- Weight: 7 g approx.
- Multiple precision-cut mounting holes
Package Includes
- 1 × Black U-Shape Beam Without Screw
