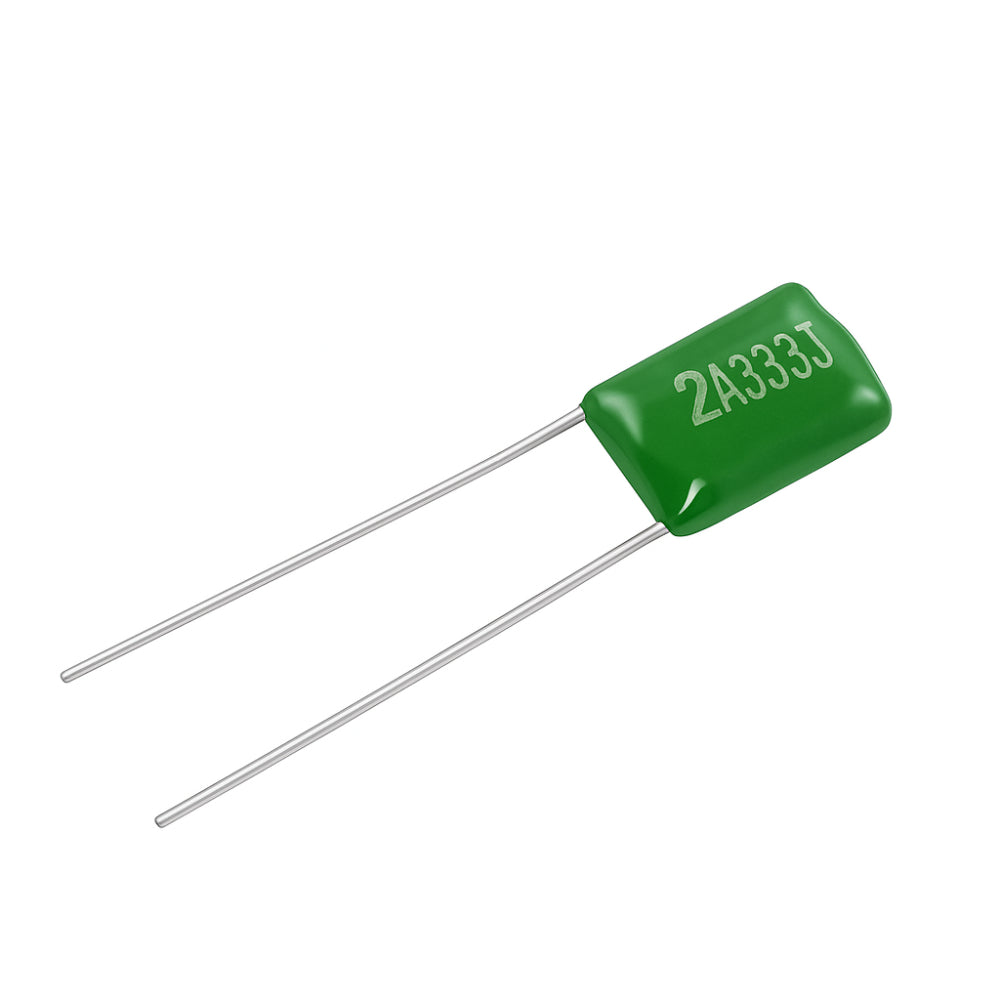

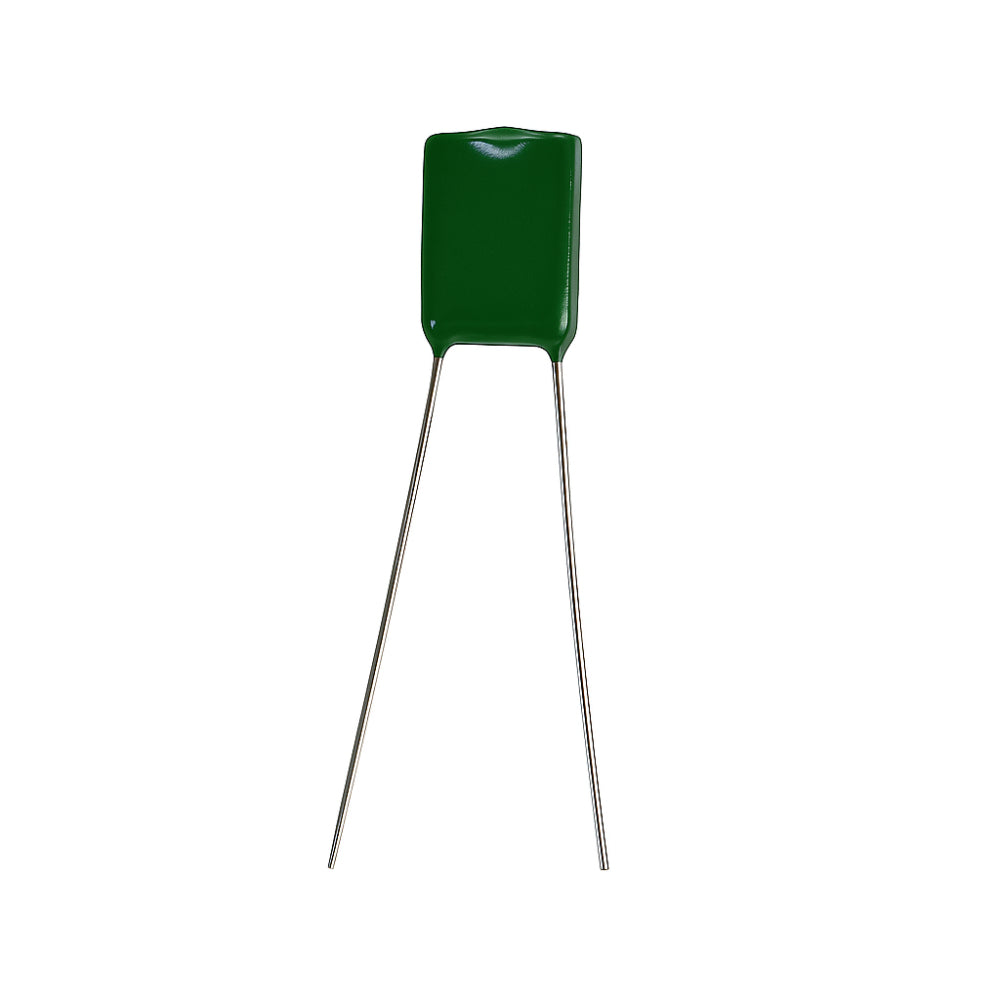

CL11 Polyester Film Capacitor 2A333J – 33nF 0.033µF 100V ±5%
![CL11 Polyester Film Capacitor 2A333J – 33nF 0.033µF 100V ±5%]()
![CL11 Polyester Film Capacitor 2A333J – 33nF 0.033µF 100V ±5%_1]()
![CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1]()
![CL11 Polyester Film Capacitor 2A333J – 33nF 0.033µF 100V ±5%]()
![CL11 Polyester Film Capacitor 2A333J – 33nF 0.033µF 100V ±5%_1]()
![CL11 Polyester Film Capacitor 250V 102J – 1nF (1000pF) ±5%_1]()
This capacitor is perfect for signal coupling, decoupling, timing, and filtering applications in low- to medium-voltage electronic circuits. Its stable capacitance, low loss, and high insulation resistance make it suitable for both hobby and professional electronics.
-33%
CL11 Polyester Film Capacitor 2A333J – 33nF 0.033µF 100V ±5%
Available:In Stock
- Product SKU: CAPAC128
₹ 6
₹ 9
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
CL11 Polyester Film Capacitor 2A333J – 0.033µF 33nF 100V ±5%
The CL11 Polyester Film Capacitor 2A333J is a high-quality metallized polyester film capacitor with a capacitance value of 0.033µF (33nF) and a rated voltage of 100V.This capacitor is perfect for signal coupling, decoupling, timing, and filtering applications in low- to medium-voltage electronic circuits. Its stable capacitance, low loss, and high insulation resistance make it suitable for both hobby and professional electronics.
Features
- High-quality metallized polyester film construction
- Excellent stability and low dielectric loss
- High insulation resistance and dependable performance
- Rated for 100V DC circuits
- Compact and easy to mount through-hole design
Technical Details
- Capacitance: 0.033µF (33nF)
- Rated Voltage: 100V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 6 mm
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: 10 mm
- Body Height: 7 mm
- Body Thickness: 4 mm
- Lead Diameter: 0.5 mm (approx.)
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: 1 g
Applications
- Coupling and decoupling in amplifier and signal circuits
- Filtering in low-voltage power supplies
- Timing and waveform shaping circuits
- Energy storage in pulse circuits
- General-purpose electronics
Package Includes
- 1 × CL11 Polyester Film Capacitor 2A333J – 0.033µF 100V ±5%
