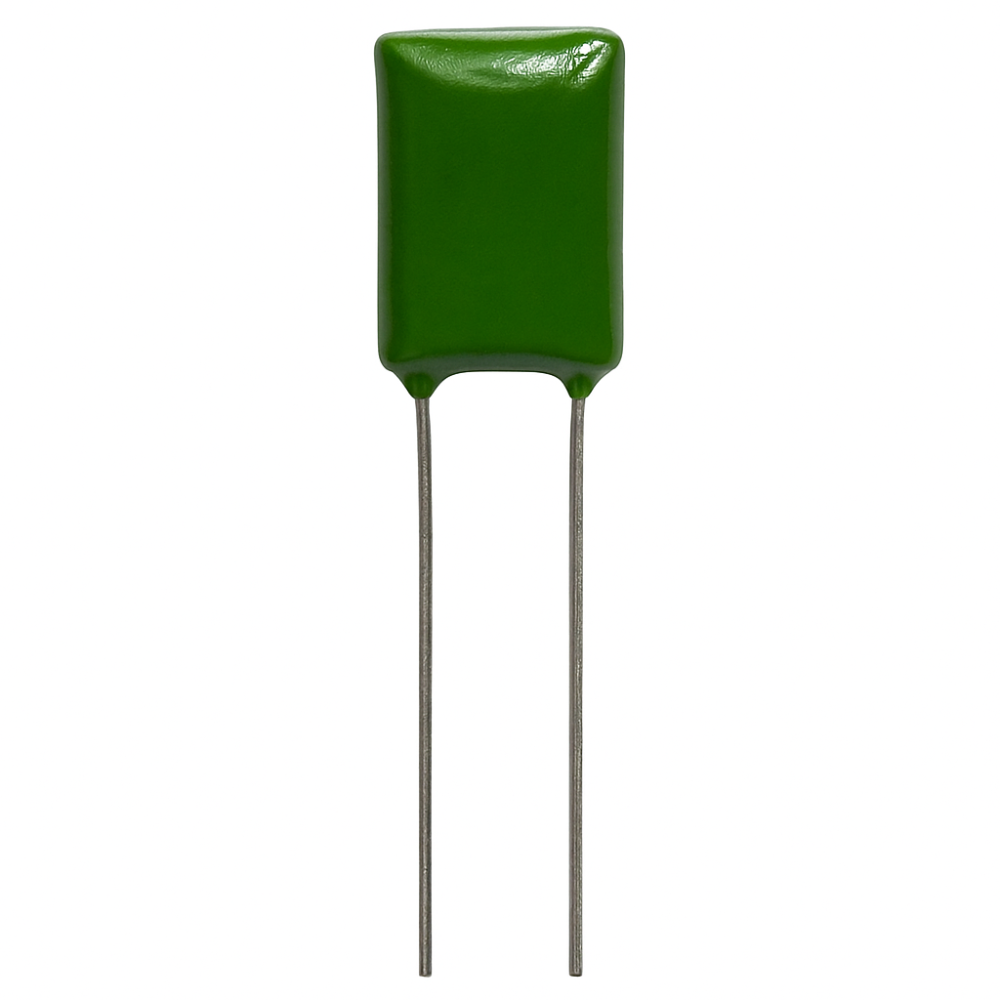

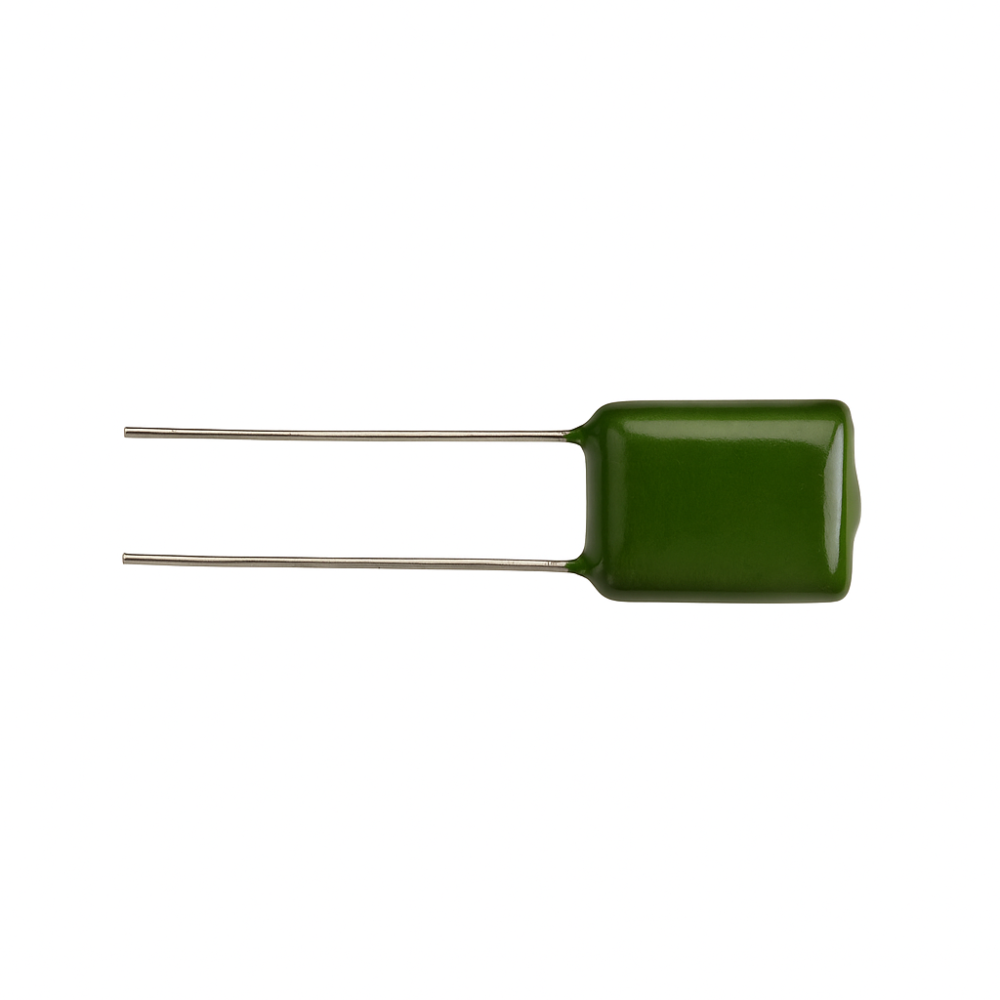

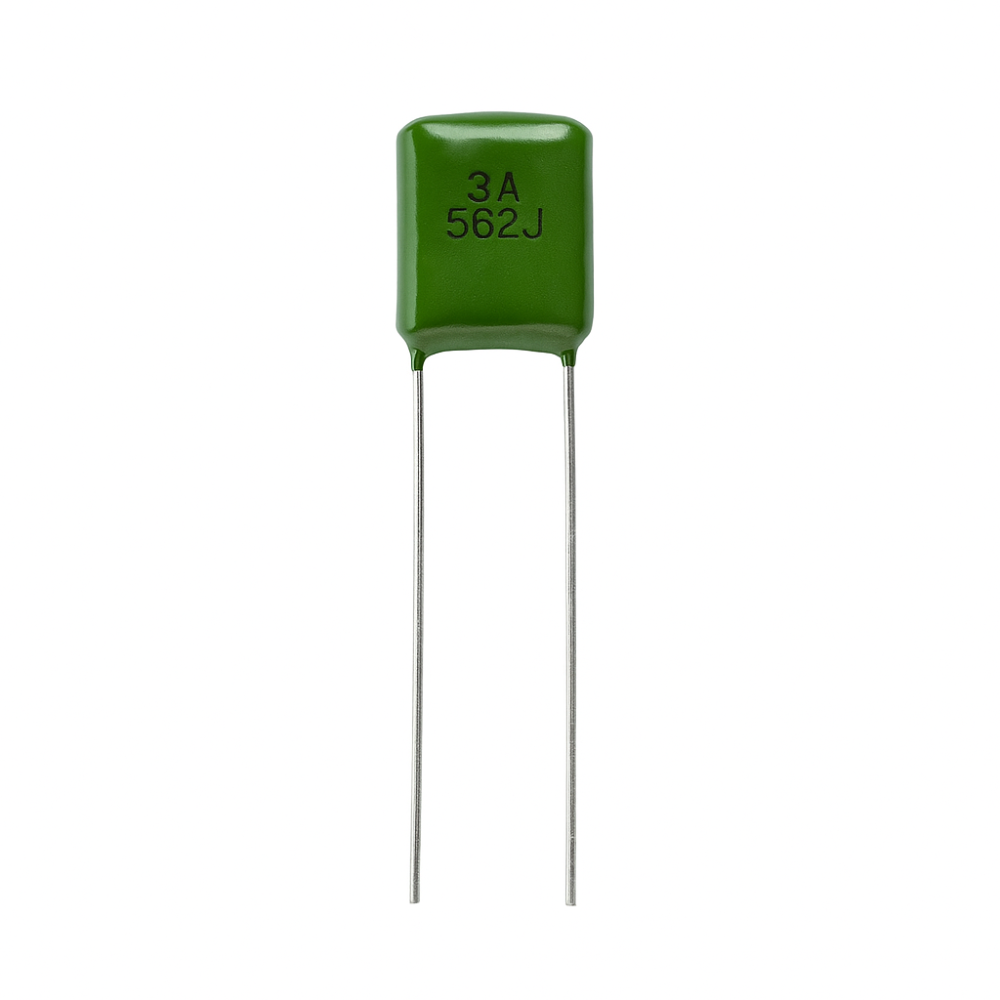

CL11 Polyester Film Polyester Capacitor 3A562J 0.0056µF 5.6nF 1200V
![Polyester Film Polyester Capacitor 3A562J 0.0056µF 5nF 1200V-1]()
![Polyester Film Polyester Capacitor 3A562J 0.0056µF 5nF 1200V-2]()
![Polyester Film Polyester Capacitor 3A562J 0.0056µF 5nF 1200V-3]()
![Polyester Film Polyester Capacitor 3A562J 0.0056µF 5nF 1200V-1]()
![Polyester Film Polyester Capacitor 3A562J 0.0056µF 5nF 1200V-2]()
![Polyester Film Polyester Capacitor 3A562J 0.0056µF 5nF 1200V-3]()
It is specifically designed for high-voltage coupling, filtering, snubber, and pulse circuits that require reliable performance under high electrical stress. Its ±5% tolerance, low dielectric loss, and excellent insulation resistance make it ideal for power electronics, SMPS, and demanding industrial applications.
-33%
CL11 Polyester Film Polyester Capacitor 3A562J 0.0056µF 5.6nF 1200V
Available:Out of Stock
- Product SKU: CAPAC109
₹ 6
₹ 9
Specification
Description
CL11 Polyester Film Capacitor 1200V 3A562J – 0.0056µF 5.6nF ±5%
The CL11 Polyester Film Capacitor 1200V 3A562J is a high-voltage metallized polyester film capacitor with a capacitance of 0.0056µF (5.6nF) and a rated voltage of 1200V.It is specifically designed for high-voltage coupling, filtering, snubber, and pulse circuits that require reliable performance under high electrical stress. Its ±5% tolerance, low dielectric loss, and excellent insulation resistance make it ideal for power electronics, SMPS, and demanding industrial applications.
Features
- High-voltage metallized polyester film construction
- Stable capacitance with ±5% tolerance
- Excellent insulation resistance and low loss
- Rated for 1200V DC circuits
- Compact through-hole design for PCB mounting
Technical Details
- Capacitance: 0.0056µF (5.6nF)
- Rated Voltage: 1200V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 7.5 – 10 mm (typical)
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: ~10–11 mm
- Body Height: ~7–8 mm
- Body Thickness: ~4 mm
- Lead Diameter: 0.6 mm
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: < 1 g
Applications
- High-voltage coupling and decoupling circuits
- Filtering in SMPS and inverter systems
- Snubber and pulse discharge circuits
- Energy storage in high-voltage power circuits
- Industrial and general-purpose electronics
Package Includes
- 1 × CL11 Polyester Film Capacitor 1200V 3A562J – 0.0056µF ±5%
