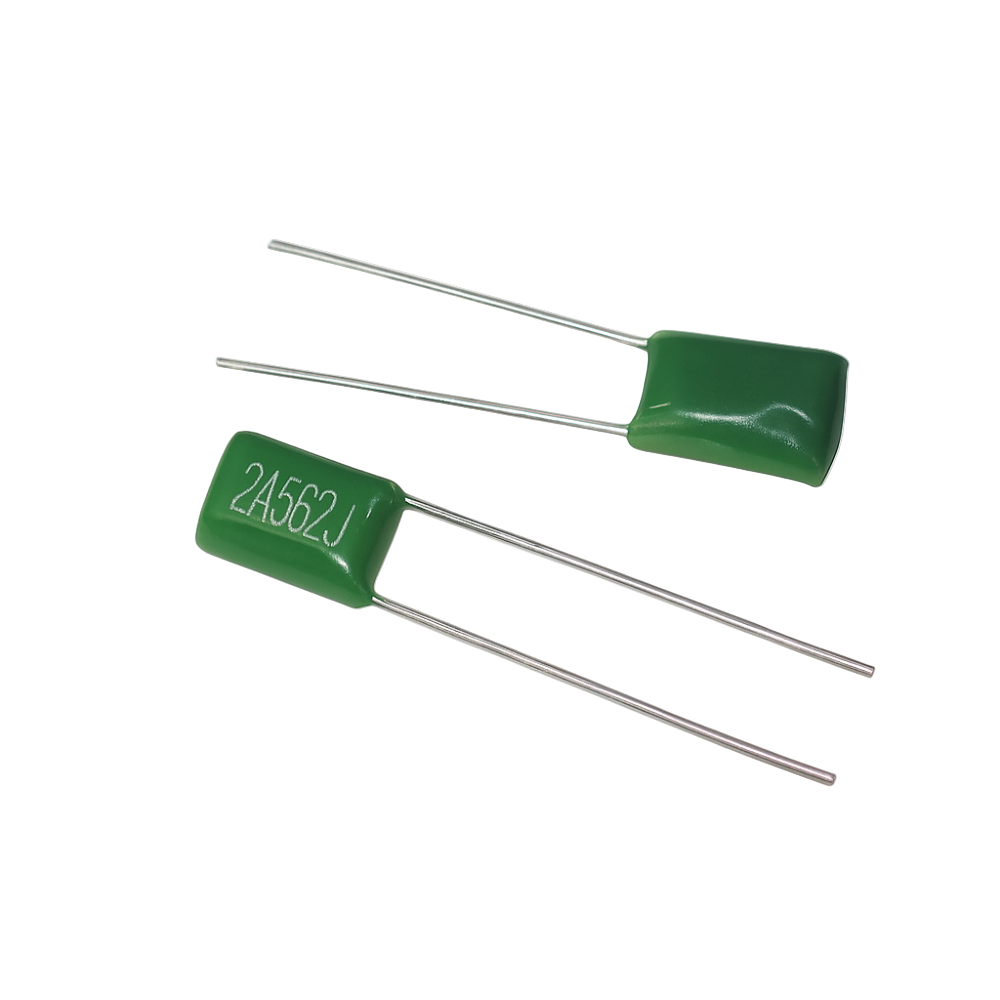

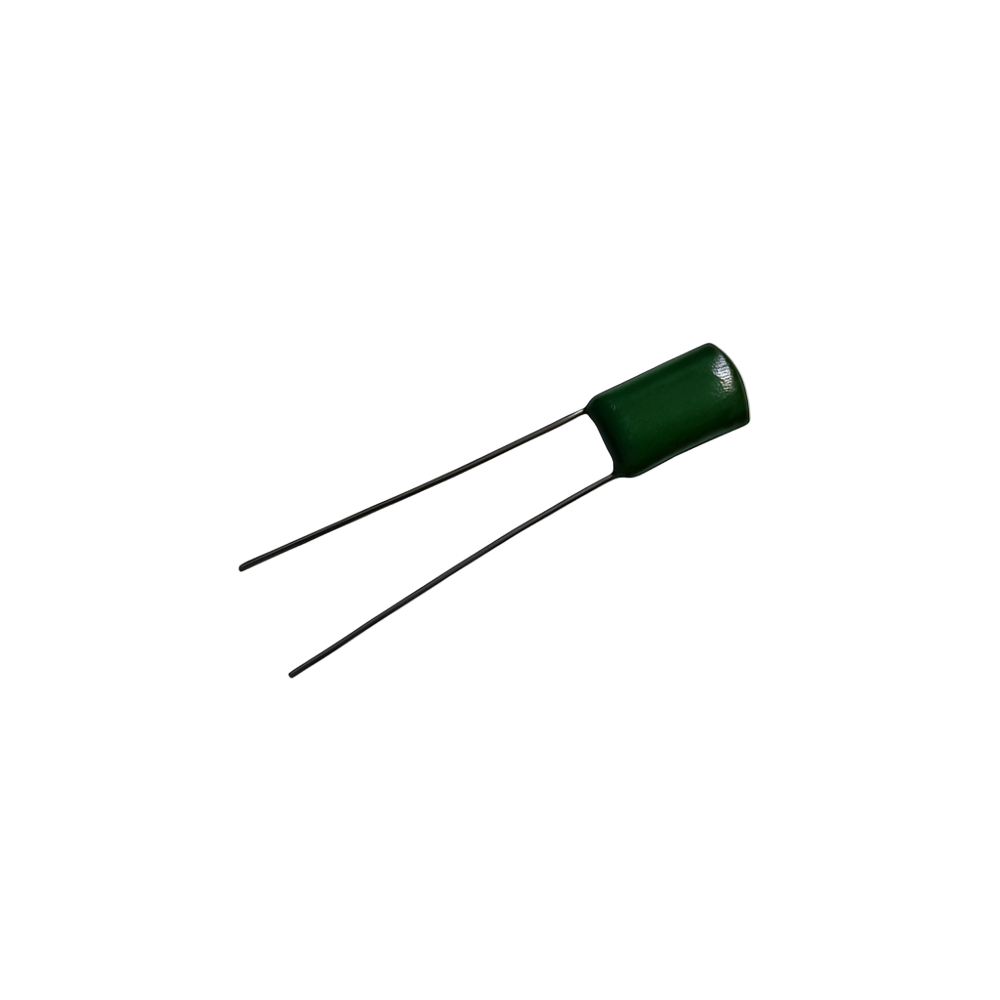

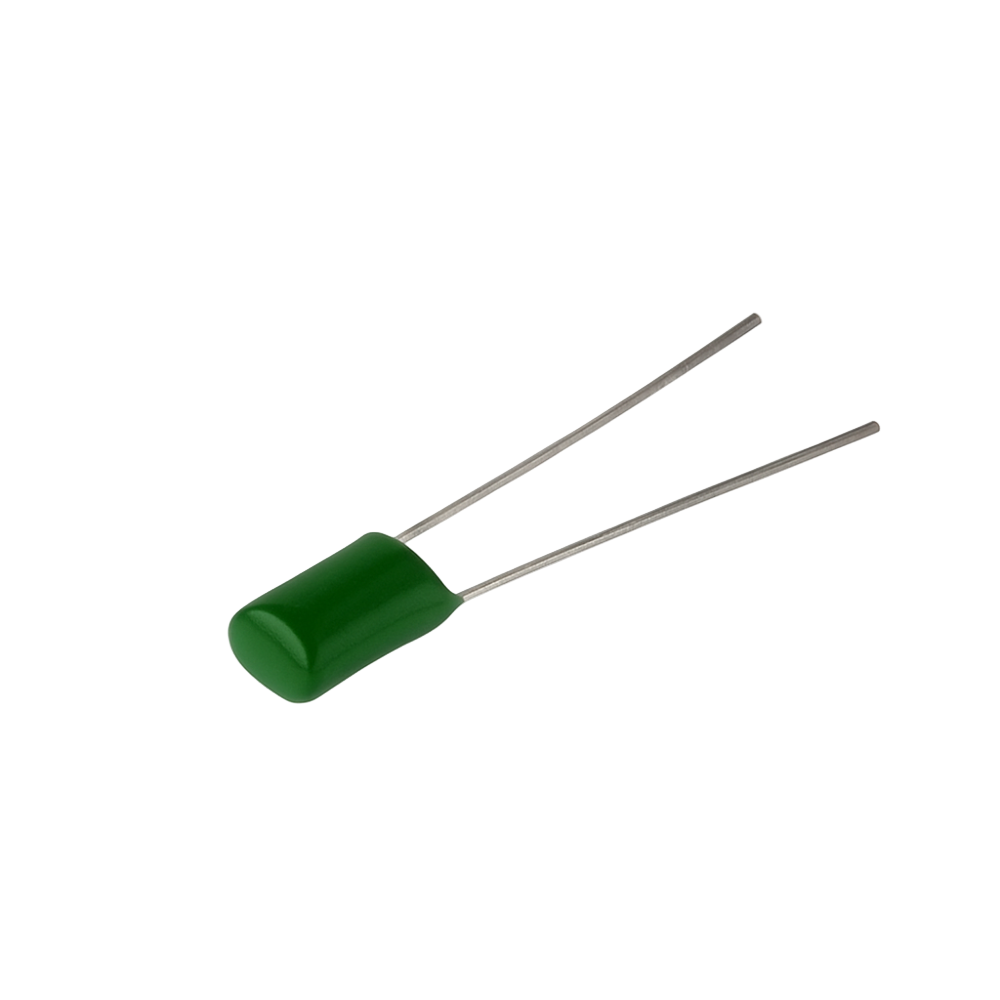

CL11 Polyester Film Capacitor 2A562J 0.0056µF 5nF 100V
![CL11 Polyester Film Capacitor 2A562J 0.0056µF -3]()
![CL11 Polyester Film Capacitor 2A562J 0.0056µF -1]()
![CL11 Polyester Film Capacitor 2A562J 0.0056µF -2]()
![CL11 Polyester Film Capacitor 2A562J 0.0056µF -3]()
![CL11 Polyester Film Capacitor 2A562J 0.0056µF -1]()
![CL11 Polyester Film Capacitor 2A562J 0.0056µF -2]()
It is designed for signal coupling, decoupling, filtering, and timing applications where stable capacitance and reliable insulation are required. With its ±5% tolerance, low dielectric loss, and high insulation resistance, it is an excellent choice for precision electronic circuits.
-33%
CL11 Polyester Film Capacitor 2A562J 0.0056µF 5nF 100V
Available:In Stock
- Product SKU: CAPAC103
₹ 6
₹ 9
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
CL11 Polyester Film Capacitor 100V 2A562J – 0.0056µF 5.6nF ±5%
The CL11 Polyester Film Capacitor 100V 2A562J is a high-quality metallized polyester film capacitor with a capacitance of 0.0056µF (5.6nF) and a rated voltage of 100V.It is designed for signal coupling, decoupling, filtering, and timing applications where stable capacitance and reliable insulation are required. With its ±5% tolerance, low dielectric loss, and high insulation resistance, it is an excellent choice for precision electronic circuits.
Features
- Reliable metallized polyester film construction
- Stable capacitance with ±5% tolerance
- High insulation resistance and low dielectric loss
- Rated for 100V DC applications
- Compact through-hole design for easy mounting
Technical Details
- Capacitance: 0.0056µF (5.6nF)
- Rated Voltage: 100V DC
- Tolerance: ±5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 5 mm (typical)
- Operating Temperature: −40°C to +85°C
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: ~6–8 mm
- Body Height: ~5–6 mm
- Body Thickness: ~3 mm
- Lead Diameter: 0.5 mm (approx.)
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: 0.21 g
Applications
- Signal coupling and decoupling circuits
- Noise filtering in analog circuits
- RC timing and oscillator networks
- Pulse and snubber circuits
- General-purpose electronics
Package Includes
- 1 × CL11 Polyester Film Capacitor 100V 2A562J – 0.0056µF ±5%
