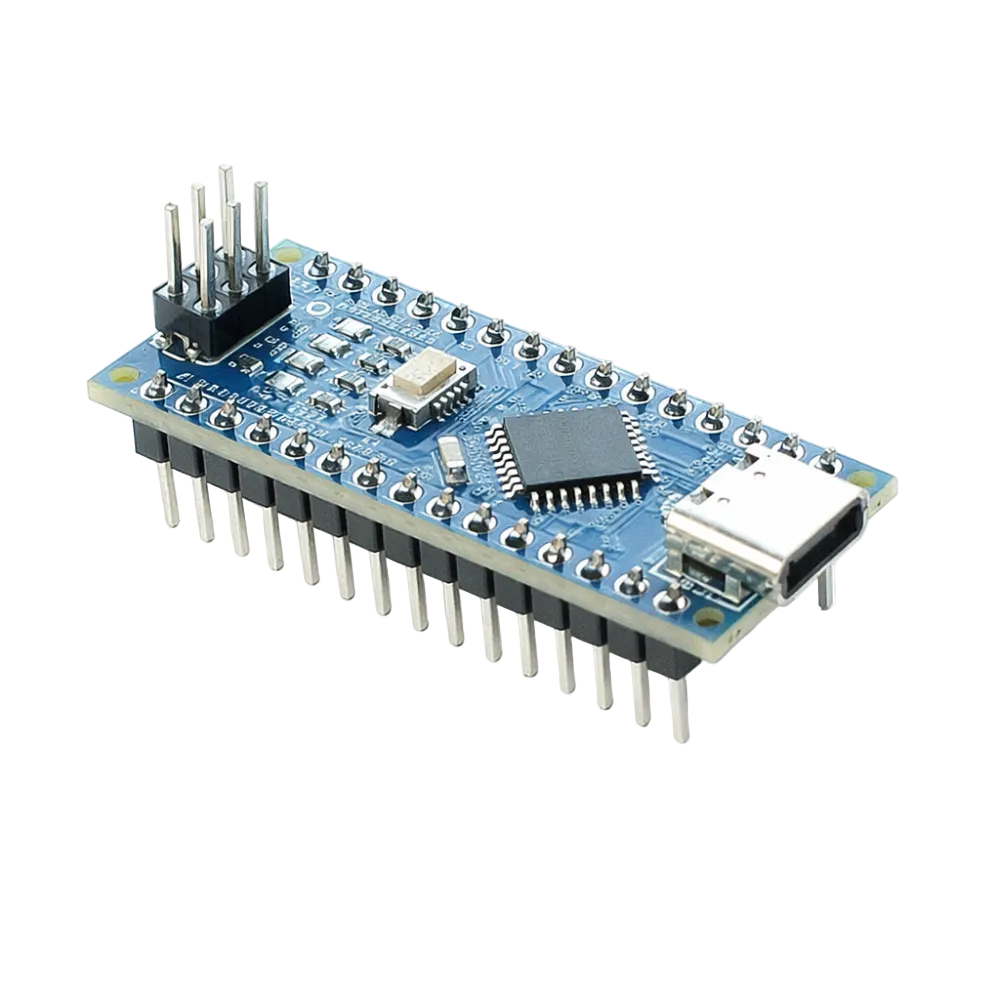

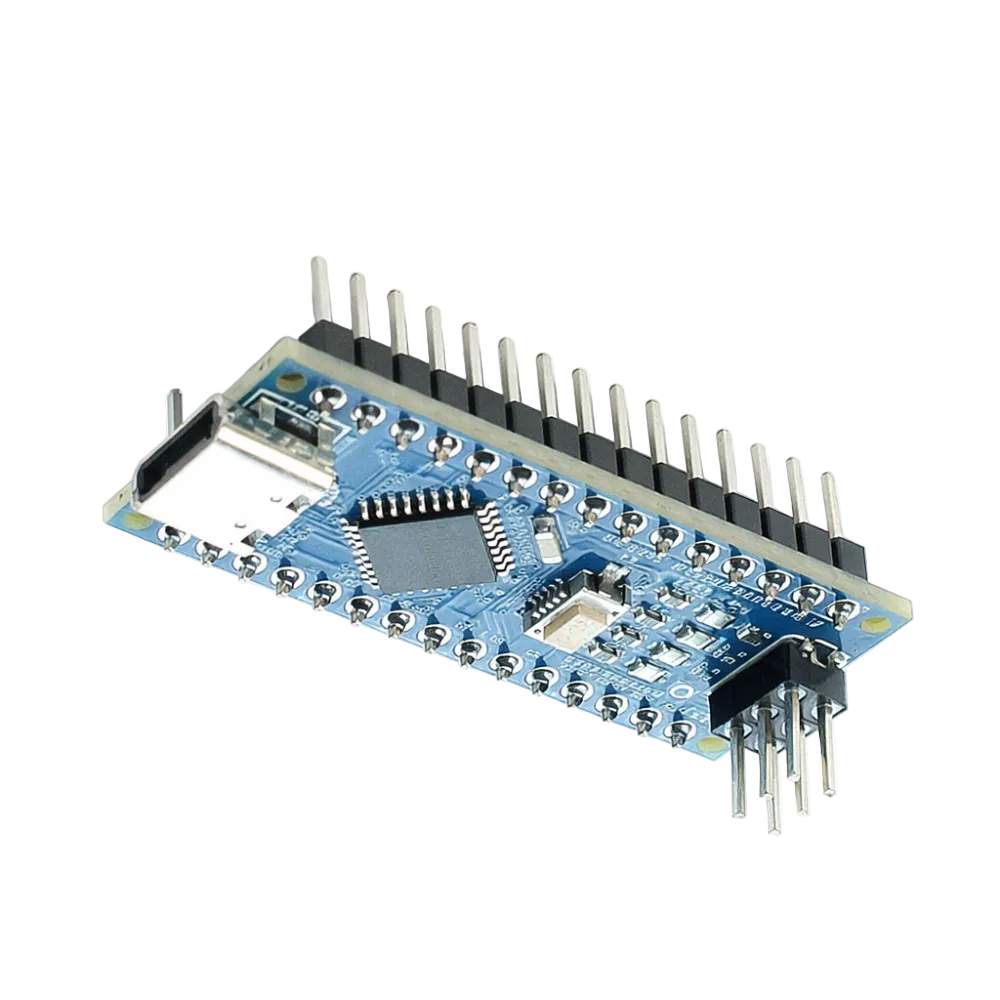

Nano V3.0 CH340G C Type with soldered Pin Headers ATmega328P
![NanoV3.0CH340GC-4]()
![NanoV3.0CH340GC-5]()
![NanoV3.0CH340GC-3]()
![NanoV3.0CH340GC-4]()
![NanoV3.0CH340GC-5]()
![NanoV3.0CH340GC-3]()
This version features a modern USB Type-C interface powered by the CH340G USB-to-Serial converter and comes with pre-soldered pin headers, allowing immediate plug-and-play use on breadboards and prototype boards. It is fully compatible with the Arduino IDE and existing Arduino libraries.
The board can be powered via USB, an external 6–20V unregulated supply, or a regulated 5V input. Power is automatically selected based on the highest available voltage source.
-17%
Nano V3.0 CH340G C Type with soldered Pin Headers ATmega328P
Available:Out of Stock
- Product SKU: KGPDB008
₹ 189
₹ 229
Specification
Description
Nano V3.0 ATmega328P 5V 16MHz CH340G Type-C (With Soldered Pin Headers)
The Nano V3.0 ATmega328P Development Board is a compact, Arduino-compatible microcontroller board based on the ATmega328P, operating at 5V and 16 MHz. Functionally similar to the Arduino Duemilanove, it delivers the same capabilities in a much smaller form factor, making it ideal for compact and embedded projects.This version features a modern USB Type-C interface powered by the CH340G USB-to-Serial converter and comes with pre-soldered pin headers, allowing immediate plug-and-play use on breadboards and prototype boards. It is fully compatible with the Arduino IDE and existing Arduino libraries.
The board can be powered via USB, an external 6–20V unregulated supply, or a regulated 5V input. Power is automatically selected based on the highest available voltage source.
Features
- Based on ATmega328P microcontroller
- CH340G USB-to-Serial converter
- USB Type-C interface
- Operating voltage (logic level): 5V
- Clock frequency: 16 MHz crystal oscillator
- Pre-soldered pin headers for easy use
- Supports ISP programming
- Small form factor for compact designs
- Breadboard-friendly layout
- Fully compatible with Arduino IDE
Technical Specifications
- Item Type: Development Board
- Board Type: Nano V3.0
- Microcontroller: ATmega328P
- Processor Core: Single-core
- Operating Voltage: 5 V
- Clock Speed: 16 MHz
- Flash Memory: 32 KB (2 KB used by bootloader)
- SRAM: 2 KB
- EEPROM: 1 KB
- USB Interface: Type-C
I/O & Pin Configuration
- Digital I/O Pins: 22 (D0–D13, including TX/RX)
- Analog Input Pins: 8 (A0–A7)
- PWM Pins: D3, D5, D6, D9, D10, D11
- UART: 1× TTL serial (RX / TX)
- SPI: Supported via ICSP
- I2C: Supported
Power Specifications
- Power via USB Type-C
- External Input: 6–20 V (unregulated)
- Regulated Input: 5 V
- Automatic power source selection
Physical Attributes
- USB Connector: Type-C
- Pin Headers: Pre-soldered
- Form Factor: Nano
Applications
- Arduino learning and education
- Compact electronic projects
- Breadboard prototyping
- DIY electronics and robotics
- Embedded control systems
Package Includes
- 1 × Nano V3.0 ATmega328P 5V 16MHz CH340G Type-C Development Board (Soldered Headers)
Note: Actual product appearance may vary slightly in terms of design.
