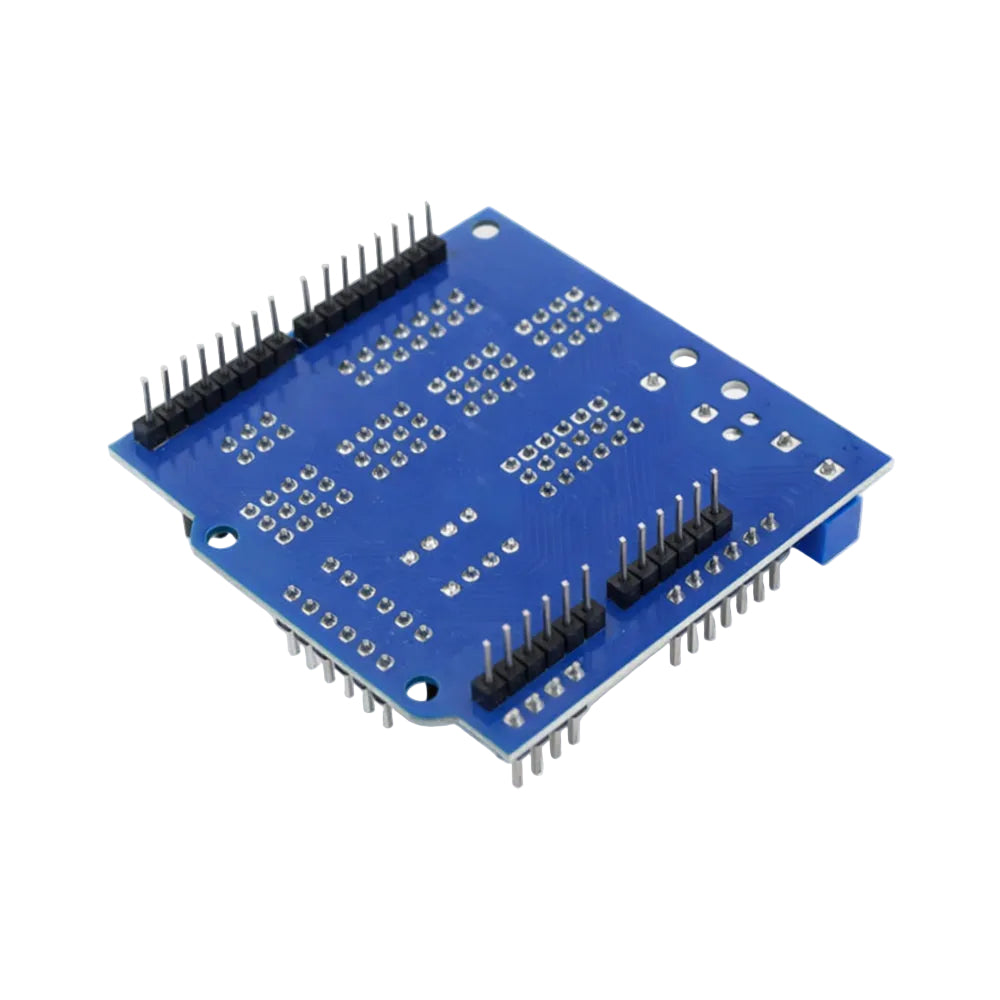

Sensor Shield v5
![sensor shield v5 Board For Arduino]()
![Sensor Shield V5 Expansion Board For Arduino]()
![sensor shield v5]()
![Sensor Shield V5 Expansion Board For Arduino]()
![sensor shield v5 Board For Arduino]()
![Sensor Shield V5 Expansion Board For Arduino]()
![sensor shield v5]()
![Sensor Shield V5 Expansion Board For Arduino]()
The Arduino Sensor Shield V5 Expansion Board allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers, and much more directly to your Arduino through this Sensor Shield. Each functional module has a buckled port with VCC, GND, and Output, which has the corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, making the connections easier, more secure, and more professional-looking.
You can easily connect with usual analog sensors by using this V5 Expansion Board, such as the ray sensor. If you support this expansion board and the corresponding circuit module, you only need to combine Arduino and the sensors module by using special cables, because concreteย Circuit details are achieved by the corresponding sensors module, so you only need to consider how to read data coming from the sensor by the program in Arduino.
Standardized Connectors: The board features a variety of connectors and pins that correspond to common electronic components, such as sensors, servos, motors, and communication modules.
Labeled Pins: The pins and connectors on the Arduino Sensor Shield V5 are labeled with their functions (e.g., analog, digital, power, ground), making it easier to understand where to connect your components.
Power Management: The board often includes power buses that allow you to provide power to multiple components simultaneously without the need for separate power supplies.
Onboard Components: Some versions of the Arduino Sensor Shield V5 may include built-in LEDs, buttons, potentiometers, and other components that you can use for testing and prototyping.
Expansion Headers: The board typically provides additional headers and pins where you can connect jumper wires, servos, and other components that might not have specific connectors on the board.
Ease of Use: By using the Sensor Shield V5, you can avoid the hassle of connecting wires individually to the Arduino's pins, resulting in a neater and more organized setup.
Actuator Control: Interface with servos, motors, and relays for controlling movement and physical actions.
Communication Modules: Connect wireless communication modules like Bluetooth, Wi-Fi, and RF modules for data transmission.
-27%
Sensor Shield v5
Available:In Stock
- Product SKU: KG010
โน 180
โน 249
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
๐
Warehouse Details:
Specification
Description
The sensor shield v5 For Arduino is the latest shield compatible with Arduino Uno and Arduino Due. This sensor shield v5 shield expansion board retains the advantages of version V4.0 on the basis of stack design, and PCB Immersion Gold processing technology. It's newly added many kinds of interface, for example, IIC interface, 32 channels servo motor interface, Bluetooth communication module interface, SD Card communication module interface, and so on, more convenient.The Arduino Sensor Shield V5 Expansion Board allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers, and much more directly to your Arduino through this Sensor Shield. Each functional module has a buckled port with VCC, GND, and Output, which has the corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, making the connections easier, more secure, and more professional-looking.
You can easily connect with usual analog sensors by using this V5 Expansion Board, such as the ray sensor. If you support this expansion board and the corresponding circuit module, you only need to combine Arduino and the sensors module by using special cables, because concreteย Circuit details are achieved by the corresponding sensors module, so you only need to consider how to read data coming from the sensor by the program in Arduino.
Features of Sensor Shield v5 :
Compatible with Arduino: The Sensor Shield V5 is designed to be compatible with various Arduino boards, such as the Arduino Uno, Mega, and other similar models. It can be plugged directly into the Arduino's pins.Standardized Connectors: The board features a variety of connectors and pins that correspond to common electronic components, such as sensors, servos, motors, and communication modules.
Labeled Pins: The pins and connectors on the Arduino Sensor Shield V5 are labeled with their functions (e.g., analog, digital, power, ground), making it easier to understand where to connect your components.
Power Management: The board often includes power buses that allow you to provide power to multiple components simultaneously without the need for separate power supplies.
Onboard Components: Some versions of the Arduino Sensor Shield V5 may include built-in LEDs, buttons, potentiometers, and other components that you can use for testing and prototyping.
Expansion Headers: The board typically provides additional headers and pins where you can connect jumper wires, servos, and other components that might not have specific connectors on the board.
Ease of Use: By using the Sensor Shield V5, you can avoid the hassle of connecting wires individually to the Arduino's pins, resulting in a neater and more organized setup.
Application of Arduino Sensor Shield :
Sensor Interfacing: Easily connect various sensors like temperature sensors, light sensors, accelerometers, and gyroscopes.Actuator Control: Interface with servos, motors, and relays for controlling movement and physical actions.
Communication Modules: Connect wireless communication modules like Bluetooth, Wi-Fi, and RF modules for data transmission.
Pinout
Physical Attributes of Arduino Sensor Shield
- Dimension: Approx. 57 x 57 x 15mm
- Weight (gm): 25
Product Video
Documentation
- a- Datasheet
Package Includes
- 1 x Arduino Sensor Shield
