ST Link V2 Programmer For STM8 and STM32

ST Link V2 Programmer For STM8 and STM32

Available:In Stock

Product SKU: KG520

Wishlist

₹ 749 ~~₹ 899~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs59.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us.

Special Bulk Discounts

for colleges, Schools, Companies and resellers

Cash on Delivery

Available above Rs 999

Highlights

Original, High Quality
KitsGuru Warranty

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 15F-139

Order within

Specification

Description

ST-Link V2 Programmer For STM8 and STM32 is fully consistent with the official version, support for automatic upgrades, support the full range STM32 SWD (only 4pins including SWCLK, SWDIO, and power) and a full range STM8 SWIM (only 4pins including SWIM, Reset and power) download and debug.

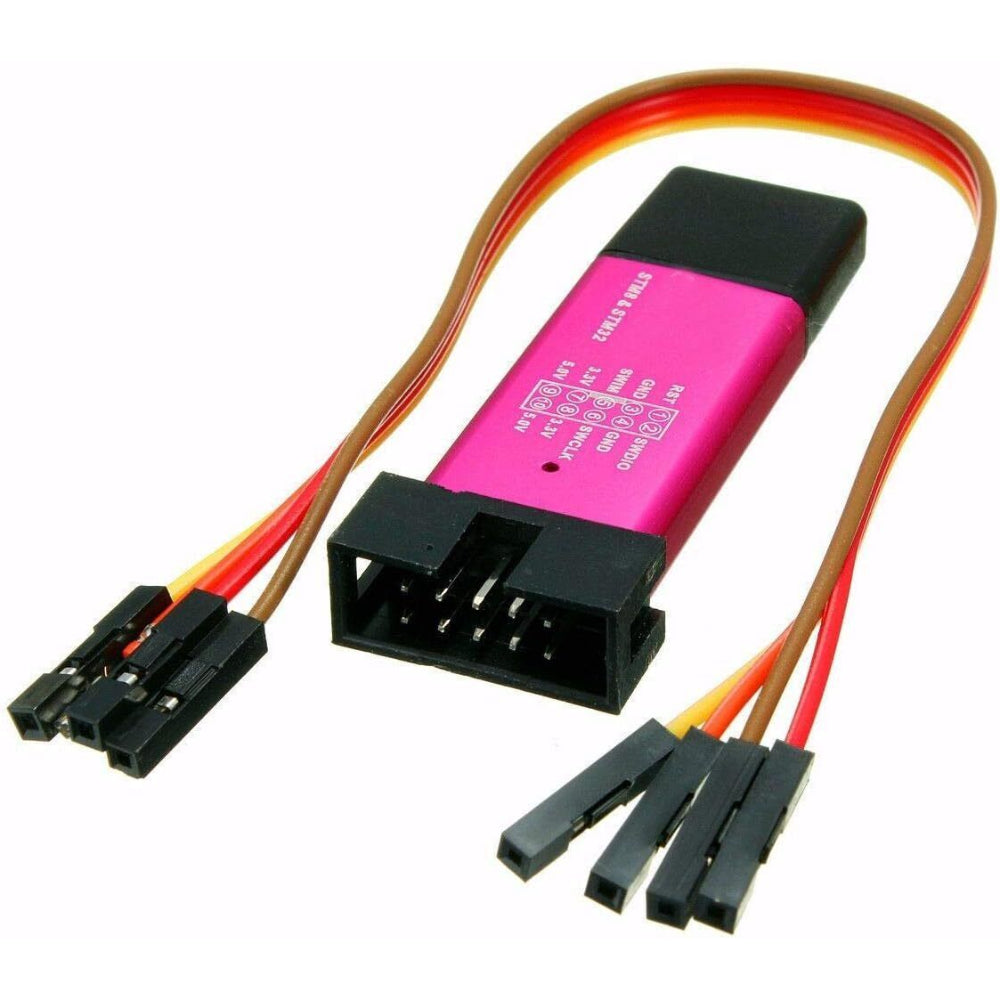

Use this device to send program code to the 32-bit STM32 ARM Cortex or 8-bit STM8 microcontrollers. The header for this ST-Link v2 programmer contains connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST) and GND. The connector on the opposite side of this device is a USB connector and is intended to be plugged into the computer.

You can download the Drivers by clicking here

Supports For ST-LINK V2 :

ST-LINK Utility 2.0 and above.
STVD 4.2.1 and above.
STVP 3.2.3 and above.
IAR EWARM V6.20 and above.
IAR EWSTM8 V1.30 and above.
KEIL RVMDK V4.21 and above.

Features

Programmer For : STM8 and STM32

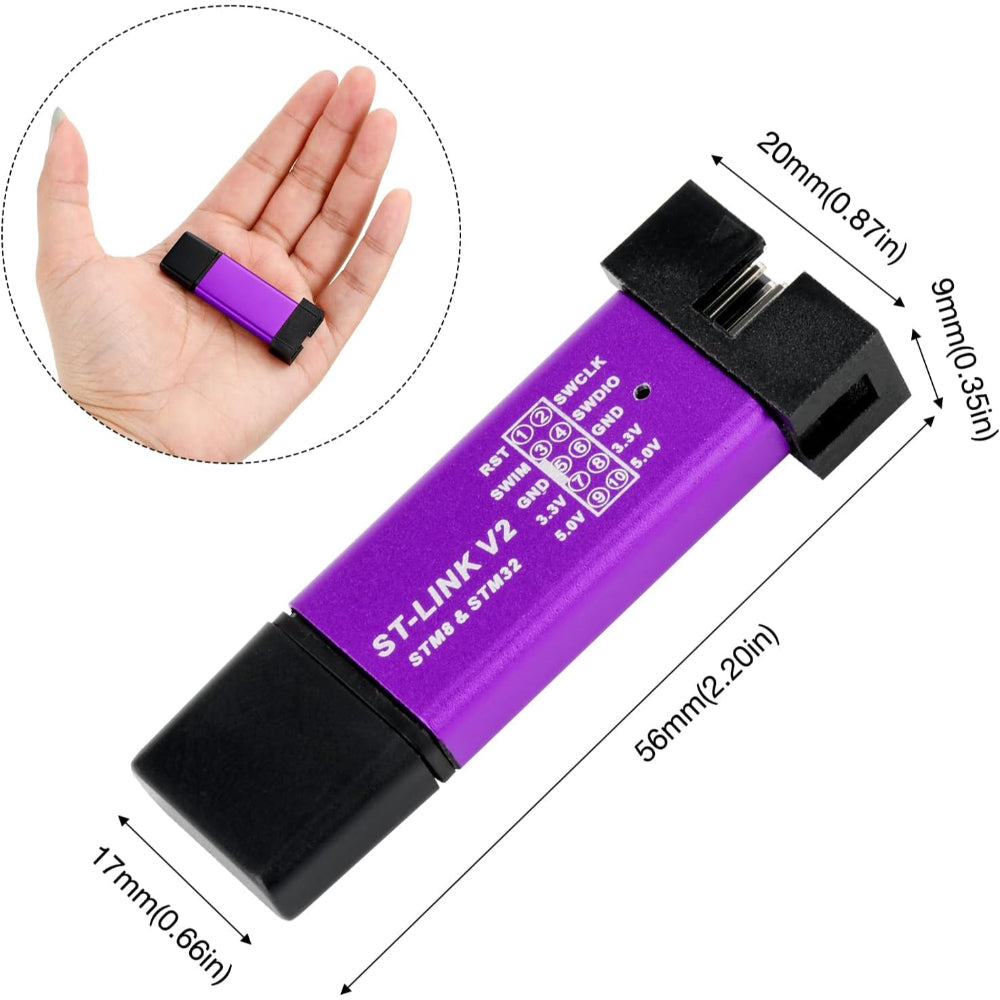

PCB installed inside of aluminum alloy U disk shell, portable, safe and reliable!

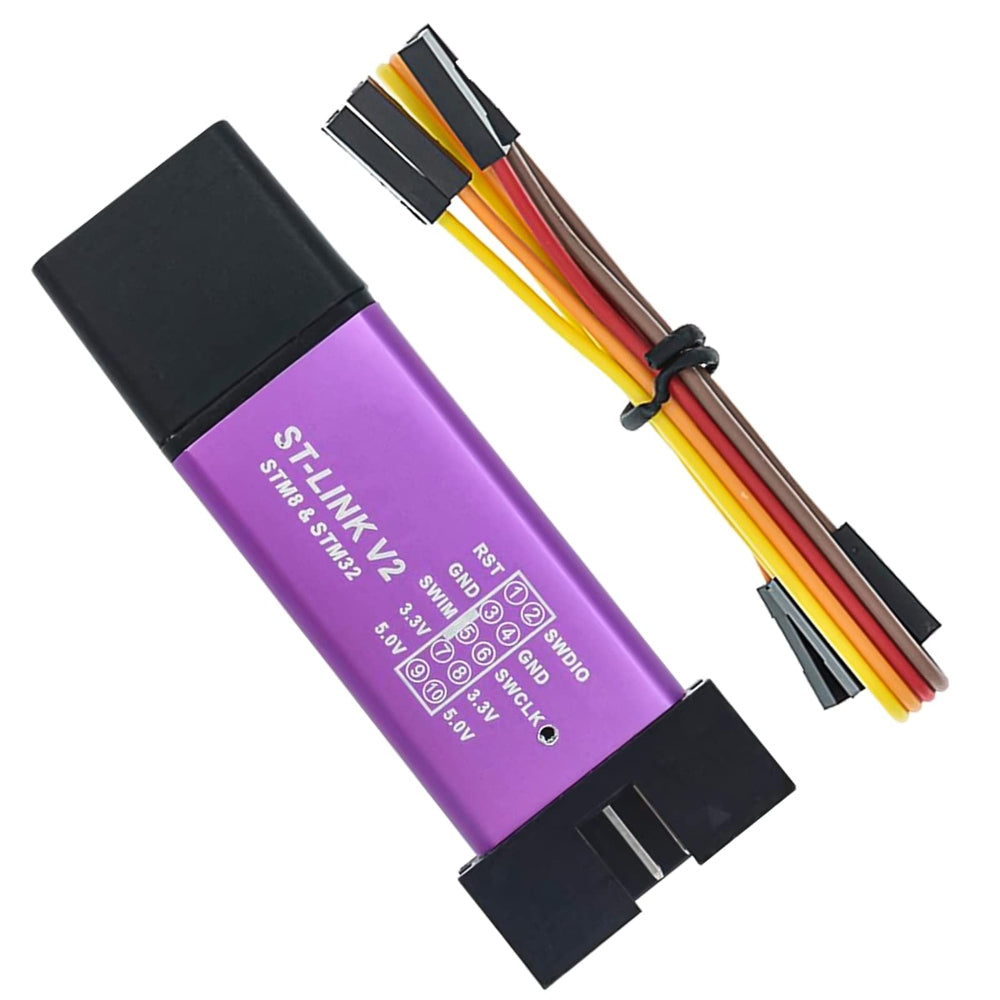

Interface definition directly marked on the shell, clear, convenient and practical!
5V, 3.3V offers at the same time, allowing you to program your target board with both 5V and 3.3V
Shell characters using laser engraving, never fade off! Permanent clarity!
500MA internal resettable fuse, complete protection of your expensive computer motherboard!
Red and blue color LED indicator, allowing you to always observe ST-LINK V2 working condition!
With 4 DuPont lines, you can easily respond to different target board line orders!
Use anti-static bag packaging.
SWIM specific features:
- SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
- 1.65 V to 5.5 V application voltage supported on SWIM interface
- SWIM low-speed and high-speed modes supported
- SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
- SWIM cable for connection to the application
Direct firmware update feature supported (DFU)
Status LED which blinks during communication with the PC
Operating temperature 0 to 50°C
