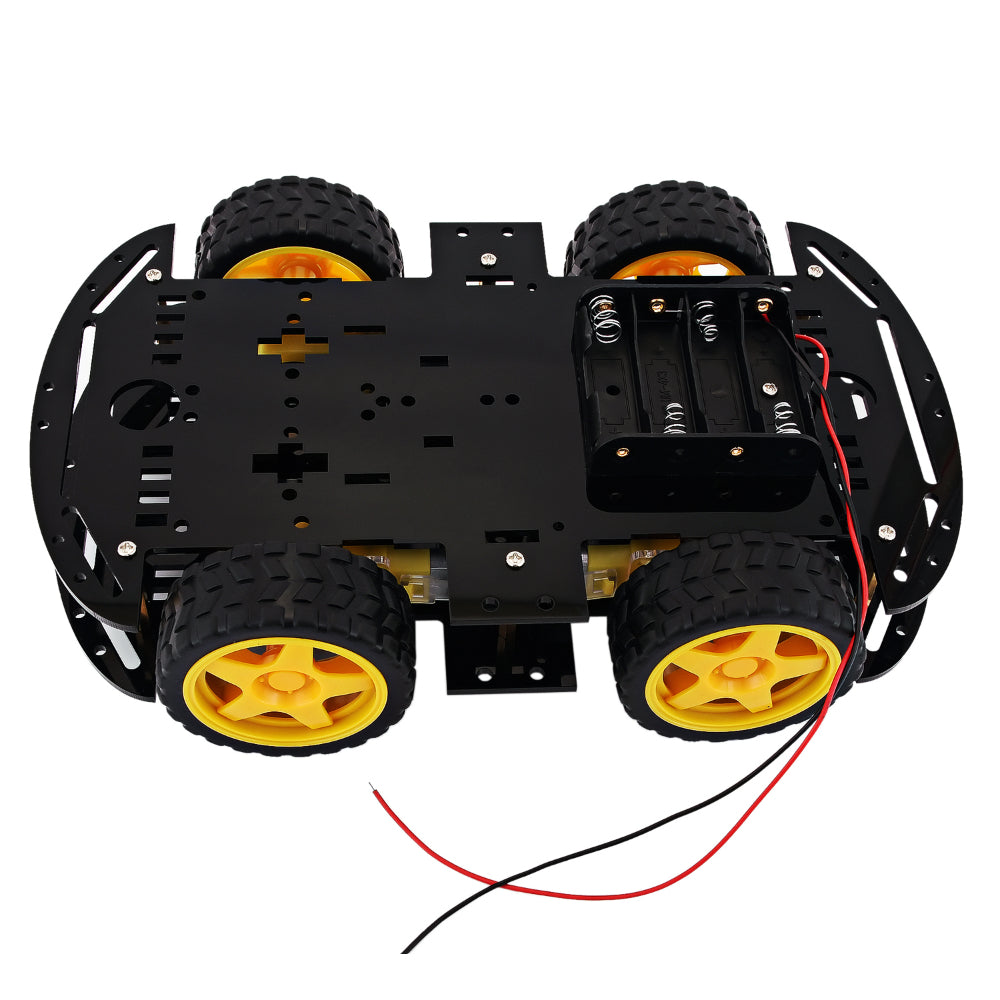

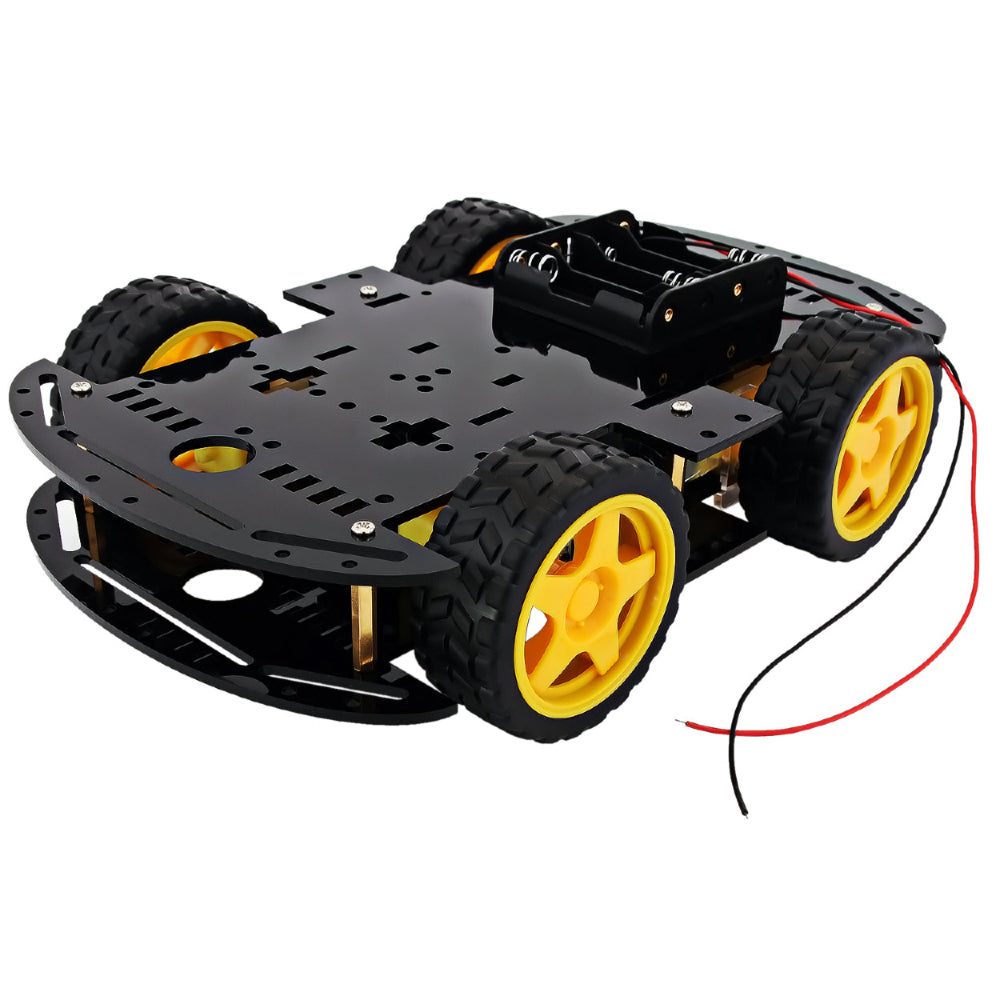

4WD Double Layer Black Robot Car Chassis Kit – DIY Robotics Platform
The 4WD Double Layer Black Robot Car Chassis Kit is a durable and versatile robotics platform ideal for DIY projects, robotics experiments, and educational purposes. Designed with a double-layer structure, it provides enhanced stability and ample space to mount various sensors, motors, and controllers. The 4-wheel drive (4WD) design ensures smooth movement, high torque, and better traction on different surfaces, making it perfect for both indoor and outdoor robotic applications.
This chassis kit includes high-quality materials that are lightweight yet strong, allowing easy assembly and customization. It is compatible with TT motors, wheels, and standard electronic modules, offering flexibility for robotics enthusiasts. Whether you are building a line-following robot, obstacle-avoidance robot, or autonomous car, this all-in-one chassis kit serves as a reliable foundation for creating innovative and functional robotic kits.
This chassis kit includes high-quality materials that are lightweight yet strong, allowing easy assembly and customization. It is compatible with TT motors, wheels, and standard electronic modules, offering flexibility for robotics enthusiasts. Whether you are building a line-following robot, obstacle-avoidance robot, or autonomous car, this all-in-one chassis kit serves as a reliable foundation for creating innovative and functional robotic kits.
BO Motor Details
- Operating Voltage: 3V ~ 6V DC
- Gear Ratio: 1:48
- No-load Speed (5V): about 208 RPM
- Rated Torque: 0.8 Kg.cm @ 5V
- Load Current: 170 mA (at 4.5V)
- Size: 70 × 23 × 18 mm
- Weight: 28 g
- Shaft Length: 10 mm
- Shaft Type: 6 mm, Double-D
Wheel Details
- Loading Capacity: Max 2.5 Kg
- Double D-hole For BO Motor: 6 mm
- Weight: 34 g
- Wheel Diameter: 65 mm
- Color: Black (Tyre), Yellow (Rim)
- Wheel Width: 27 mm
- Body Material: Plastic
- Grip Material: Rubber
Technical Specifications
- Item Type: Kit, Smart Car Chassis
- Shaft Length: 8.5 mm
- Shaft Diameter: 5.4 mm (round side) and 3.5 mm (flat side)
- Rated Speed: 200 RPM
- Rated Torque: 0.8 kg-cm
- Gearbox Shape: Straight
- Length: 70 mm
- Width: 19 mm
- Height: 22 mm
- Color: Black (Tyre), Yellow (Rim)
- Internal Diameter (ID): 51 mm
- Load Capacity (Kg/Wheel): 2.5
- Tyre Grip Material: Rubber
- Wheel Body Material: Plastic
- Wheel Diameter: 65 mm
- Wheel Width: 27 mm
Features
- Very handy and simple in assembling/disassembling
- Strong components to withstand extreme terrain conditions
- Transparent Car Chassis
- Attractive design
- Double-layer structure with many mounting holes, providing enough space
- Easy to install a variety of control panels and sensors
- Educational toys, ideal for the DIY platform
Chassis Details
- Type: Double-layer acrylic
- Design: Multiple mounting holes for components
- Application: DIY robotics, prototyping, education, competitions
Applications
- DIY robotics projects with Arduino, ESP, or Raspberry Pi
- STEM education and classroom experiments
- Obstacle-avoiding robots, line followers, and smart car prototypes
- Robotics competitions and hobby projects

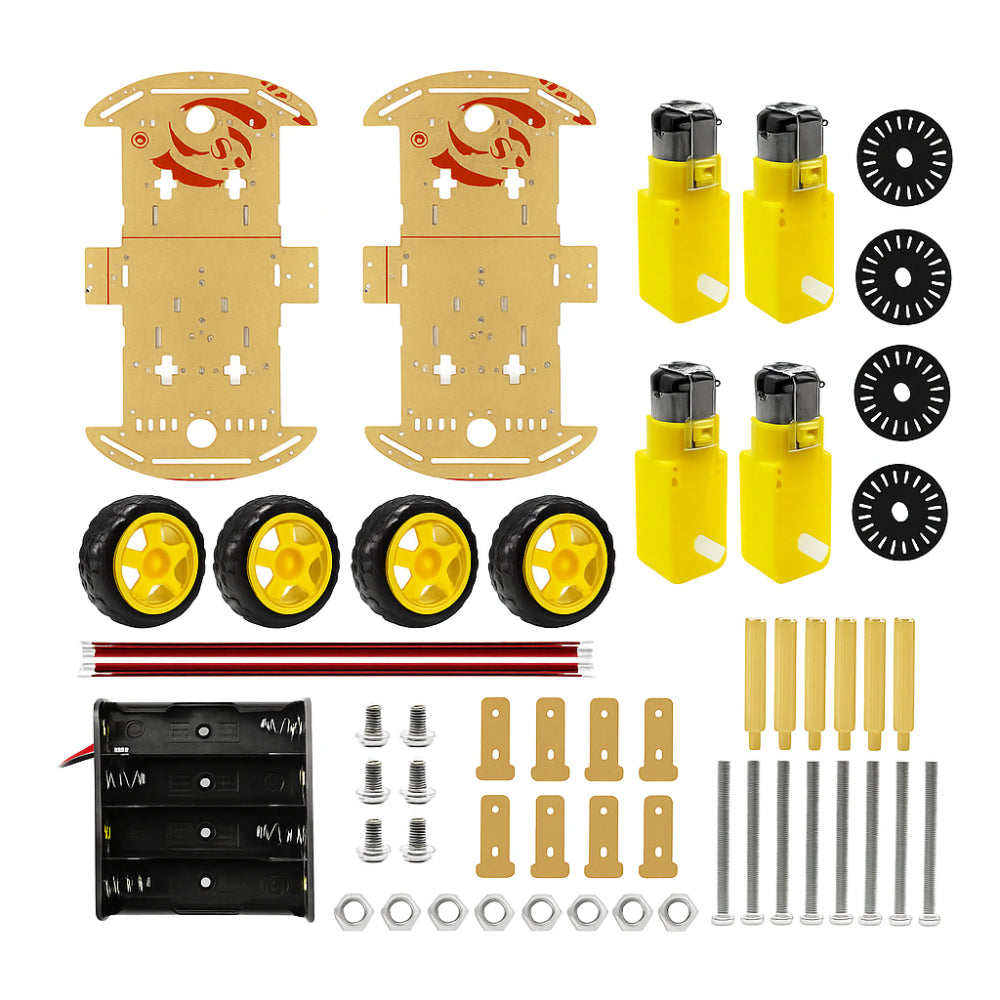

Package Includes

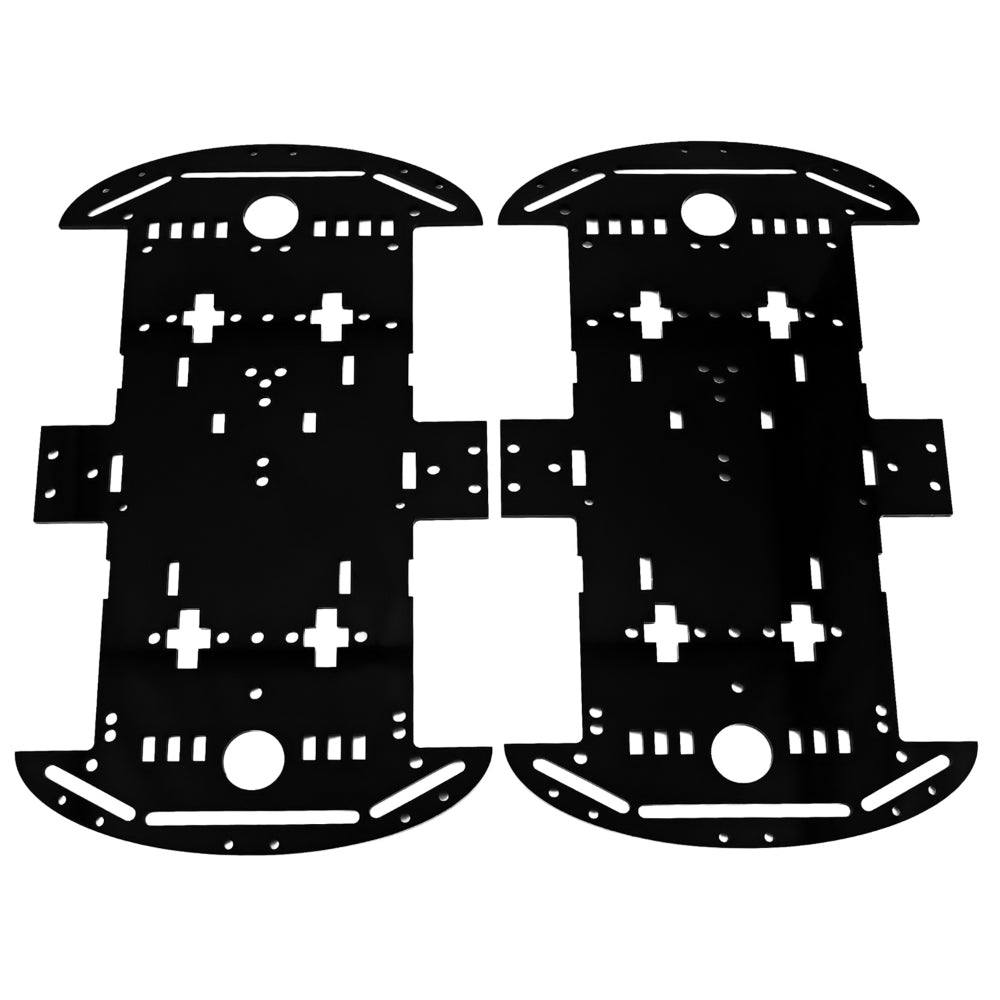

- 2 × Acrylic Black Car Floor
- 4 × High-Quality Plastic Wheels with Grip
- 4 × Dual Shaft 200 RPM BO Gear Motor
- 4 × Speed Encoder
- 4 × Motor Power Cable
- 15 × Bolt
- 7 × Small Nut
- 8 × Long Nut
- 8 × TT Motor Mounting Bracket
- 6 × Chassis Stand-off
- 1 × User Manual
- 1 × 4AA Battery Holder with Red/Black Wire
