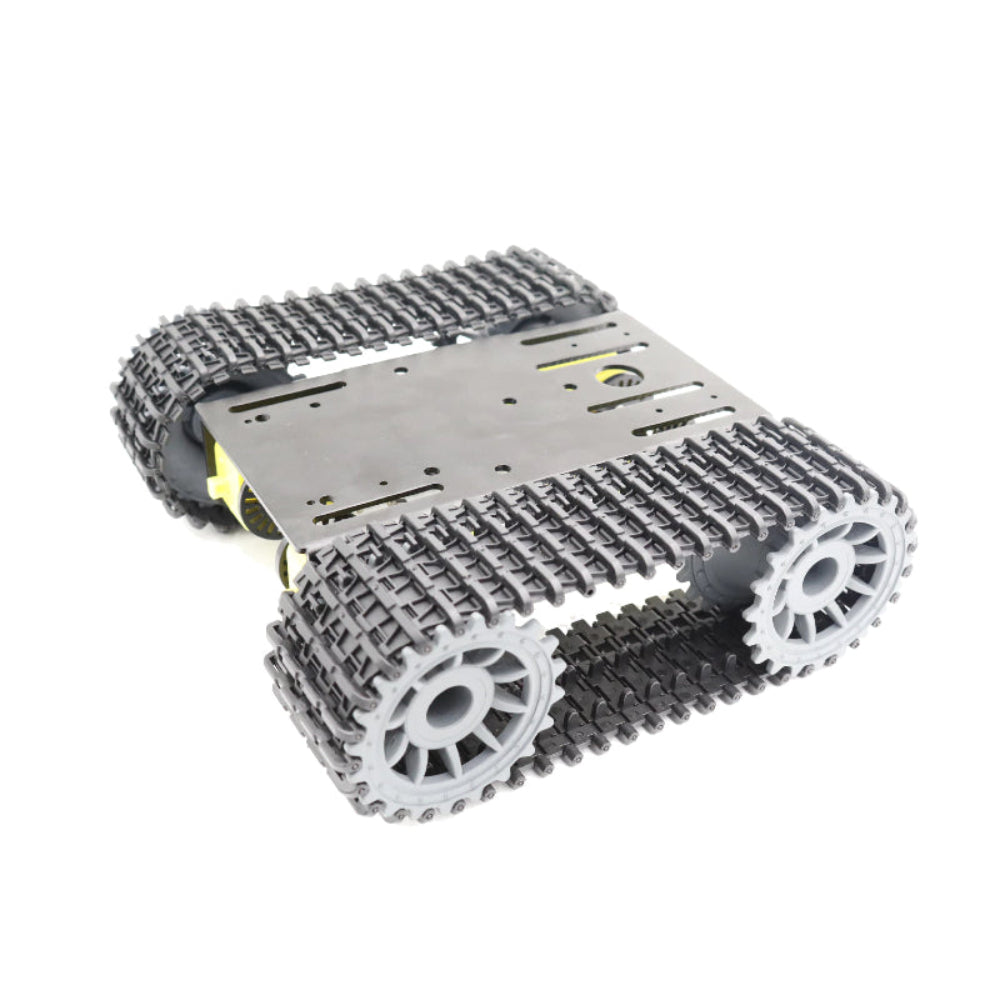

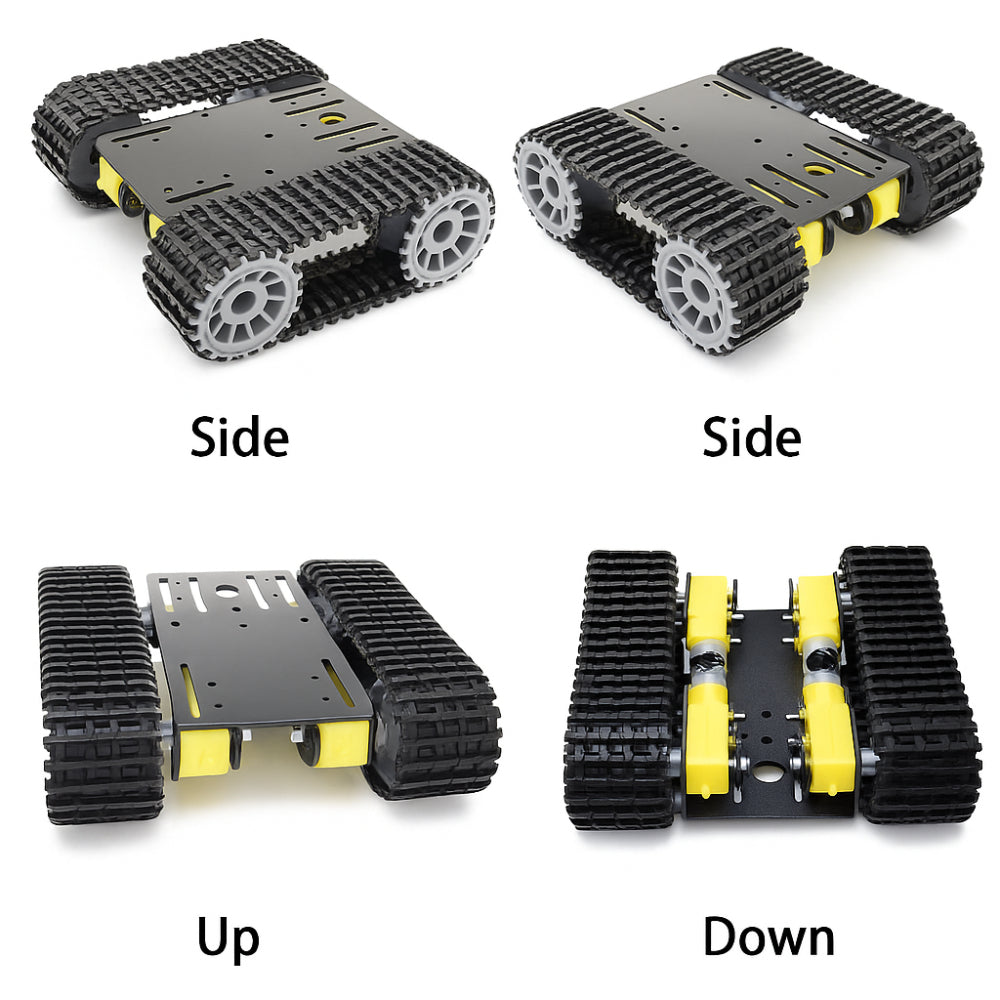

4WD Tracked Robot Tank Intelligent Car Chassis Obstacle Avoidance Remote Control DIY (Silver)

4WD Rubber Track Smart Robot Car Chassis DIY Kit

The chassis for robot car is designed for students, hobbyists, and DIY makers who want a reliable tracked platform for robotics projects. This setup works seamlessly as a car chassis for arduino and is also suitable for those building an arduino car chassis with sensors and motor drivers. With its strong tracked mechanism, this chassis provides stability, making the chassis for robot car ideal for obstacle avoidance, line following, or autonomous navigation tasks.

The included encoder discs support speed monitoring, while the rugged tracks allow the chassis for robot car to move smoothly across both flat and uneven surfaces. Since the kit is compatible with most controllers, including Arduino and Raspberry Pi, it can be expanded easily. This versatility ensures the chassis for robot car remains a dependable base for various DIY applications where a programmable car chassis for arduino is required. It also helps learners understand mechanics, motion control, and coding practices typically used in an arduino car chassis project.

Technical Details

• Drive System: 4-Wheel Drive with Dual Shaft BO Motors
• Motor Voltage Rating: 3V – 6V DC
• Chassis Material: Acrylic
• Wheel Type: Plastic Spoked Wheels
• Control Compatible: Arduino, Motor Driver (L298N/L293D), Raspberry Pi
• Encoder Compatibility: Supports RPM reading via opto sensors
• Power Requirement: 2×AA Battery Holder (batteries not included)

Features

• Simple mechanical structure for quick assembly
• Supports speed measurement using encoder discs
• Works well as a car chassis for arduino for custom builds
• Ideal platform for remote-controlled and autonomous robots
• Strong spoked wheels with rubber tracks for steady movement
• Compatible with sensors, wireless modules, and Arduino shields

Applications

• STEM education and robotics training
• Obstacle avoidance and line-following robots
• Remote-controlled vehicle experimentation
• Speed and distance measurement exercises
• Hobby projects using an arduino car chassis
• DIY workshops and robotics competitions

Package Includes

• 1 × Main Chassis Plate
• 4 × Dual Shaft BO Motor – Straight
• 4 × Plastic Spoked Wheels
• 2 × Rubber Tracks
• 1 × Battery Holder (2AA) – Batteries Not Included
• 4 × Encoder Discs
• 4 × Motor Couplings
• 8 × Male to Female Jumper Wires
• 1 × Bag of Nuts, Bolts, Screws & Allen Key
• 1 × Instruction Manual
