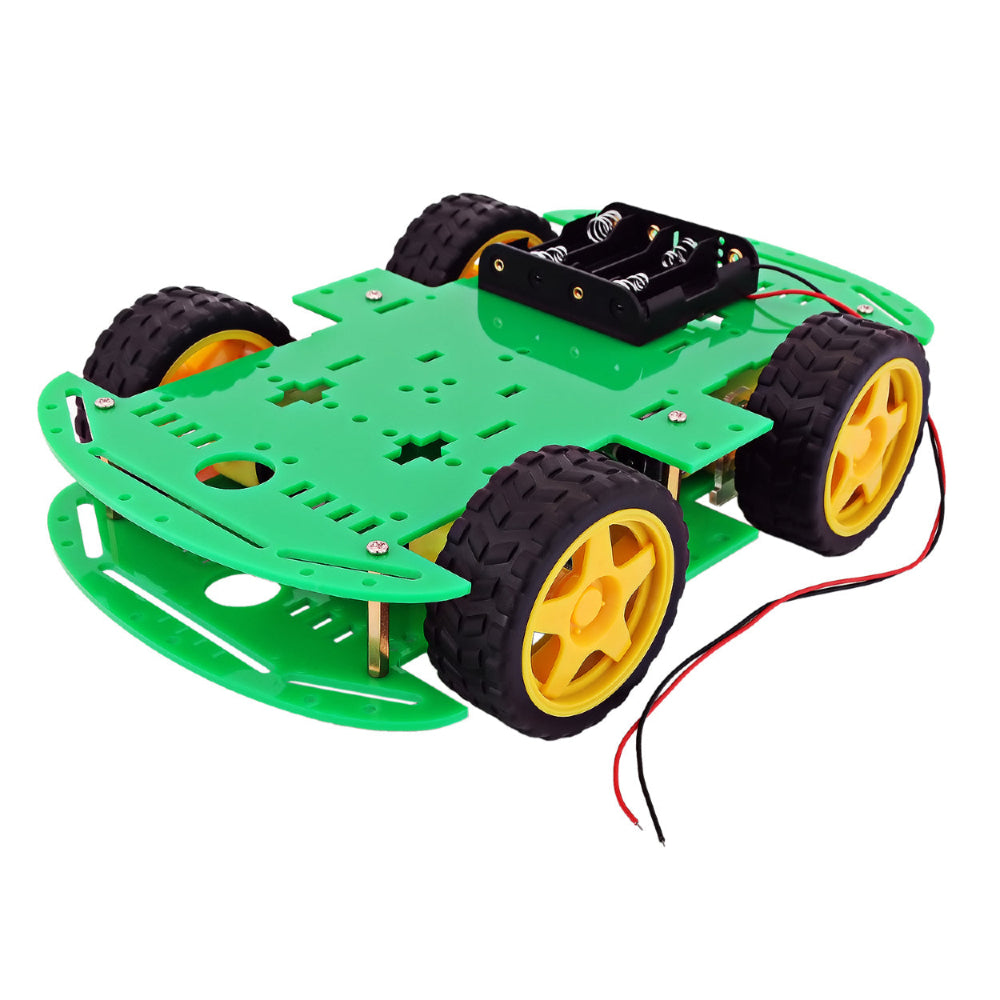

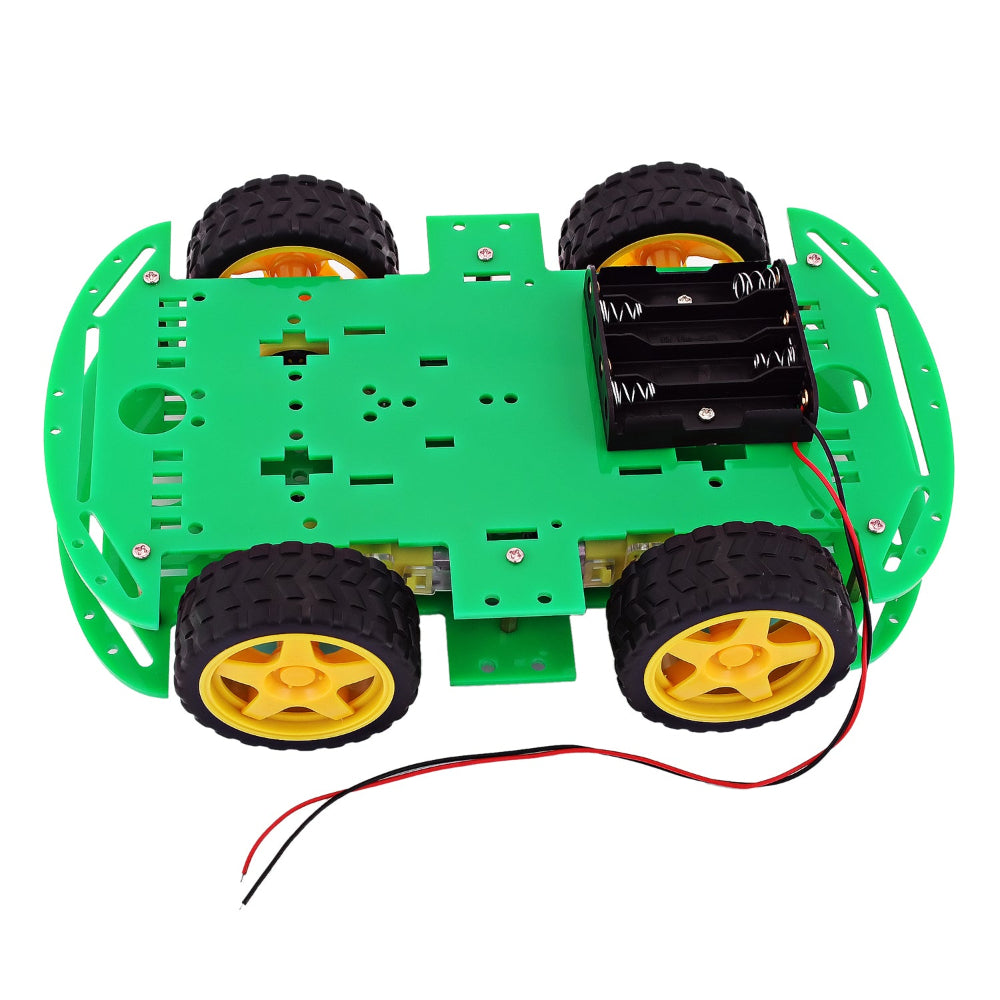

4WD Double Layer Green Robot Car Chassis Kit – DIY Robotics Platform
![4WD double layer chassis for robot car projects]()
![green car chassis for Arduino robotics projects]()
![4WD smart robot car chassis kit in green color]()
![DIY robotics platform with acrylic green chassis]()
![4WD double layer chassis for robot car projects]()
![green car chassis for Arduino robotics projects]()
![4WD smart robot car chassis kit in green color]()
![DIY robotics platform with acrylic green chassis]()
-25%
4WD Double Layer Green Robot Car Chassis Kit – DIY Robotics Platform
Available:In Stock
- Product SKU: KG157
₹ 599
₹ 799
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
4WD Double Layer Green Robot Car Chassis Kit – DIY Robotics Platform
The 4WD Double Layer Green Robot Car Chassis Kit is designed as a reliable chassis for robot car projects, offering excellent strength and flexibility for DIY robotics. Because it is fully compatible with common electronics, it works seamlessly as a car chassis for Arduino controllers and sensors. Additionally, the platform supports various modules, making it a strong base for building an arduino car chassis with advanced functions such as obstacle avoidance or autonomous navigation.
Engineered with a durable double-layer acrylic structure, it provides ample space for mounting sensors, motor drivers, batteries, and microcontrollers. The 4-wheel-drive design ensures smooth movement, better torque, and enhanced traction on multiple surfaces. Whether you are assembling a beginner robot or experimenting with a more complex chassis for a robot car, this kit delivers stable performance for both indoor and outdoor robotic tasks.
Engineered with a durable double-layer acrylic structure, it provides ample space for mounting sensors, motor drivers, batteries, and microcontrollers. The 4-wheel-drive design ensures smooth movement, better torque, and enhanced traction on multiple surfaces. Whether you are assembling a beginner robot or experimenting with a more complex chassis for a robot car, this kit delivers stable performance for both indoor and outdoor robotic tasks.
BO Motor Details
- Operating Voltage: 3V ~ 6V DC
- Gear Ratio: 1:48
- No‑load Speed (5V): about 208 RPM
- Rated Torque: 0.8 Kg.cm @ 5V
- Load Current: 170 mA (at 4.5V)
- Size: 70 × 23 × 18 mm
- Shaft Length: 10 mm
- Shaft Type: 6 mm, Double‑D
Wheel Details
- Loading Capacity: Max 2.5 Kg
- Double D‑hole For BO Motor: 6 mm
- Wheel Diameter: 65 mm
- Color: Black (Tyre), Yellow (Rim)
- Wheel Width: 27 mm
- Body Material: Plastic
- Grip Material: Rubber
Technical Specifications
- Item Type: Kit, Smart Car Chassis
- Shaft Length: 8.5 mm
- Shaft Diameter: 5.4 mm (round side) and 3.5 mm (flat side)
- Rated Speed: 200 RPM
- Rated Torque: 0.8 kg‑cm
- Gearbox Shape: Straight
- Color: Black (Tyre), Yellow (Rim)
- Internal Diameter (ID): 51 mm
- Load Capacity (Kg/Wheel): 2.5
- Tyre Grip Material: Rubber
- Wheel Body Material: Plastic
- Wheel Diameter: 65 mm
- Wheel Width: 27 mm
Features
- Very handy and simple in assembling/disassembling
- Strong components to withstand extreme terrain conditions
- Transparent Car Chassis
- Attractive design
- Double‑layer structure with many mounting holes, providing enough space
- Easy to install a variety of control panels and sensors
- Educational toys, ideal for the DIY platform
Chassis Details
- Type: Double‑layer acrylic
- Design: Multiple mounting holes for components
- Application: DIY robotics, prototyping, education, competitions
- Thickness: 1.5 mm
- Length: 250 mm (approx.)
- Width: 150 mm (approx.)
Applications
- DIY robotics projects with Arduino, ESP, or Raspberry Pi
- STEM education and classroom experiments
- Obstacle‑avoiding robots, line followers, and smart car prototypes
- Robotics competitions and hobby projects
Package Includes

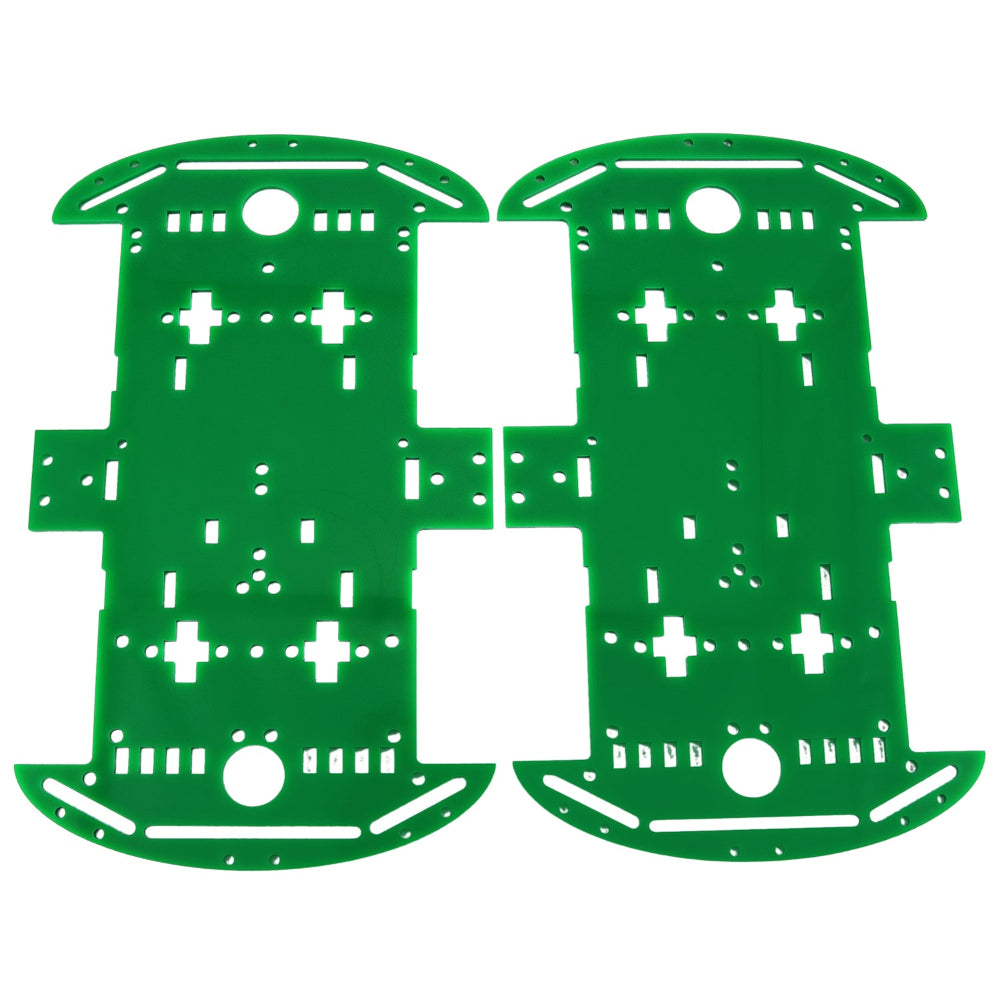

- 2 × Acrylic Green Car Floor
- 4 × High‑Quality Plastic Wheels with Grip
- 4 × Dual Shaft 200 RPM BO Gear Motor
- 4 × Speed Encoder
- 4 × Motor Power Cable
- 15 × Bolt
- 7 × Small Nut
- 8 × Long Nut
- 8 × TT Motor Mounting Bracket
- 6 × Chassis Stand‑off
- 1 × User Manual
- 1 × 4AA Battery Holder with Red/Black Wire (Battery not Included)
