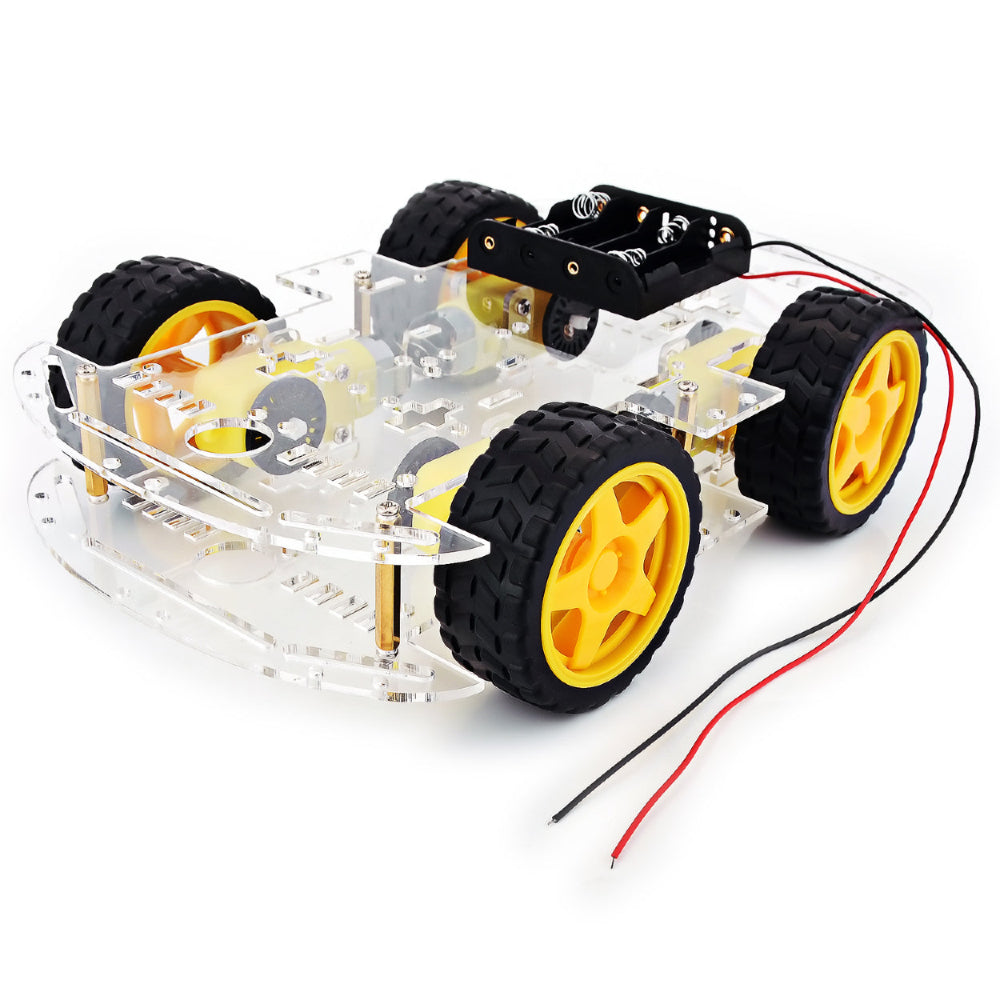

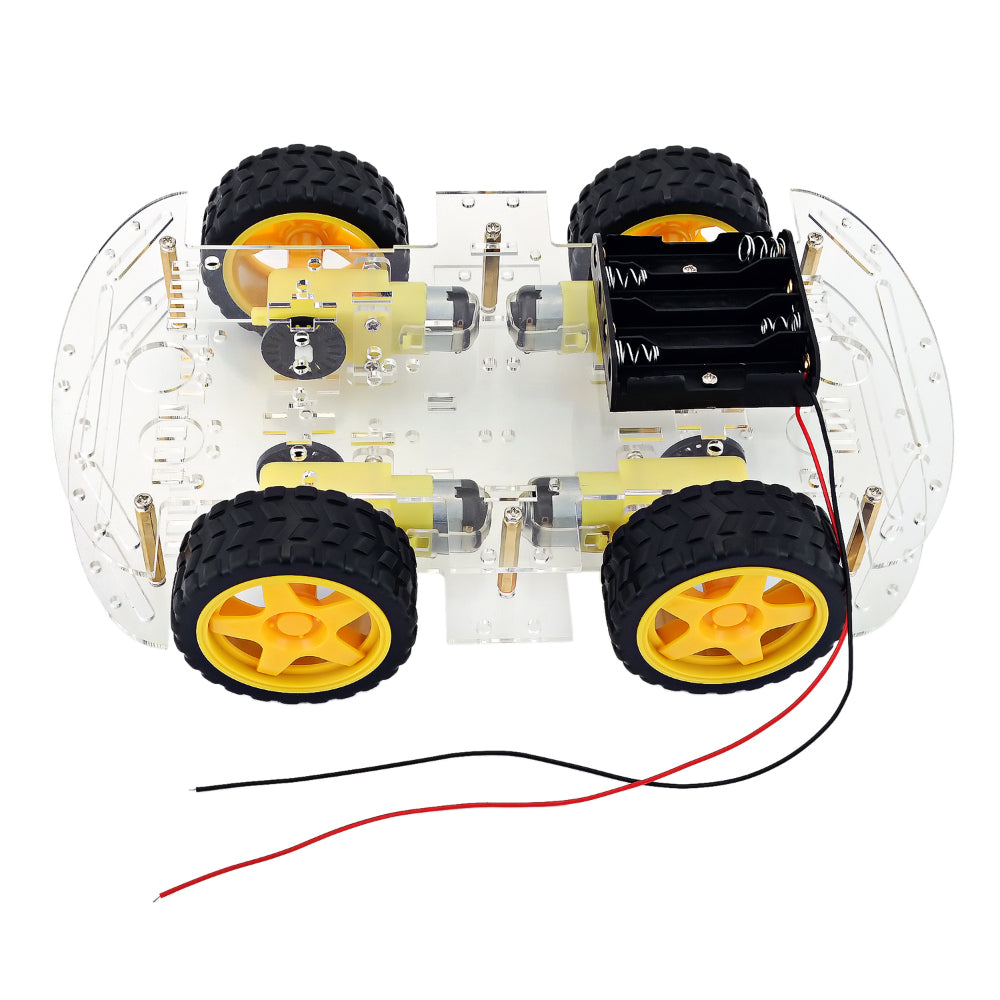

4 WD Double Layer Smart Car Transparent Chassis For Robot Car/tracking car With battery box
![4WD smart robot car chassis kit double layer acrylic]()
![4 wheel chassis kit transparent platform for robots]()
![Acrylic robot chassis double layer 4WD DIY kit]()
![4WD smart robot car chassis kit double layer acrylic]()
![4 wheel chassis kit transparent platform for robots]()
![Acrylic robot chassis double layer 4WD DIY kit]()
-28%
4 WD Double Layer Smart Car Transparent Chassis For Robot Car/tracking car With battery box
Available:In Stock
- Product SKU: LGRO004
₹ 573
₹ 799
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
4WD Double Layer Transparent Robot Car Chassis Kit – DIY Robotics Platform
The 4WD Double Layer Transparent Robot Car Chassis Kit is a premium base for robotics learners building a complete 4wd smart robot car chassis kit. Its strong double-layer structure provides excellent space for mounting controllers, sensors, and modules, while offering the clarity of an acrylic robot chassis. Unlike a basic 4 wheel chassis kit, this model offers added stability and extra room for expansion, making it ideal for educational and competition-level builds. Because the 4wd smart robot car chassis kit uses four BO motors, it provides higher torque and smoother movement on different surfaces. The transparent plates allow clean wiring layouts, enhancing both learning and presentation value for makers working with an advanced acrylic robot chassis.
Designed for versatility, this 4wd smart robot car chassis kit works seamlessly with Arduino, ESP modules, motor drivers, and sensor arrays. It supports obstacle avoidance, path tracking, and autonomous robot development. Whether you are building your first bot or upgrading from a simpler 4 wheel chassis kit, this platform offers the perfect balance between durability and ease of assembly. Overall, the robust acrylic layers and high-quality wheels make this 4wd smart robot car chassis kit one of the most flexible DIY robotics bases available.
Designed for versatility, this 4wd smart robot car chassis kit works seamlessly with Arduino, ESP modules, motor drivers, and sensor arrays. It supports obstacle avoidance, path tracking, and autonomous robot development. Whether you are building your first bot or upgrading from a simpler 4 wheel chassis kit, this platform offers the perfect balance between durability and ease of assembly. Overall, the robust acrylic layers and high-quality wheels make this 4wd smart robot car chassis kit one of the most flexible DIY robotics bases available.
BO Motor Details
- Operating Voltage: 3V ~ 6V DC
- Gear Ratio: 1:48
- No-load Speed (5V): about 208 RPM
- Rated Torque: 0.8 Kg.cm @ 5V
- Load Current: 170 mA (at 4.5V)
- Size: 70 × 23 × 18 mm
- Weight: 28 g
- Shaft Length: 10 mm
- Shaft Type: 6 mm, Double-D
Wheel Details
- Loading Capacity: Max 2.5 Kg
- Double D-hole For BO Motor: 6 mm
- Weight: 34 g
- Wheel Diameter: 65 mm
- Color: Black (Tyre), Yellow (Rim)
- Wheel Width: 27 mm
- Body Material: Plastic
- Grip Material: Rubber
Technical Specifications
- Item Type: Kit, Smart Car Chassis
- Shaft Length: 8.5 mm
- Shaft Diameter: 5.4 mm (round) / 3.5 mm (flat)
- Rated Speed: 200 RPM
- Rated Torque: 0.8 kg-cm
- Gearbox Shape: Straight
- Length: 70 mm
- Width: 19 mm
- Height: 22 mm
- Chassis Color: Transparent Acrylic
- Internal Diameter: 51 mm
- Load Capacity (Kg/Wheel): 2.5
- Tyre Grip Material: Rubber
- Wheel Body Material: Plastic
- Wheel Diameter: 65 mm
- Wheel Width: 27 mm
Features
- Strong and easy-to-assemble double layer acrylic robot chassis
- Stable driving experience with 4-wheel BO motors
- Transparent plates allow organized wiring layouts
- Large mounting area suitable for advanced robotics modules
- Ideal upgrade from entry-level 4 wheel chassis kit
- Perfect for coding, prototyping, and robotics competitions
Chassis Details
- Type: Double-layer transparent acrylic
- Mounting slots for sensors, drivers, controllers
- Designed for DIY robotics and competition projects
Applications
- Autonomous robot development using a 4 wheel chassis kit
- Arduino, ESP, and Raspberry Pi robotics
- Line following, obstacle avoidance & navigation robots
- STEM education, lab projects, and hobby robotics

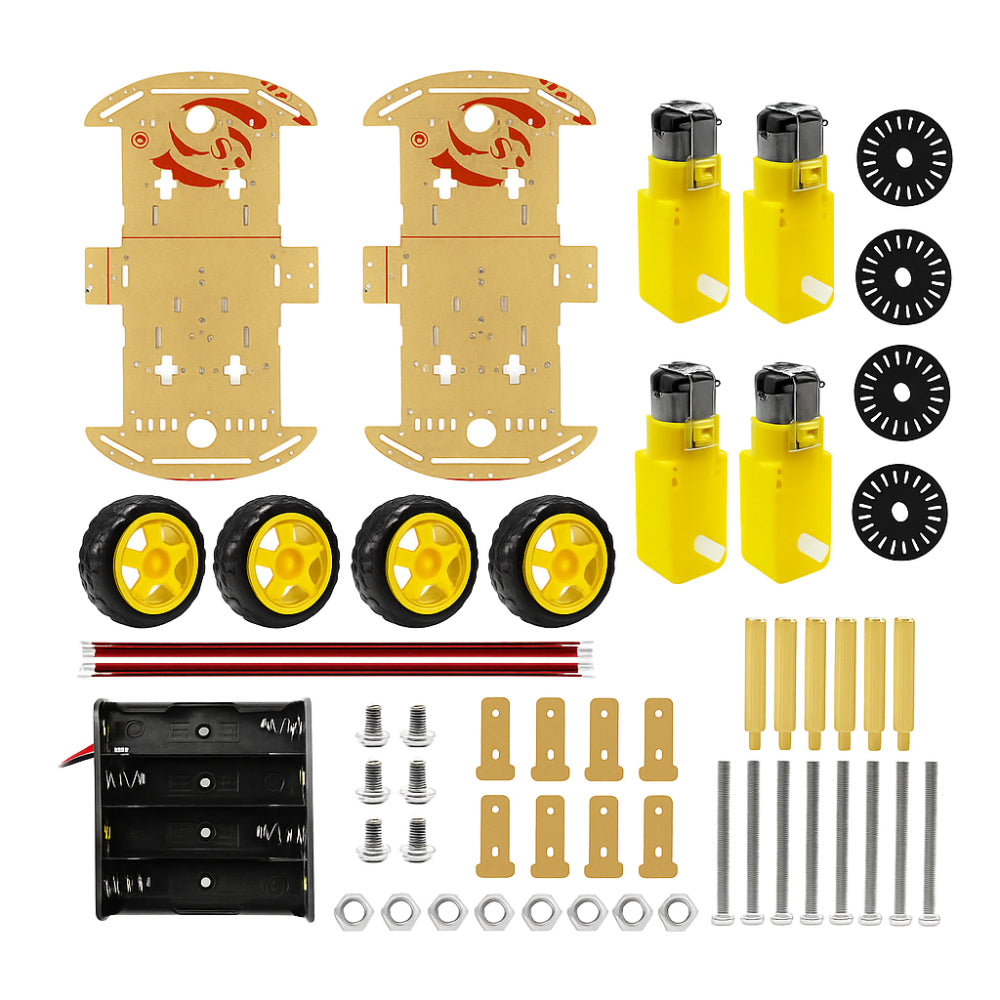

Package Includes
- 2 × Transparent Acrylic Car Floor
- 4 × High-Quality Plastic Wheels
- 4 × Dual Shaft 200 RPM BO Gear Motor
- 4 × Speed Encoder
- 4 × Motor Power Cable
- 15 × Bolt
- 7 × Small Nut
- 8 × Long Nut
- 8 × TT Motor Mounting Bracket
- 6 × Chassis Stand-off
- 1 × User Manual
- 1 × 4AA Battery Holder
