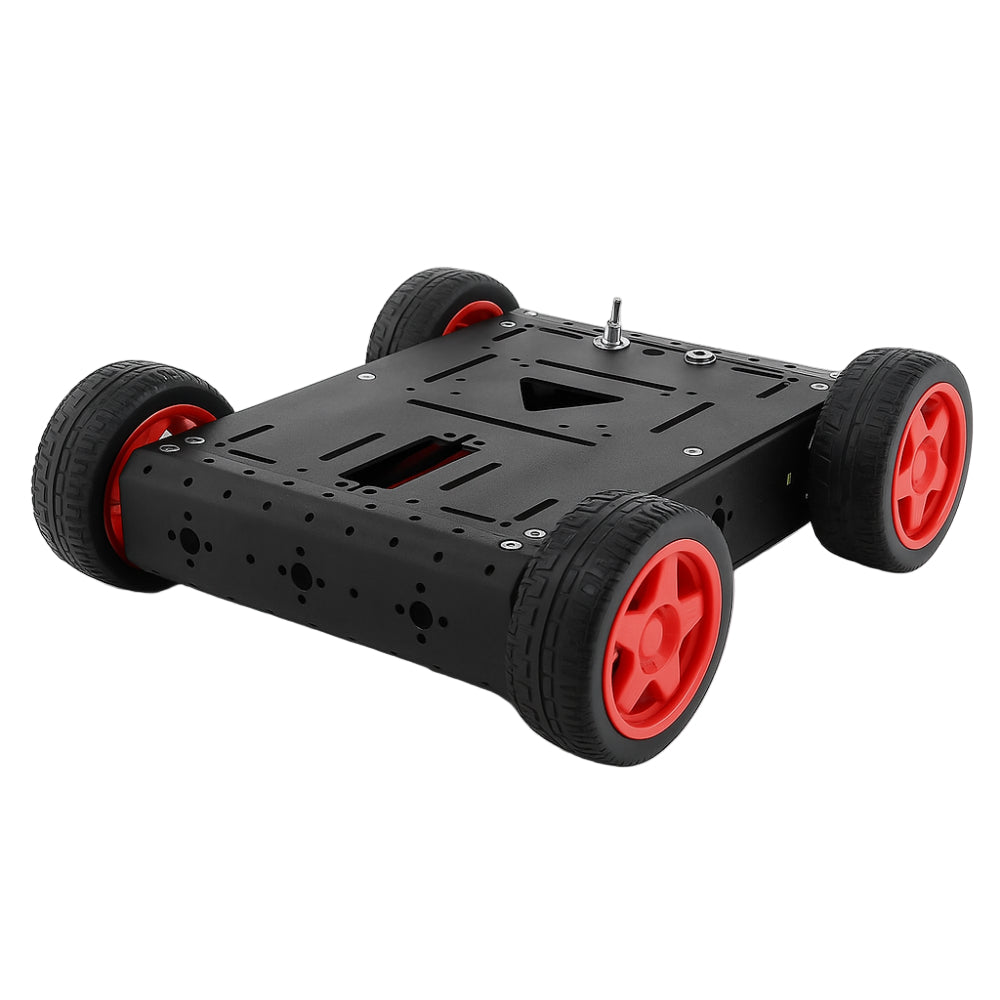

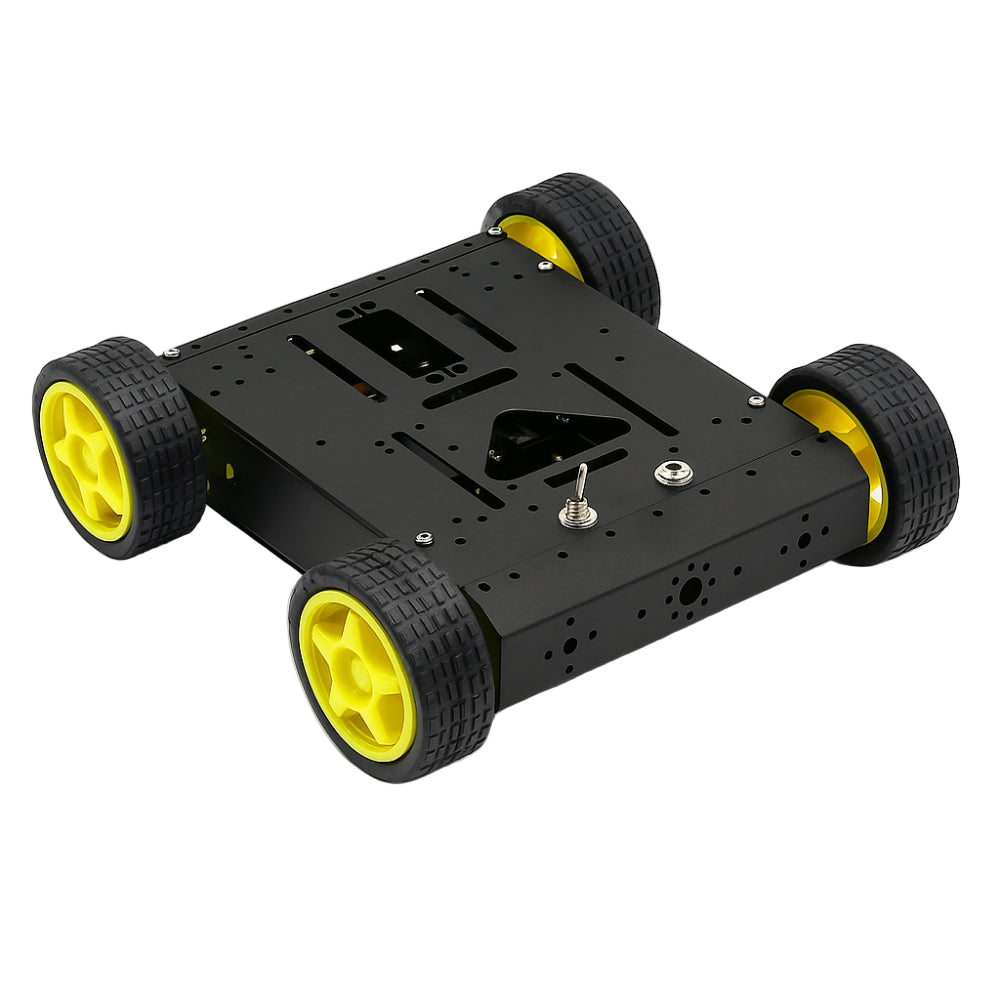

Export Quality 4WD Aluminum alloy DIY Robot car with motor and wheels (Black)

Metal Tank Robot Smart Car Chassis Kit (with BO Motors & Wheels)

Features

• Heavy-duty metal chassis with precision slots and mounting holes
• High-quality BO motors with straight dual shafts
• Strong 65mm wheels with durable plastic rims and rubber tires
• Easy to assemble and ideal for robotics learning projects
• Pre-drilled holes for sensors, motor driver boards, and battery mounts
• Supports 4WD configuration for better traction and torque

Specifications

• Item Type: Complete Chassis Kit
• Chassis Material: Metal (Powder-Coated Black)
• Chassis Dimensions (L×W×H): 20 × 14 × 4 cm
• Wheel Diameter: 65 mm
• Wheel Width: 25 mm
• Motor Type: BO Motor (Straight Dual Shaft)
• Motor Speed: 125 RPM (at 3–12V DC)
• Wheel Color: May vary depending on stock availability
• Power Supply: 6×AA Battery Holder (9V DC Output)

BO Motor Technical Details

• Operating Voltage: 3V–12V DC
• Rated Speed: 125 RPM @ 6V DC
• No Load Current: 60 mA (approx.)
• Load Current: 250 mA (approx.)
• Torque: 1.2–1.5 kg·cm
• Shaft Type: Dual Straight Shaft (Plastic)
• Gear Type: Plastic Spur Gear


Physical Attributes

• Chassis Height: 4 cm
• Wheel Diameter: 65 mm
• Wheel Width: 25 mm
• Wheel Material: Plastic Rim with Rubber Tire
• Chassis Color: Black
• Approximate Total Weight: 741g

Notes

• Wheel color is not fixed and will be shipped as per stock availability.
• Screwdriver are included.
• Battery Not included.

Package Includes

• 1 × Metal Chassis (Black)
• 4 × 65 × 25 mm Plastic Wheels (Yellow/Color may vary)
• 4 × 125 RPM BO Motors (Dual Straight Shaft)
• 1 × Metal Toggle Switch with Soldered Wire
• 1 × 5 mm Metal DC Input Jack (Female, Soldered)
• 1 × 6×AA Battery Holder for 9V DC Supply
• 1 × 2-in-1 Screwdriver
• 1 × Connecting Wires & Plastic Tie Set
