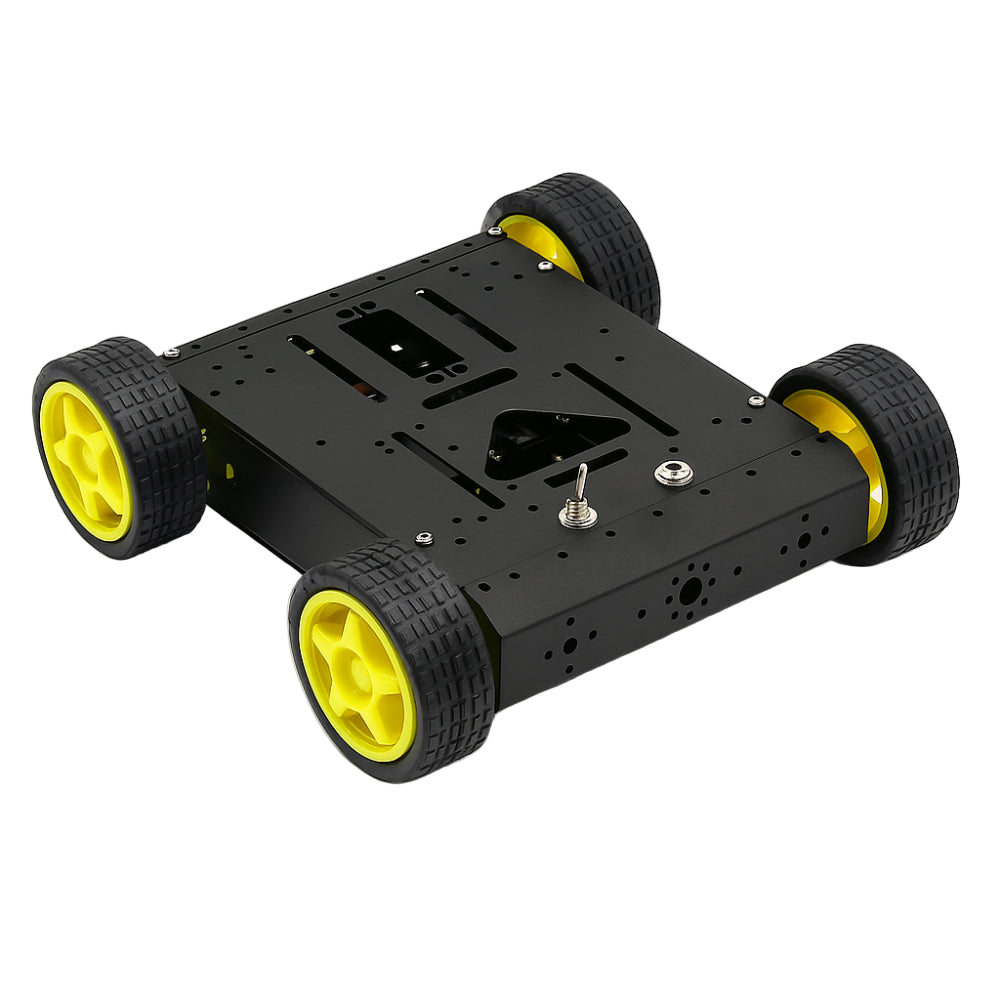

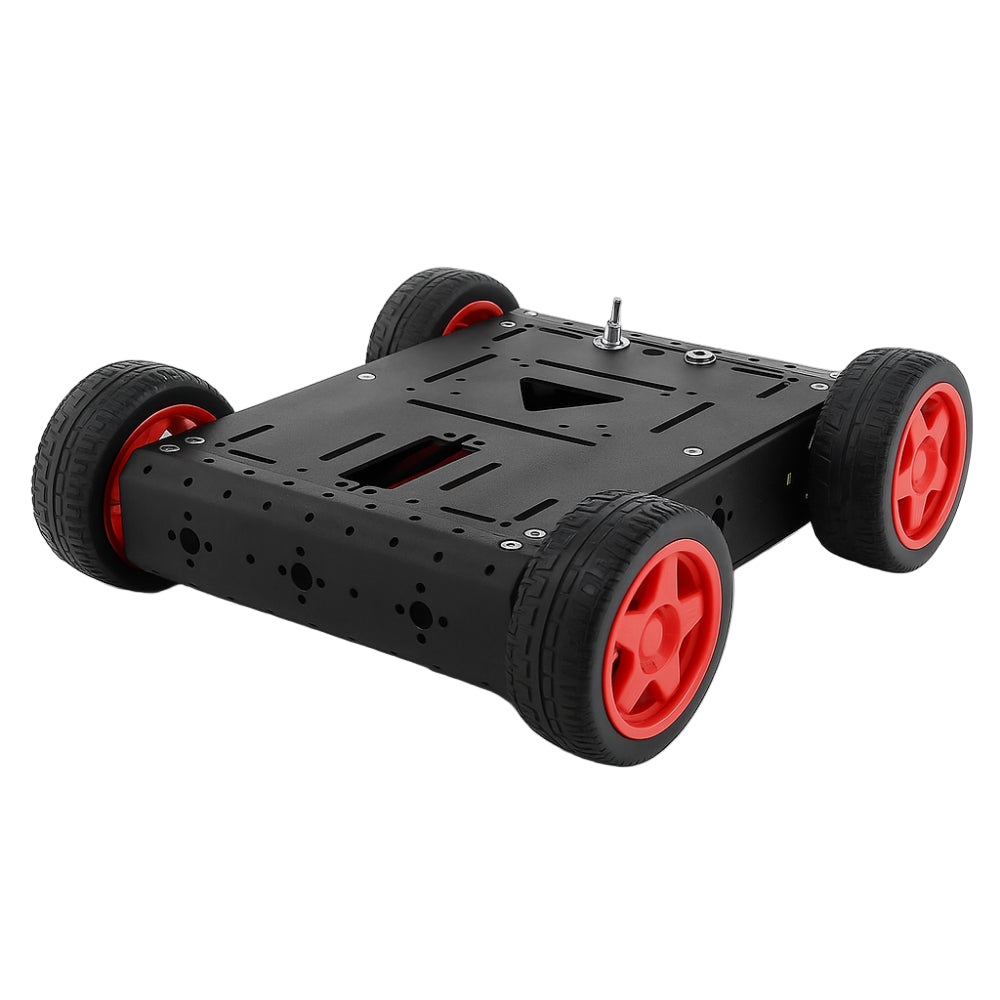

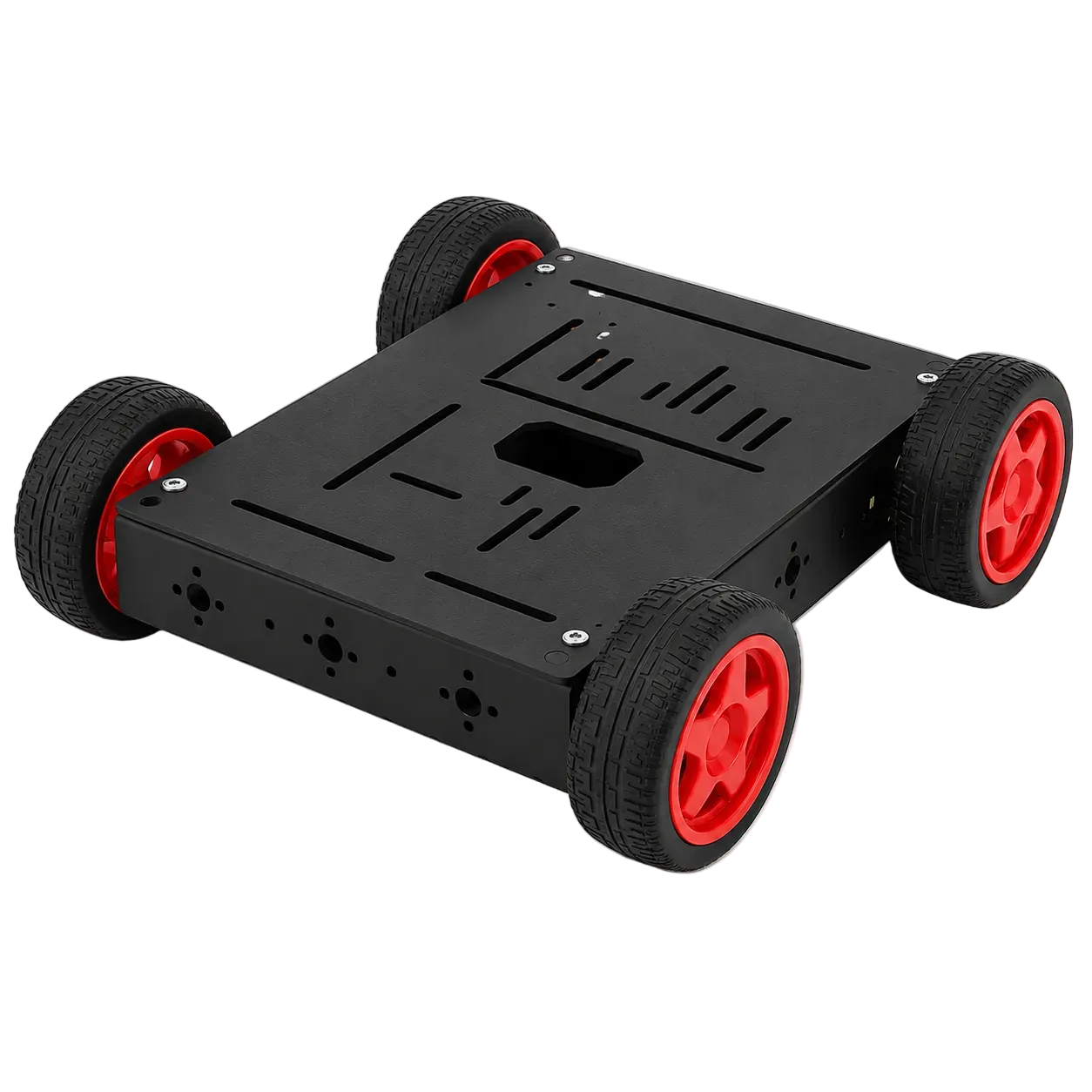

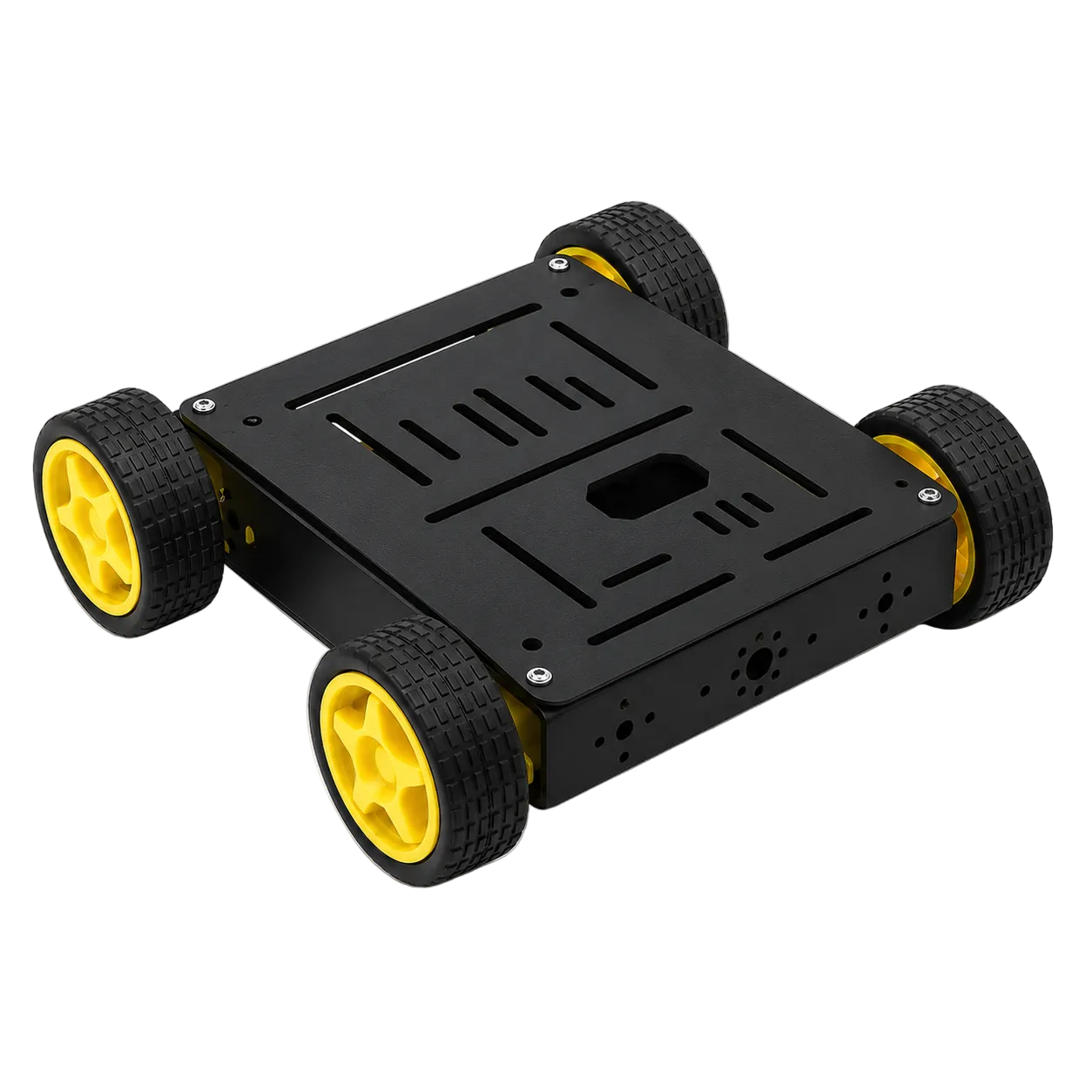

Export Quality 4WD Aluminum alloy DIY Robot car with motor and wheels (Black)

Metal Tank Robot Smart Car Chassis Kit (with BO Motors & Wheels)

Build your own DIY robot tank or 4WD smart car using this export-quality robot car chassis kit. Designed as a strong and adaptable platform, this robot car chassis kit features a powder-coated black frame, four 65mm wheels, and BO motors, making it ideal for both indoor navigation and rugged surfaces. Because it works much like a 4wd car chassis while still supporting open hardware, it also integrates easily into arduino chassis projects for students and hobbyists.

Unlike belt-driven designs, the structure behaves like a compact robot tank while remaining lightweight. The included motors and wiring ensure the robot car chassis kit delivers smooth torque and simple installation. With plenty of mounting holes, this arduino chassis layout supports sensors, drivers, and controllers, making upgrades effortless. Its wheel-based traction also makes it a dependable 4wd car chassis for robotics learning paths.

This heavy-duty platform helps reduce assembly time, and because the robot car chassis kit uses direct-drive wheels, steering and motion control remain precise for both autonomous and RC builds. Whether you are experimenting with an arduino chassis or constructing a small rover, this design also acts as a stable 4wd car chassis for long-term use.

Features

• Heavy-duty metal chassis with precision slots and mounting holes
• High-quality BO motors with straight dual shafts
• Strong 65mm wheels with durable plastic rims and rubber tires
• Easy to assemble and ideal for robotics learning projects
• Pre-drilled holes for sensors, motor driver boards, and battery mounts
• Supports 4WD configuration for better traction and torque

Specifications

• Item Type: Complete Chassis Kit
• Chassis Material: Metal (Powder-Coated Black)
• Chassis Dimensions (L×W×H): 20 × 14 × 4 cm
• Wheel Diameter: 65 mm
• Wheel Width: 25 mm
• Motor Type: BO Motor (Straight Dual Shaft)
• Motor Speed: 125 RPM (at 3–12V DC)
• Wheel Color: May vary depending on stock availability
• Power Supply: 6×AA Battery Holder (9V DC Output)

BO Motor Technical Details

• Operating Voltage: 3V–12V DC
• Rated Speed: 125 RPM @ 6V DC
• No Load Current: 60 mA (approx.)
• Load Current: 250 mA (approx.)
• Torque: 1.2–1.5 kg·cm
• Shaft Type: Dual Straight Shaft (Plastic)
• Gear Type: Plastic Spur Gear

Physical Attributes

• Chassis Height: 4 cm
• Wheel Diameter: 65 mm
• Wheel Width: 25 mm
• Wheel Material: Plastic Rim with Rubber Tire
• Chassis Color: Black
• Approximate Total Weight: 741g

Notes

• Wheel color is not fixed and will be shipped as per stock availability.
• Screwdriver are included.
• Battery Not included.

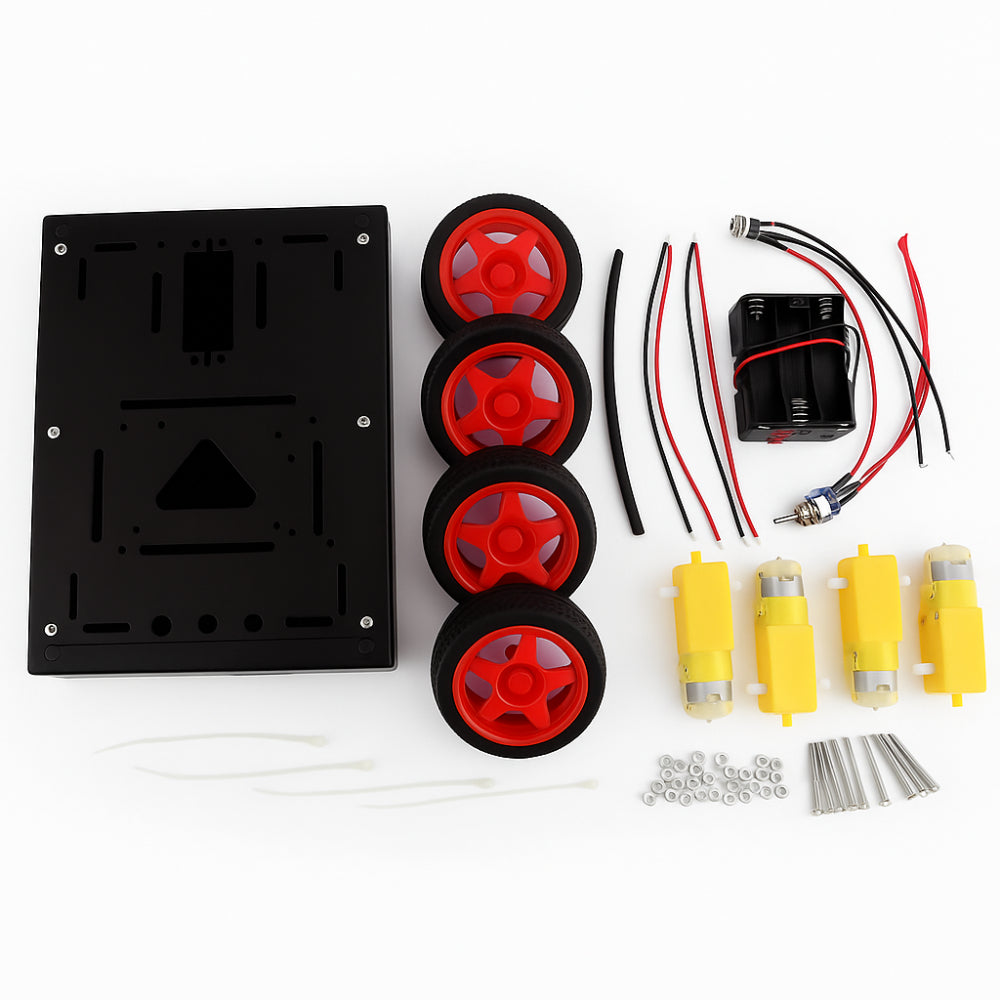

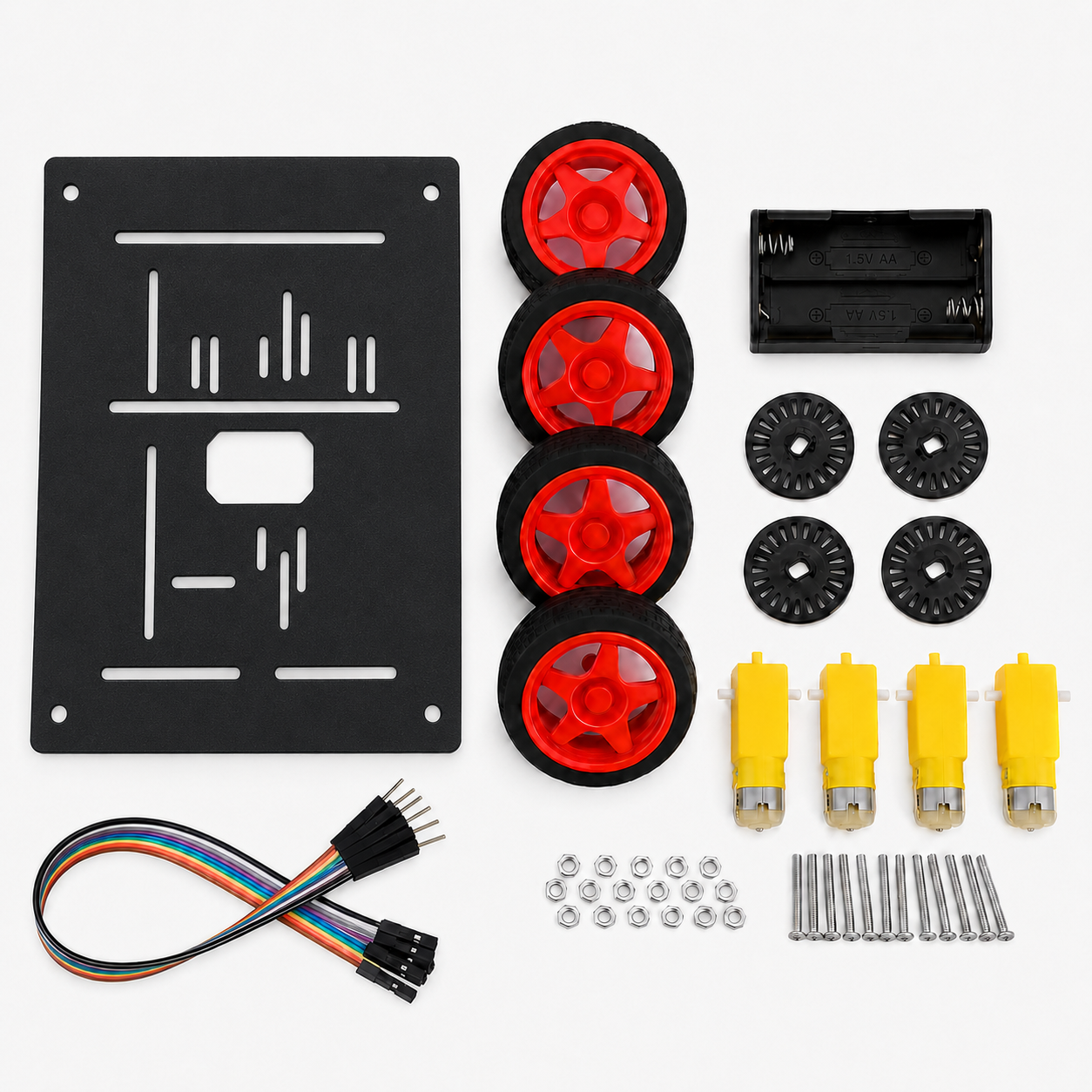

Package Includes

• 1 × Metal Chassis (Black)
• 4 × 65 × 25 mm Plastic Wheels (Yellow/Color may vary)
• 4 × 125 RPM BO Motors (Dual Straight Shaft)
• 1 × Metal Toggle Switch with Soldered Wire
• 1 × 5 mm Metal DC Input Jack (Female, Soldered)
• 1 × 6×AA Battery Holder for 9V DC Supply
• 1 × 2-in-1 Screwdriver
• 1 × Connecting Wires & Plastic Tie Set
