Aluminium Alloy Smart Tank Crawling Chassis With Motor DIY

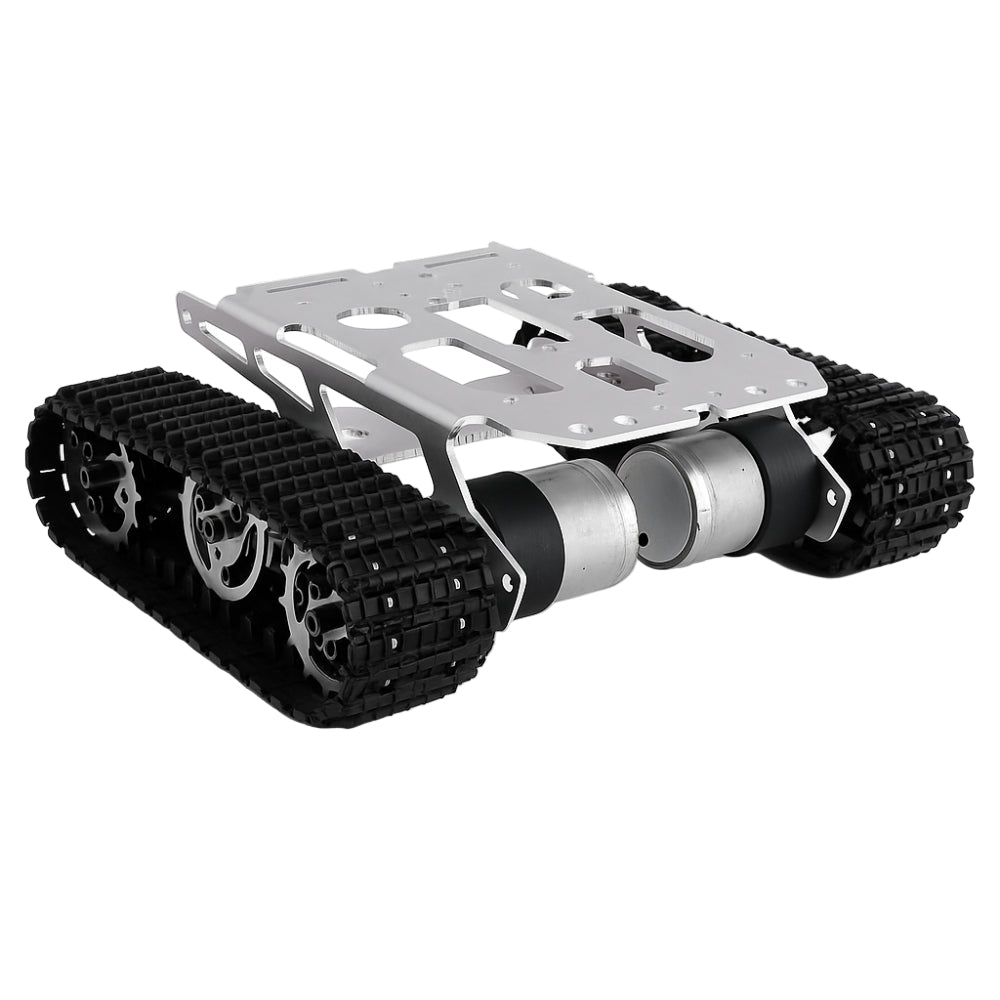

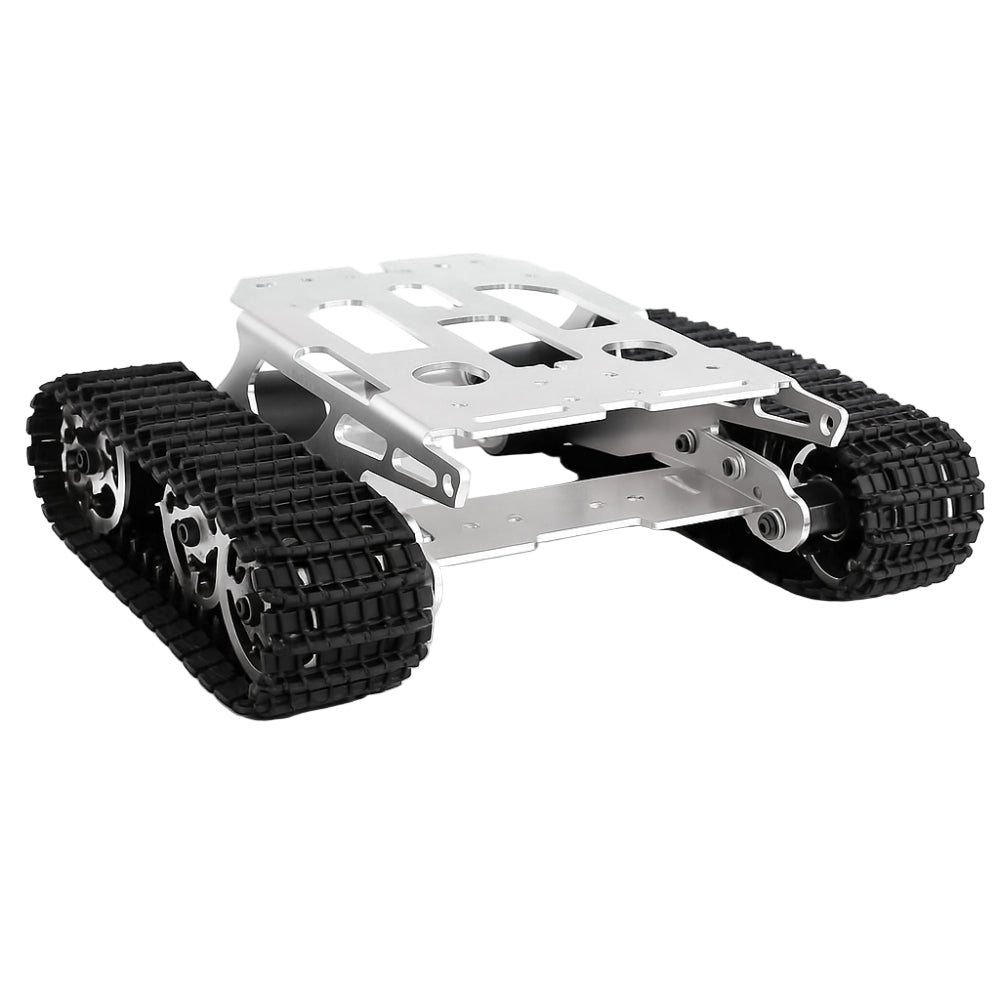

Wall-E Aluminium Crawler Chassis – Dual Motor Smart Tank Platform

The Wall-E Aluminium Crawler Chassis is a durable platform ideal for premium robot kits, modular robotics builds, and advanced DIY engineering projects. Its multi-layer aluminium frame supports creative configurations often required in robo kits and also offers flexible mounting options for those sourcing robot parts online. Designed for smooth movement and stable control, this platform allows makers to assemble reliable robot kits for STEM learning, competitions, or automation research. With strong traction and powerful motors, it allows both experimentation and high-performance motion in compact robotic systems.

Crafted from lightweight aluminium alloy, the chassis provides a stable base for complex robot kits. Thanks to its enhanced construction, it supports diverse sensors, add-on modules, and accessories commonly seen in robo kits. Moreover, the customizable structure enables makers to integrate additional robot parts online without modifying the frame. Its smooth track system, metal wheels, and dual-motor drive deliver dependable movement on uneven surfaces, further expanding the usability of this platform across innovative robotics projects.

Whether used in robotic prototypes, educational STEM sessions, or personal engineering builds, this platform ensures long-term reliability. The chassis helps users create functional robot kits while also supporting development workflows where robo kits need expansion or upgrades. Additionally, designers working with robot parts online can easily adapt the chassis to mount controllers, sensors, cameras, and mechanical systems that enhance utility and experimentation.

Key Features

• Dual 33mm DC motors for powerful drive performance.
• Lightweight aluminium alloy ensures strength and corrosion resistance.
• Multi-layer chassis design supports modular customization.
• Plastic tracks provide excellent traction and smooth movement.
• Metal wheels for improved durability and balance.
• Suitable for DIY robotics, tank bots, and educational projects.

Applications

• Autonomous tank robot development
• Obstacle-avoiding and tracking robots
• STEM and engineering educational kits
• Prototype and research robots
• Robotics competitions and demonstration models

Physical Attributes

• L × W × H: 156 mm × 196 mm × 66 mm
• Weight: 598 g
• Material: Aluminium Alloy
• Structure: Sturdy and stable multi-layer frame
• Wheel: Metal
• Track: Plastic (durable grip)
• Motor Type: 33 mm DC Metal Gear Motor
• Operating Voltage: 6V–12V
• Motor Speed: 6V (170 RPM) / 12V (350 RPM)

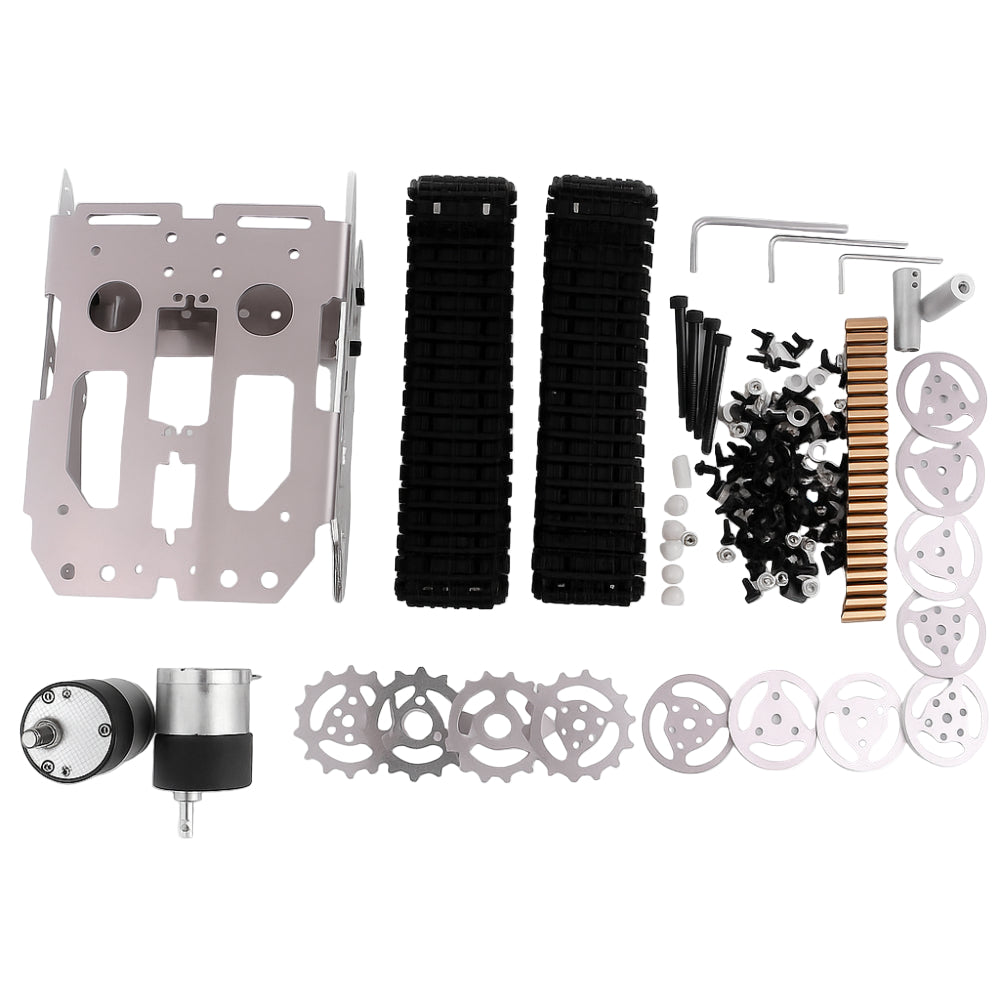

Package Includes

• 2 × 12V DC D-Type Shaft Motors
• 2 × Rubber Tank Tracks
• 1 × Aluminum Alloy Chassis
• 4 × Aluminum Sprocket Wheels
• 8 × Round Mount Discs
• 21 × Chassis Stand-offs
• 5 × Long Nuts
• 6 × White Round Spacers
• 3 × Allen Keys
• 4 × Metal Washers
• 2 × Thread Extensions
• 1 × Screw Set
