AHT10 High Precision Digital Temperature and Humidity Sensor Module

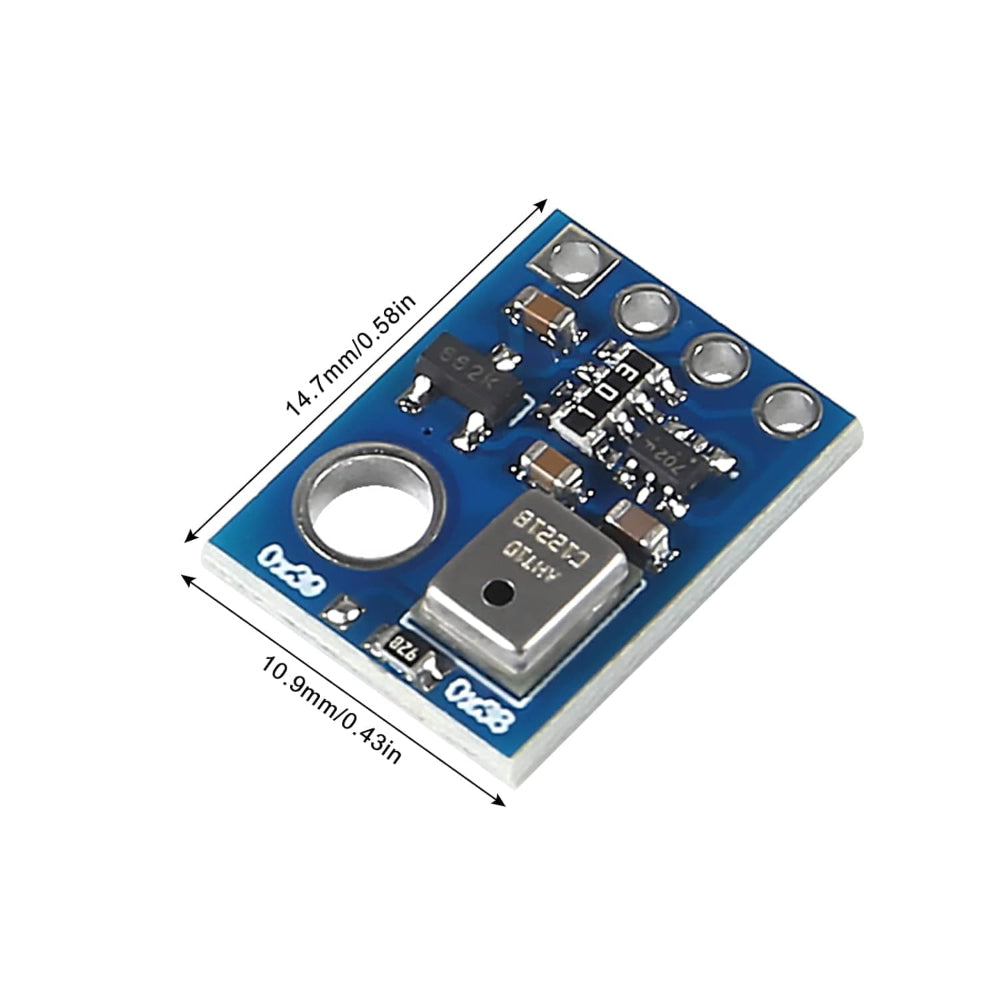

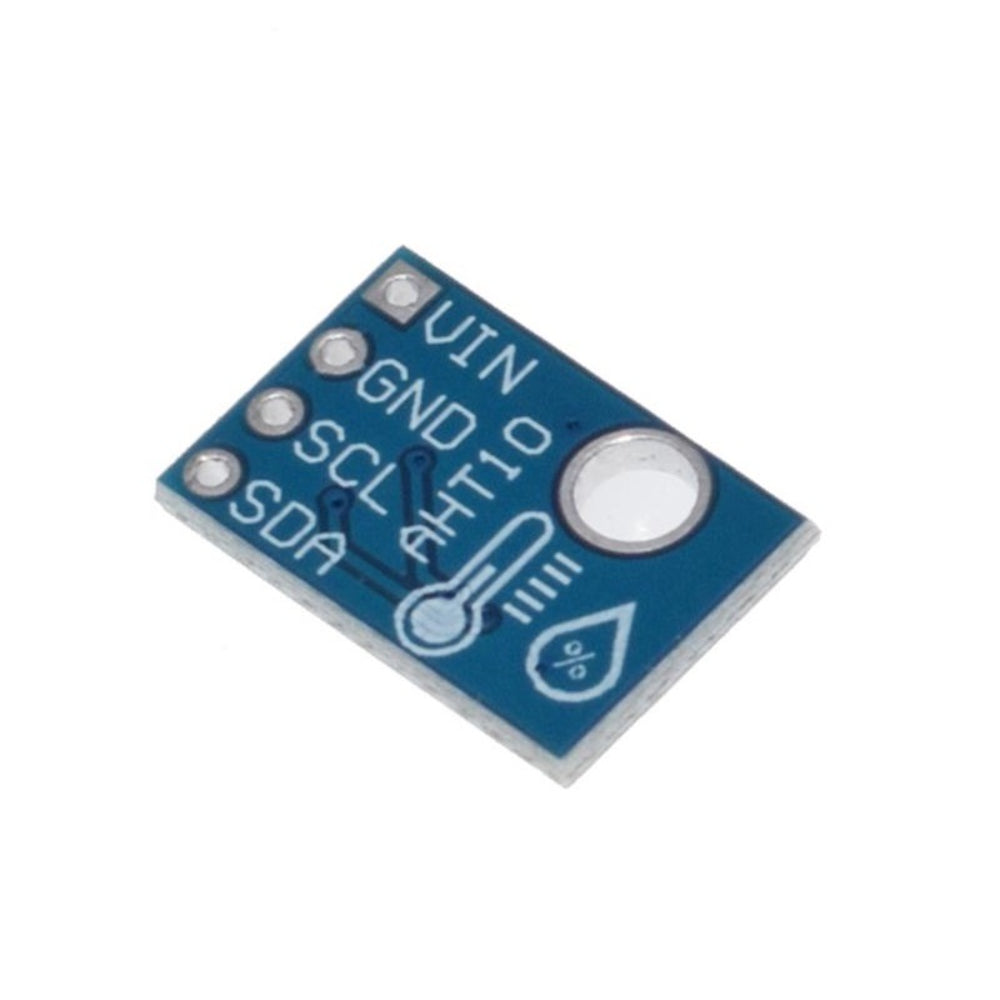

The AHT10 Sensor Module is a compact, high-performance temperature and humidity sensor featuring a 4 × 5 mm SMD package and 1.6 mm height. It outputs calibrated digital data via the standard I2C interface. Equipped with a newly designed ASIC chip, improved MEMS capacitive humidity element, and on-chip temperature sensing, it delivers reliable and stable measurements even in harsh environments.

Features

  • Compact Design: 4 × 5 mm SMD package with 1.6 mm height
  • Digital Output: Calibrated signal in standard I2C format
  • Advanced Technology: ASIC chip, improved MEMS humidity, and on-chip temperature sensors
  • High Performance: Reliable and stable in harsh conditions
  • Wide Application: Suitable for IoT, HVAC systems, and industrial monitoring
  • Interface Size: 4 × 2.54 mm pitch
  • Humidity Accuracy: Typical ±2%
  • Humidity Resolution: 0.024%
  • Temperature Accuracy: Typical ±0.3°C
  • Temperature Resolution: Typical 0.01°C

Technical Details

  • Item Type: Sensor
  • Model Type: Temperature and Humidity Sensor
  • Interface Type: I2C
  • Working Voltage: 1.8 – 6.0 V
  • Resolution: 0.024%
  • Operating Temperature: -40°C to 85°C

Applications

  • IoT devices and smart home systems
  • HVAC and environmental monitoring
  • Industrial automation and control
  • Weather stations and research projects
  • Embedded electronics requiring precise temperature and humidity measurement

Package Includes

  • 1 × Digital Temperature and Humidity Sensor (AHT10)
