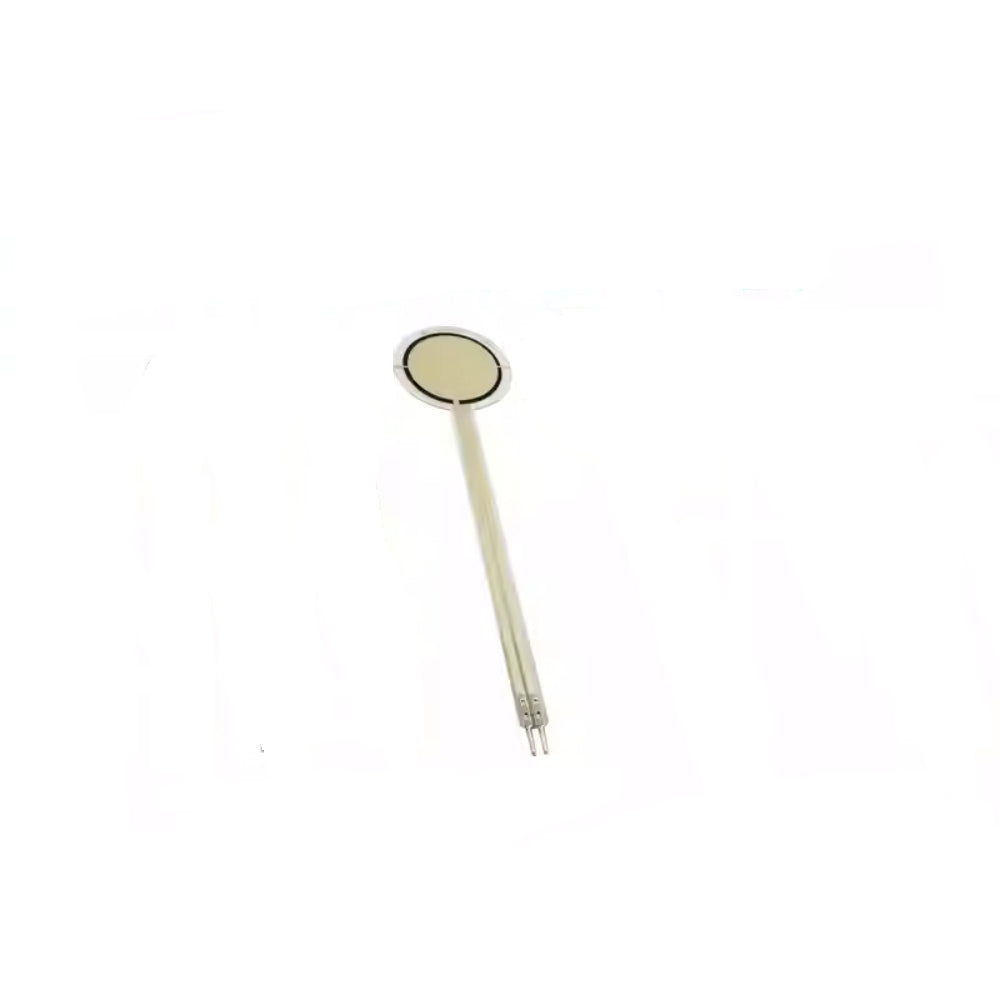

Thin Film Pressure Sensor Single Point Circular Diameter 15 mm Flexible Resistor Long tail
- Product SKU: KG1198
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
This thin film pressure sensor, with a 15 mm diameter active area, provides continuous and precise force measurement through an analog output. Designed with a flexible 105 mm tail for easy integration, it is well-suited for applications that require larger force-sensing surfaces. At just 0.2 mm thick, it is compact enough for use in space-constrained devices. The durable polyester substrate and rapid response make it ideal for applications that require reliable performance over an extended lifecycle.
Features:
Large Active Area: 15 mm diameter offers an expansive sensing surface, ideal for broader force application.Wide Force Range: Measures forces from as low as 100 grams up to 50 kilograms.
Ultra-Thin Profile: Only 0.2 mm thick, making it suitable for devices with limited space.
Quick Response: Rise time of 5 microseconds, allowing for immediate feedback in dynamic applications.
Continuous Analog Output: Delivers a smooth, real-time force measurement.
Long-Lasting Durability: Designed for up to 1 million cycles for extended use.
Polyester Substrate: Durable and flexible, ideal for use in a range of environments.
Applications:
Medical Equipment: Useful in patient monitoring, pressure mapping, and other medical devices requiring a larger sensing surface.Wearable Technology: Fits in larger wearable devices where force sensing is necessary.
Robotics: Integrates into robotic grips or surfaces for accurate, broader force detection.
Industrial Automation: Provides feedback for machinery requiring real-time, larger-surface force measurement.
Consumer Electronics: Ideal for touch-sensitive areas or pressure-based interfaces in gadgets.
Technical Details
- Active Area: Circular, 15 mm diameter
- Sensor Length: 105 mm with a flexible tail for easy connectivity
- Typical Force Range: 100 grams to 50 kilograms
- Sensor Thickness: 0.2 mm, allowing for compact integration
- Operating Temperature: -20°C to 60°C
- Force Resolution: Continuous, allowing smooth analog response
- Output: Analog output suitable for real-time force measurement
- Relative Humidity: Operates effectively in 5% to 90% humidity
- Stand-Off Resistance: Greater than 2 Mega ohms, minimizing interference
- Force Repeatability: ±10%, maintaining consistency over repeated cycles
- Lifespan: Tested to endure up to 1 million actuations
- Response Time: Less than 5 microseconds for fast force detection
- Substrate Material: Polyester, providing durability and flexibility
- Parasitic Capacitance: 50–500 pF, typical of thin film sensors
Package Includes
- 1 x Thin Film Pressure Sensor Single Point Circular Diameter 15 mm Flexible Resistor Long tail
