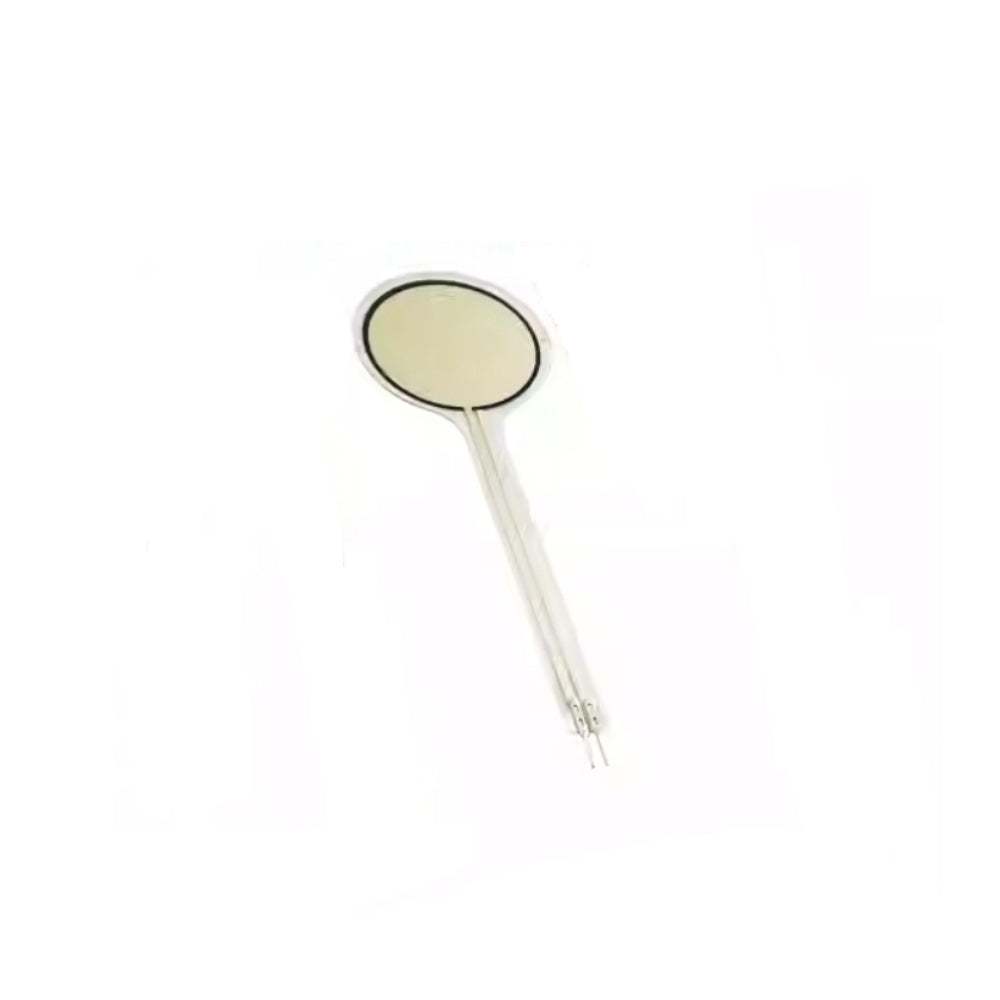

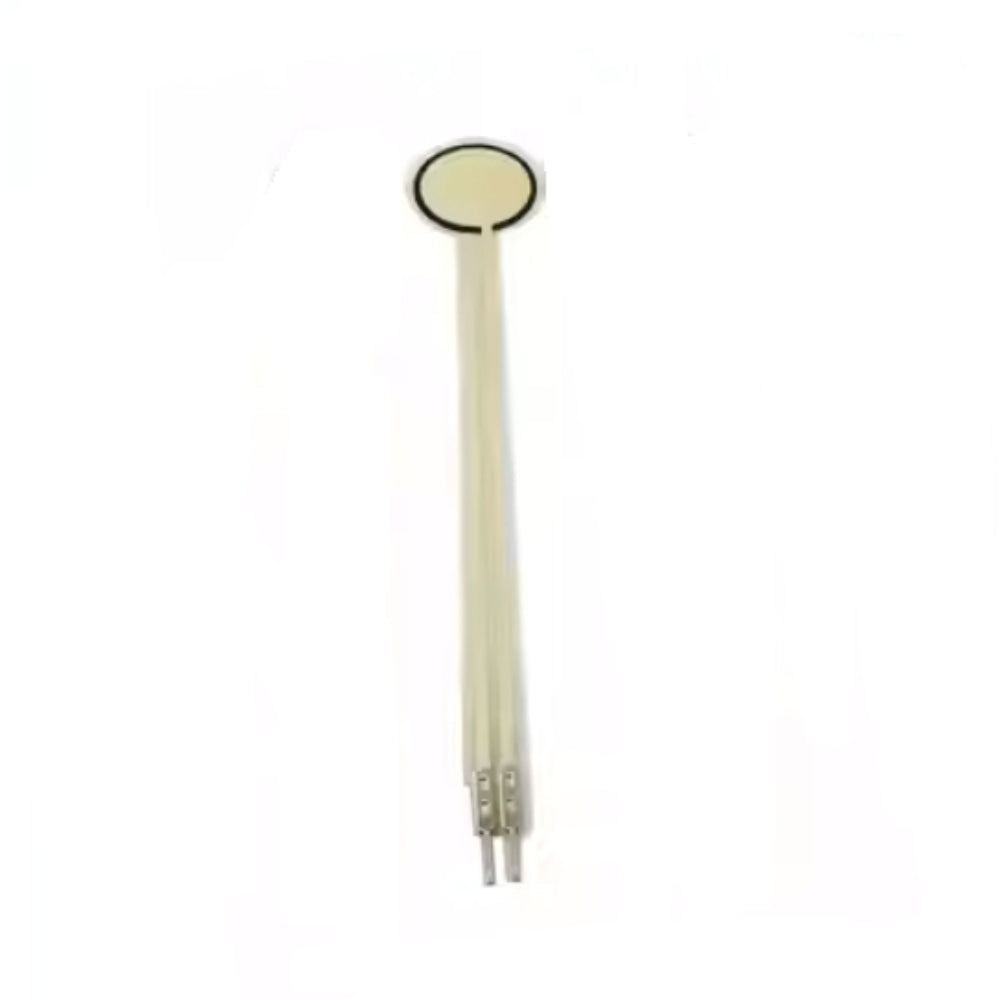

Thin Film Pressure Sensor Single Point Circular Diameter 25 mm Flexible Resistor Long tail
- Product SKU: KG1199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
This thin film pressure sensor features a substantial 25 mm circular active area, providing accurate and continuous force measurement through an analog output. Its 120 mm flexible tail and thin profile allow for easy integration into larger, space-sensitive applications. With a robust polyester substrate and long lifespan, this sensor is engineered to withstand up to 1 million actuations, making it ideal for demanding, high-usage environments.
Features:
Large Sensing Area: 25 mm diameter for applications requiring broader force detection.Wide Force Range: Measures forces from as light as 100 grams to as heavy as 50 kilograms.
Slim Profile: 0.3 mm thickness fits within tight spaces without compromising durability.
High Responsiveness: Rise time of 5 microseconds for immediate feedback.
Analog Output: Provides smooth, real-time force monitoring, ideal for dynamic applications.
Extended Durability: Designed for up to 1 million actuations, ensuring long-lasting use.
Polyester Substrate: Adds durability and flexibility, making it versatile across applications.
Applications:
Medical Devices: Ideal for applications requiring larger pressure-sensing areas, such as patient monitoring and pressure mapping.Wearable Technology: Suitable for larger wearables or flexible electronics that require broad-area force sensing.
Industrial Machinery: Useful in automation for large-area force detection and real-time feedback.
Robotics: Enables robots to detect force across a larger surface, beneficial in grippers or tactile feedback.
Consumer Electronics: Applied in touch-sensitive interfaces and controls that need responsive force measurement.
Technical Details

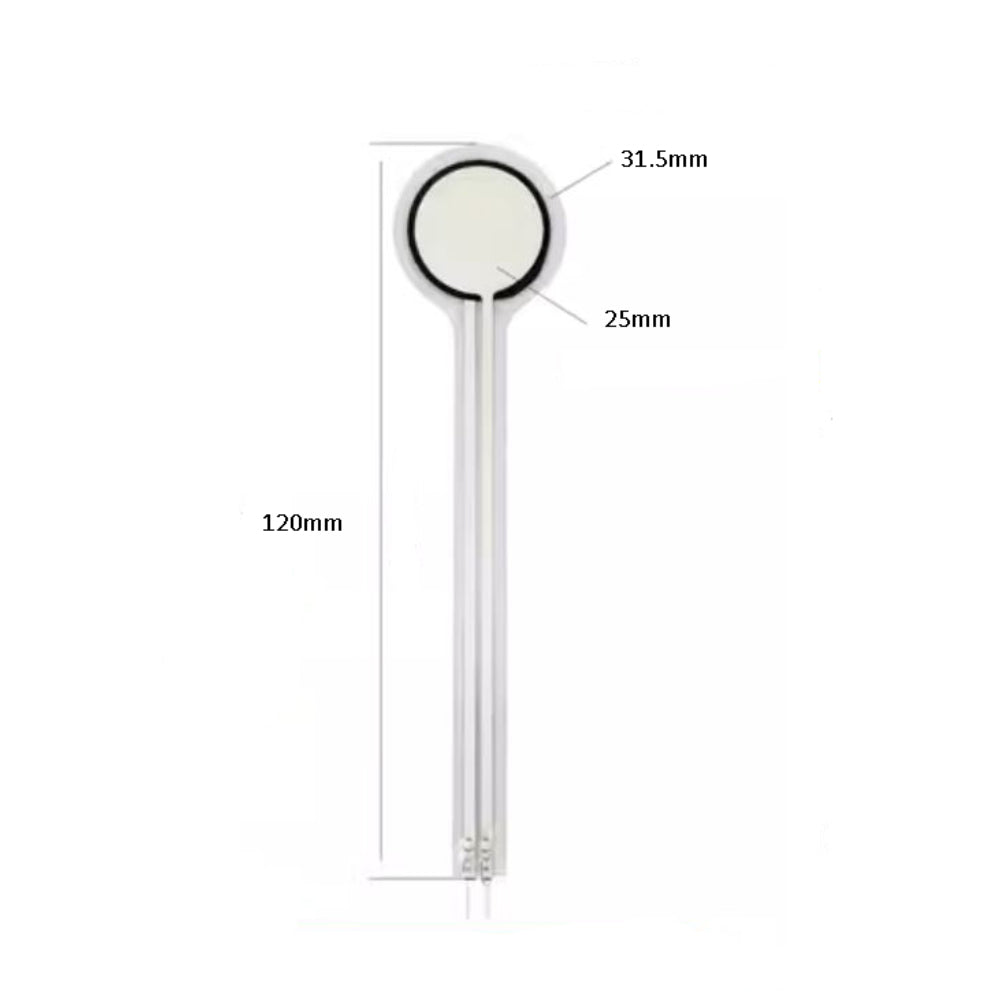

- Active Area: Circular, 25 mm diameter
- Sensor Length: 120 mm, with a flexible tail for seamless connectivity
- Typical Force Range: 100 grams to 50 kilograms
- Sensor Thickness: 0.3 mm, providing a balance of flexibility and durability
- Operating Temperature: -20°C to 60°C
- Force Resolution: Continuous, for smooth and precise measurement
- Output: Analog, suitable for real-time feedback
- Relative Humidity: Functions well in 5% to 90% humidity environments
- Stand-Off Resistance: Greater than 2 Mega ohms, minimizing signal interference
- Force Repeatability: ±10% for consistent performance over repeated use
- Lifespan: Tested to withstand up to 1 million cycles
- Response Time: <5 microseconds, enabling rapid detection
- Substrate Material: Polyester for resilience and flexibility
- Parasitic Capacitance: 50–500 pF, characteristic of thin film sensors
Package Includes
- 1 x Thin Film Pressure Sensor Single Point Circular Diameter 25 mm Flexible Resistor Long tail
