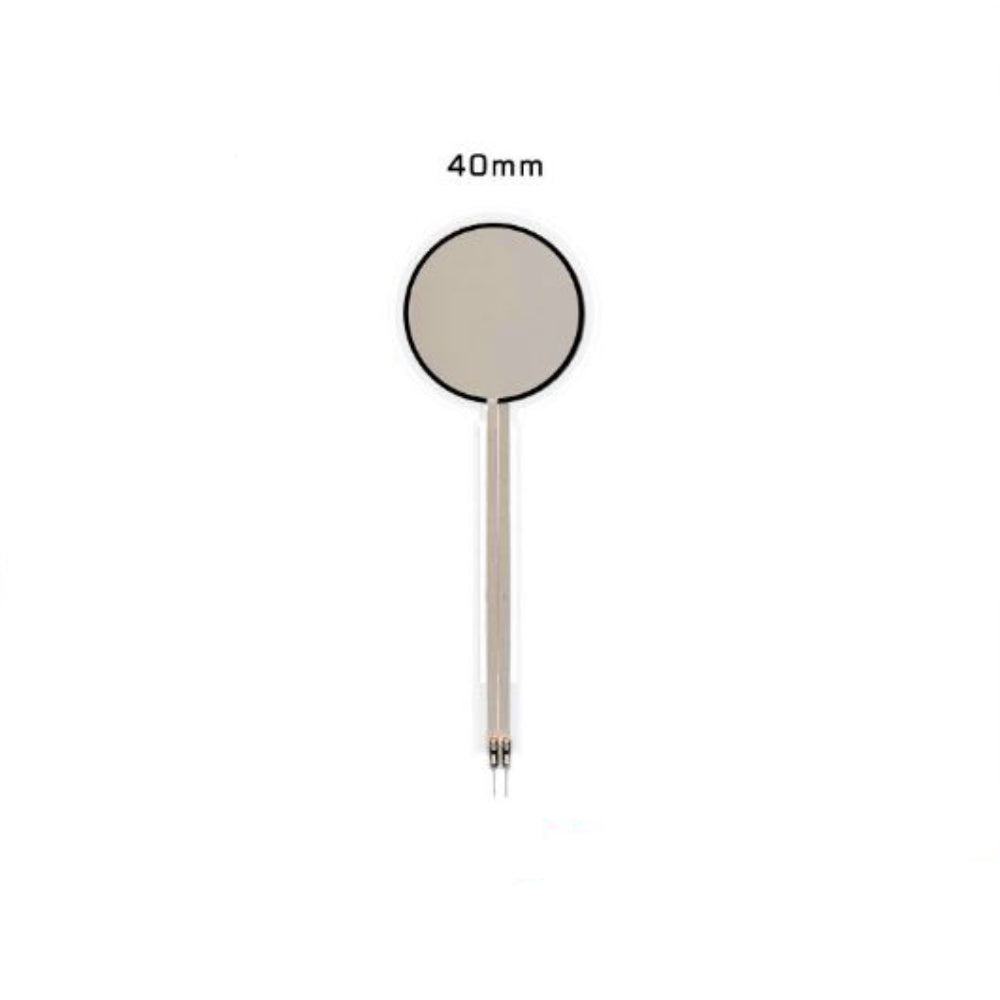

Thin Film Pressure Sensor Single Point Circular Diameter 40 mm Flexible Resistor Long tail
- Product SKU: KG1200
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
This large-format thin film pressure sensor, with a 40 mm diameter active area, provides continuous and precise force measurement through an analog output, designed for applications that require extensive surface force sensing. Its flexible 120 mm tail and slim 0.3 mm profile make it easy to incorporate into various devices, even with space constraints. Constructed with a durable polyester substrate and capable of enduring up to 1 million actuation, this sensor is ideal for high-use environments and applications requiring robust performance.
Features:
Extra-Large Active Area: 40 mm diameter, suitable for applications that require wider force detection.Extended Force Range: Measures forces ranging from 100 grams to 50 kilograms.
Ultra-Thin Profile: 0.3 mm thickness for integration into tight spaces.
Fast Response: Less than 5 microsecond rise time ensures real-time feedback.
Analog Output: Provides continuous, real-time force measurement.
High Durability: Designed for up to 1 million actuations, supporting long-term applications.
Polyester Substrate: Flexible and robust, adaptable to varied conditions.
Applications:
Medical Technology: Large-area pressure sensing for patient monitoring systems, pressure maps, or larger touch-sensitive areas.Industrial Automation: Ideal for real-time feedback in equipment that requires broad force detection.
Robotics: Essential for robotic grippers or tactile feedback systems where larger contact surfaces are beneficial.
Wearable Technology: Suitable for large-surface wearables requiring precise force sensing.
Automotive Systems: Useful in pressure-sensitive control interfaces and seat sensors for enhanced safety and usability.
Technical Details

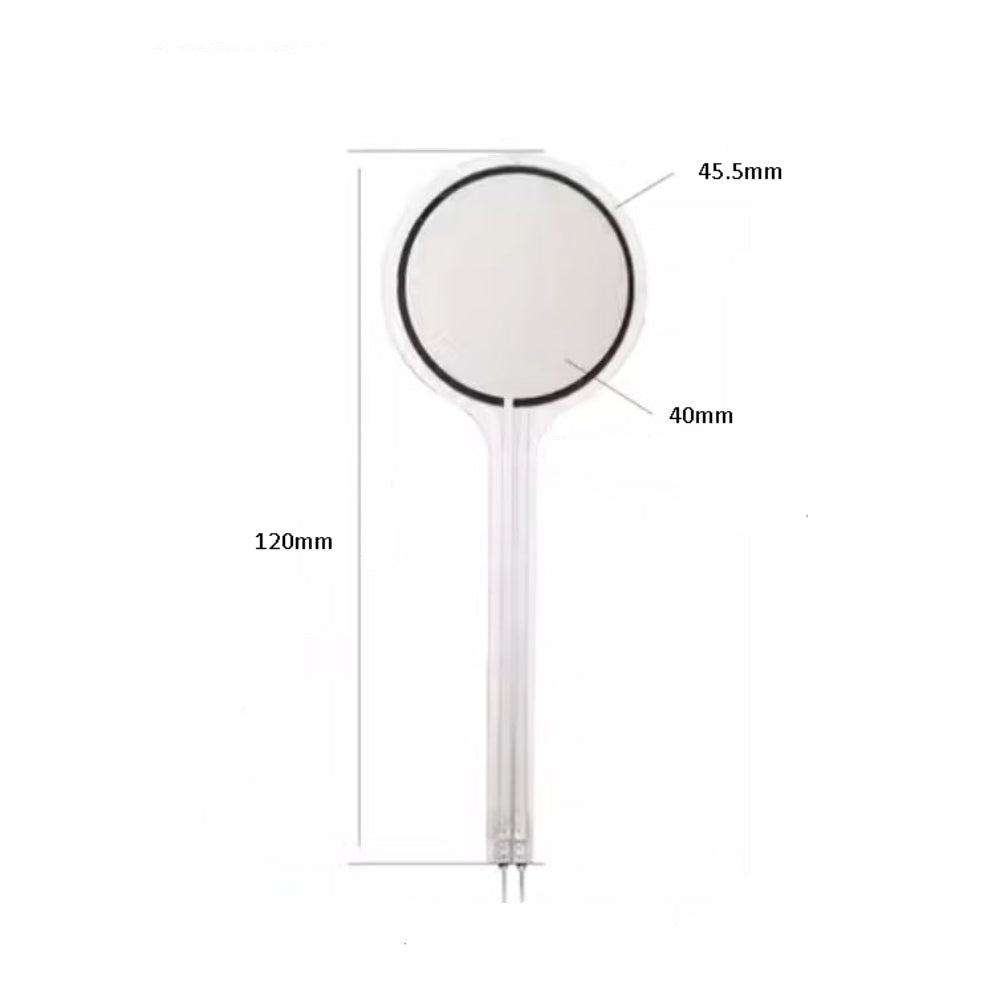

- Active Area: Circular, 40 mm diameter
- Sensor Length: 120 mm, with an extended flexible tail for easy connectivity
- Typical Force Range: 100 grams to 50 kilograms
- Sensor Thickness: 0.3 mm, balancing flexibility and durability
- Operating Temperature: -20°C to 60°C
- Force Resolution: Continuous, providing smooth, precise feedback
- Output: Analog, ideal for real-time monitoring
- Relative Humidity: 5% to 90%, adaptable to diverse environments
- Stand-Off Resistance: Greater than 2 Mega ohms, reducing interference
- Force Repeatability: ±10% for consistent measurements over time
- Lifespan: Tested for up to 1 million cycles, ensuring extended usability
- Response Time: <5 microseconds, enabling rapid force detection
- Substrate Material: Polyester, providing resilience and flexibility
- Parasitic Capacitance: 50–500 pF, typical for thin film technology
Package Includes
- 1 x Thin Film Pressure Sensor Single Point Circular Diameter 40 mm Flexible Resistor Long tail
