YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale_3

YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale

YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale1

YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale

Available:In Stock

Product SKU: KG1247

Wishlist

₹ 199 ~~₹ 299~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Rated Load: 20 Kg
Output: 1.0 ±0.15 mV/V
Zero: ±0.1 mV/V
Creep: 0.03% F.S./30min
Wiring: Red+/Black- | Green+/White-
Input Impedance: 1115 Ω

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

36 I - 172

Specification

Description

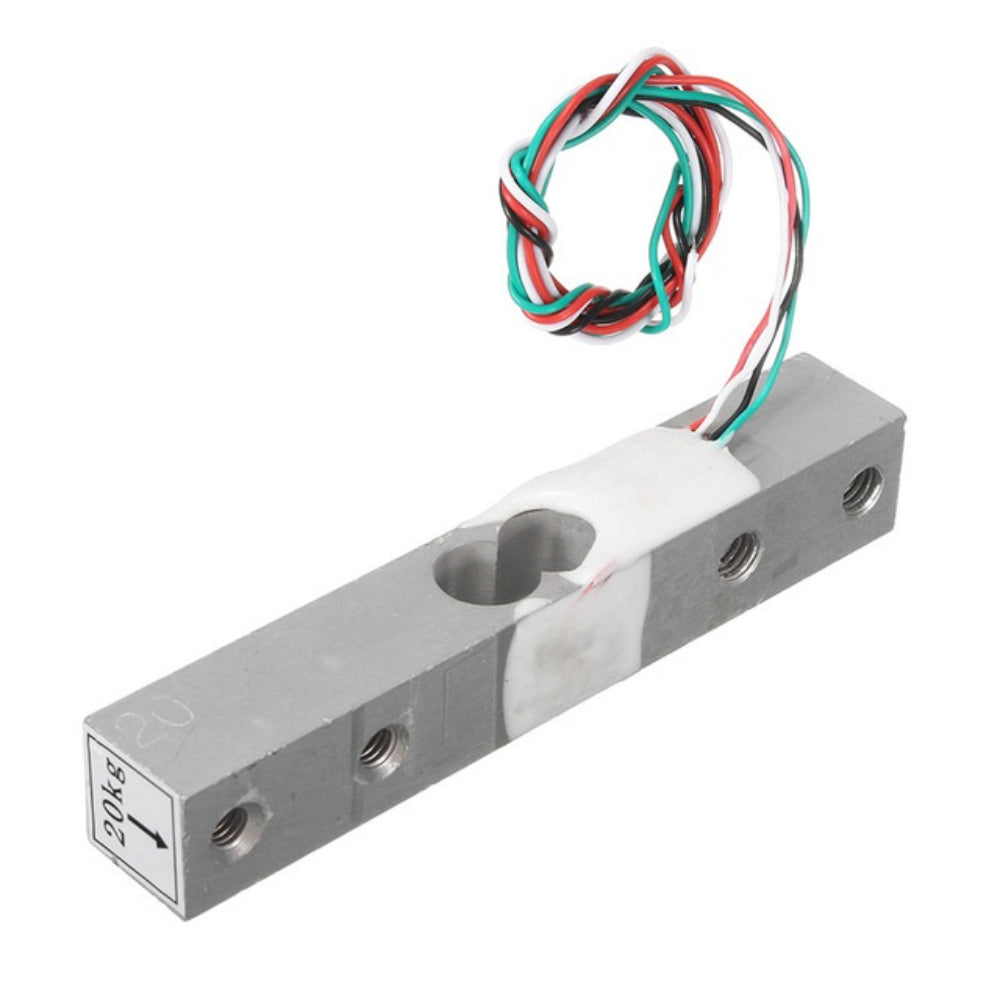

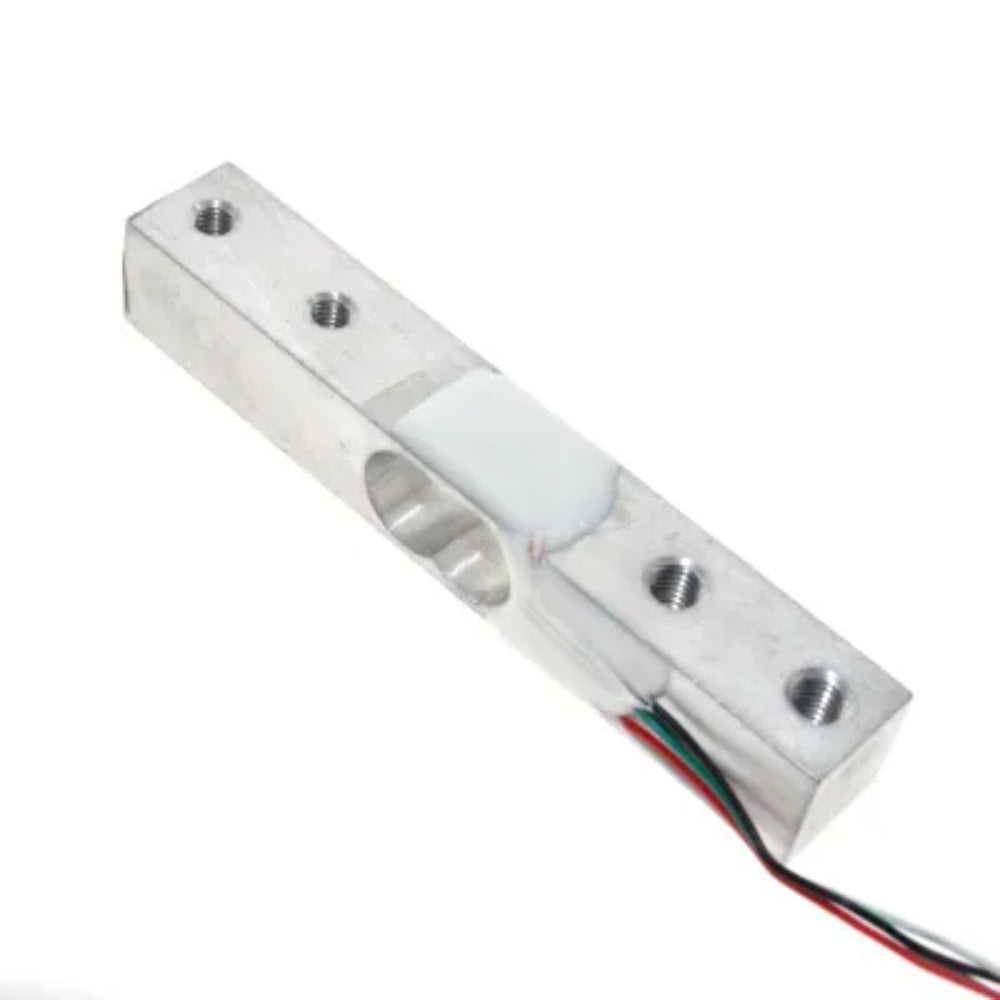

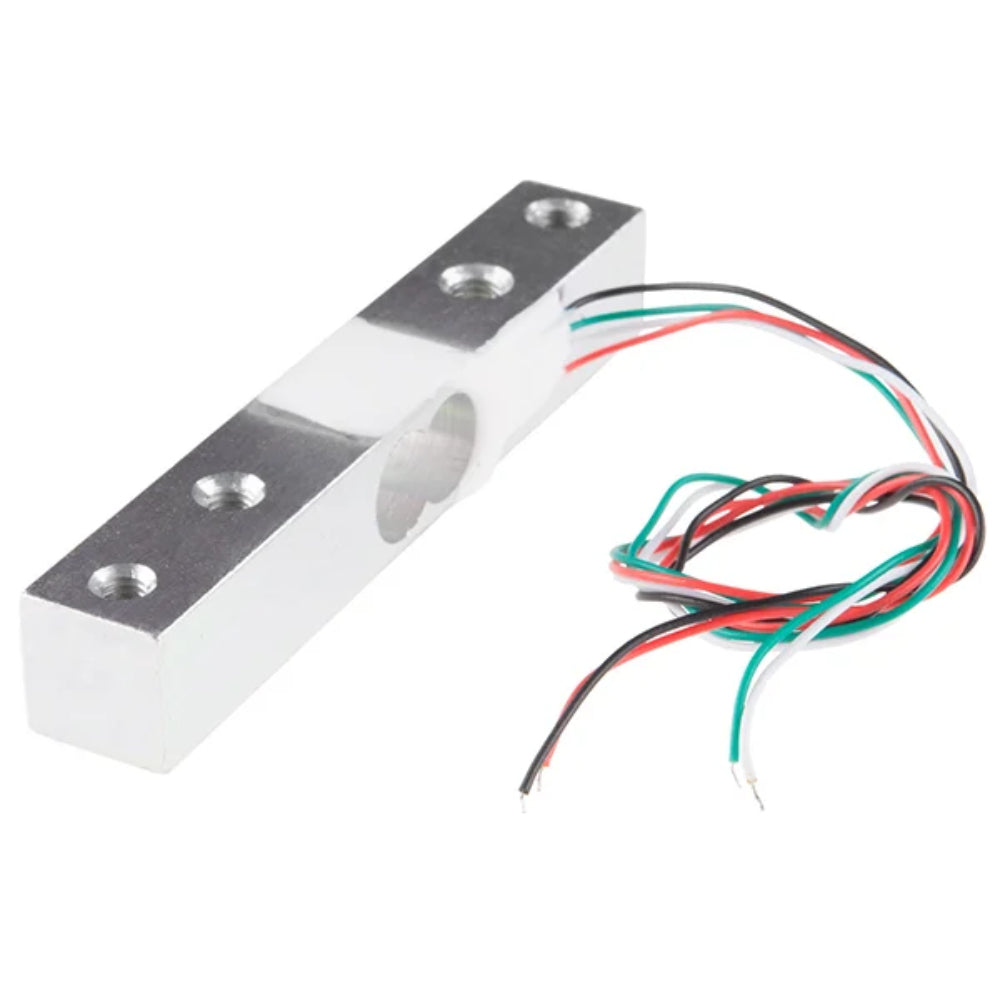

YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale

The YZC-133 Weighing Load Cell Sensor is a high-precision strain gauge load cell capable of measuring up to 20 kg of force and converting it into an electrical signal. This sensor allows you to determine the weight of objects, monitor weight changes over time, or detect the presence of an object by measuring applied strain or load.

Made from a durable aluminum alloy, the YZC-133 features four lead wires compatible with the HX711 A/D Pressure Sensor. It operates with a driving voltage of 5–10V and produces an output voltage proportional to the applied force. The sensor is easy to install: one end is fixed via screw holes while the other end remains in a floating state. Proper care must be taken to avoid pressing the white plastic cover to prevent damage.
