MG996R Digital High Torque Servo Motor Plastic Gear 360°

Toward Pro MG996R Digital High Torque Servo Motor Metal Gear 180°

Available:Out of Stock

Product SKU: LGSV012

Wishlist

₹ 299 ~~₹ 459~~

Pre-order

Specification

Description

TowerPro MG996R Digital High Torque Servo Motor (180° Rotation)

The TowerPro MG996R Digital High Torque Servo Motor is a powerful and reliable servo designed for RC aircraft, automobiles, robotics, and DIY projects. It is a high-torque servo that delivers stable performance and accurate control for a wide range of applications.

In the Indian market, many TowerPro servos are commonly available as non-original units. These servos are budget-friendly and serve the purpose well for hobby and educational projects. If you are looking for premium quality, E-Max or Orange servos are recommended.

Wire Description

Red – Positive (VCC)
Brown – Negative (GND)
Orange – Signal (PWM)

Key Features

Standard 180° rotation servo motor
High torque suitable for RC and robotics applications
Metal gear for durability and long life
JR servo plug (compatible with JR & Futaba)
Universal “S” type connector
Servo arms and mounting screws included
CE & RoHS compliant
Upgraded aluminum 6061-T6 gear shaft (stronger and lighter)

Technical Specifications

Item Type: TowerPro Servo Motor
Model Series: MG Series
Model Number: MG996R
Rotation Range: 180°
Torque Rating: 9.4 to 11 kg-cm
Operating Voltage: 4.8V – 6.6V
Operating Speed @ 4.8V: 0.19 sec / 60°
Operating Speed @ 6.6V: 0.15 sec / 60°
Stall Torque @ 4.8V: 9.4 kg-cm
Stall Torque @ 6.6V: 11 kg-cm
Operating Temperature: 0°C to 55°C
Gear Type: Metal
Number of Teeth: 25
Dead Band Width: 1 µs
Wire Length: 32 cm

Applications

Robotic arms and joint movement
RC aircraft control surfaces
RC cars steering mechanisms
DIY automation and motion control
Educational and prototyping use

Product Parameter

Physical Attributes

Dimensions (L × W × H): 40.7 × 19.7 × 42.9 mm
Weight: Approx. 64 g

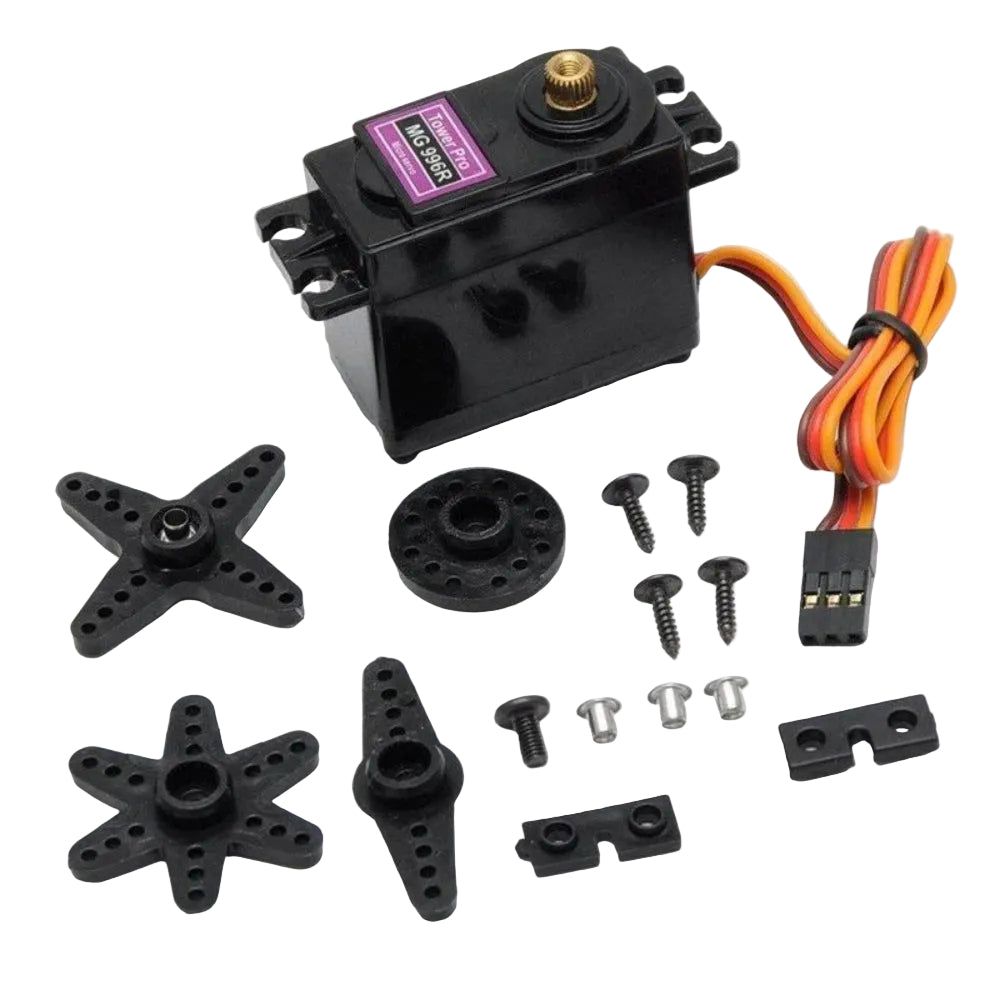

Package Includes

1 × TowerPro MG996R Digital High Torque Servo Motor (180°)
1 × Set of Servo Horns
1 × Set of Mounting Screws

Good servos for model building

I needed some large servos for a model I'm building. These work well and were very reasonably priced. I'll buy more next time I need more.

Real metal gears

I removed the cover of these to see if they were real or fake plastic gears and glad to say that they are the real deal, none were plastic :)

Product as advertised

The Servos worked very well right out of the package

Good Servo for the price.

I have ordered 8 of these servos and used 6 of them. So far all are working well. These are different than the first 4 I ordered. They have been upgraded to all metal gears. Will purchase more.
