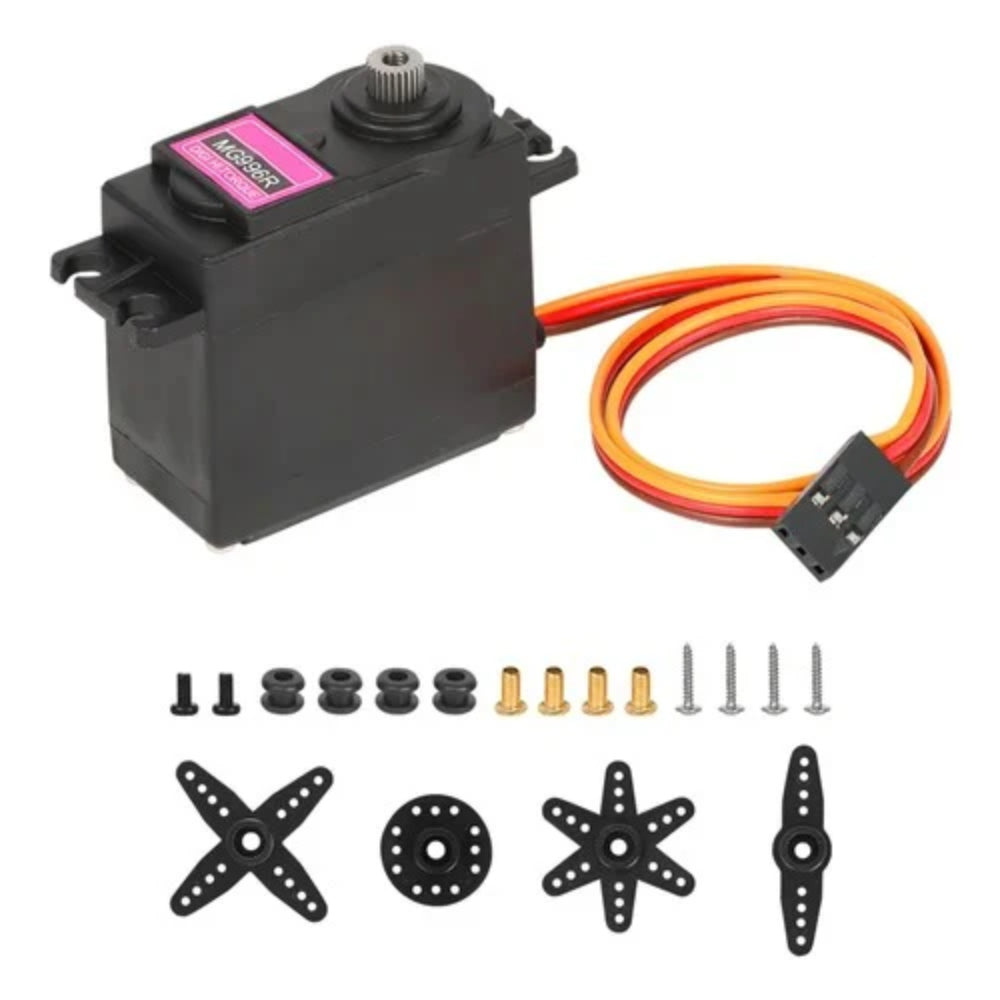

MG996R 360° metal gear servo
TowerPro MG996R digital servo motor
MG996R servo wiring (VCC GND signal)
MG996R 360° metal gear servo
TowerPro MG996R digital servo motor
MG996R servo wiring (VCC GND signal)

TowerPro MG996R Digital High Torque Servo Motor 360° Rotation

Available:In Stock
  • Product SKU: KG114
Wishlist
₹ 299 ₹ 478
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • High Torque
  • Metal Gears
  • Digital Servo
  • Dual Bearings
  • PWM Control
  • Arduino Compatible
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
12 B - 109
Secure

Specification

Description

TowerPro MG996R Digital Metal Gear Servo Motor – 360° Rotation

The MG996R is a high-torque digital metal gear servo motor designed for robotics, RC vehicles, and motion-control projects. It is an upgraded version of the MG995 servo with an improved control system for better accuracy, faster response, and stable performance. The servo supports approximately 360° rotation and can be controlled using standard servo libraries and PWM signals.

Its durable metal gear train and double ball bearing design provide smooth operation, shock resistance, and long service life. The servo comes with horns and mounting accessories, making it ready for quick installation in DIY and professional applications.

Technical Details

  • Item Type: TowerPro Servo Motor
  • Model Series: MG Series
  • Model Number: MG996R
  • Rotation Angle: 360°
  • Torque Rating: 9.4 – 11 kg-cm
  • Operating Voltage: 4.8 – 6.6 V DC
  • Operating Speed @ 4.8V: 0.19 sec / 60°
  • Operating Speed @ 6.6V: 0.15 sec / 60°
  • Stall Torque @ 4.8V: 9.4 kg-cm
  • Stall Torque @ 6.6V: 11 kg-cm
  • Operating Temperature Range: 0°C to 55°C
  • Gear Type: Metal
  • Number of Gear Teeth: 25
  • Dimensions (L × W × H): 40.7 × 19.7 × 42.9 mm

Wire Description

  • RED – Positive
  • Brown – Negative
  • Orange – Signal

Product Parameter

Physical Attributes

  • Dimensions (L × W × H): 40.7 × 19.7 × 42.9 mm
  • Weight(g): 64

Integration with Arduino

Sample Code

Features

  • Metal gear construction for high strength and durability
  • JR servo plug compatible with JR and Futaba connectors
  • Includes servo arms and mounting screws (Futaba compatible)
  • Universal “S” type connector fits most receivers including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum
  • CE and RoHS compliant
  • Upgraded gear set and shaft made from aluminum 6061-T6 for improved strength and reduced weight

Applications

  • Used as actuators in many robots like Biped Robot, Hexapod, robotic arm, etc.
  • Commonly used for a steering system in RC toys
  • Robots where position control is required without feedback
  • Less weight hence used in multi-DOF robots like humanoid robots

Package Includes

  • 1 x Toward Pro MG996R Digital High Torque Servo Motor Metal Gear 360°
