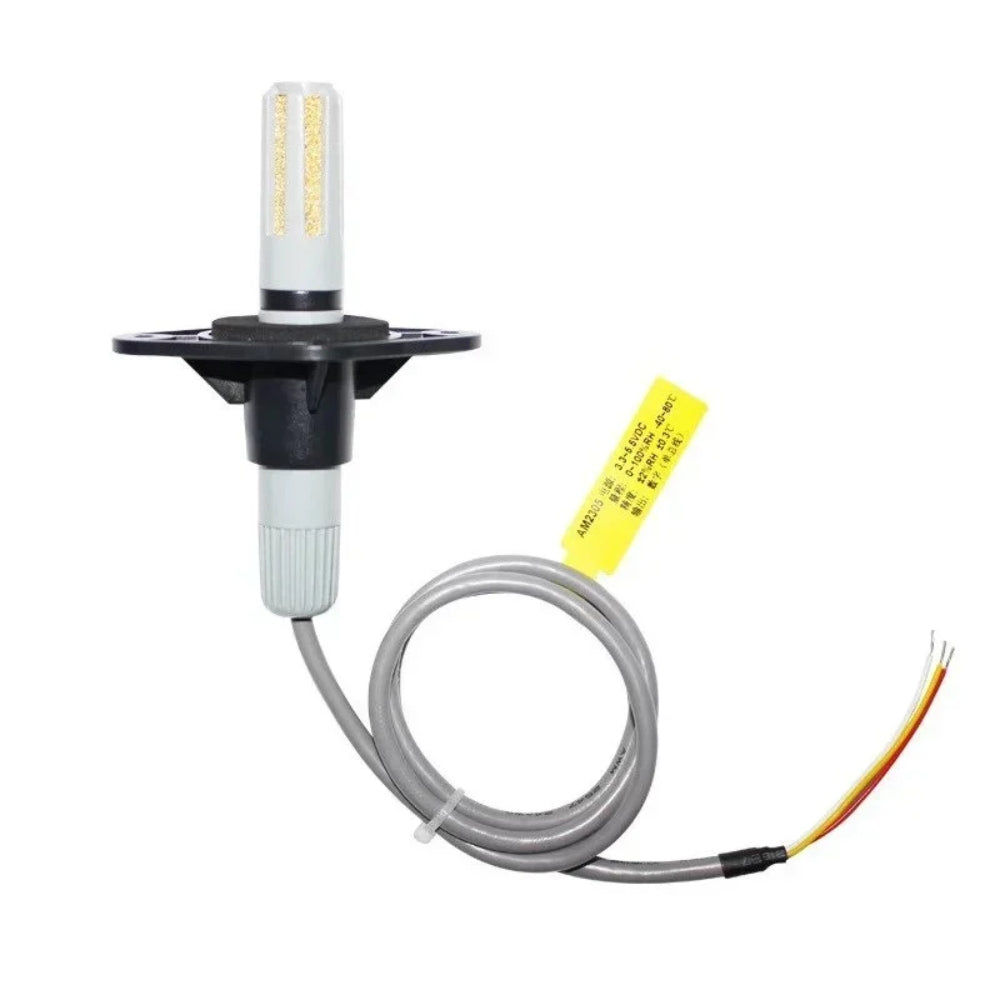

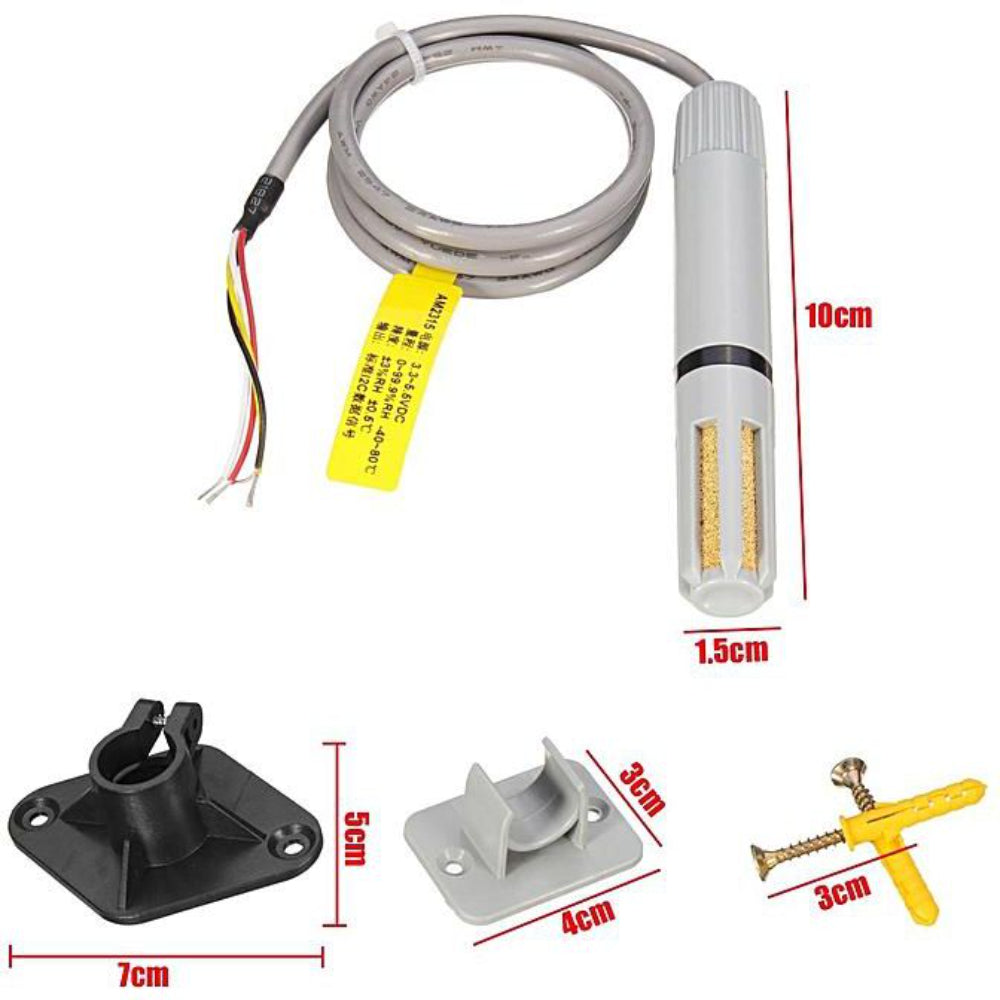

ASAIR AM2305B Digital Temperature and Humidity Sensor
![ASAIR AM2305B temp sensor module]()
![AM2305B digital thermal sensor]()
![AM2305B temperature and humidity sensor]()
![ASAIR AM2305B temp sensor module]()
![AM2305B digital thermal sensor]()
![AM2305B temperature and humidity sensor]()
Each AM2305B Sensor is individually calibrated in a humidity calibration chamber, with coefficients stored in OTP memory for long-term reliability. Thanks to its ultra-small size, low power consumption, and long signal transmission distance, this temp sensor integrates easily into industrial systems, smart devices, and monitoring equipment where a compact digital thermal sensor is required.
![W1209 digital temperature controller module front view]()
![W1209 digital thermostat module with NTC thermometer sensor]()
-23%
ASAIR AM2305B Digital Temperature and Humidity Sensor
Available:In Stock
- Product SKU: KG1280
₹ 1,536
₹ 1,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
AM2305B Temp Sensor – Digital Temperature and Humidity Sensor
The temp sensor performance of the AM2305B Sensor makes it suitable for accurate environmental monitoring. This module operates as a reliable digital thermal sensor, combining a calibrated capacitive humidity element with a precise DS18B20 temperature measurement device controlled by a high-performance 8-bit microcontroller. As a result, the temp sensor delivers fast response, strong anti-interference capability, and stable output for demanding applications.Each AM2305B Sensor is individually calibrated in a humidity calibration chamber, with coefficients stored in OTP memory for long-term reliability. Thanks to its ultra-small size, low power consumption, and long signal transmission distance, this temp sensor integrates easily into industrial systems, smart devices, and monitoring equipment where a compact digital thermal sensor is required.
Features
- Excellent quality and reliability
- Fast response for real-time monitoring
- Strong anti-interference ability
- Ultra-small size for easy integration of the temp sensor
- Low power consumption
- Metal screen protection
Technical Details
- Item Type: Sensor
- Model Type: Temperature and Humidity Sensor
- Rated Voltage: 3.3 to 5.5 V
- Model No.: AM2305B
- Measuring Temperature: -40 to 80°C
- Interface: Digital
- Accuracy: ±0.3°C
- Sensor Type: AHT10 integration sensor
- Humidity Range: 0~99.9%RH
- Output: Digital
Package Includes

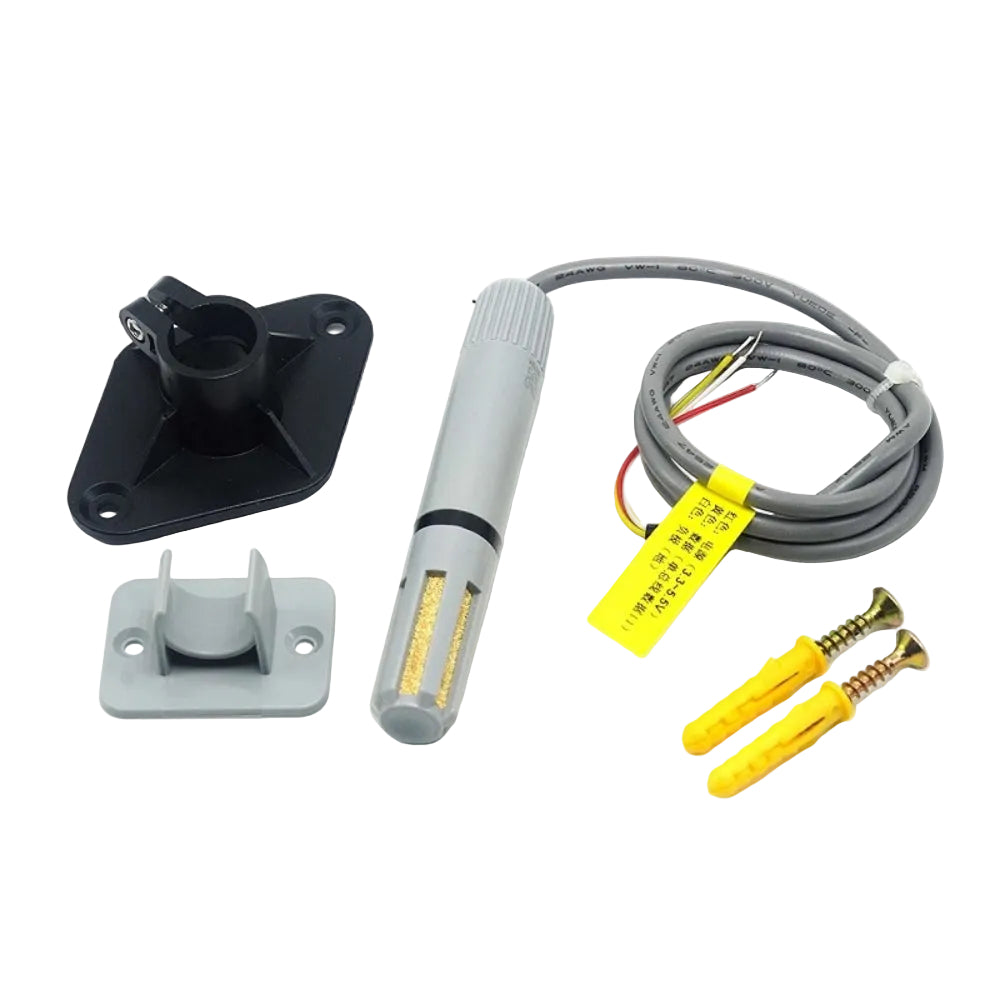

- 1 × ASAIR AM2305B Digital Temperature and Humidity Sensor (AM2305B Sensor)
