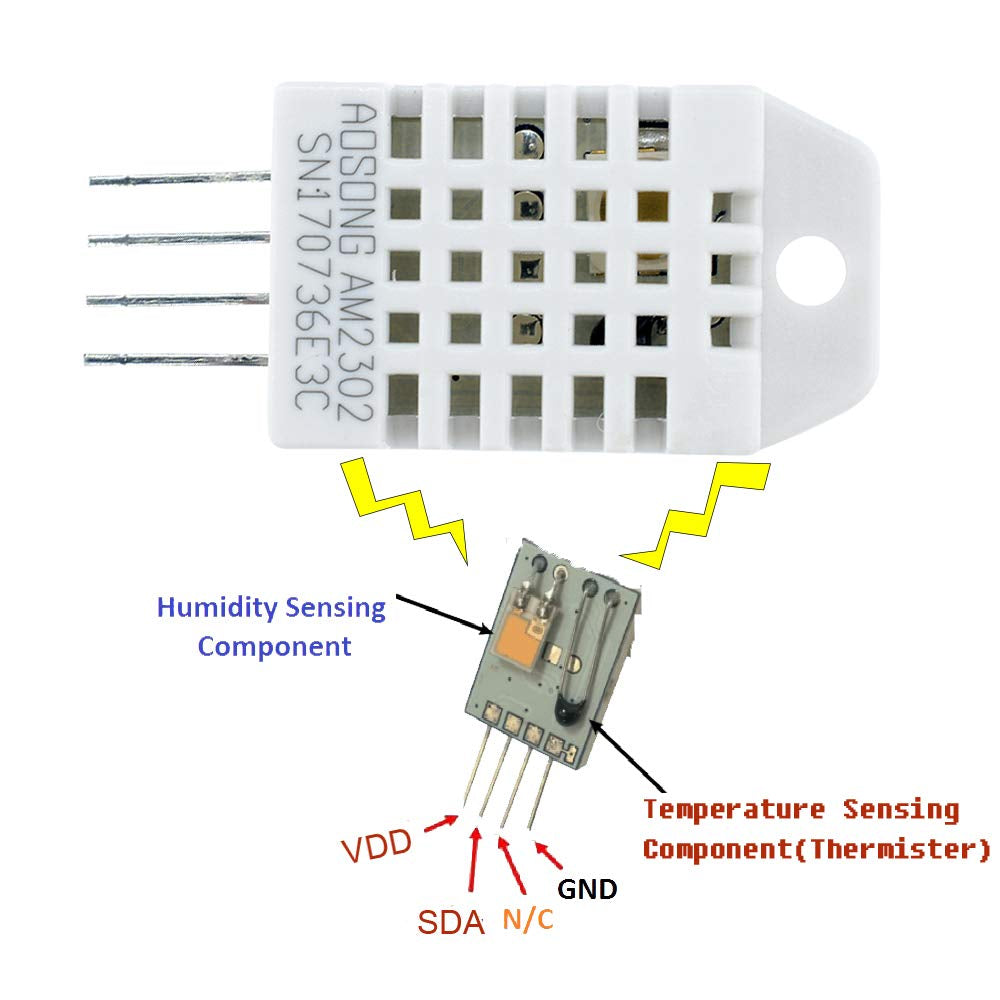

All DHT22/AM2302 Digital Temperature & Humidity Measurement Sensor TECH1120 units are manufactured using high-quality materials and advanced engineering techniques, making them dependable even in challenging environments. Since this digital temperature humidity sensor includes a capacitive humidity sensor and thermistor, it reads the surrounding air precisely and outputs clean digital data without needing any analog input. When integrated with dht22 sensor arduino libraries, obtaining accurate readings becomes hassle-free.
This dht22 am2302 module is simple to use although it requires consistent timing to retrieve data accurately. Another important note is its two-second refresh rate, meaning the latest reading may have a short delay. Connecting the sensor is straightforward: connect the first pin to 3–5V power, the second pin to your microcontroller data pin, and the rightmost pin to ground. Despite using a single communication wire, it is not Dallas One Wire compatible, so each sensor must have its own data pin.
![W1209 digital temperature controller module front view]()
![W1209 digital thermostat module with NTC thermometer sensor]()
-20%
DHT22/AM2302 Digital Temperature & Humidity Sensor Original IC
Available:In Stock
- Product SKU: KG230V01
₹ 399
₹ 499
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
DHT22/AM2302 Digital Temperature & Humidity Sensor Original IC
DHT22/AM2302 Digital Temperature & Humidity Sensor is a premium-grade module designed for reliable environmental monitoring. It is widely used in projects that require accurate digital temperature humidity measurement, especially when working with compact embedded systems. Additionally, its compatibility with dht22 sensor arduino setups makes it ideal for DIY, automation and IoT applications. Moreover, the stability and design of the dht22 am2302 module ensure consistent performance across different conditions.All DHT22/AM2302 Digital Temperature & Humidity Measurement Sensor TECH1120 units are manufactured using high-quality materials and advanced engineering techniques, making them dependable even in challenging environments. Since this digital temperature humidity sensor includes a capacitive humidity sensor and thermistor, it reads the surrounding air precisely and outputs clean digital data without needing any analog input. When integrated with dht22 sensor arduino libraries, obtaining accurate readings becomes hassle-free.
This dht22 am2302 module is simple to use although it requires consistent timing to retrieve data accurately. Another important note is its two-second refresh rate, meaning the latest reading may have a short delay. Connecting the sensor is straightforward: connect the first pin to 3–5V power, the second pin to your microcontroller data pin, and the rightmost pin to ground. Despite using a single communication wire, it is not Dallas One Wire compatible, so each sensor must have its own data pin.
Technical Details
- Item Type: Sensor
- Model Type: Temperature and Humidity Sensor
- Operating Range: humidity 0-100%RH
- Accuracy: humidity ±2%RH (Max ±5%RH)
- Humidity Precision: ±2-5% RH

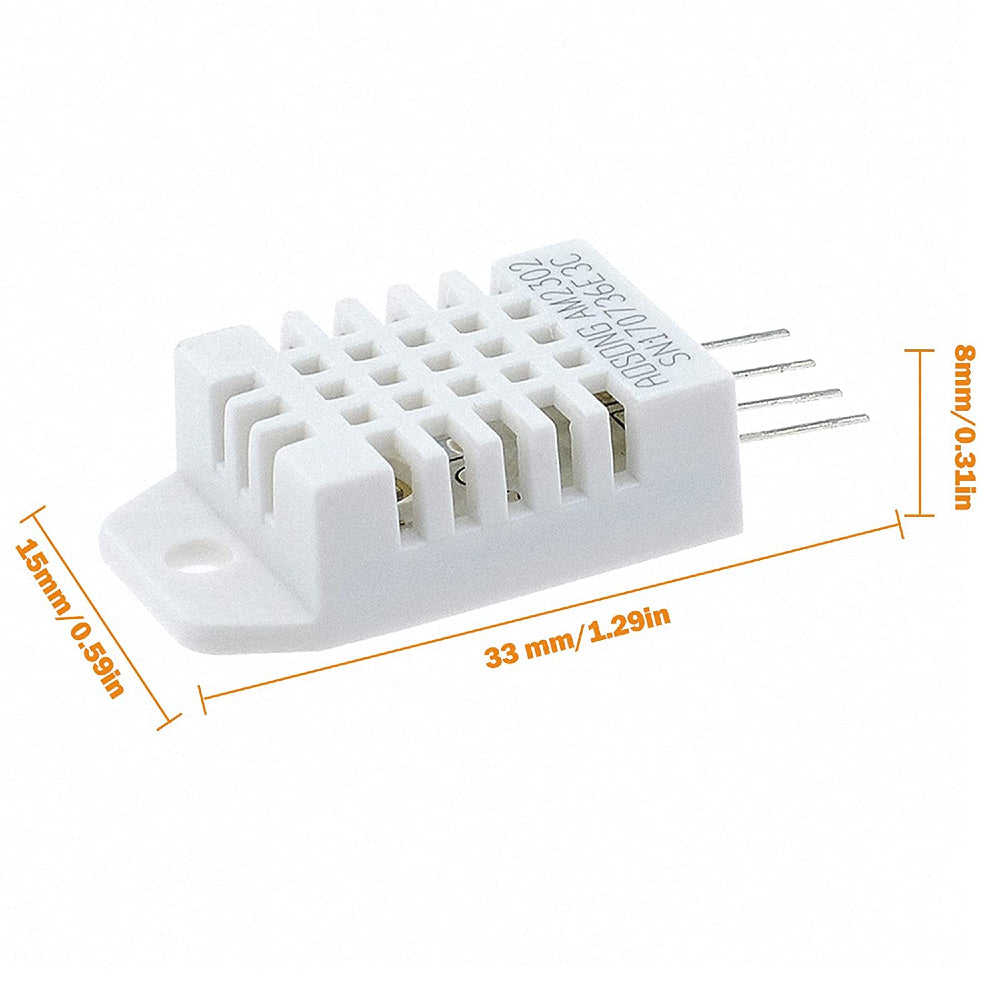

- Length (mm): 33
- Width (mm): 15.5
- Height (mm): 8
- Weight (g): 4
Features
- Type: AM2302
- Ultra-Low Power
- No Additional Components
- Long-Distance Signal Transmission
- All Calibration, Digital Output & Completely Interchangeable
- Relative Humidity & Temperature Measurement
- Humidity Measurement Precision: ±2-5% RH
- Temperature Measurement Precision: ±0.5°C
Applications :
- Weather Monitoring - Measures temperature and humidity.
- HVAC Systems - Controls environmental conditions.
- Smart Homes - Automates based on temperature and humidity.
- Industrial Control - Regulates factory conditions.
- Agriculture - Monitors climate for crops.
- Medical Devices - Ensures optimal environmental conditions.
- Data Logging - Records environmental data for analysis.
Integration with Arduino
Sample Code
Physical Attributes
- L x W x H (mm): 33x 15.58 x 8
- Weight (gm): 4
Package Includes
- 1 x DHT22/AM2302 Digital Temperature & Humidity Sensor Original IC
