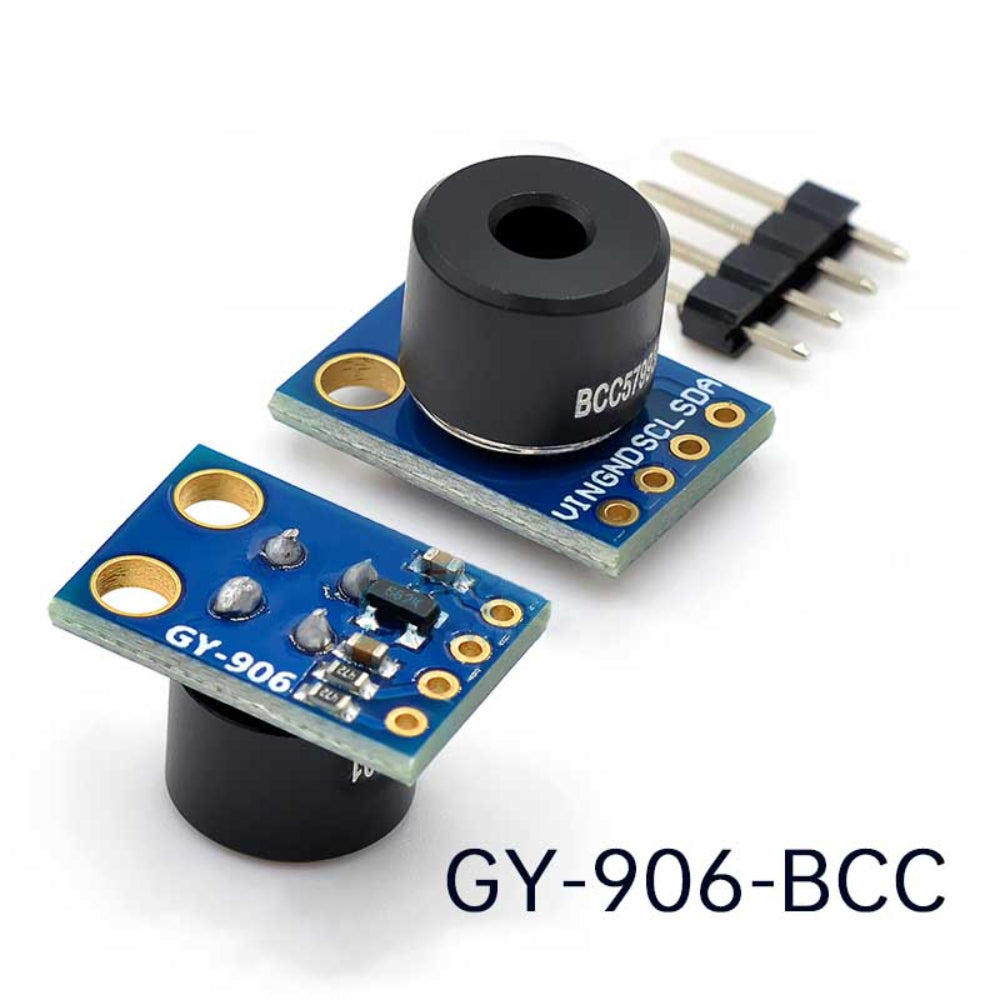

![Front view of GY-906 MLX90614 IR temperature sensor module]()

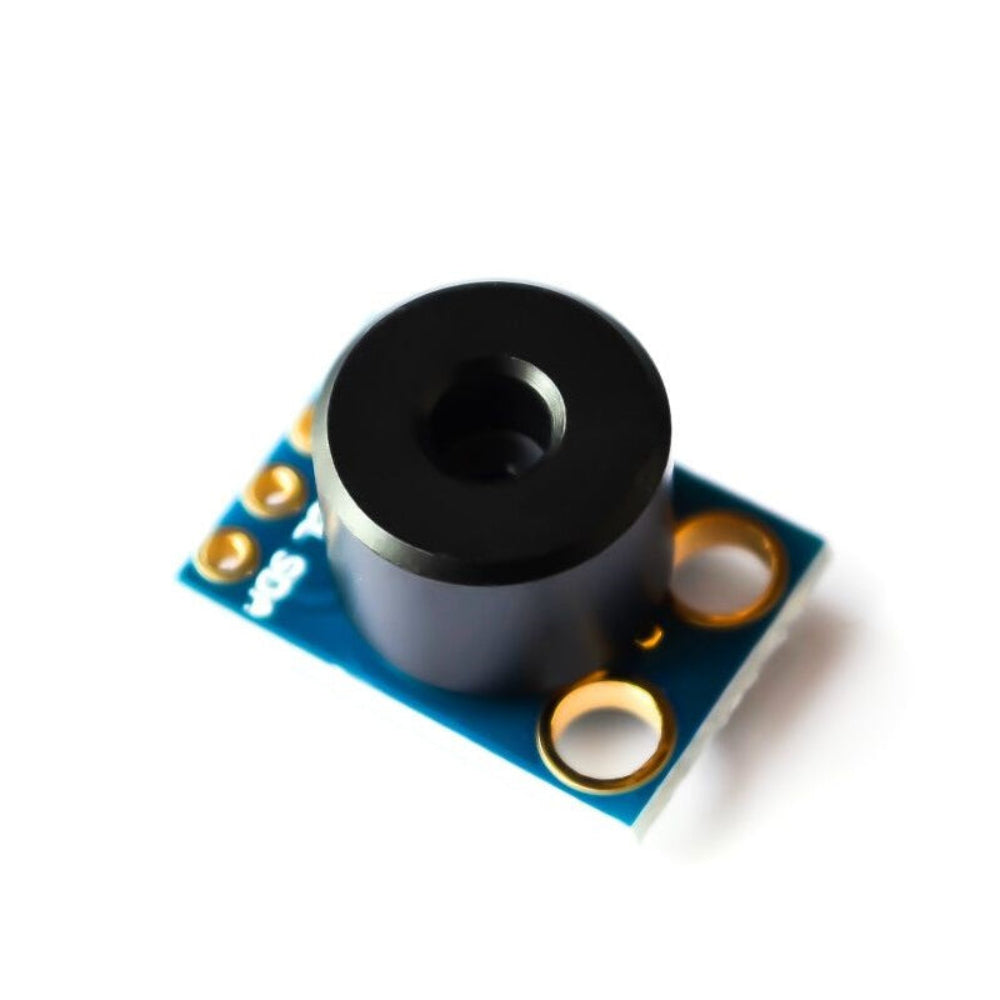

![Angle view of GY-906 MLX90614 IR thermometer breakout board]()
![I2C wiring example of MLX90614 GY-906 IR temperature sensor with Arduino]()
![Example use of MLX90614 GY-906 IR module measuring temperature at approximately 10 cm]()
![Front view of GY-906 MLX90614 IR temperature sensor module]()
![Angle view of GY-906 MLX90614 IR thermometer breakout board]()
![I2C wiring example of MLX90614 GY-906 IR temperature sensor with Arduino]()
![Example use of MLX90614 GY-906 IR module measuring temperature at approximately 10 cm]()
This infrared thermometer is designed for non-contact temperature sensing, so you can safely measure hot surfaces and moving parts. An internal 17-bit ADC and a powerful DSP contribute to the high accuracy and resolution you expect from an mlx90614 infrared temperature sensor module. In addition, the gy 906 mlx90614 board has a field of view of 35 degrees and returns the average temperature of all objects within this cone, which makes the mlx90614 sensor ideal for body temperature measurement, movement detection, and thermal monitoring.
Note: This sensor comes with a breakout board with all of the components needed for operation and two types of pins. The included headers make it simple to plug the gy 906 mlx90614 module into breadboards or custom PCBs, and the compact mlx90614 sensor module fits easily into enclosures for finished products.
![W1209 digital temperature controller module front view]()
![W1209 digital thermostat module with NTC thermometer sensor]()
-18%
GY-906 MLX90614ESF BCC Infrared measuring temperature sensor module Range 10cm
Available:Out of Stock
- Product SKU: KG310V01
₹ 729
₹ 899
Specification
Description
GY-906 MLX90614ESF BCC mlx90614 infrared temperature sensor module Range 10cm
GY-906 MLX90614ESF -BCC mlx90614 infrared temperature sensor module is an infrared thermometer for Arduino or any microcontroller that can communicate with it through its I2C interface. This compact gy 906 mlx90614 breakout is easy to integrate on breadboards and custom PCBs, and it works well when you need a precise non-contact IR solution. Because the calibrated mlx90614 sensor gives stable readings, it is suitable for DIY electronics, industrial prototypes, and educational projects.This infrared thermometer is designed for non-contact temperature sensing, so you can safely measure hot surfaces and moving parts. An internal 17-bit ADC and a powerful DSP contribute to the high accuracy and resolution you expect from an mlx90614 infrared temperature sensor module. In addition, the gy 906 mlx90614 board has a field of view of 35 degrees and returns the average temperature of all objects within this cone, which makes the mlx90614 sensor ideal for body temperature measurement, movement detection, and thermal monitoring.
Note: This sensor comes with a breakout board with all of the components needed for operation and two types of pins. The included headers make it simple to plug the gy 906 mlx90614 module into breadboards or custom PCBs, and the compact mlx90614 sensor module fits easily into enclosures for finished products.
Technical Details
- Item Type: Sensor
- Model Type: Temperature Sensor
- Model No.: MLX90614ESF
- Operating Voltage (V): 3.3
- Sensing Range: 4 CM - 10 CM
- Field of View (Deg.): 35°
- Sensing Temperature (°C): -40 to +85°C
- Width (mm): 11.1
- Length (mm): 16.6
- Height (mm): 10.1
- Weight (g): 5
Features
- Small size, low cost
- Mounted on a breakout board with two types of pins
- 10k Pull-up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in a wide temperature range
- Single and dual-zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuous reading
- High accuracy of +/- 0.2°C over the wide temperature range
- Sleep mode for reduced power consumption
Applications :
- High precision non-contact temperature measurements
- Thermal Comfort sensor for Mobile Air Conditioning control system
- Temperature sensing element for residential, commercial, and industrial building air conditioning
- Windshield defogging
- Automotive blind angle detection
- Industrial temperature control of moving parts
- Temperature control in printers and copiers
- Home appliances with temperature control
- Livestock monitoring
- Movement detection
- Thermal relay/alert
- Body temperature measurement
- Data check
Integration with Arduino
Sample Code
Physical Attributes
- Length × Width × Height(mm) : 16.6 × 11 × 10.1
- Weight (gm) : 5
Package Includes
- 1 x GY-906 MLX90614ESF BCC Infrared measuring temperature sensor module Range 10cm
