MAX6675 Module + K Type Thermocouple Sensor Measure Max upto 1024°C Temperature

MAX6675 Module + K Type Thermocouple Sensor Measure Max up to 1024°C Temperature

The k type thermocouple sensor with MAX6675 module is designed for accurate high-temperature measurement in industrial and embedded applications. Using the Maxim MAX6675 K-type to digital converter IC, this thermocouple temperature sensor provides a microcontroller-compatible SPI interface for precise, temperature-compensated readings. As a result, the k type thermocouple sensor is widely used in furnaces, ovens, and Arduino-based control systems where reliability is critical.

This interface module offers 12-bit resolution, enabling temperature measurement from 0°C to 1024°C, while the supplied probe supports up to 450°C. With a fine resolution of 0.25°C, the thermocouple temperature sensor ensures stable and repeatable results even in demanding thermal environments. Consequently, the k type sensor is well suited for continuous monitoring and data logging applications.

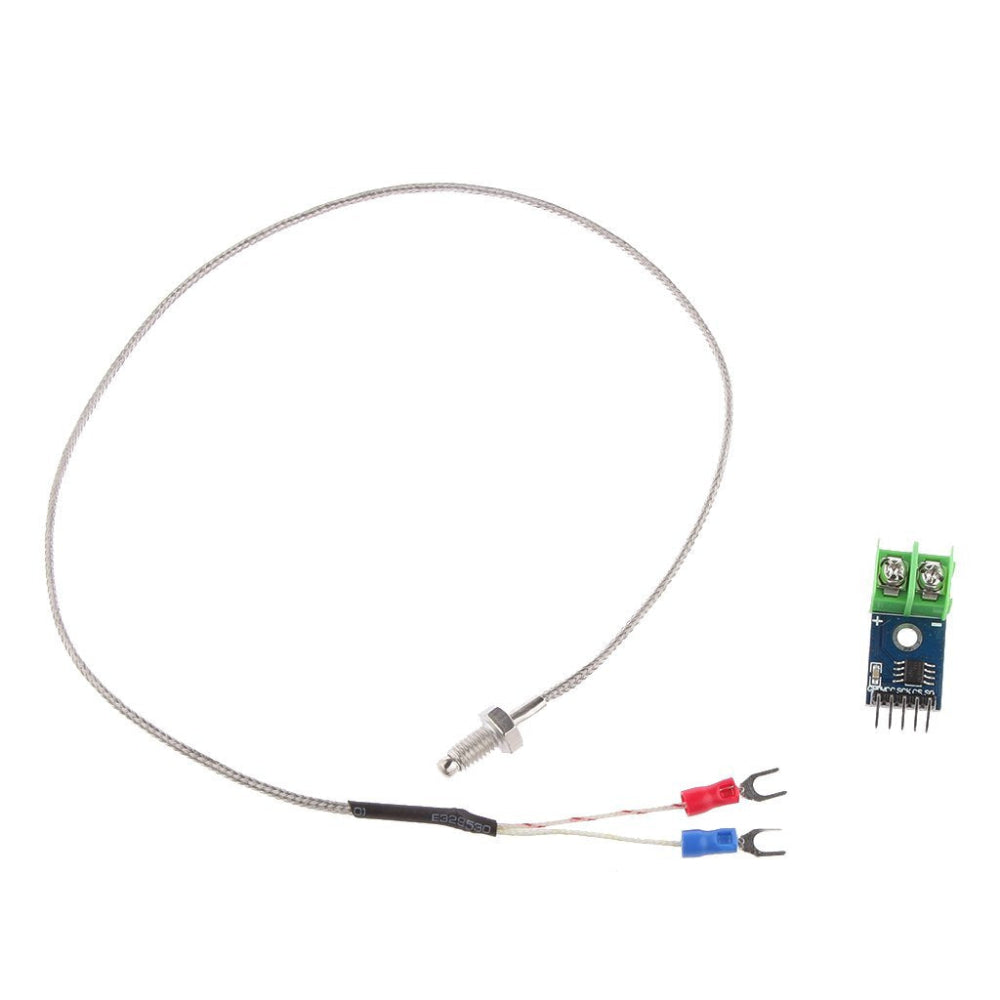

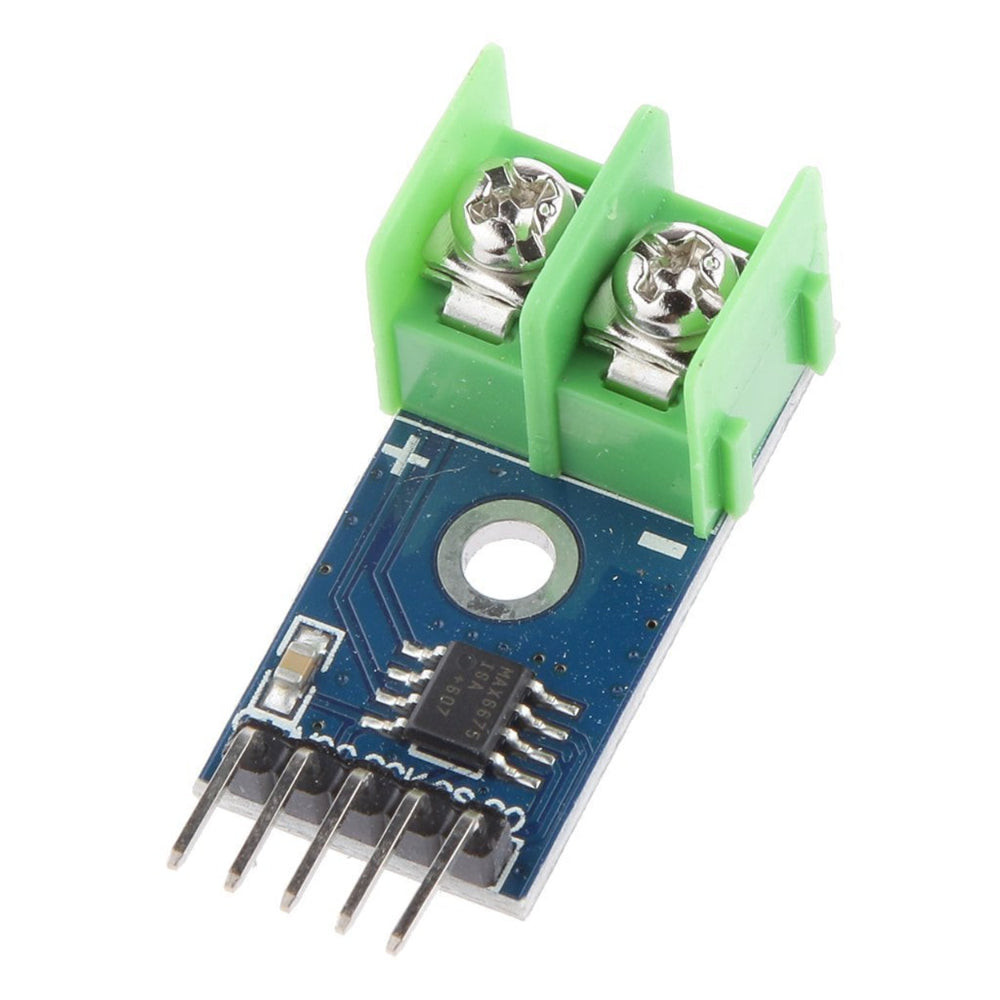

Screw terminals make it easy to connect the supplied thermocouple spade connectors, while the standard 5-pin 0.1″ header allows quick interfacing with microcontrollers such as Arduino. In addition, the supplied probe has a 4.5 mm diameter with a 6 mm threaded mounting bolt, making the thermocouple sensor easy to install in fixed or portable setups. The total sensor length, including cable and connectors, is approximately 50 cm.

Technical Details
