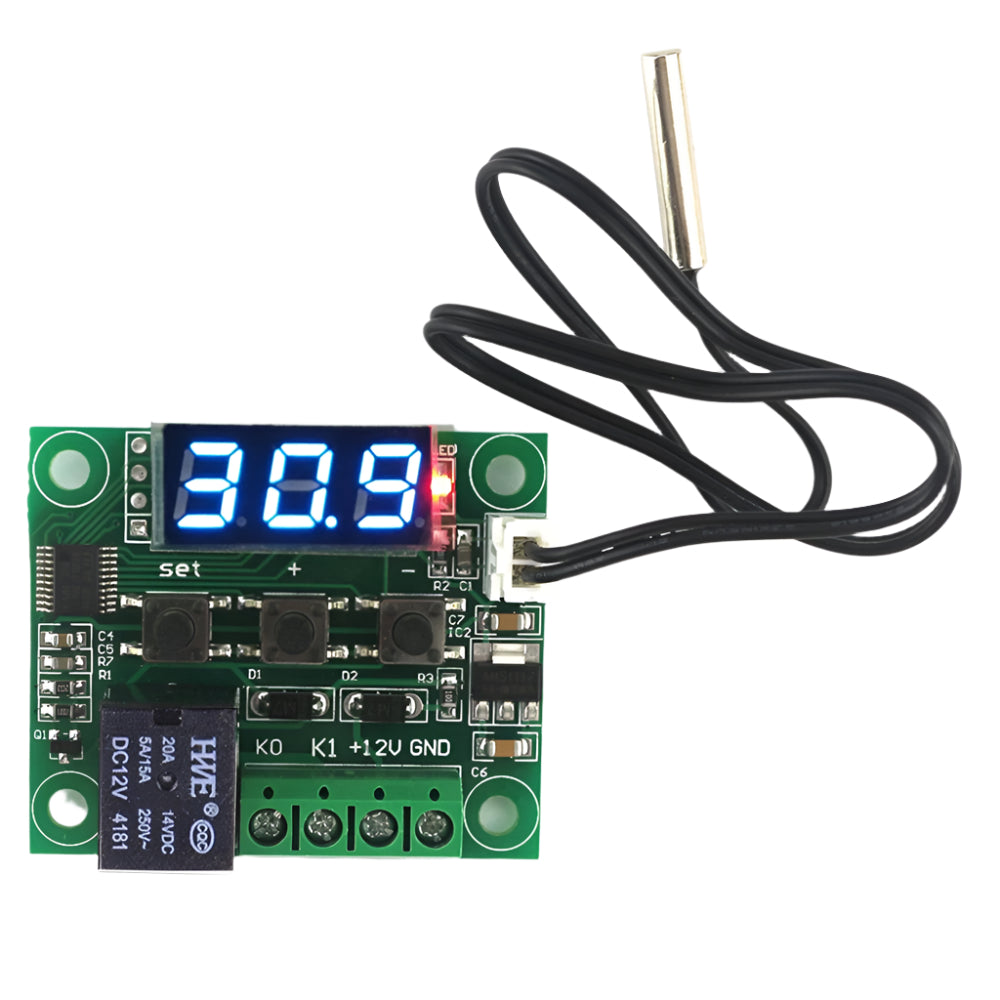

XH-W1209 W1209 12V Blue Digital Temperature Controller Module With Display and NTC Temp Sensor
Available:In Stock
- Product SKU: KG1022
₹ 109
₹ 139
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XH-W1209 W1209 12V Blue Digital Temperature Controller Module With Display and NTC Temp Sensor – w1209 digital temperature controller

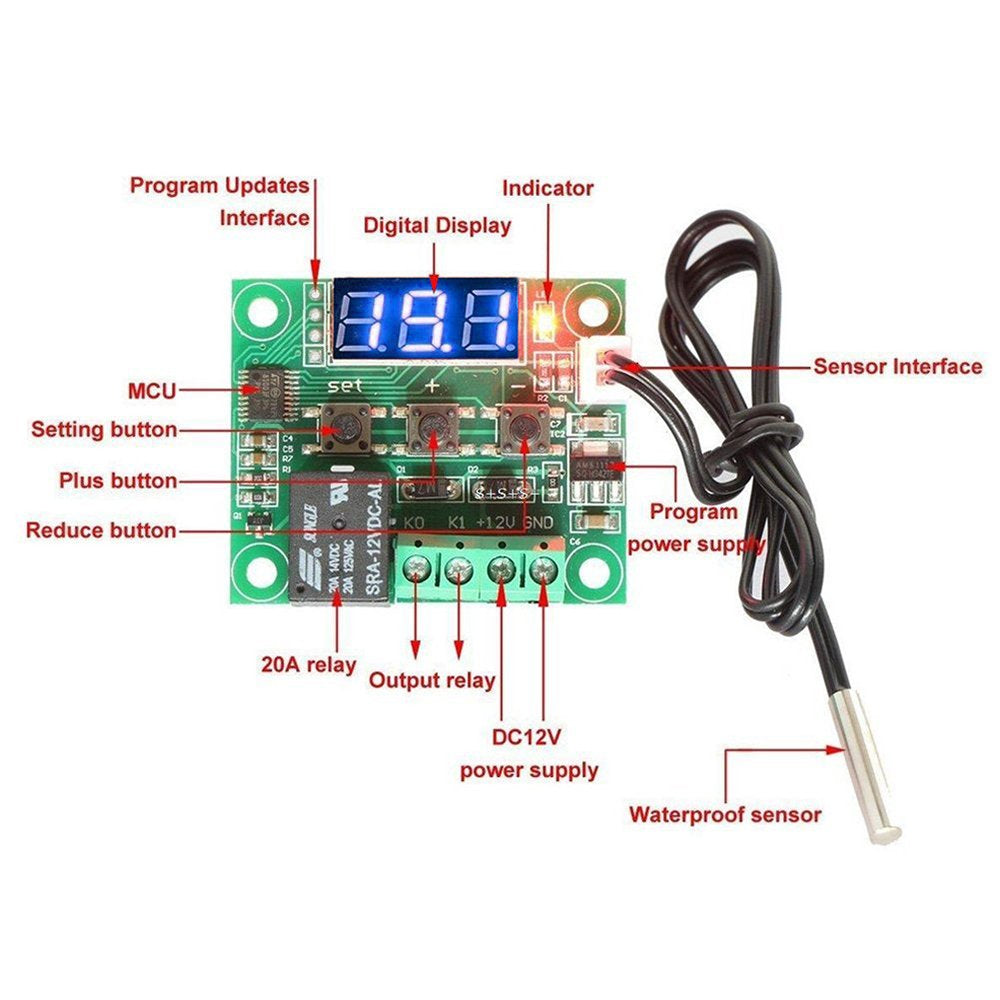

This versatile module is widely used as a w1209 digital temperature controller and offers precise temperature management with an easy-to-read display. It integrates smoothly into automation, incubation, and DIY systems, and due to its flexible settings, the module also works well as a thermostat w1209 replacement while supporting users who need clear insight into w1209 temperature controller price performance. With accurate sensing and adjustable parameters, it ensures stable control across many temperature-regulated projects. This XH W1209 12V Digital Temperature Controller includes an NTC sensor and a 7-segment display. The module features a keypad for configuring temperature parameters and offers an impressive accuracy of 0.1°C. Designed for flexibility, the w1209 digital temperature controller intelligently manages power delivery to connected devices based on real-time readings from its high-accuracy NTC probe. The onboard LED shows relay status, allowing quick system monitoring.Technical Details
- Model Type: Temperature Controller
- Voltage Rating (VDC): 12
- Model No.: XH-W1209
- Accuracy: ±0.1°C
- Refresh Rate: 0.5 Sec
- Measuring Inputs: NTC10K
- Cable Length (cm): 50
- Output Type: 1 Channel Relay Output
- Max Capacity: 10A
- Length (mm): 48
- Width (mm): 40
- Height (mm): 14
- Weight (g): 19
Features
- Static Current: <=35mA
- Current: <=65mA
- Temperature: -10 ~ 60 C
- Humidity: 20-85%
Applications :
- Home Automation: A w1209 digital temperature controller is ideal for smart heating and cooling control.
- Incubators & Reptile Habitats: Provides precise conditions, making this unit suitable when comparing w1209 temperature controller price with other options.
- Food Processing: Fits fermenters, yogurt makers, and sous vide setups where thermostat w1209 precision is required.
- Greenhouse & Hydroponics: Maintains plant-friendly temperatures in controlled environments.
Settings Chart
- Long press the “SET” button to activate the menu.
- P0 - Heat: C/H (Default: C)
- P1 - Backlash Set: 0.1-15 (Default: 2)
- P2 - Upper Limit: 110 (Default: 110)
- P3 - Lower Limit: -39 (Default: -39)
- P4 - Correction: -7.0 ~ (Default: 0)
- P5 - Delay Start Time: 0-10 mins (Default: 0)
- P6 - High-Temperature Alarm: 0-110 (Default: OFF)
W1209 Drawing
Physical Attributes
- Dimensions (Lx Wx H)mm: 48 X 40 X 14
- Weight (gm): 19
Package Includes
- 1 x XH-W1209 W1219 12V Blue Digital Temperature Controller Module With Display and NTC Temp Sensor
