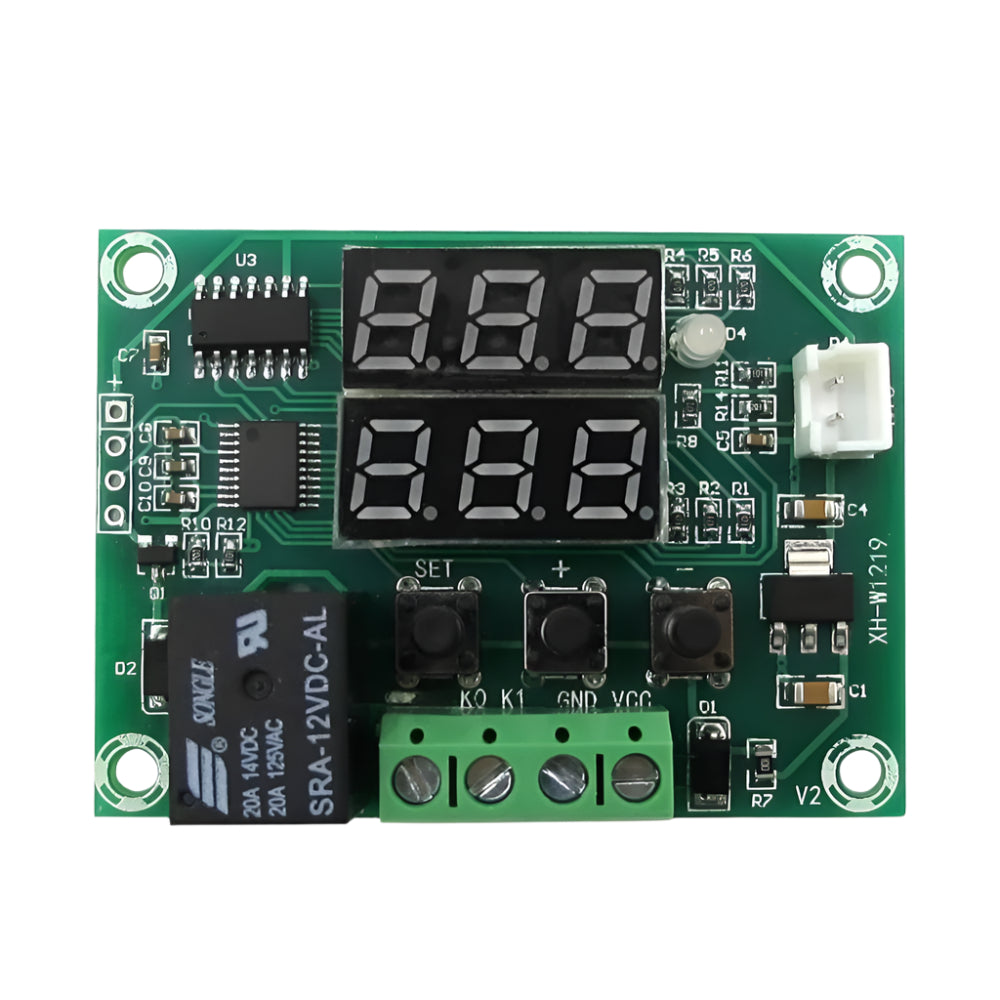

XH-W1219 digital temperature controller dual display

Waterproof NTC temperature sensor for W1219 module

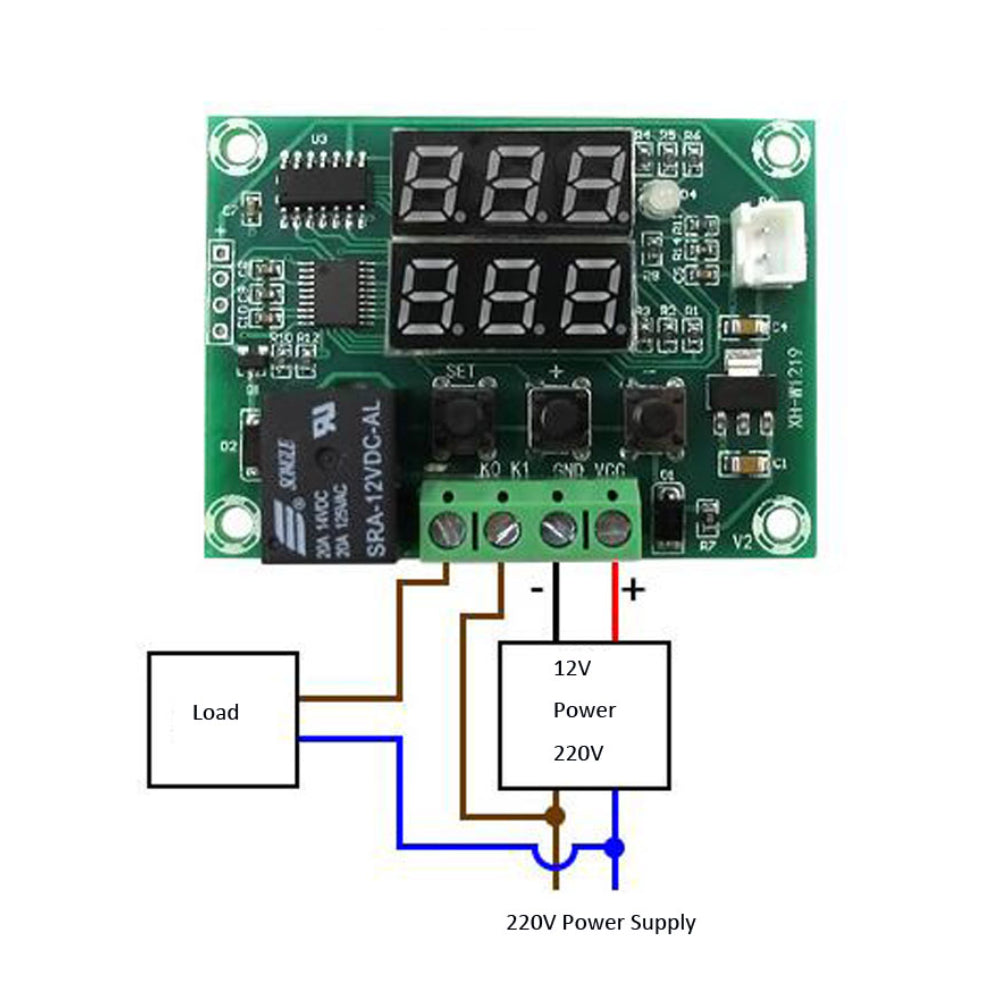

W1219 12V thermostat module with relay output

XH-W1219 W1219 12V Digital Red and Green Display Temperature Controller Module With NTC Waterproof Temperature Sensor

Available:Out of Stock

Product SKU: KG1021

Wishlist

₹ 189 ~~₹ 249~~

Pre-order

Specification

Description

XH-W1219 W1219 12V Digital Red and Green Display Temperature Controller Module With NTC Waterproof Temperature Sensor – W1219 ntc temp sensor

This versatile module combines a dual-color LED display with a reliable W1219 ntc temp sensor, offering accurate control for a wide range of applications. It integrates smoothly into DIY and automation systems, including setups that use an arduino ntc interface, and it excels in tasks requiring precise ntc temperature monitoring. With an easy-to-use thermostat design, waterproof probe, and adjustable control settings, it provides dependable performance for both hobby and industrial use. The XH-W1219 thermostat module is powered by a 12V supply and includes µC-based functionality supporting sensor input, keys, dual display, and relay output. Its bright red and green LED interface ensures clear visibility, while its waterproof NTC probe enhances durability and accuracy. Designed for flexibility, this W1219 ntc temp sensor module is also suitable for automation tasks and embedded projects.

Technical Details

Model Type: Temperature Controller
Voltage Rating (VDC): 12
Model No.: XH W1219
Control Range: -50 to +110°C
Measuring Inputs: NTC10K Sensor
Alarm Mode: High-Temperature Alarm (-49 to +110°C)
Output Type: Relay Output 10A (max)
Calibration: -10 to 10°C Temperature
Length (mm): 60
Width (mm): 44
Height (mm): 17
Weight (g): 28
Additional Specs.: Delay Starting (0 to 10 min), Return Difference Setting (0.1 to 30°C)

Features

12V Digital Temperature Controller with Red & Green Display
Wide Control Range: -50°C to +110°C
NTC10K Waterproof Temperature Sensor for Accurate Readings
High-Temperature Alarm Function (-49°C to +110°C)
Relay Output: 10A Max for Reliable Switching
Calibration Function: -10°C to +10°C Adjustment
Delay Start Feature (0 to 10 Minutes) for System Protection
Return Difference Setting (0.1°C to 30°C) for Precision Control
Ideal for HVAC, Home Automation, and Industrial Applications

Button Functions

P0(Temperature Control Mode)
P1(Return Difference Setting)
P2(Temperature Calibration)
P3(Delay Start)
P4(Set High-Temperature Alarm Value)

Applications :

Temperature Control in HVAC Systems – Provides precise adjustment using a dependable ntc temperature sensor.
Industrial Equipment Monitoring – Maintains optimum operating conditions and works seamlessly in automation with an arduino ntc setup.
Home Appliance Automation – Ideal for thermostats, refrigerators, and heaters requiring stable W1219 ntc temp sensor control.
Aquarium & Pet Incubators – Ensures accurate ntc temperature management for sensitive environments.
