Utilizing inductive capacitance sensing technology, the sensor detects liquid presence through the container wall without direct contact. This makes it especially suitable for applications involving corrosive, toxic, or high-pressure liquids. The sensor is externally mounted on non-metallic containers, allowing easy installation without drilling or opening the container and without interrupting production processes.
![Turbidity Sensor with Module]()
![Turbidity Sensor with Module_1]()
-24%
Pro-Range XKC-Y25-V-DC 5-24V Non-Contact Liquid Level Sensor
Available:Out of Stock
- Product SKU: KG1319
₹ 339
₹ 449
Specification
Description

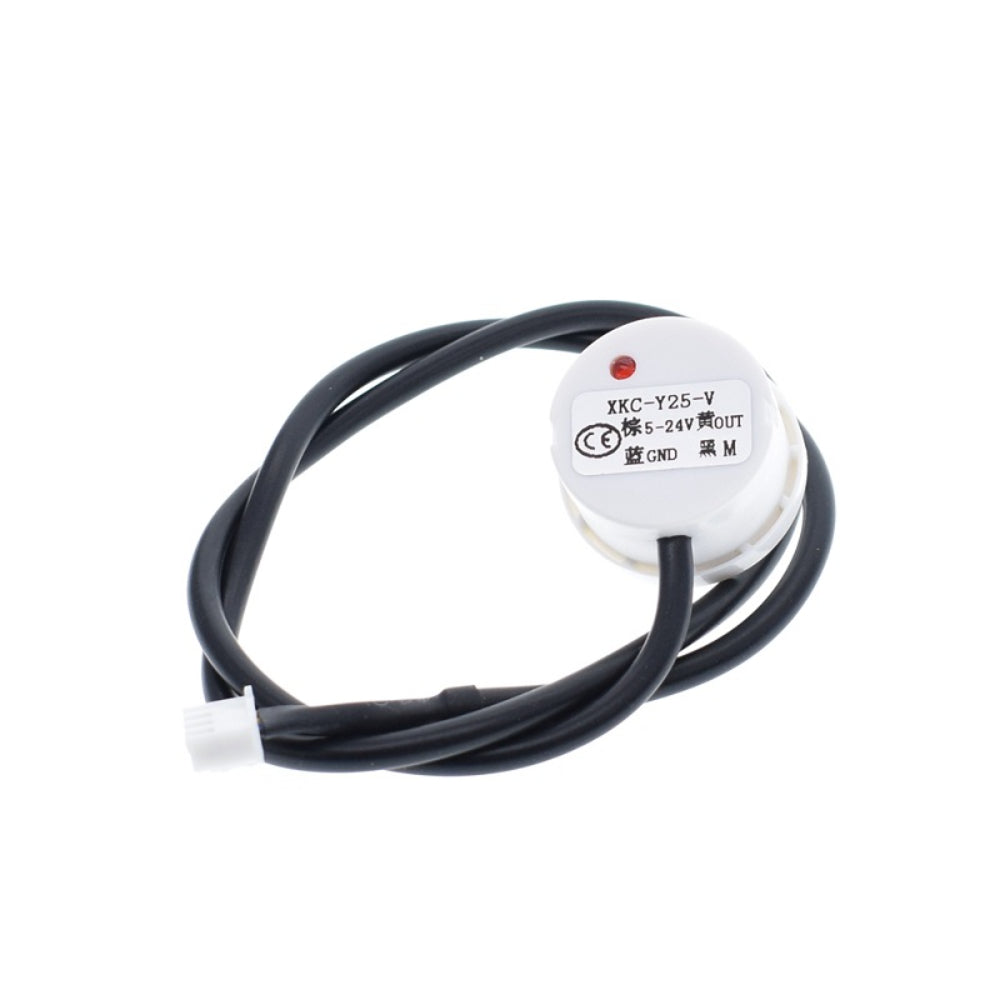

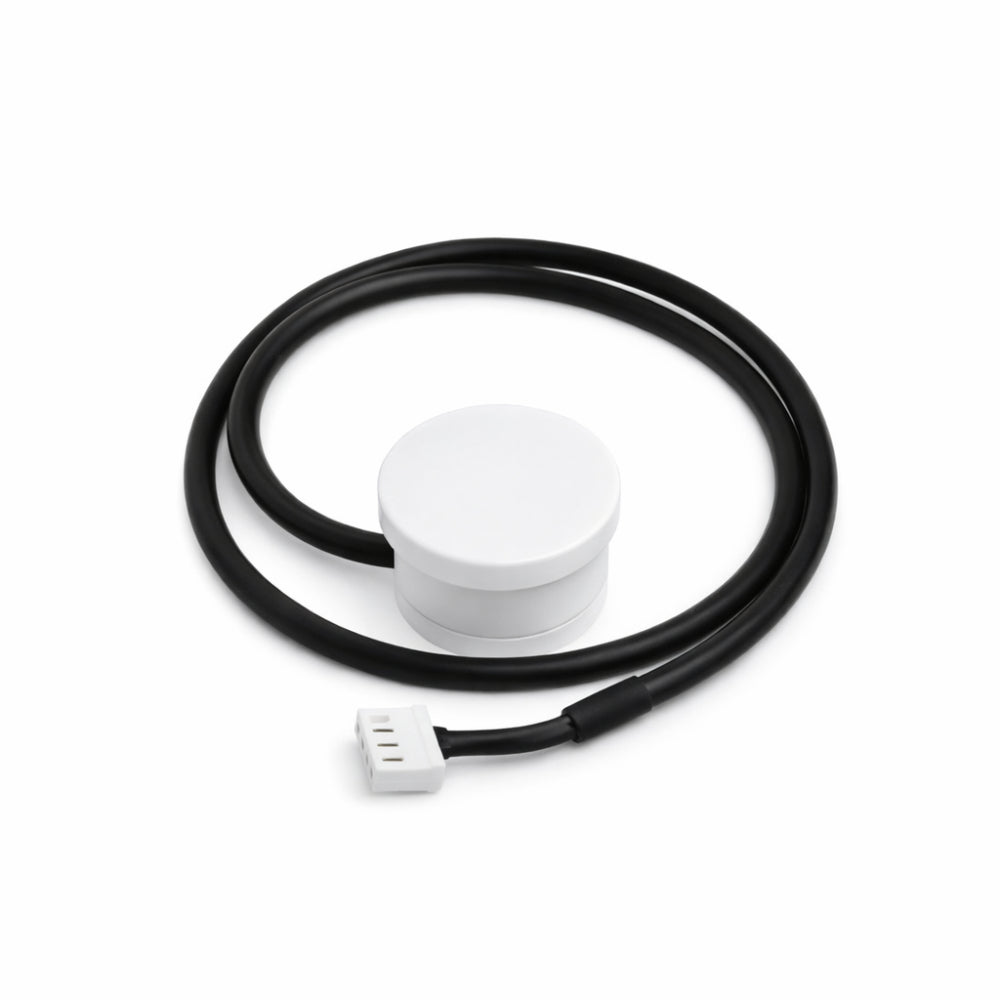

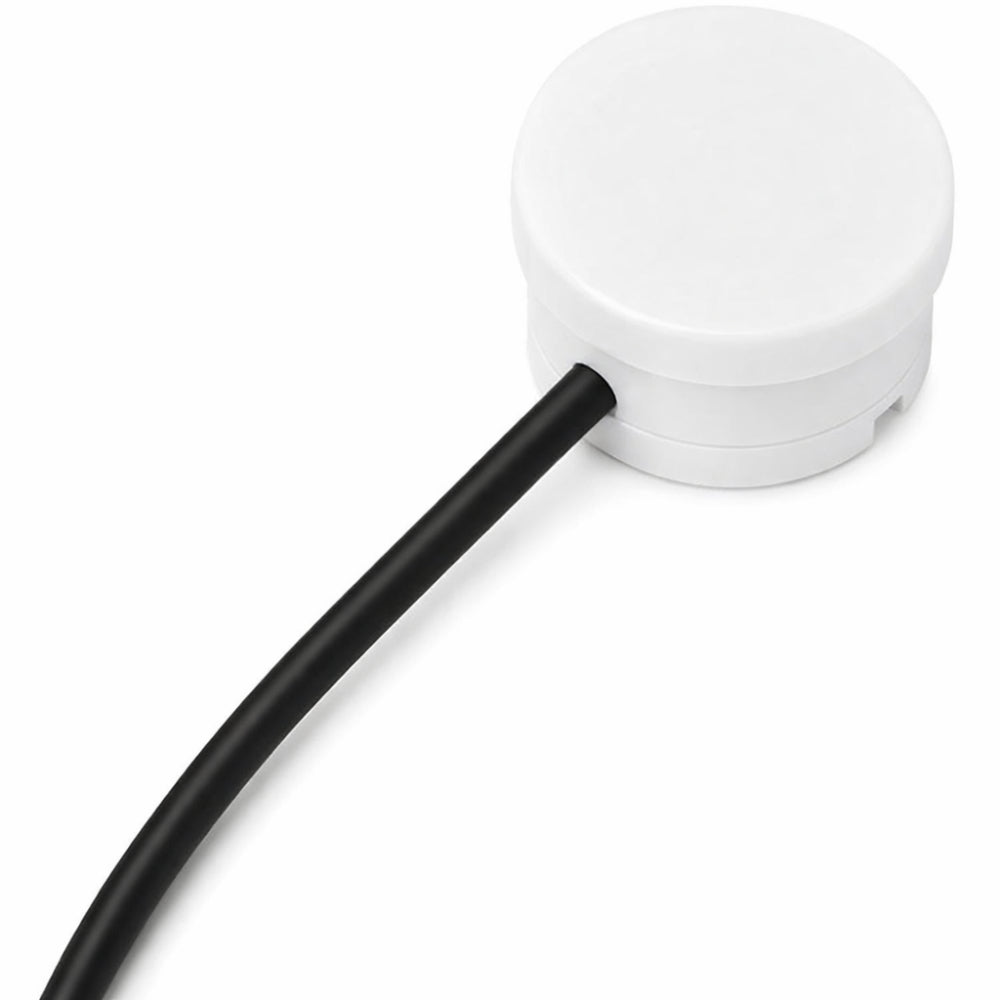

Pro-Range XKC-Y25-V DC 5–24V Non-Contact Liquid Level Sensor
The Pro-Range XKC-Y25-V Non-Contact Liquid Level Sensor is an advanced liquid level detection device designed for non-invasive and accurate monitoring of liquid levels in various containers and pipelines. Operating on a wide DC 5–24V voltage range, it ensures compatibility with multiple power supply systems.Utilizing inductive capacitance sensing technology, the sensor detects liquid presence through the container wall without direct contact. This makes it especially suitable for applications involving corrosive, toxic, or high-pressure liquids. The sensor is externally mounted on non-metallic containers, allowing easy installation without drilling or opening the container and without interrupting production processes.
Features
- True non-contact liquid level detection through container walls
- Prevents corrosion, wear, and contamination
- High sensitivity with detection accuracy within ±1.5 mm
- IP67-rated waterproof and dustproof protection
- Compatible with non-metallic containers such as plastic, glass, and ceramic
- Wide operating voltage range for flexible integration
- Adjustable sensitivity for optimized detection
- Simple external installation without modifying containers
Technical Details
- Item Type: Liquid Level Sensor
- Model No.: XKC-Y25-V
- Operating Voltage: DC 5–24 V
- Detection Method: Non-contact (inductive capacitance)
- Detection Accuracy: ±1.5 mm
- Waterproof Rating: IP67
- Container Requirement: Non-metallic materials
Applications
- Industrial liquid level monitoring
- Chemical and corrosive liquid storage
- Water tanks and sealed containers
- Food and beverage processing systems
- Medical and laboratory equipment
- Automation and control systems
Physical Attributes
- Compact industrial-grade sensor housing
- Weight: 22g
- Robust and durable IP67 enclosure
Package Includes
- 1 × Pro-Range XKC-Y25-V DC 5–24V Non-Contact Liquid Level Sensor
