10 Inch 48V 500W Drum Brake with Tire
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

10 Inch 48V 500W Drum Brake with Tire

Available:In Stock
  • Product SKU: KGEB054
Wishlist
₹ 5,599 ₹ 6,999
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Power: 500W, Voltage: 48V
  • Speed: 20-30 km/h, RPM: 600
  • Motor Diameter: 254mm
  • Load Capacity: 100-120 kg
  • Brake: Drum Hub
  • Tyre: 10 x 2.50
  • Rated Current: 10A, Peak: 14A
  • Wire Length: 650mm
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us scrmore details Click here

Warehouse Details   39M-201

Secure

Specification

Description

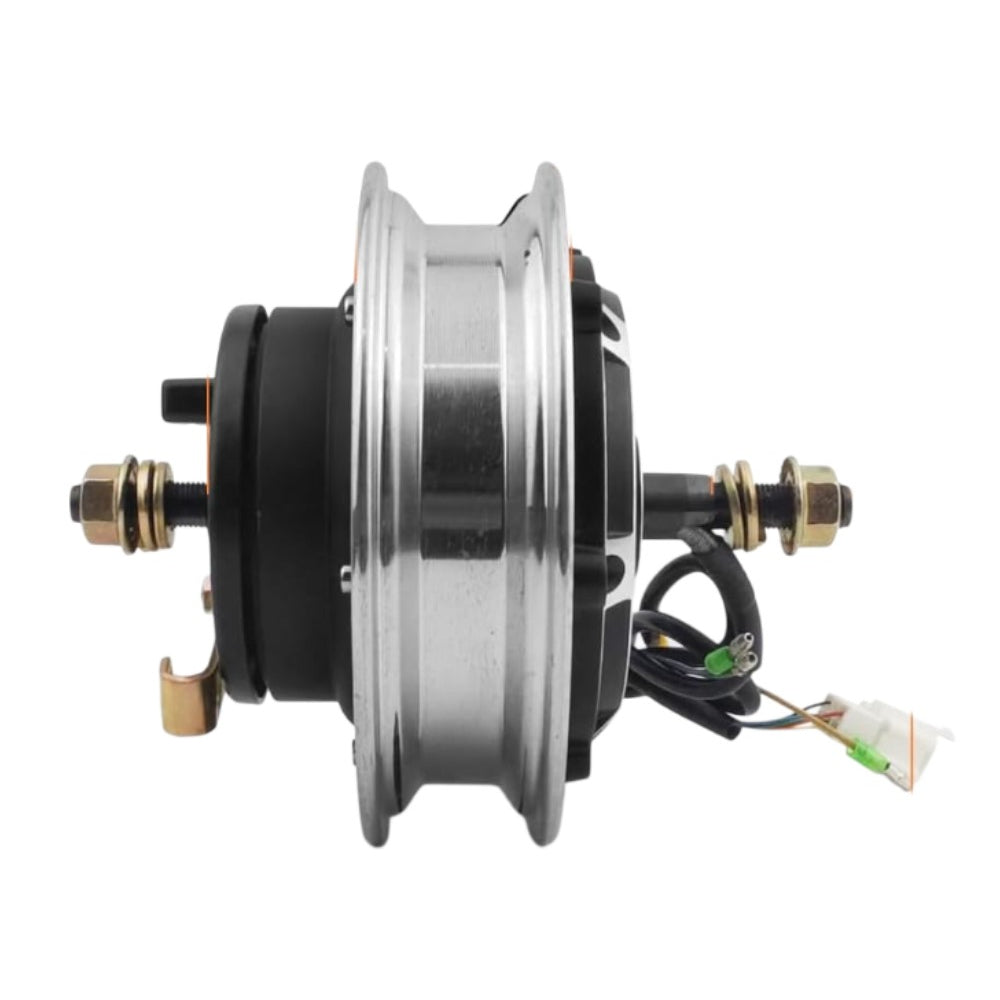

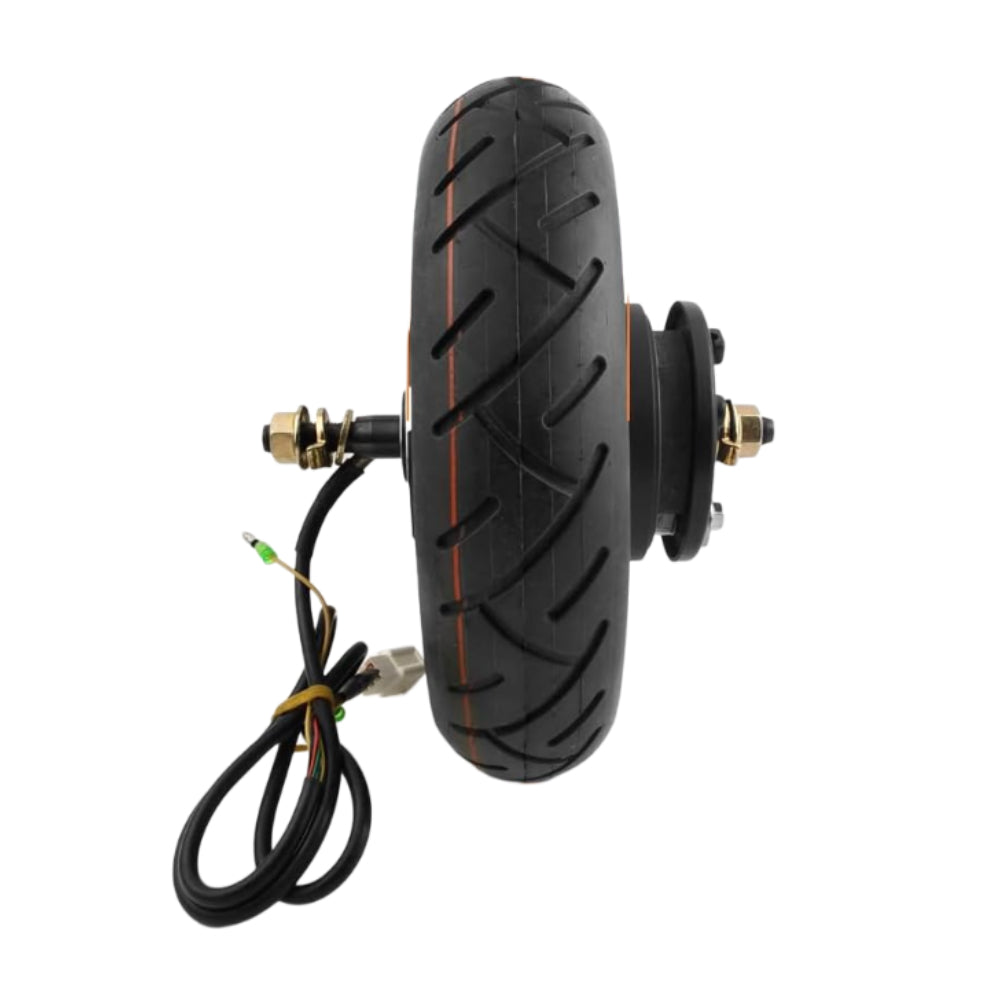

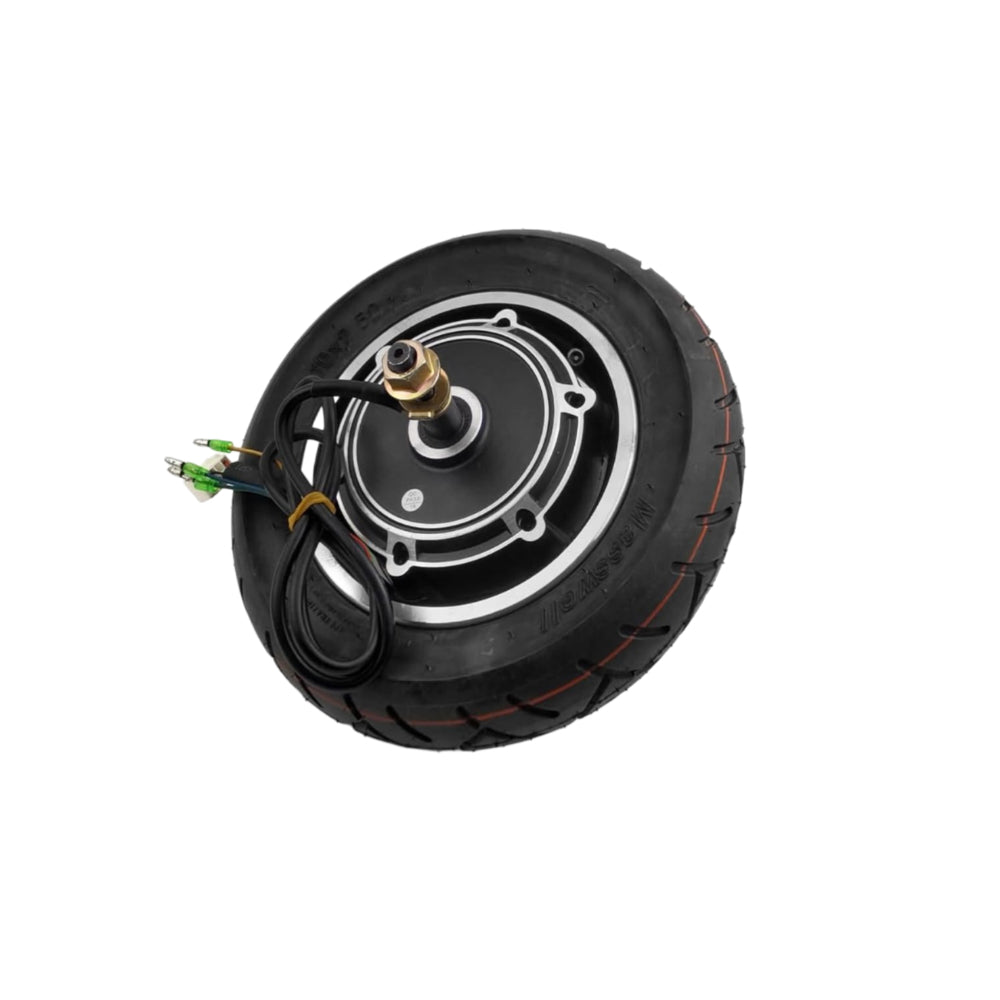

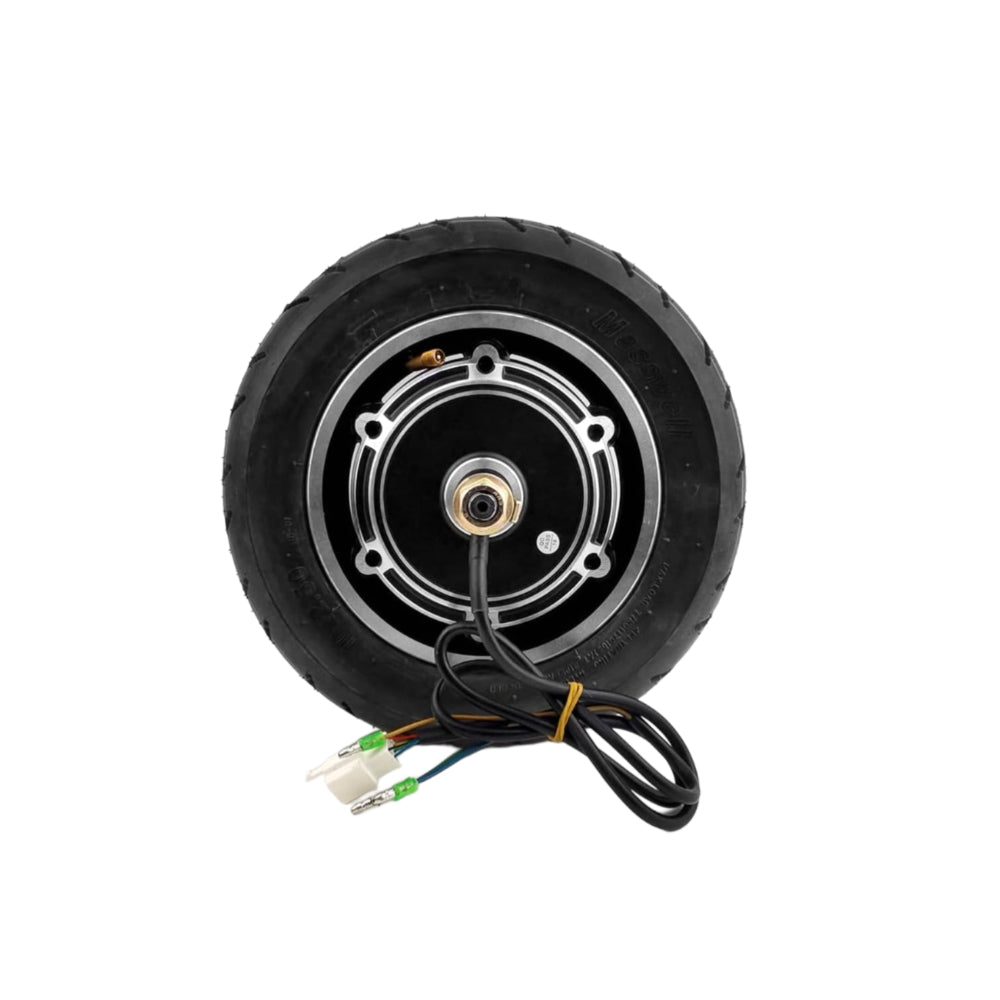

10 Inch 48V 500W Drum Brake with Tire

This is a 10-inch, 48V, 500W Hub Motor with an integrated drum brake and tyre, designed for electric bicycles, scooters, motorcycles, and other personal transportation projects. Operating at 48V with a power output of 500W, this motor offers reliable and efficient performance, making it ideal for a wide range of applications. The 10-inch wheel size ensures a compact and versatile fit, while the included durable tyre is ready for direct installation. The integrated drum brake enhances safety by providing effective and reliable stopping power. Commonly found on affordable E-bikes, this hub motor can be easily installed on the front or rear wheel, making it a practical choice for DIY E-bike conversion kits and vehicle upgrades. Its cost-effective and user-friendly design makes it a popular solution for electric mobility projects.

Technical Details

  • Item Type: Hub Motor
  • Material: Rubber + Aluminum
  • Net Weight: Approx. 3.7 kg
  • Rim Size: 10 Inch
  • Rated Power: 500W
  • Rated Voltage: 48V
  • Speed: 20-30 km/h
  • RPM: 600
  • Motor Diameter: 254mm (including tires)
  • Load Capacity: 100-120 kg
  • Braking Method: Hub Brake
  • Applicable Model: 10-inch Electric Car
  • Rated Current: 10A
  • Peak Current: 14A
  • Tyre: 10 x 2.50
  • Brake Type: Drum
  • Wire length: Aprox 650mm

Features

  • Powerful 500W motor with 520W peak output
  • Compact 10-inch tire (10x2.50) for smooth performance
  • Supports up to 100 kg on flat surfaces
  • Reliable drum brake for enhanced safety
  • Adjustable speed: 400-1000 RPM (800 RPM default)
  • High energy efficiency: >83%
  • Optimized for 48V systems with low power consumption
  • Compact 95mm open file for easy mounting

Applications :

  • 10 Inch 48V 500W Drum Brake With Tire: Suitable for compact electric vehicles and mobility solutions.
  • Electric Scooters: Ensures reliable braking for 48V-powered scooters.
  • Electric Bikes: Ideal for smooth and consistent braking in smaller e-bikes.
  • Mobility Scooters: Used in personal mobility devices for enhanced safety.
  • Lightweight Electric Vehicles: Provides effective braking for compact EVs and carts.
  • Delivery Robots: Ensures precise control and braking in automated delivery systems.
  • Recreational Vehicles: Suitable for small electric recreational vehicles and personal transporters.

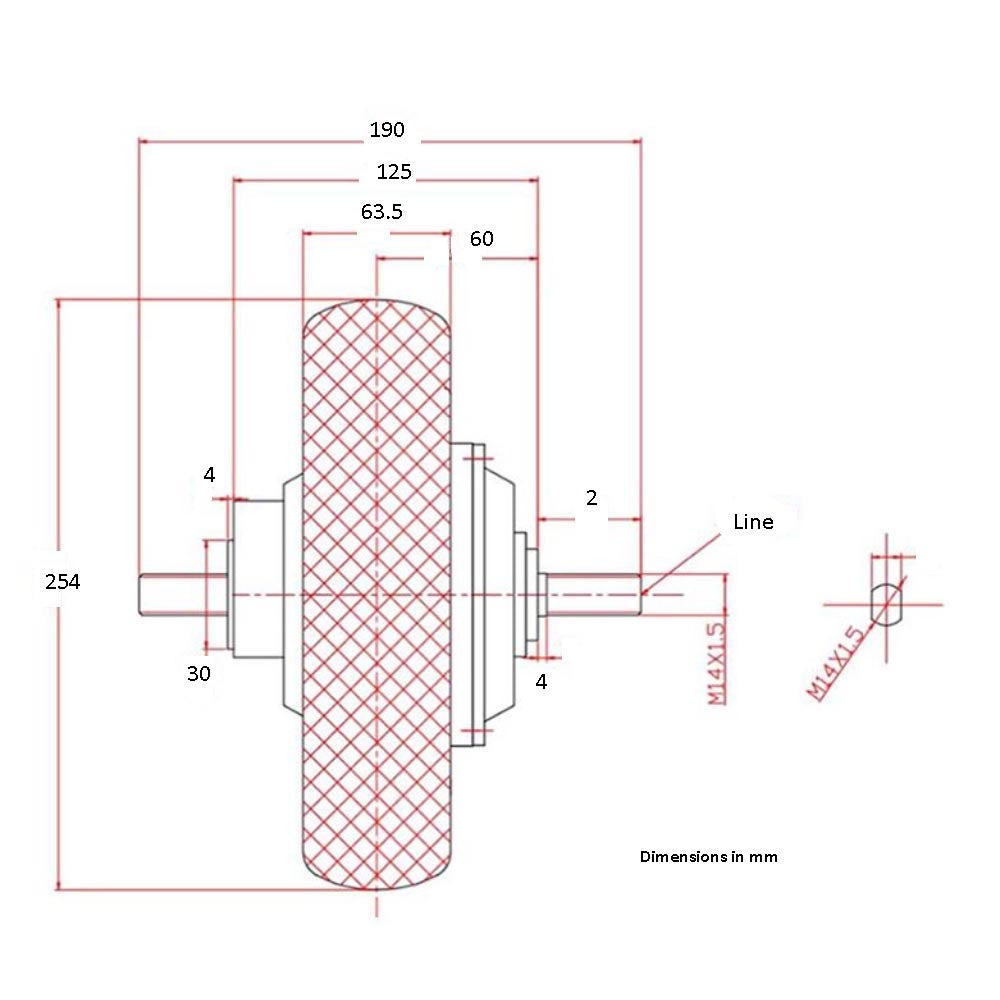

Physical Attributes

  • Weight (gm): 3700
  • Diameter with tire: 254mm
  • Material: Aluminum
  • Paint: Matte Black
  • Wire length: Aprox 650mm

Package Includes

  • 1 x 10 Inch 48V 500W Drum Brake With Tire
