24V Electric Wheelchair DC Motor Joystick Controller With Anderson connector

Available:Out of Stock
  • Product SKU: KGEB045
Wishlist
₹ 6,999 ₹ 8,999
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

Experience Enhanced Mobility with the 24V Electric Wheelchair DC Motor and Joystick Controller: Effortless Control and Convenient Connectivity Unlock the freedom of movement with the 24V Electric Wheelchair DC Motor and Joystick Controller. Designed to provide a seamless and intuitive control experience, this motor and controller combination offers enhanced mobility for individuals using electric wheelchairs. With its reliable performance, precise control, and convenient USB port, it's time to take charge of your mobility and enjoy the independence you deserve.

Intuitive Joystick Controller: Precise Control at Your Fingertips The Joystick Controller provides intuitive and precise control over your electric wheelchair. Its ergonomic design allows for comfortable operation, while the responsive joystick enables smooth and accurate steering. Easily navigate through tight spaces, make precise turns, and adjust your wheelchair's speed effortlessly. Take full control of your mobility with the user-friendly Joystick Controller.

Convenient USB Port: Connectivity for Your Devices The Joystick Controller features a built-in USB port, adding a new level of convenience to your electric wheelchair experience. Charge your smartphone, tablet, or other USB-powered devices directly from the controller, eliminating the need for additional charging adapters or cables. Stay connected and keep your devices powered up while on the move.

Reliable Performance: Built to Last The 24V Electric Wheelchair DC Motor and Joystick Controller are built to withstand the demands of daily use. With their durable construction and high-quality components, they ensure long-lasting performance and reliability. Rest assured that your mobility needs are met with a motor and controller combination designed for durability and longevity.

How to Use

  • Power on /off : press this key to turn on the power supply, turn on the battery power indicator, and the controller system enters the startup program. Press this key again to turn off the power supply. Press it for more than 0.5 seconds to prevent misoperation.
  • Deceleration key:  reduce the maximum speed of driving. Press once to reduce the speed by one gear, and the speed is displayed as the current speed gear.
  • Acceleration key:  increase the maximum speed of driving. Press once to increase the speed by one gear, and the speed is displayed as the current speed gear.
  • Control lever:  control the speed and direction of travel and parking. the pushing direction of the control lever is consistent with the direction of travel. The operation will stop when the control lever is released naturally(placed in the middle position).
  • Horn key:  Horn honking / buzzer honking.

Technical Details

  • Power supply voltage: DC 24V
  • Working voltage: DC 19V to DC 32V
  • Peak voltage: DC 35V
  • Output current: 50A
  • Braking voltage: DC 24V
  • Braking current: single channel maximum 3A
  • Battery charging current: max 6A, charged by the controller
  • Current required for standby: (static): ≤50 mumps
  • Current required for standby (power off): 0.1±0.05 mumps
  • Operating temperature: -25°C to +60°C
  • Storage temperature: -45℃ to +80℃
  • Applicable drive motor form: 24V DC brush motor
  • Material: ABS
  • color: black
  • Easy install and durable use
  • Great quality and great Fitment
  • Correct Connector No cutting or splicing

Features

  • Voltage, current, and temperature control detection: In the case of overvoltage,undervoltage, overcurrent, overload, etc., there are alarm and shutdown protection functions.
  • Watchdog function: If the hardware or software encounters interference or unpredictable conditions, it will restart after half a second.
  • Power-off protection function: During operation, the shutdown motor will gradually decelerate to zero. When running on the slope, it can automatically stand on the slope. If the operation is stopped by mistake, it also has the function of suppressing the slope.
  • Boot detection: including left and right motor line connection detection, left and right brake line connection detection, and whether the joystick detects battery power at the initial position.LED lights and sound mode alarms will be detected after the corresponding problem is detected.
  • Smoothing Start: The wheelchair joystick controller allow you can start smoothly, with variable speed, high sensitivity, and flexible control, which is convenient to use.
  • Widely Used:  Joystick controller is suitable for electric wheelchairs, intelligent robots, amusement equipment, monitoring, and various mobile products operating platforms.
  • 360° Free Rotation: The electric wheelchair joystick controller adopted a 360° free steering design, accurate and flexible, which is easy to operate.
  • Excellent ABS:  Wheelchair controller made of Premium Material ABS material, waterproof, moisture-proof, and corrosion resistant, which has a long service time.
  • Easy Installation:  Sensitive electric wheelchair controller with good compatibility, can be easily installed on any wheelchair, which is an important and practical accessory.

Advantages

  • Powerful DC Motor : Effortless maneuverability for various terrains.
  • Intuitive Joystick Controller : Precise control for smooth steering.
  • Convenient USB Port : Charge your devices on the go.
  • Reliable Performance : Built to last for long-term use.

Package Includes

  • 1 x 24V Electric Wheelchair DC Motor Joystick Controller Without USB Port

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
S
SHAIK RAHEEM

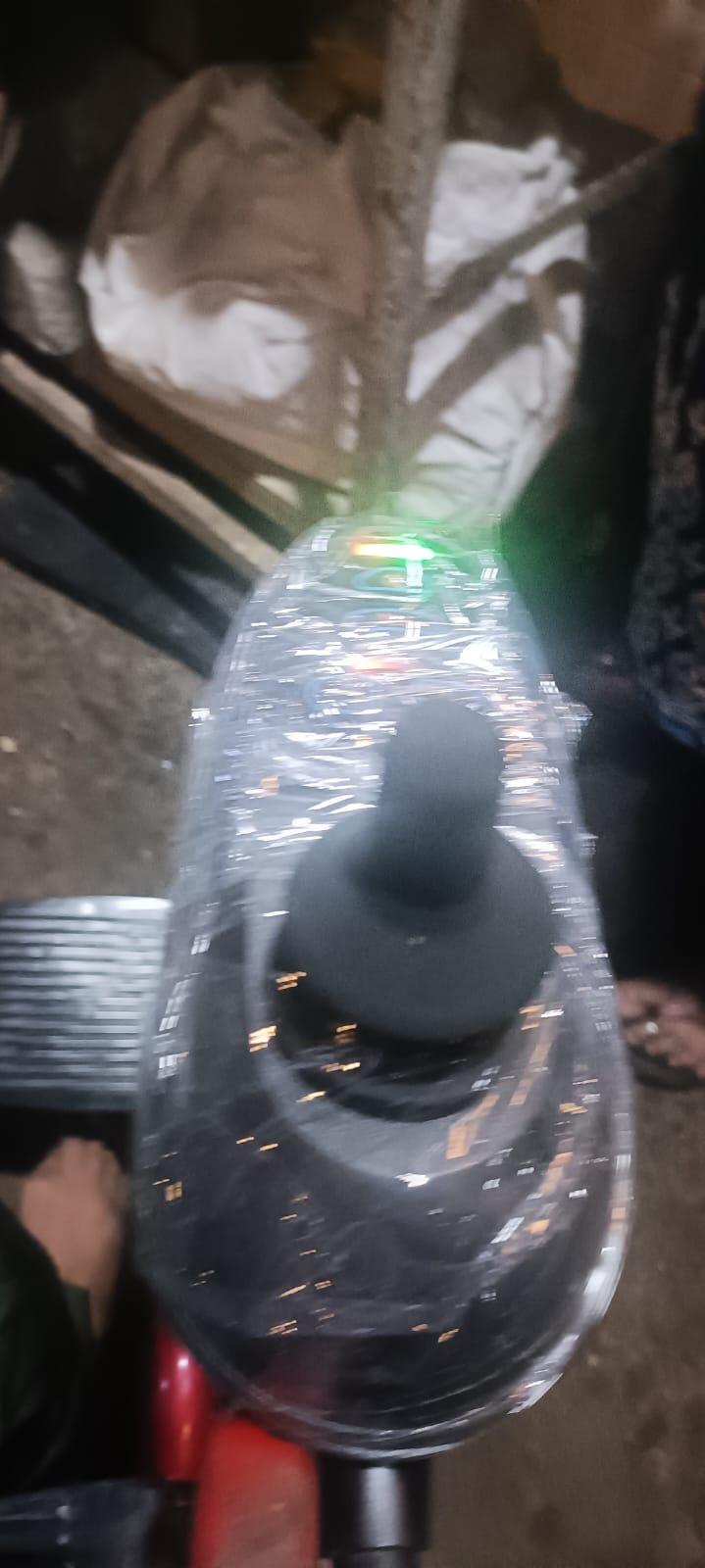

More than enough,,go for it

My previous wheelchair is vr2controller with joystick,,en expectedly it's water damaged,,,it's around 46000 to buy it,,I searched on Google,,find this joy stick,,I recieved the joy stick,,,but I the connecting clamps are different from I have with my chair,,I purchased seperate connectors and made alteration to connectors,,I am 💯% socceded in replacing connectors,,,now I am using this without any problem,,,,I found only a small glith while climbing slopes in reverse direction,,it can't support that much power,,but rest is super,,go for it without spending too much amount on other brands,,,lastly,,,no usb port there,,any have thankyou kitsguru
