Specification

Description

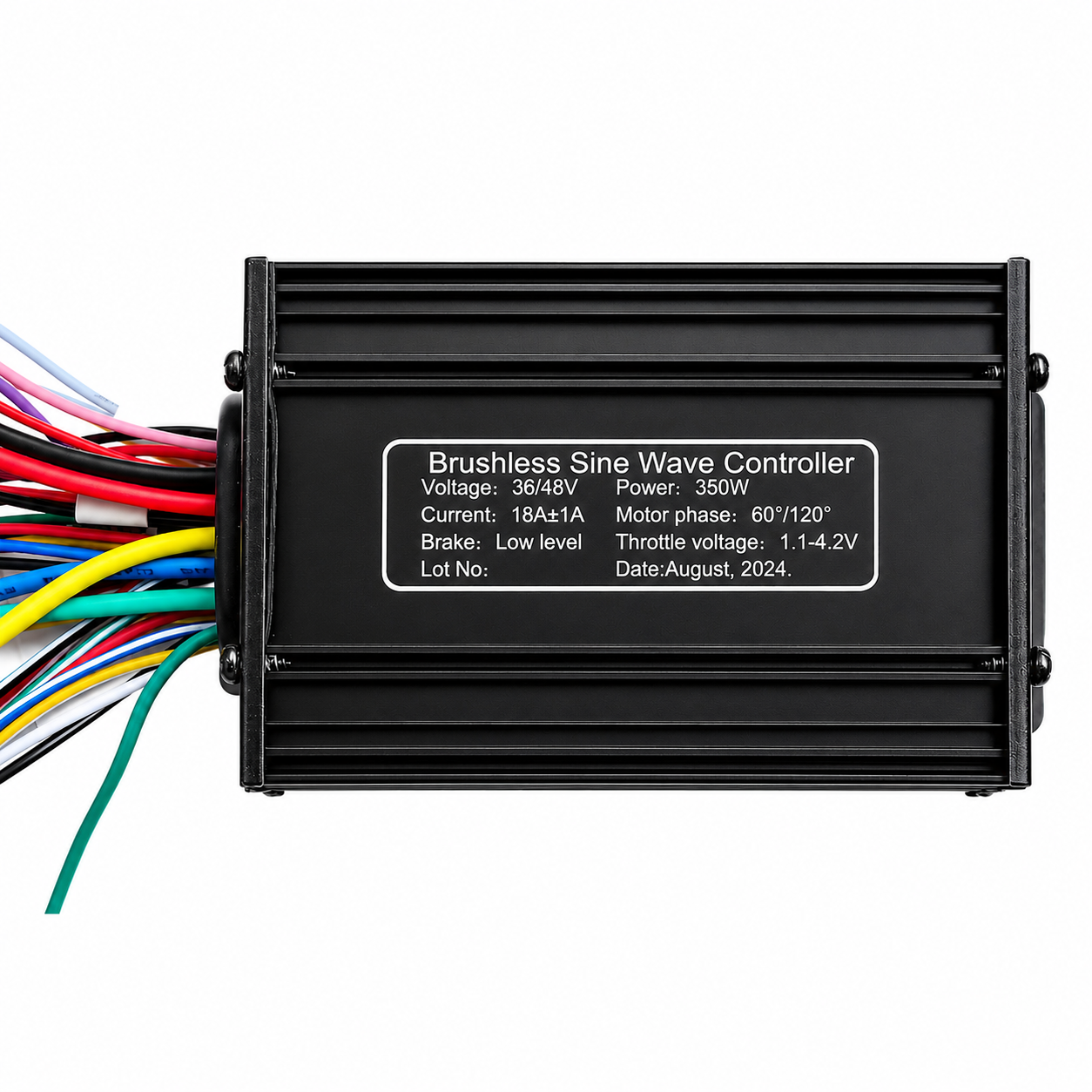

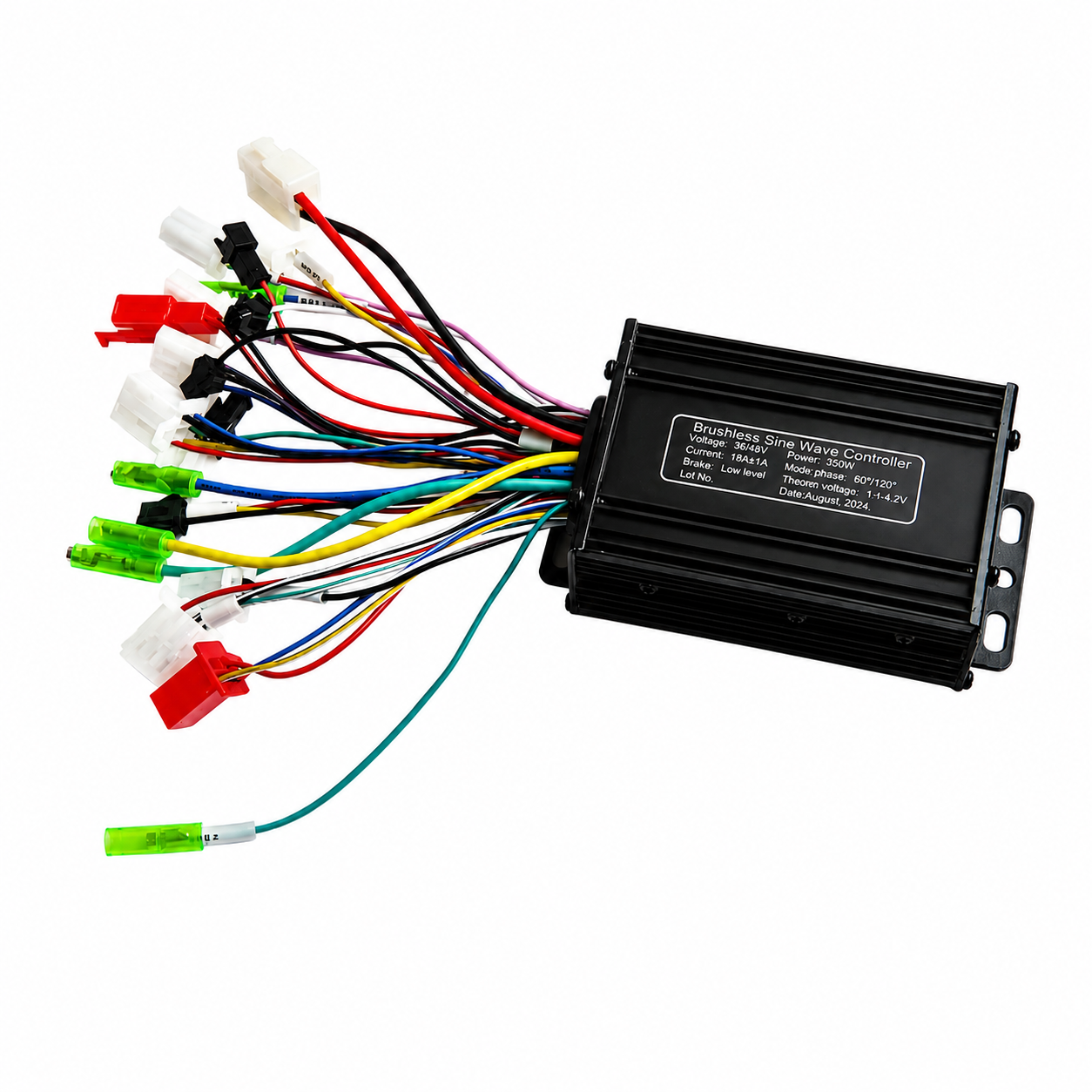

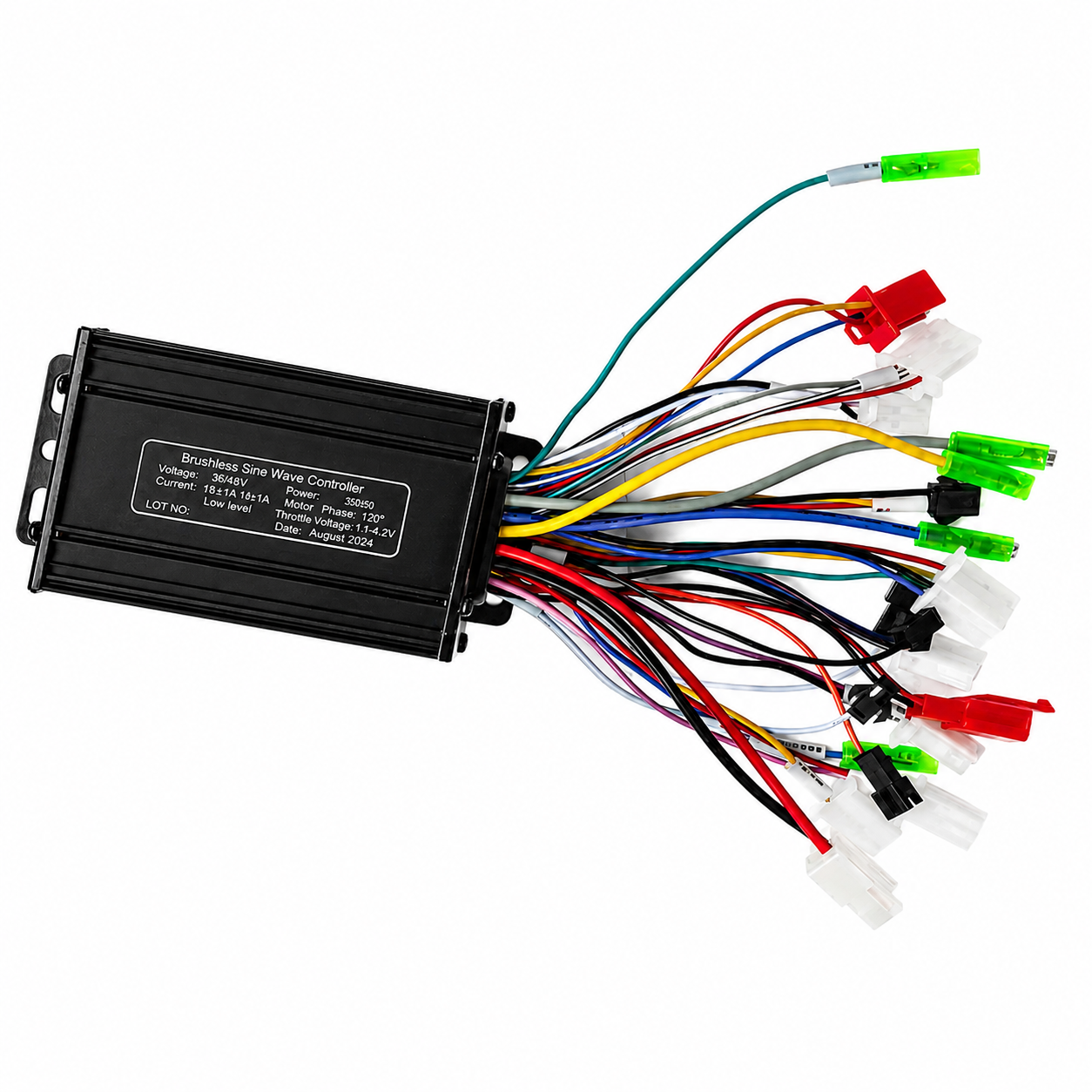

36V/48V 350W Brushless Sine Wave Motor Controller for E-Bike & Scooter

The 36V/48V 350W Brushless Sine Wave Motor Controller is designed for compatible brushless DC motor systems used in electric bikes, scooters, and other light electric vehicle applications. It supports DC 36V / 48V battery systems and has a rated power of 350W, making it suitable for repair, replacement, and DIY electric vehicle conversion projects.

This controller uses sine wave control, which helps provide smoother motor operation, quieter running, and improved riding comfort compared to standard square wave controllers. It supports compatible 60° / 120° motor phase angle systems and includes low-level brake support, throttle input control, and multiple wiring connectors for easy installation in compatible e-bike and scooter setups.

Technical Details

  • Controller Type: Brushless Sine Wave Motor Controller
  • Rated Voltage: DC 36V / 48V
  • Rated Power: 350W
  • Current Limit: 18A±1A
  • Motor Phase Angle: 60° / 120° Universal
  • Throttle Voltage: 1.1V – 4.2V
  • Brake Type: Low Level Brake
  • Motor Type: Brushless DC Motor
  • Control Type: Sine Wave Controller
  • Cooling Method: Aluminium casing with natural air cooling
  • Case Material: Aluminium Alloy
  • Body Color: Black
  • Dimensions: 102 × 68 × 36 mm
  • Suitable For: E-bikes, electric scooters, small EVs, and DIY conversion kits

Features

  • Supports DC 36V and 48V battery systems
  • Suitable for 350W brushless motor applications
  • Sine wave control for smoother and quieter operation
  • Current limit of 18A±1A for compatible systems
  • Throttle voltage range of 1.1V to 4.2V
  • Compatible with 60° / 120° brushless motor phase angle systems
  • Low-level brake support for safer operation
  • Black aluminium casing supports better heat dissipation
  • Compact size for easy mounting in e-bike and scooter frames
  • Suitable for replacement, repair, and DIY electric vehicle projects

Applications

  • Electric bicycles
  • Electric scooters
  • Small electric vehicles
  • Pedal bike conversion kits
  • Mobility carts
  • Light electric transport systems
  • DIY electric vehicle projects
  • Educational EV and engineering projects

Physical Attributes

  • Body Material: Aluminium
  • Body Color: Black
  • Size: 102 × 68 × 36 mm
  • Weight: 241g

Package Includes

  • 1 x 36V/48V 350W Brushless Sine Wave Motor Controller for E-Bike & Scooter
