4013 SMD Microphone Head Bound Type Without Capacitor, Green PCB Mount
The 4013 SMD Microphone Head (Bound Type) is a surface-mount electret condenser microphone designed for compact and efficient audio integration. It features a 4013 form factor and is built without a capacitor, making it ideal for designs where external capacitor control is preferred. The microphone delivers clear sound input with low noise and good sensitivity, ensuring reliable performance in embedded and handheld systems.With its green PCB mount base, this microphone is easy to solder onto standard circuit boards, making it perfect for high-volume production and compact electronic assemblies. The bound type design ensures stable signal transfer and secure attachment, while its SMD (Surface-Mount Device) format is optimized for automated manufacturing. Common applications include consumer electronics, audio modules, wearables, and voice control systems.
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
Technical Details
- Model: 4013 SMD Microphone
- Mounting Type: Surface Mount (SMD)
- Type: Electret Condenser Microphone
- Without Built-in Capacitor
- Directionality: Omnidirectional
- Sensitivity: -38 ± 3dB
- Operating Voltage: 2VDC (typical)
- Voltage Range: 1 ~ 10VDC
- Impedance: ≤ 2.2 KΩ
- Current Consumption: ≤ 0.5mA
- Signal-to-Noise Ratio: ≥ 60dB
- Frequency Response: 50Hz ~ 16kHz
- Operating Temperature: -20℃ to +70℃
- PCB: Green PCB

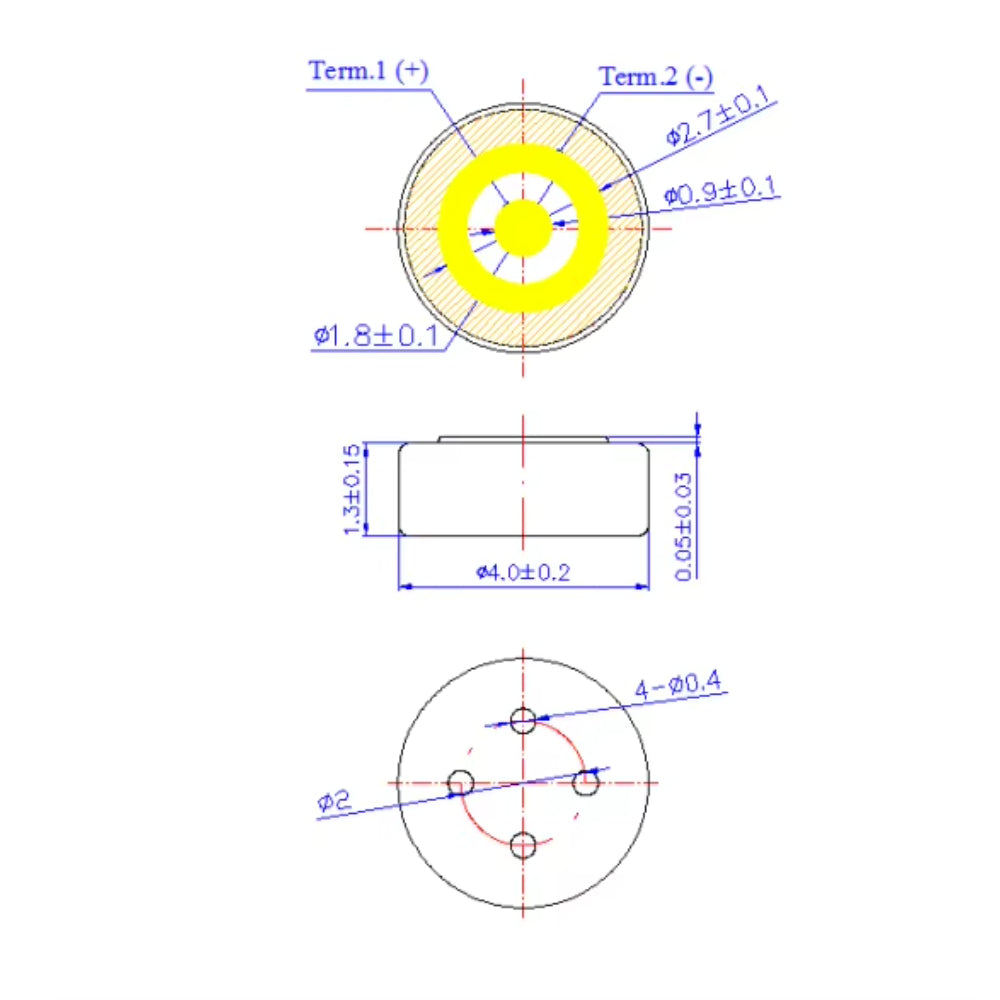

- Size: 4.0mm × 1.3mm
- Weight: ~0.2g
Features
- Compact SMD design suitable for surface mounting
- Omnidirectional sound pickup pattern
- Low power consumption for battery-powered devices
- High signal-to-noise ratio for clear audio capture
- Wide operating voltage range (1~10VDC)
- Green PCB for easy circuit identification
- Does not include a built-in capacitor for customizable filtering
- Lightweight and miniature for tight PCB layouts
Applications :
- Mobile phones and smartphones
- Wearable electronics and smartwatches
- Voice recognition modules
- IoT audio sensing devices
- Digital recorders and sound sensors
- Compact consumer electronics
- Hearing aids and personal audio devices
Physical Attributes
- Size: 4.0mm × 1.3mm
- Weight: ~0.2g
Package Includes
- 1 x 4013 SMD Microphone Head Bound Type Without Capacitor, Green PCB Mount
