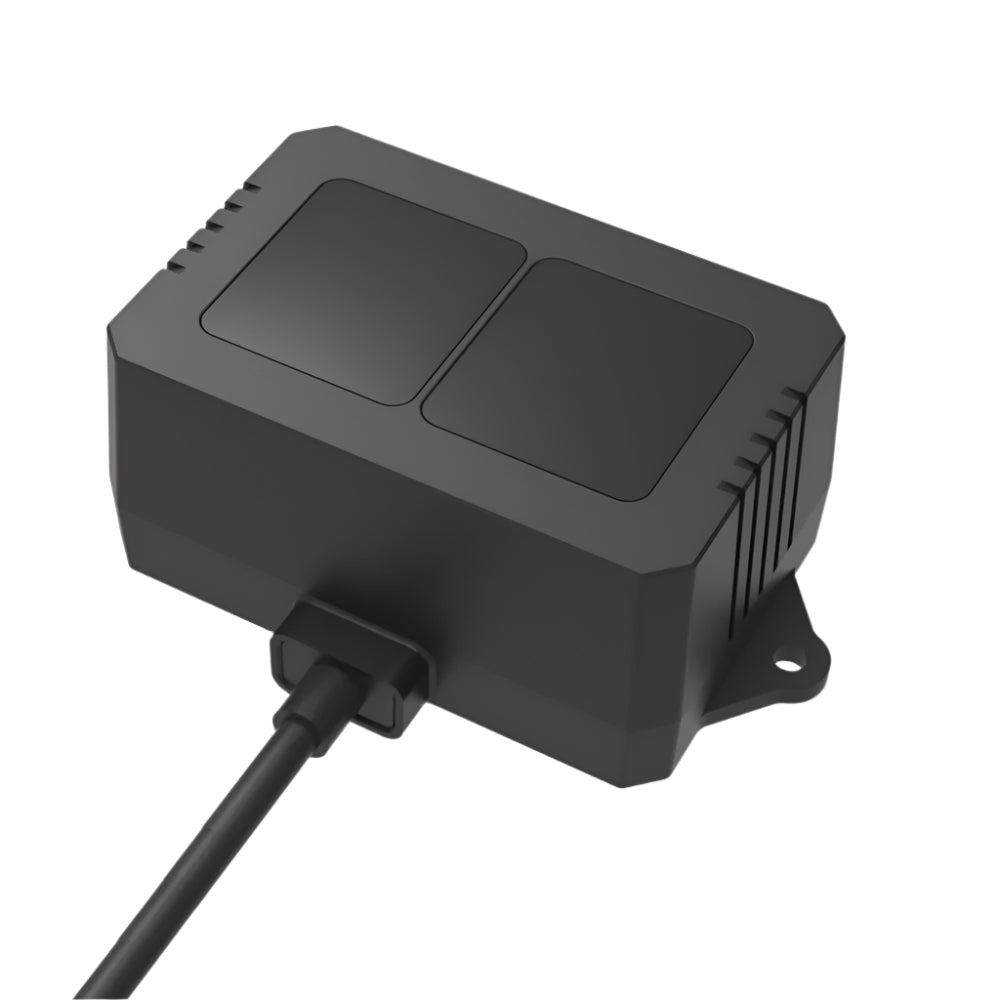

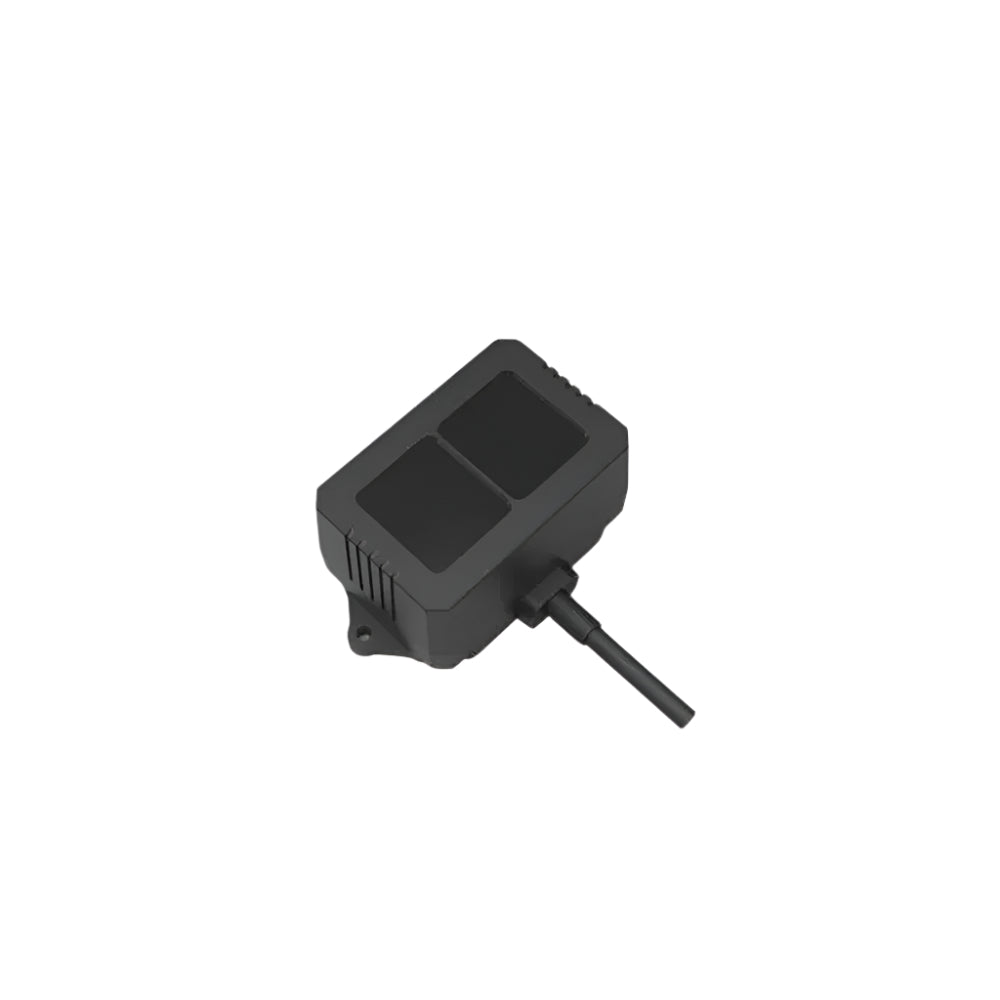

Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR
![Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR]()
![Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR]()
![Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR_3]()
![Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR]()
![Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR]()
![Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR_3]()
This upgraded version features an optimized optical system and advanced algorithms, enabling better performance under diverse outdoor lighting, reflectivity backgrounds, and temperature variations.
-22%
Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR
Available:In Stock
- Product SKU: KG1212
₹ 6,999
₹ 8,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
TF02-Pro LiDAR Distance Sensor – Mid-Range ToF Detection up to 40m
The TF02-Pro is a cost-effective, mid-range distance sensor based on Time-of-Flight (ToF) technology. It supports a measuring range of up to 40 meters and offers excellent ambient light resistance (up to 100Klux), making it ideal for UAV altitude control, intelligent traffic systems, parking automation, and agricultural monitoring.This upgraded version features an optimized optical system and advanced algorithms, enabling better performance under diverse outdoor lighting, reflectivity backgrounds, and temperature variations.
Main Features
- Measuring range up to 40 meters
- High ambient light resistance (up to 100Klux)
- Adjustable high frame rate (1–1000Hz)
- Low power consumption (≤1W)
- IP65-rated enclosure for outdoor use
Typical Applications
- UAV altitude hold
- Smart traffic management
- Intelligent parking systems
- Material level monitoring
- Agricultural sensing
Technical Details
- Model Type: LiDAR Distance Sensor
- Model Name: TF02-Pro LiDAR
- Field of View (FOV): 3°
- Distance Measuring Range: 0.3m – 40m
- Operating Range: 0.1m–40m @90% reflectivity; 0.1m–13.5m @10% reflectivity
- Accuracy: ±5cm (0.1–5m); ±1% (5–40m)
- Distance Resolution: 1cm
- Repeatability: 1σ <2cm (0.1–35m @90% reflectivity)
- Frame Rate: 1–1000Hz (adjustable, default 100Hz)
- Ambient Light Immunity: 100 Klux
- Enclosure Rating: IP65
- Central Wavelength: 850nm
- Light Source: VCSEL
- Photobiological Safety: Class 1 (IEC 60825)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -30°C to +80°C
- Supply Voltage: DC 5V – 12V
- Average Current: ≤200mA
- Peak Current: 300mA
- Power Consumption: ≤1W
- Communication Level: LVTTL (3.3V)
- Communication Interface: UART / I²C
- UART Baud Rate: Default 115200
- I²C Transmission Rate: Max 400kbps
- Data Bits: 8
- Stop Bit: 1
- Parity: None
- Mode: Slave
- Default I²C Address: 0x10 (Range: 0x01–0x7F)
- Dimensions with box (L×H×W): 125mm × 95.5mm × 50mm2
- Dimensions without box (L×H×W): 69mm × 41.5mm × 26mm
- Weight: 171g (with cables & box)
- Cable Length: 80cm
- Housing Material: ABS/PC
Drawing
Package Includes

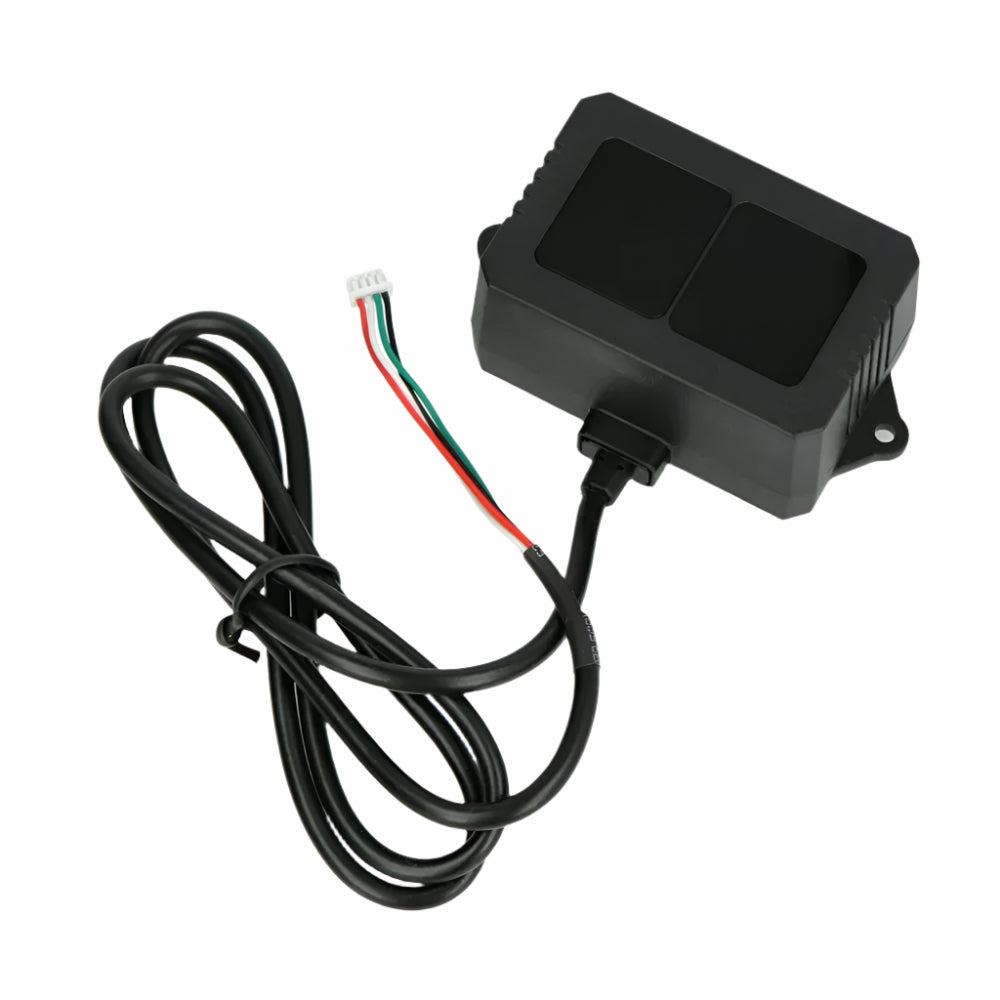

- 1 × TF02-Pro LiDAR Distance Sensor with 80cm Communication Cable
