The TFMini Plus is a next-gen upgrade to the classic TFmini. Designed for cost-efficiency, compact size, and low power usage, it now also features an IP65-rated enclosure, enhanced compensation algorithms, and a significantly higher frame rate. These improvements expand its application across smart systems like IoT, robotics, ITS, and more.
-21%
Benewake TFMini Plus LiDAR Distance Sensor for Drones Robots IoT ITS Smart Detection (12m)
Available:In Stock
- Product SKU: KG1210
₹ 3,949
₹ 4,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
TFMini Plus LiDAR Distance Sensor – 12m ToF Rangefinder
If you want a reliable way to measure distance from a sensor, the TFMini Plus LiDAR Distance Sensor by Benewake is the solution. This sensor enables accurate distance measurement with improved frequency, minimized blind spots, and enhanced accuracy.The TFMini Plus is a next-gen upgrade to the classic TFmini. Designed for cost-efficiency, compact size, and low power usage, it now also features an IP65-rated enclosure, enhanced compensation algorithms, and a significantly higher frame rate. These improvements expand its application across smart systems like IoT, robotics, ITS, and more.
Technical Details
- Model Type: LiDAR Distance Sensor
- Distance Measuring Range: 0.1m – 12m (90% reflectivity)
- Distance Range (low reflectivity): 0.1 – 4m (10% reflectivity)
- Field of View (FOV): 3.6°
- Accuracy: ±5cm (0.1–5m), ±1% (5–12m)
- Distance Resolution: 1cm
- Repeatability: 1σ <3cm (@100Hz)
- Frame Rate: 1–1000Hz (adjustable)
- Ambient Light Immunity: 70 Klux
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +75°C
- Protection Level: IP65
- Light Source: LED
- Wavelength: 850nm
- Photobiological Safety: Exempt Level (EN62471)
- Supply Voltage: 5V ± 0.5V
- Average Current: ≤110mA
- Peak Current: 140mA
- Power Consumption: 550mW (Low Power Mode: <100mW)
- Communication Level: LVTTL (3.3V)
- Communication Interface: UART, I²C, I/O
- With Box Dimensions (L×W×H): 60mm × 60mm × 30mm
- Without Box Dimensions (L×W×H): 35mm × 18.5mm × 21mm
- Weight: 24g
- Cable Length: 15cm
Communication Interface
- UART: Default baud rate 115200 (adjustable 9600–921600bps), 8 data bits, 1 stop bit, no parity
- I²C: Max transmission rate 400kbps, Slave mode, Default address: 0x10 (Range: 0x01~0x7F)
- Communication Interface Options: UART, I²C, I/O
- Frame Rate: Adjustable from 1 to 1000Hz (Default: 100Hz)
- Low Power Mode: Normal / Low power configurable (default: off)
- Reset Function: All parameters can be reset to default settings
Drawing
Wiring Guide
- Red: +5V Power
- Blue: TXD (Transmit)
- White: RXD (Receive)
- Black: GND (Ground)
Main Features
- High frequency (up to 1000Hz)
- Compact size and lightweight design
- Low power consumption (550mW, ≤100mW in low power mode)
- IP65-rated enclosure for outdoor use
Typical Applications
- Pedestrian detection
- Vehicle detection
- Altimeter
- Robot fall-arrest
- Smart detection for drones and IoT

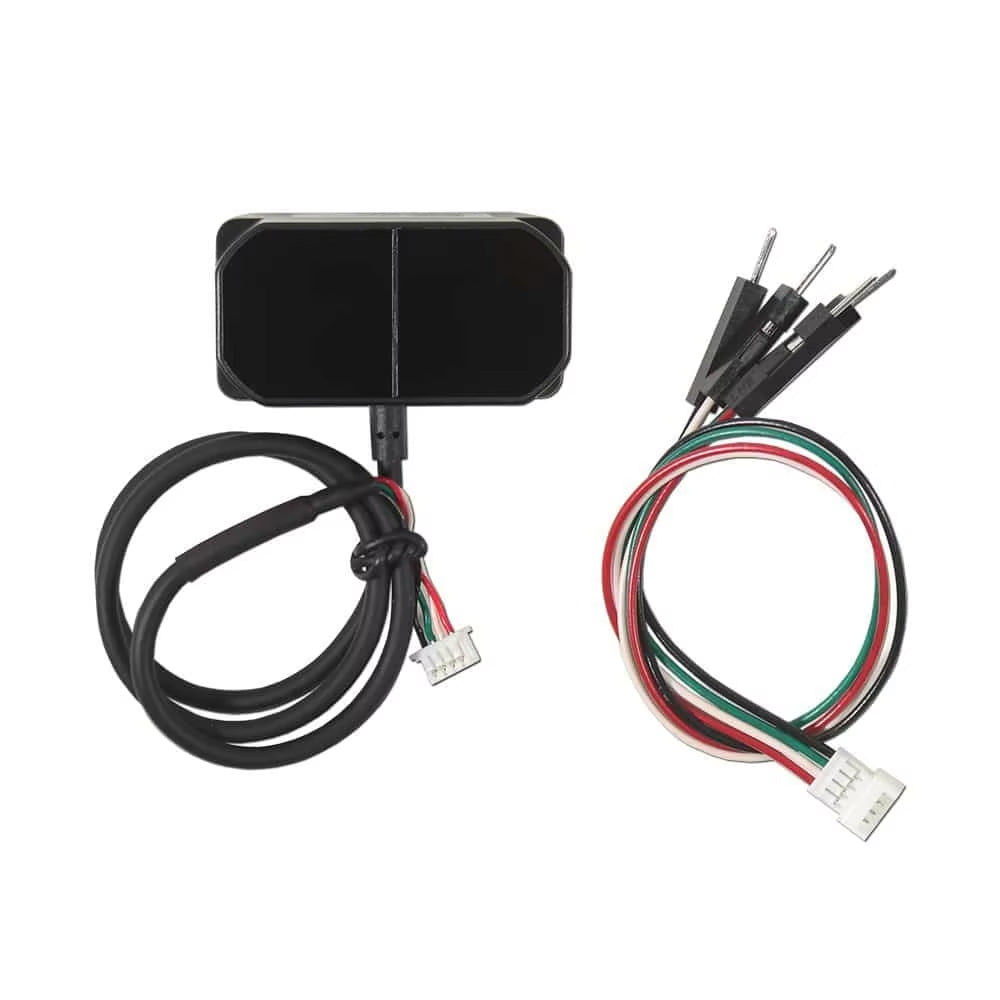

Package Includes
- 1 × TFMini Plus LiDAR Distance Sensor (12m)
- 1 × 4-Pin Cable (15cm)
