ENC28J60 Ethernet Module(10 Pin Package: SSOP)
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-28%
ENC28J60EthernetModule
ENC28J60EthernetModule
ENC28J60EthernetModule

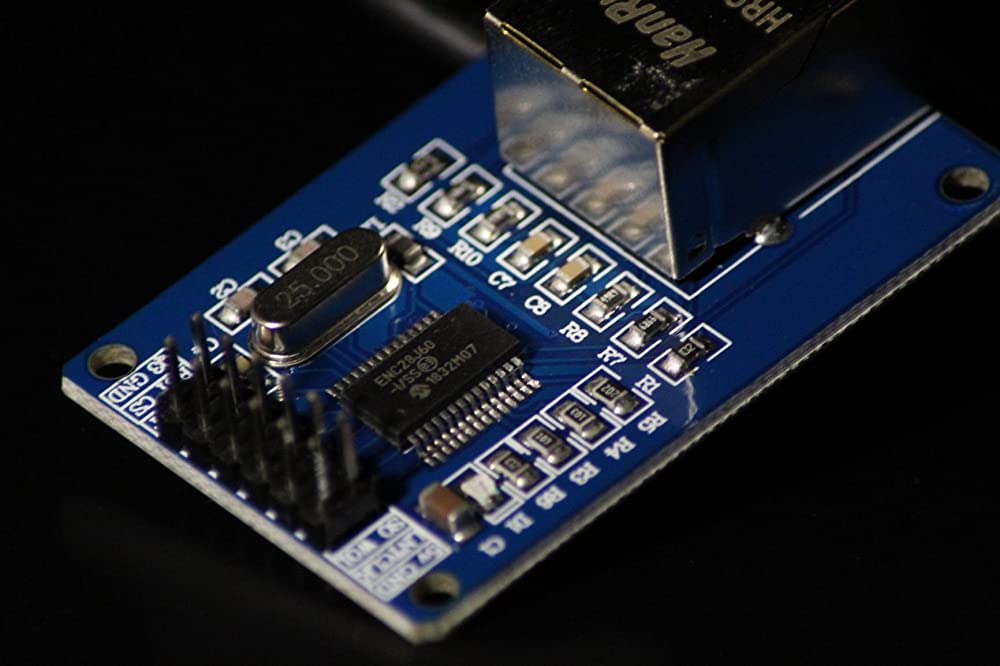

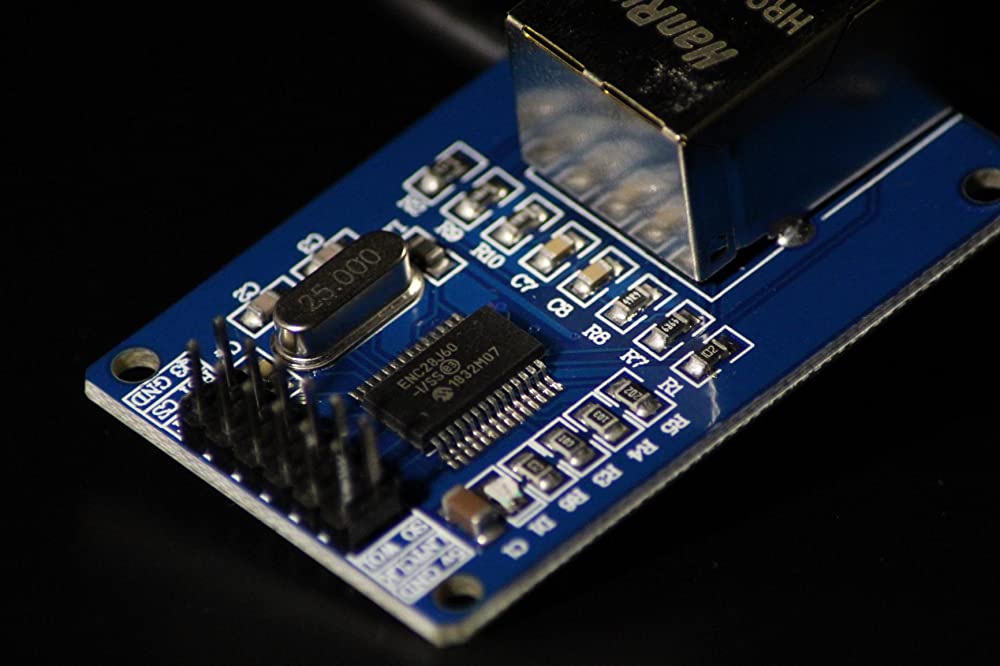

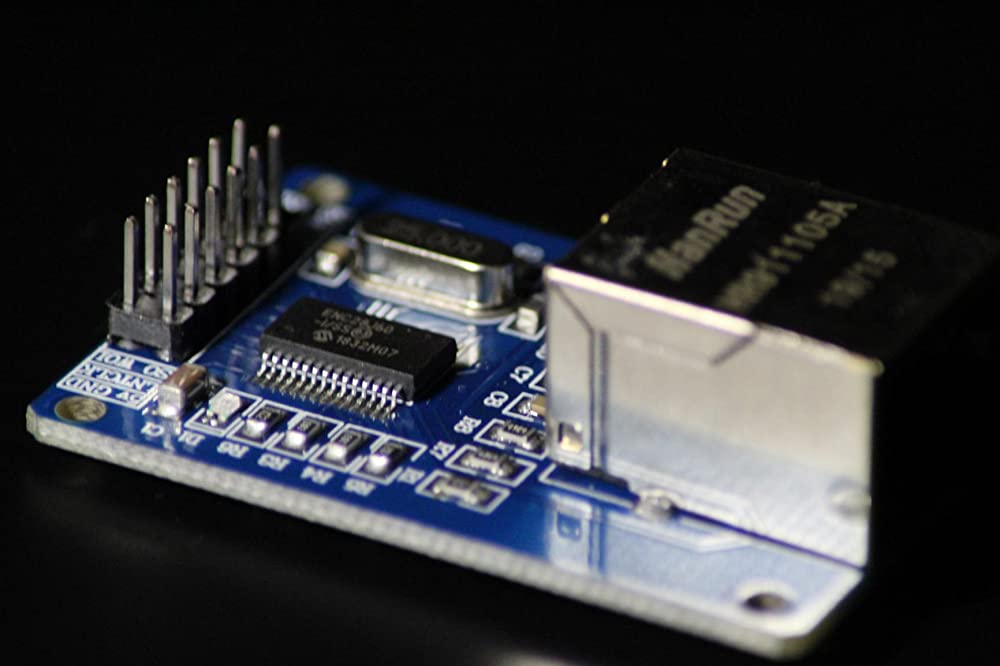

ENC28J60 Ethernet Module(10 Pin Package: SSOP)

Available:In Stock
  • Product SKU: KG046
Wishlist
₹ 523.95 ₹ 733.95
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 999

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   11J-181

  • Order within
Secure

Specification

Description

The ENC28j60 Ethernet Module is a compact networking module designed to enable Ethernet connectivity in various electronic projects and devices. ENC28j60 Ethernet Lan Module is commonly used in applications where networking capabilities are required, such as IoT (Internet of Things) projects, remote monitoring, data logging, and more.

Here are the key details about the ENC28j60 Ethernet Module:

Ethernet Connectivity: The module provides a way to connect your device or project to an Ethernet network. It allows your device to communicate over a local network or the internet, depending on your application's requirements.

ENC28J60 Chip: (Potentiometers) The ENC28j60 Ethernet Lan Module is a widely used Ethernet controller chip that forms the core of this module. It handles low-level networking tasks, such as sending and receiving Ethernet frames, managing data packets, and interfacing with your microcontroller or development board.

Compact Design: The "Mini" designation indicates that this module is designed to be small in size. This compact form factor makes it suitable for projects with space constraints or where a smaller footprint is desired.

SPI Communication: The module typically uses the Serial Peripheral Interface (SPI) protocol to communicate with your microcontroller or development board. SPI allows for fast and efficient data transfer between the module and the host device.

Compatibility: The ENC28j60 Ethernet Module can be used with various microcontrollers, development boards (such as Arduino), and single-board computers (such as Raspberry Pi) that support SPI communication.

Protocols and Standards: The module supports common networking protocols such as TCP/IP, UDP, ICMP, and ARP, which are essential for communication over Ethernet networks.

LED Indicators: Many modules come with built-in LEDs that indicate the module's status, network activity, and link status.

Power Requirements: The module typically operates on low power, making it suitable for battery-powered or energy-efficient applications.

Configuration and Programming: To use the ENC28j60 Ethernet Lan Module, you'll need to write or use appropriate networking libraries in your programming language of choice. These libraries provide functions and methods for handling Ethernet communication, IP addressing, and more.

Applications of ENC28j60 Ethernet Module:

IoT Projects: The module is commonly used in Internet of Things (IoT) projects where microcontrollers need to connect to the Internet or local networks.

Web Servers: You can create web servers using microcontrollers, allowing them to serve web pages and interact with clients over an Ethernet connection.

Network Communication: It enables communication between multiple microcontroller-based devices over a local network.

Technical Details

  • IC Chip: ENC28J60/SS
  • Crystal Oscillator: 25 MHz
  • Ethernet Port: HanRun HR911105A
  • Length (mm):57
  • width(mm):34
  • Height (mm):16
  • Weight (gm):14

Physical Attributes of ENC28j60 Ethernet Module

  • Length * Width * Height (mm): 57 * 34 * 16
  • Weight (gm): 14

Additional Details of ENC28j60 Ethernet Module

The ENC28J60 consists of seven major functional blocks:
  • An SPI interface that serves as a communication channel between the host controller and the ENC28J60.
  • Equips control registers for controlling and monitoring the ENC28J60.
  • A dual port RAM buffer for received and transmitted data packets.
  • An arbiter to control the access to the RAM buffer when requests are made from DMA, transmit, and receive blocks.
  • The bus interface interprets data and commands received via the SPI interface.
  • The MAC (Medium Access Control) module implements the IEEE 802.3-compliant MAC logic.
  • The PHY (Physical Layer) module encodes and decodes the analog data that is present on the twisted-pair interface.

Features of ENC28j60 Ethernet Lan Module

  • Fully Compatible with 10/100/1000Base-T Networks
  • Integrated MAC and 10Base-T PHY
  • Supports One 10Base-T Port with Automatic Polarity Detection and Correction
  • Supports Full and Half-Duplex modes
  • Automatic Programmable Retransmit on Collision
  • Programmable Padding and CRC Generation
  • Automatic Rejection of Erroneous Packets
  • SPI Interface with Clock Speeds Up to 20 MHz
  • Chipboard ENC28J60/SS.
  • The board 25MHZ crystal.
  • The network interface board HR911105A.
  • 5 V power supply pin.
  • Stable performance.
  • For Arduino, SPI, AVR, PIC, LPC, STM32.

Product Video

Documentation

Package Includes

  • 1 x ENC28J60 Ethernet Module(10 Pin Package: SSOP)

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
r
raghubir singh
5 Stars

Awesome product working really well.

l
lal chand
Good board

I am satisfied with this product. The price is very reasonable and the shipping was phenomenal. The board is well made, the ethernet connector is firmly connected to the board and the connection with the cable is stiff.

A
Anshul Kumbhare
Perfect!

Just what I needed for a wired home automation project. Wireless can't reach everywhere...

j
jitender kumar
Just what I was looking for

Arrived quickly and works great.
