1602 LCD Board Keypad Shield Blue Back-light For Arduino Uno/Mega
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

1602 LCD Board Keypad Shield Blue Back-light For Arduino Uno/Mega

Available:Out of Stock
  • Product SKU: KG088
Wishlist
₹ 179 ₹ 299
Pre-order
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

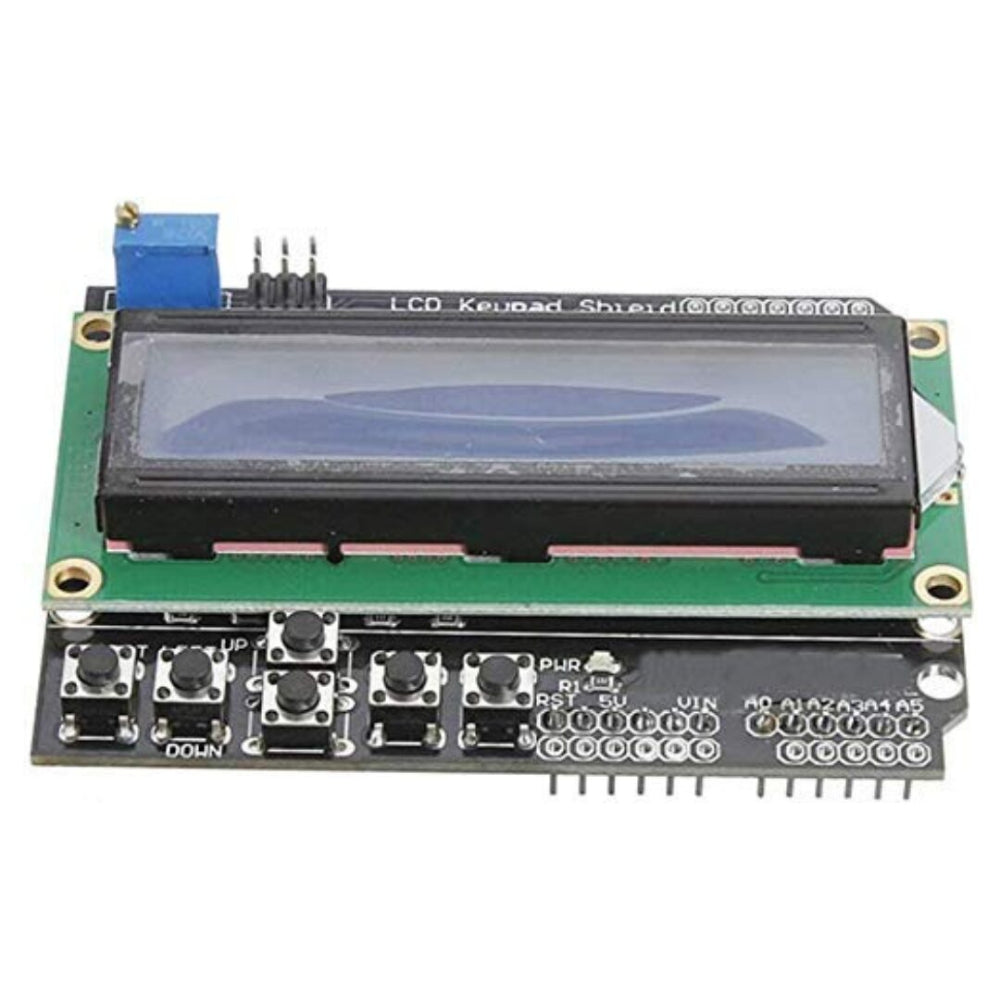

LCD Keypad Shield with 16×2 Display for Arduino (Cytron Compatible)

The LCD Keypad Shield is a popular and user-friendly Arduino-compatible navigation shield designed for creating menu-based interfaces and interactive projects. It is suitable for Arduino main boards such as Arduino Uno and Arduino Leonardo.

This shield integrates a 16×2 (1602) character LCD with 6 momentary push buttons for easy navigation, including Select, Up, Down, Left, Right, and Reset.

To conserve I/O pins, all navigation buttons are read using a single ADC input through a 5-stage voltage divider. An onboard power LED indicates when the shield is powered on.

Note: Adjust the onboard blue potentiometer to set the LCD contrast for optimal visibility.

Key Features

  • Designed for Arduino-compatible boards
  • User-friendly interface for menu navigation and selections
  • 16×2 (1602) character LCD display
  • White characters with blue backlight
  • 6 navigation buttons: Select, Up, Down, Left, Right, Reset
  • Keypad uses only one ADC channel
  • 5-stage voltage divider for key value detection
  • Onboard power indicator LED
  • Onboard potentiometer for LCD contrast adjustment

Technical Specifications

  • Item Type: Shield
  • Compatibility: Arduino Uno, Arduino Leonardo
  • Operating Voltage: 5 V
  • LCD Model: 1602
  • Characters per Line: 16
  • Character Color: White
  • Backlight Color: Blue
  • Number of Push Buttons: 5
  • Reset Button: Yes (Separate)
  • Shield PCB Dimensions: 80 × 57 mm
  • Total Height: 26 mm
  • Weight: 52 g

Applications

  • Menu-driven Arduino projects
  • User interface development
  • Embedded system displays
  • DIY electronics and learning projects
  • Robotics and automation control panels

Package Includes

  • 1 × LCD Keypad Shield with 16×2 Display (Cytron Compatible)
