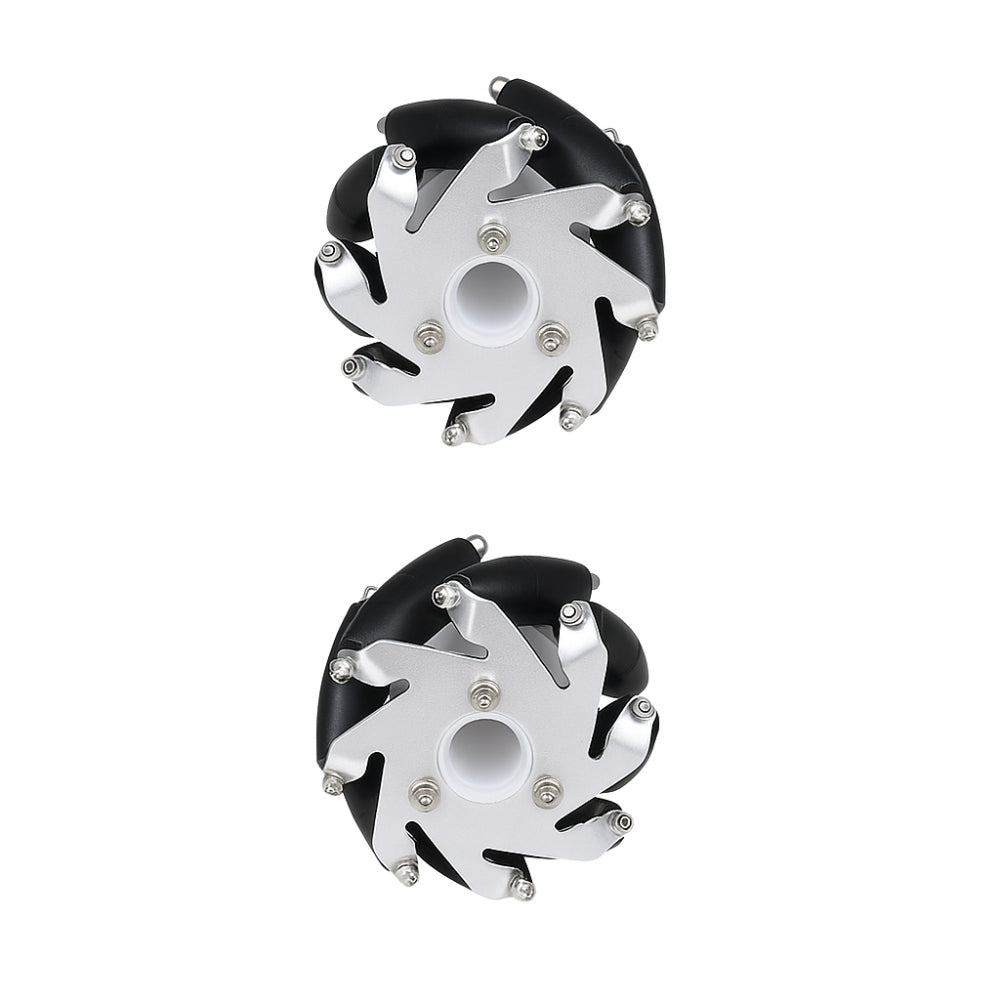

100mm aluminium mecanum wheels pair for robot kit

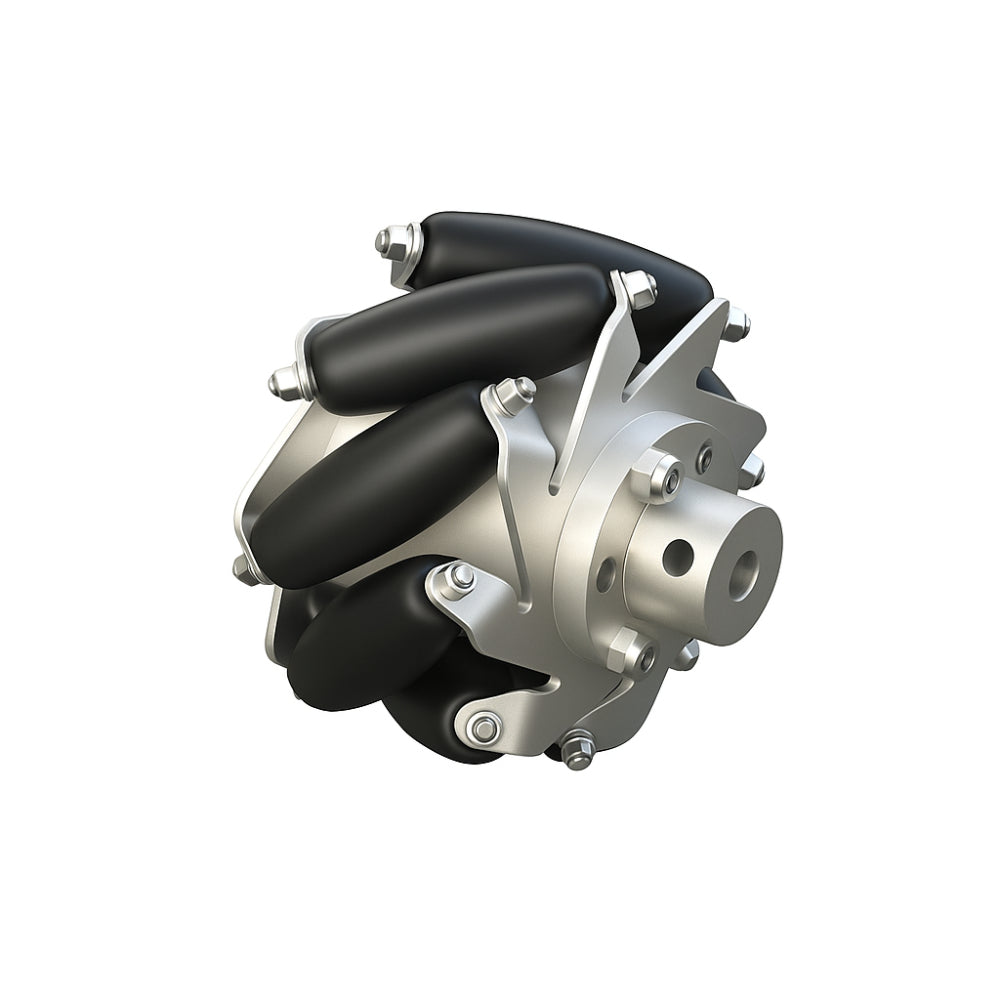

Left and right 100mm mecanum wheels with 6mm shaft

robot-mecanum-wheel-assembly-100mm-black-silver.

100mm Aluminium Mecanum Wheel Pair Left & Right 6mm Shaft Black/Silver

Available:Out of Stock

Product SKU: LGRO030

Wishlist

₹ 3,249 ~~₹ 4,499~~

Pre-order

Specification

Description

Mecanum Wheel Omnidirectional Aluminium 100mm For Motor Shaft 6mm Left and Right Pair Black and Silver

The mecanum wheel robot kit is built around the durable Mecanum Wheel 100mm (Left & Right Pair), designed for smooth and precise movement in projects that demand reliable omnidirectional movement. Because the wheels use a strong aluminium alloy frame combined with high-quality black rubber rollers, they deliver excellent sideways, diagonal, and rotational control. This also makes them ideal for engineers working on robot mecanum concepts or advanced builds based on mecanum wheels 100mm.

This version supports 6mm motor shafts, ensuring compatibility with powerful gear motors and various robotic drive systems while keeping the entire mecanum wheel robot kit efficient and stable.

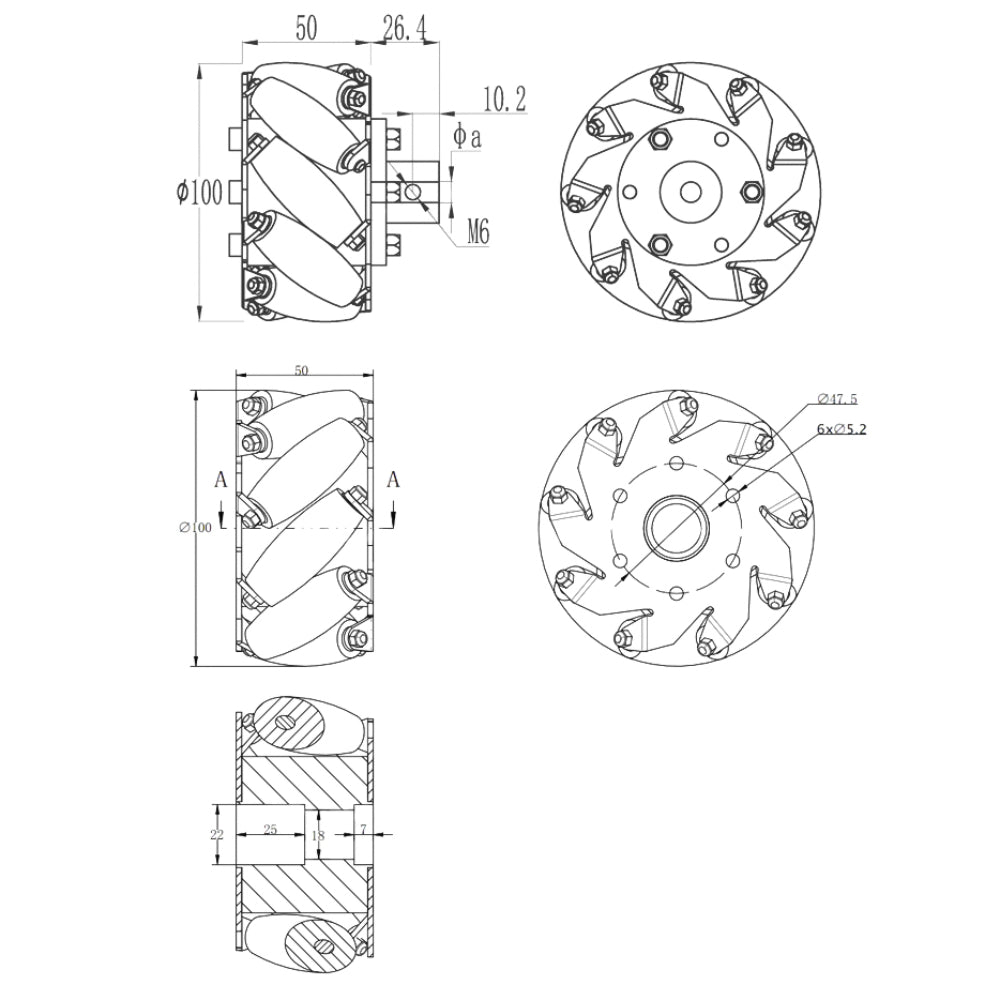

Technical Details

Roller Angle: 45°
Outer Diameter (OD): 100 mm
Inner Diameter (ID): 18 mm
Wheel Width: 54 mm
Roller Length: 47.5 mm
Roller Type: Bearing
Load Capacity: 10–12 Kg per wheel
Roller Material: Nylon + TPR
Spacer Material: Nylon
No. of Plates: 2
No. of Rollers: 9 per wheel
Plate Thickness: 2.5 mm
Mounting Hole PCD: 47.5 mm
Mounting Hole Diameter: 6 mm (M5 compatible)
Nut Type: Hex, Nyloc
Wheel Set: 1 Left + 1 Right
Weight (pair): 750g

Main Features

360° omnidirectional movement with high maneuverability, ideal for mecanum wheels based builds
Strong aluminium alloy body with corrosion resistance
Soft rubber rollers set at 45° angle for smooth robot mecanum motion
Compatible with 8mm motor shafts for broader mecanum wheel robot kit applications
Includes Left and Right wheel for differential movement
