24V 350W 2650RPM MY1016 Electric Brush DC Motor
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

24V 350W 2650RPM MY1016 Electric Brush DC Motor

Available:Out of Stock
  • Product SKU: KGEB003
Wishlist
₹ 2,499 ₹ 3,499
Pre-order
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

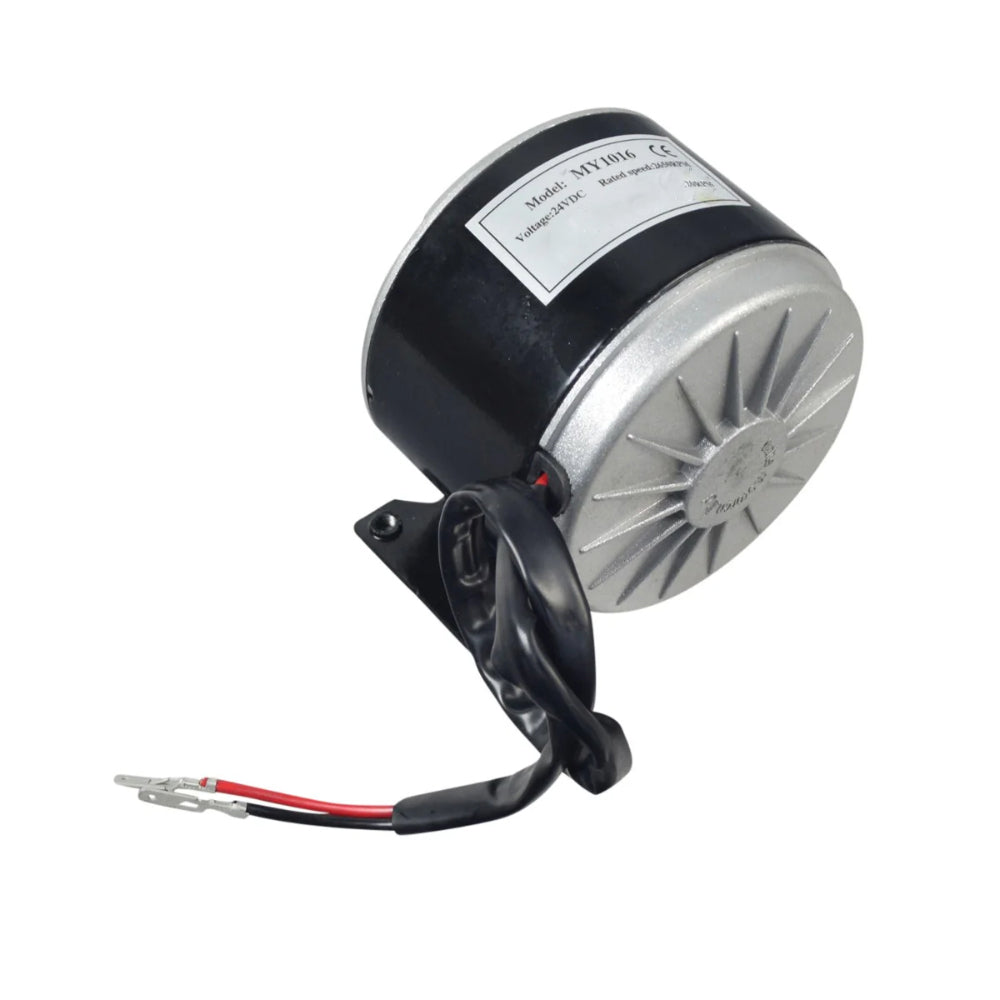

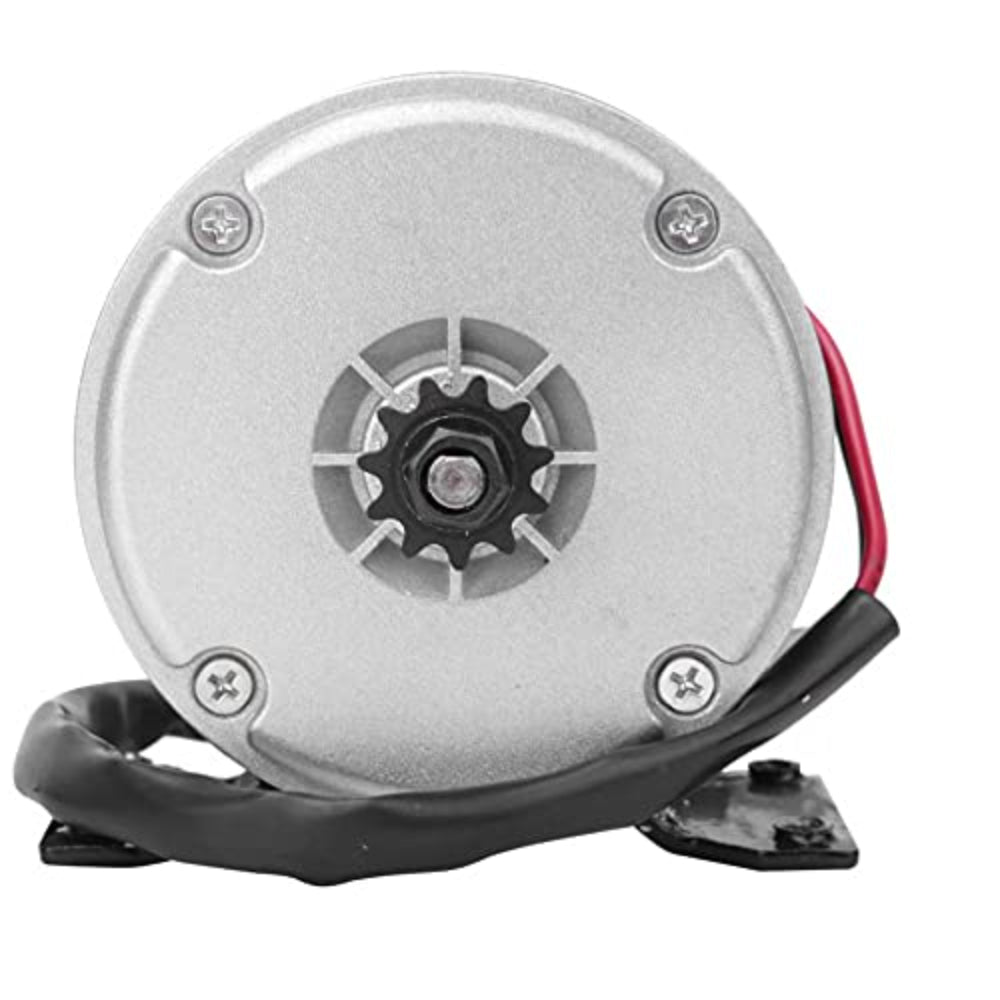

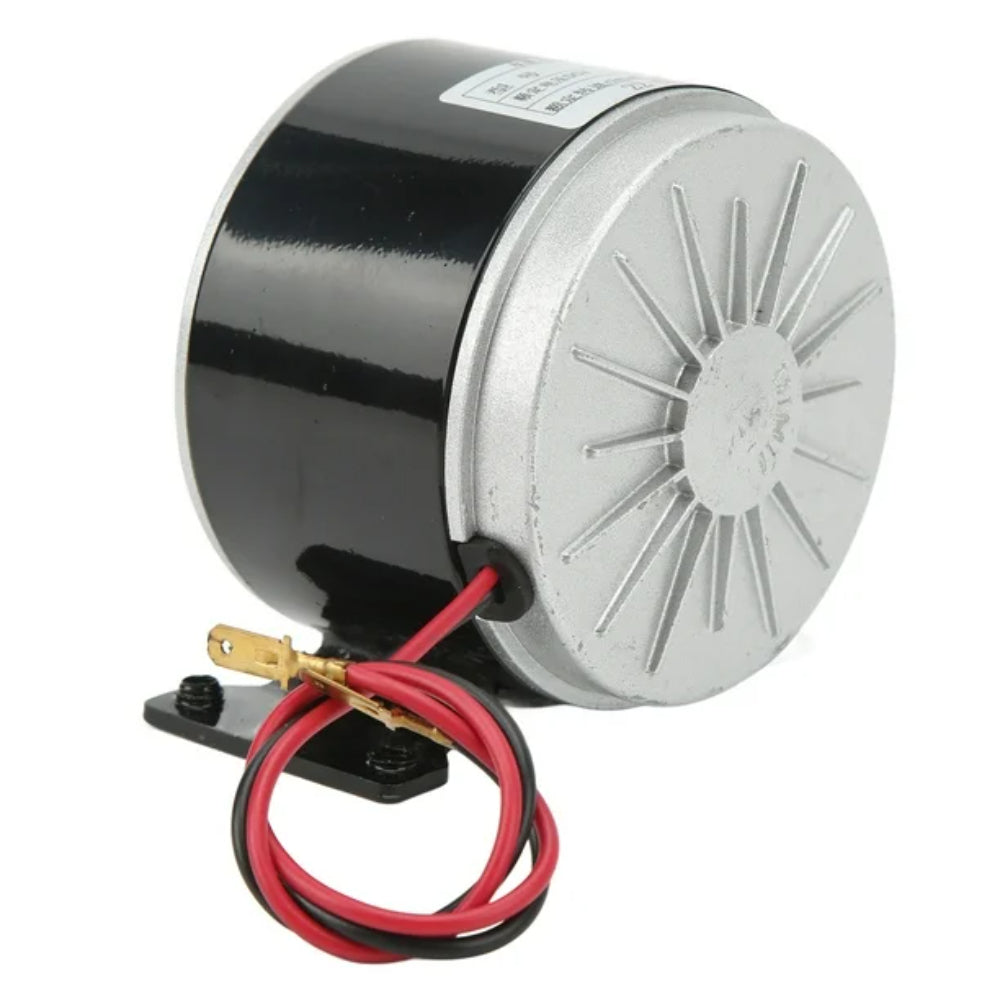

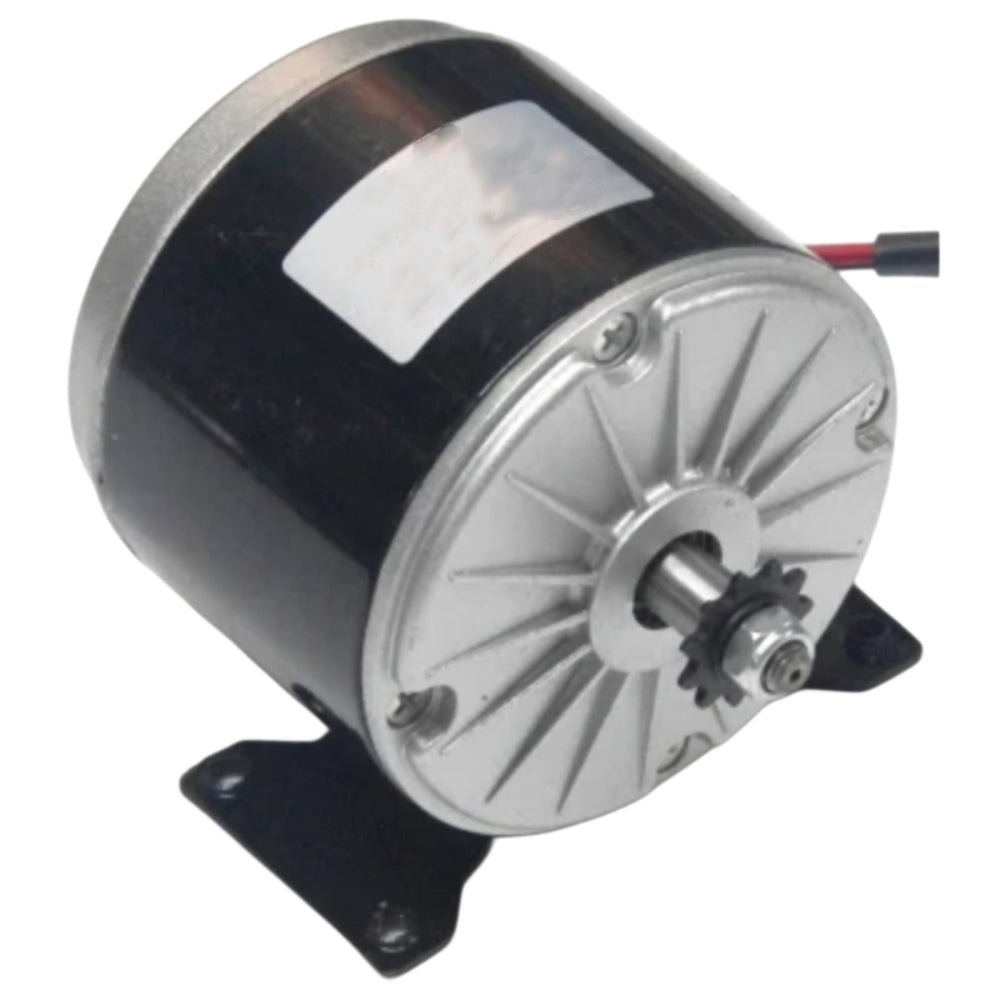

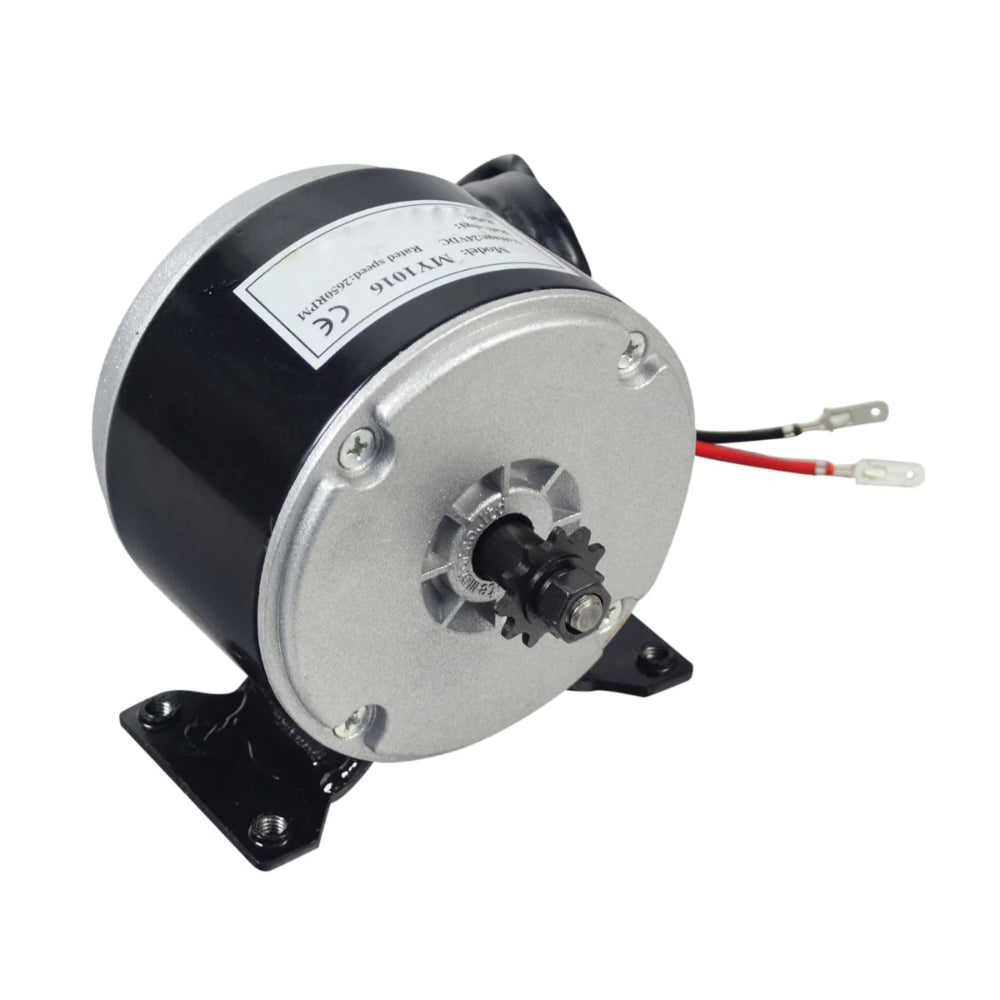

24V 350W 2650RPM MY1016 EBIKE Brush Motor

The MY1016 24V 350W Brushed DC Motor is a high-performance, compact electric motor suitable for e-bike conversions and various DIY applications. Known for its stable torque output and robust build, it delivers up to 2650 RPM for smooth and efficient propulsion.
Ideal for use in electric bicycles, scooters, go-karts, and small robotic vehicles, this motor offers durability and ease of mounting with a standard M6 bolt hole pattern and compatible size for most light electric vehicle setups.

Technical Details

  • Model: MY1016
  • Motor Type: Brushed DC Motor
  • Rated Voltage: 24V
  • Rated Power: 350W
  • No-load Speed: 2650 RPM
  • Total Wire Length: 36.2 cm
  • Mounting Hole Distance: 4.45 cm
  • Mounting Bolt Type: M6
  • Body Diameter: 10.16 cm
  • Body Length: 9.53 cm
  • Center Shaft Offset (Diameter center reference): 2.54 cm
  • Left or Right rotation by Reversing Wires
  • Gearbox: No
  • Sprocket: 11T
  • Shaft Diameter: 12.5mm
  • Built-in Mounting Bracket

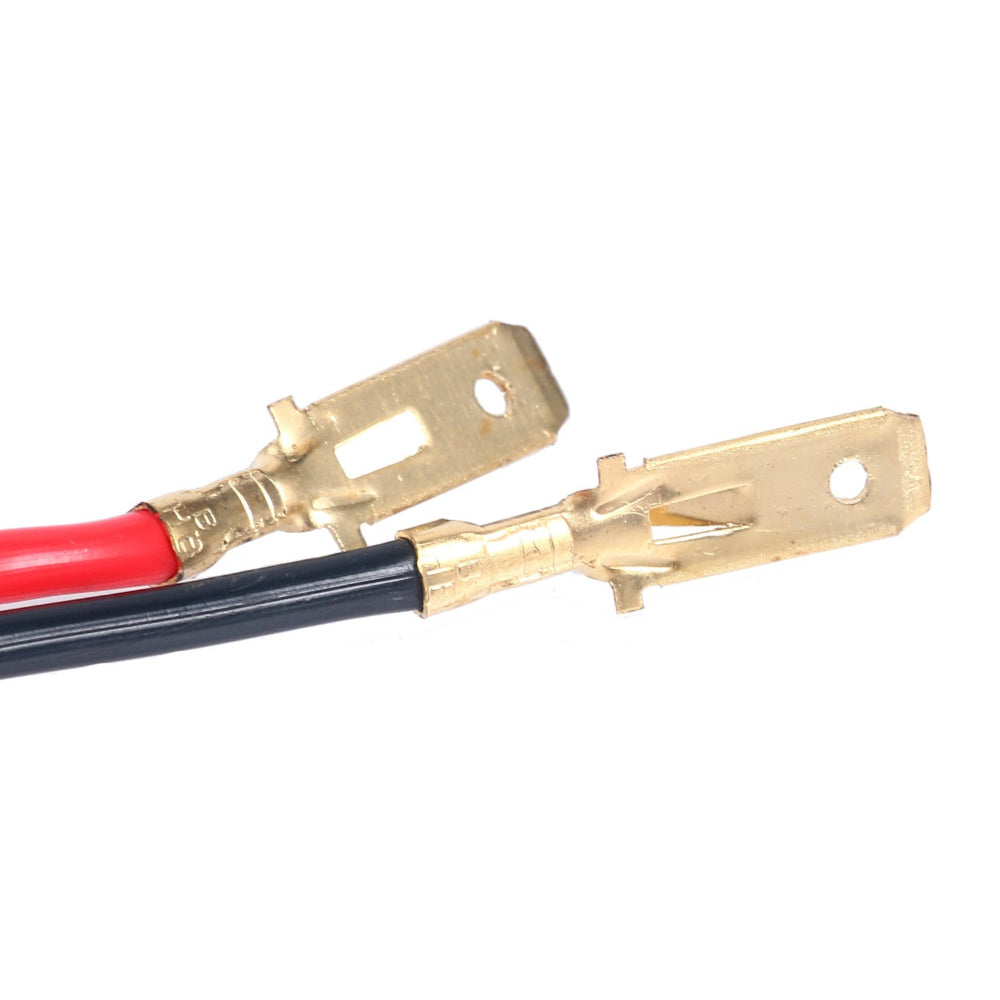

  • Wire with Connector

Features

  • High-speed 2650 RPM operation
  • Reliable and energy-efficient brushed DC motor
  • Compact and durable design
  • Easy to install with standard mounting holes
  • Stable performance under load
  • Low maintenance construction

Applications

  • Electric Bicycles
  • Electric Scooters
  • Go-Karts
  • Robotic Drive Systems
  • DIY Electric Projects
  • Lightweight Mobility Solutions

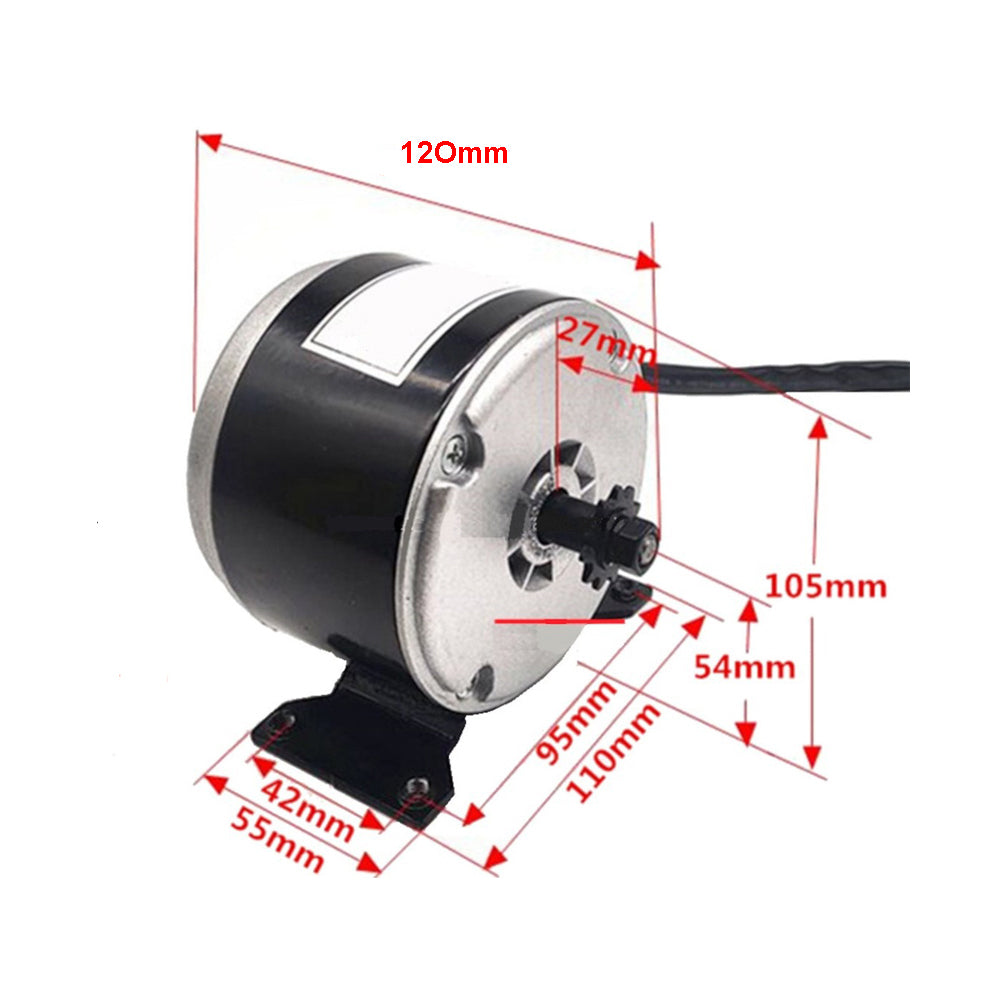

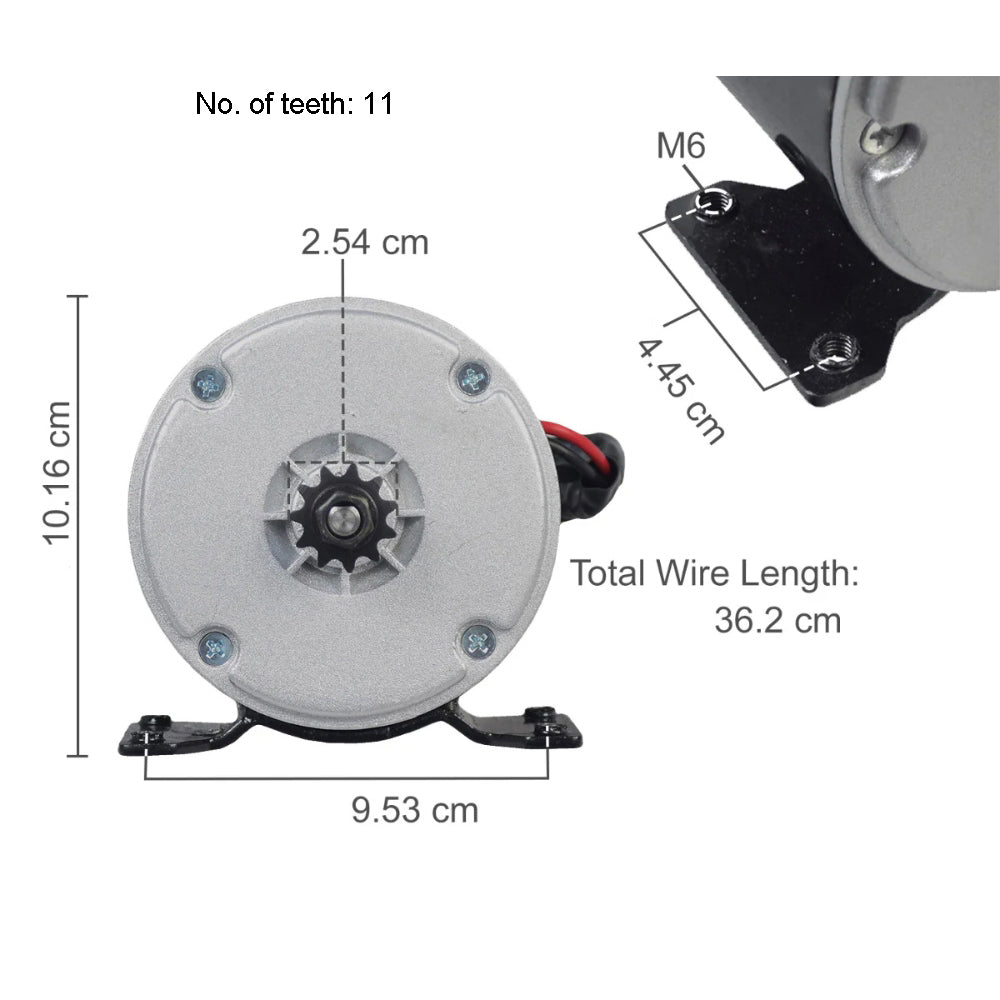

Physical Attributes

  • Diameter: 10.16 cm
  • Length: 9.53 cm
  • Shaft Diameter (tooth area): 2.54 cm
  • Shaft Diameter: 12.5mm
  • Mounting Hole Spacing: 4.45 cm
  • Mounting Bolt Type: M6
  • Number of Teeth: 11
  • Wire Length: 36.2 cm

Package Includes

  • 1 x 24V 350W 2750RPM MY1016 EBIKE Brush Motor
