PCF8591 Module Analog to Digital / Digital-Analog Converter Module with F-F Jumper Wire

This is a breakout board/Prototype Board for PCF8591 IC. The PCF8591 Module Analog to Digital / Digital-Analog Converter Module with F-F Jumper Wire is a single-chip, single‑supply low‑power 8‑bit CMOS data acquisition device with four analog inputs, one analog output, and a serial I²C‑bus interface. Three address pins A0, A1, and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I²C‑bus without additional hardware. Address, control, and data to and from the device are transferred serially via the two-line bidirectional I²C‑bus.

The functions of the device include analog input multiplexing, on-chip track, and hold function, 8-bit analog‑to‑digital conversion, and an 8‑bit digital‑to‑analog conversion. The maximum conversion rate is given by the maximum speed of the I²C-bus.

Technical Details

  • Operating Voltage (VDC): 2.5 to 6
  • IC Chip: PCF8951
  • PCB Size (L x W): 35 x 23 mm

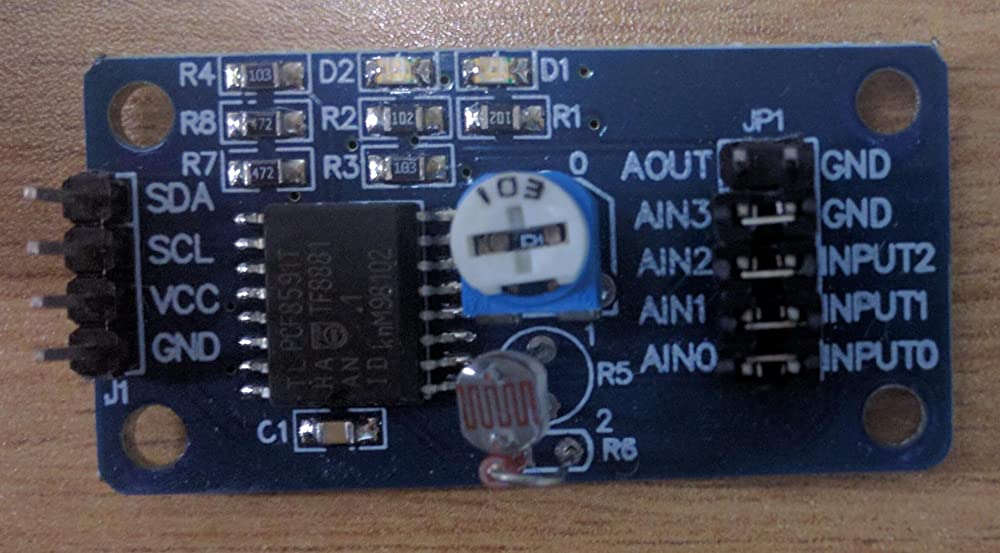

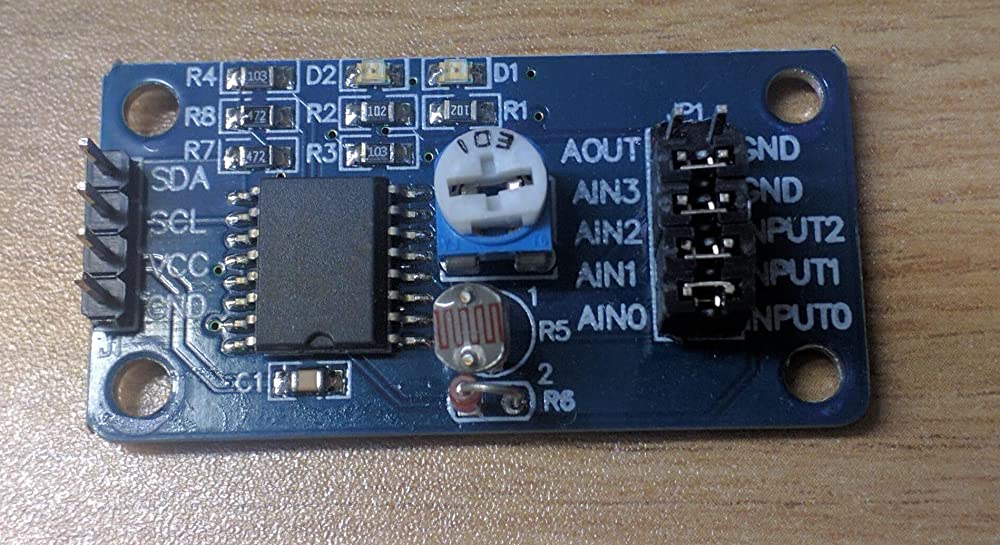

Module interface specification

  • The Left
  • AOUT: Chip DA output interface
  • AINO: Chip analog input interface 0
  • AIN1: Chip analog input interface 1
  • AIN2: Chip analog input interface 2
  • AIN3: Chip analog input interface 3
  • The Right
  • SCL: IIC clock interface (connected to microcontroller IO port)
  • SDA: IIC digital interface (connected to microcontroller IO port)
  • GND: Connected to ground
  • VCC: Connected to 3.3V-5V

PCF8591 IC Features

  • Single power supply
  • A PCF8591 operating voltage range of 2.5V-6V
  • Low standby current
  • Via I2C bus serial input/output
  • PCF8591 by 3 hardware address pins addressing
  • PCF8591 I2C bus speed sampling rate decided
  • 4 analog inputs programmable single-ended or differential input
  • Automatic incremental channel selection
  • PCF8591 analog voltage range from VSS to VDD
  • PCF8591 built-in track-and-hold circuit
  • 8-bit successive approximation A / D converter
  • 1 analog output DAC gain

Module Features

  • The module supports external voltage input of the 4-way acquisition (voltage input range of 0-5v)
  • The module integrated photoresistor by AD collection precise value of the ambient light intensity
  • Module integrated thermistor by the precise value of the ambient temperature of the AD acquisition
  • Module integrated 1 channel 0-5V voltage input acquisition (the blue potentiometer to adjust the input voltage)
  • Modules with power indicator (for the module power supply indicator lights)
  • Modules with DA output indicator, when the module DA output interface voltage reaches a certain value, will be lit panel the DA output indicator, the higher the voltage, the more obvious indicator brightness
  • Module PCB size: 3.6cm x 2.3cm
  • A standard double panel, thickness 1.6mm, nice layout, surrounded by a through-hole, aperture: 3mm, convenient fixed.

Four red jumper-cap instruction

  • P4: Connected to P4 shorting cap, select thermistor access circuit
  • P5: Connected to P5 shorting cap, select photoresistor access circuit
  • P6: Connected to P6 shorting cap, select 0-5V adjustable voltage access circuit

Applications :

  • Sensor Interfacing: It’s commonly used for reading sensors like temperature sensors (thermistors), light sensors (photoresistors), and voltage dividers.
  • Control Systems: Used in applications where you need to generate an analog output from a microcontroller, such as controlling the brightness of an LED or audio signal modulation.
  • Signal Processing: The module allows the conversion of real-world analog signals into digital signals for processing and vice versa.

Physical Attributes

  • Length × Width × Height(mm) : 35 × 23 × 10
  • Weight (gm) : 9

Package Includes

  • 1 x PCF8591 Module Analog to Digital / Digital-Analog Converter Module with F-F Jumper Wire
