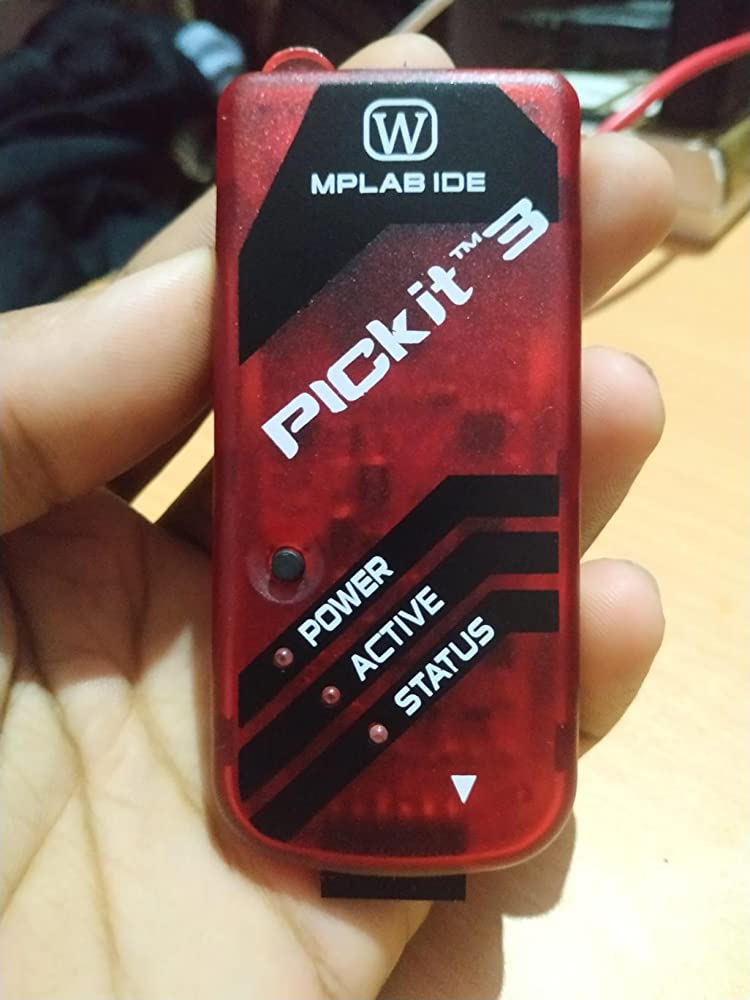

PICKIT3.5 PIC KIT3 Debugger Emulator Programmer Universal Programmer
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

PICKIT3.5 PIC KIT3 Debugger Emulator Programmer Universal Programmer

Available:Out of Stock
  • Product SKU: KG120
Wishlist
₹ 1,199 ₹ 1,399
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

PICkit 3.5+ In-Circuit Programmer is compatible with Microchip uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. This is a compatible product of PICKIT3. This Emulator Programmer Circuit can be used without problems with MPLAB IDE etc.

The PICkit3.5+ Universal Programmer allows debugging and programming of PIC and dsPIC Flash microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE) This is an upgrade from the Pickit 3 programmer with the programming to go feature.

Technical Details

  • Type: Debugger/Programmer
  • Tool/Board Application: Debugging/Programming
  • MCU Supported Families: Flash-based PIC MCUs
  • Core Architecture: PIC, dsPIC
  • IC Product Type: In-Circuit Debugger

Features

  • USB (Full speed 12 Mbits/s interface to host PC)
  • Real-time execution
  • MPLAB IDE compatible (free download from Microchip)
  • Built-in over-voltage/short circuit monitor
  • Firmware upgradeable from PC/web download
  • Totally enclosed
  • Diagnostic LEDs (power, busy, error)
  • Read/write program and data memory of the microcontroller
  • Erase of program memory space with verification
  • Freeze-peripherals at breakpoint
  • Program up to 512K byte flash with the Programmer-to-Go
  • ICSP cable included

Physical Attributes

  • Length * Width * Height  (mm) : 85 * 40 * 10 mm
  • Weight (gm) : 73

Product Video

Documentation

Customer Reviews

Based on 9 reviews
89%
(8)
11%
(1)
0%
(0)
0%
(0)
0%
(0)
m
mannu yadav
Recommended

Working well

s
santosh pandey
Best in price

Nice product good delivery

s
seema khatun
Working Good

Its working good.

f
firoz
Good

Good

s
suresh@tinku
good

good

c
chirag
Good product

Works as intended

d
dilip
Good

Works as expected.

s
sheru khan
Good product

Good programmer,working good .easy to program pic controllers

m
madan jain
Good

The programmer works as expected, I did not get the socket to work, I have another socket that is working so did not try much. The programmer is working nicely.
