4mm to 6mm Shaft Coupling Flexible Coupler Motor Connector Joint L25xD19 Silver for Stepper Motor Nema 8 and Nema 14
- Product SKU: LGSTM038
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
The 4mm to 6mm Shaft Coupling Flexible Coupler is designed to connect shafts with diameters ranging from 4mm to 6mm. Measuring 19mm in outer diameter and 25mm in length, this coupling is made from durable aluminum alloy and features a silver finish. The flexible design of the coupler allows it to accommodate minor misalignments and absorb vibrations, making it ideal for use with stepper motors, specifically NEMA 8 and NEMA 14. The coupling’s flexibility ensures smooth torque transmission while minimizing backlash and mechanical stress. Its lightweight yet strong construction makes it suitable for precision applications in various mechanical systems and automation projects.
Features:
Adjustable Bore Size: Fits shafts with diameters from 4mm to 6mm, providing versatility.Durable Material: Constructed from high-quality aluminum alloy.
Flexible Design: Allows for minor shaft misalignments and vibration absorption.
Compact Size: Outer diameter of 19mm and length of 25mm for space-constrained applications.
Compatibility: Suitable for NEMA 8 and NEMA 14 stepper motors.
Applications:
Stepper Motors: Connects shafts for NEMA 8 and NEMA 14 stepper motors.CNC Machines: Used in machinery where precise motor-to-shaft connections are required.
Robotics: Ideal for coupling components in robotic systems.
Automation Projects: Suitable for various automation and mechanical systems where flexibility and alignment compensation are needed.
Advantages:
Versatile Bore Size: Accommodates different shaft sizes for flexible application.Durable and Lightweight: Made from aluminum alloy for strength without added weight.
Effective Misalignment Compensation: Reduces vibration and aligns shafts accurately.
Compact Design: Space-efficient for use in tight installations.
Disadvantages:
Limited Bore Range: May not fit shafts outside the 4mm to 6mm diameter range.Material Wear: Aluminum may wear over time depending on usage and environment.
Not Suitable for Heavy Loads: Best for light to moderate torque applications.
Technical Details
- Outer Diameter: 19mm
- Length: 25mm
- Inner Hole Diameter: 4mm to 6mm (adjustable to fit different shaft sizes)
- Material: Aluminum alloy
- Color: Silver
- Coupling Type: Flexible coupler
- Applications: Suitable for stepper motors NEMA 8 and NEMA 14
- Short Highlights:
- Outer Diameter: 19mm
- Length: 25mm
- Bore Diameter: Adjustable from 4mm to 6mm
- Material: Aluminum alloy for strength and lightweight
- Color: Silver finish
- Coupling Type: Flexible design for vibration and misalignment compensation
- Compatibility: Designed for NEMA 8 and NEMA 14 stepper motors

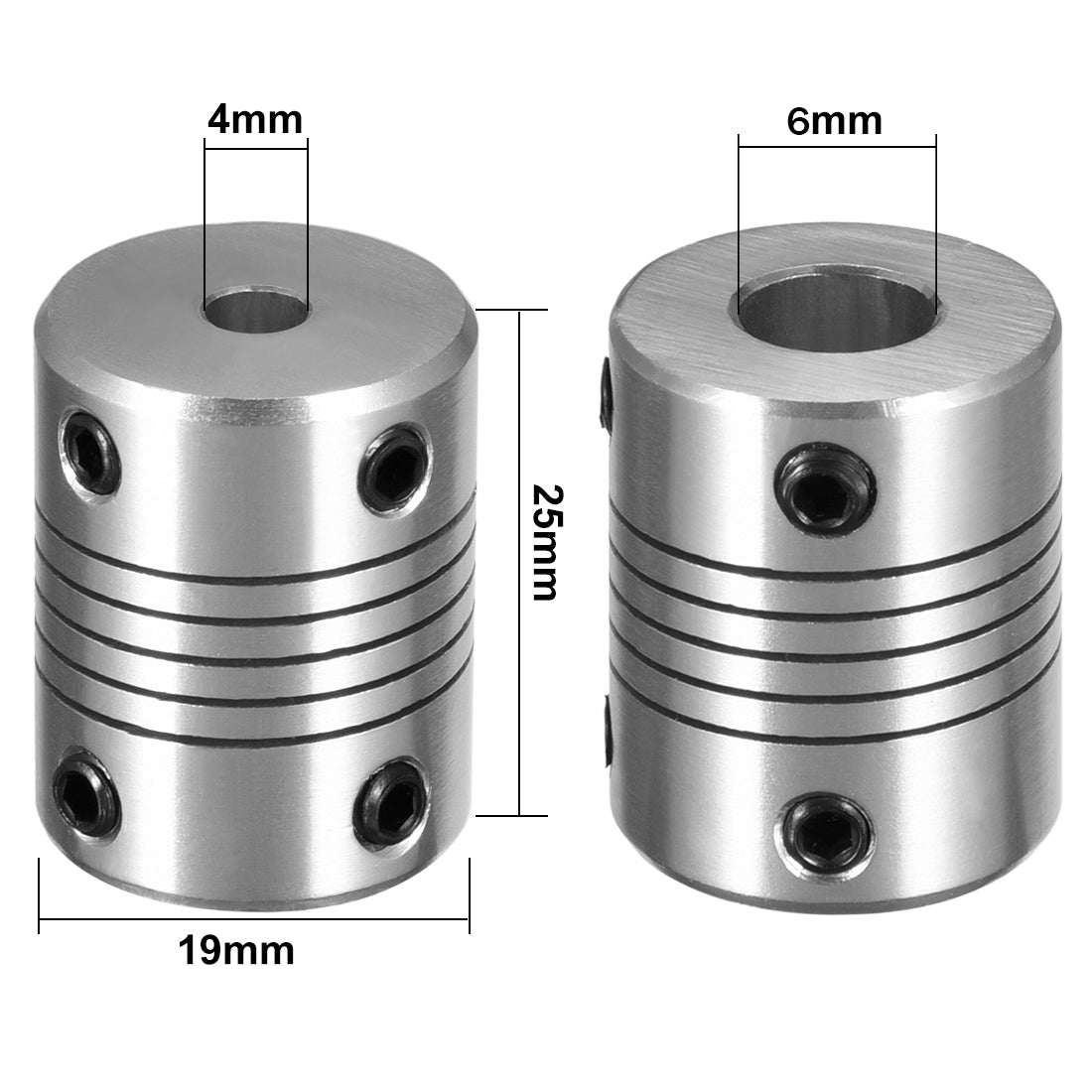

Drawing
Compatibility
- LGSTM001 : Industrial Grade NEMA8 0.3kg-cm 1.8 Degree 2 Phase hybrid Stepper Motor
- LGSTM002: Industrial Grade NEMA11 1.2kg-cm 1.8 Degree 2 Phase hybrid Stepper Motor
- LGSTM003: Industrial Grade NEMA14 1.4kg-cm 1.8 Degree 2 Phase Hybrid Stepper Motor
- LGSTM004: Industrial Grade NEMA14 2.0kg-cm 1.8 Degree 2 Phase Hybrid Stepper Motor
Documentation
Package Includes
- 1 x 4mm to 6mm Shaft Coupling Flexible Coupler Motor Connector Joint L25xD19 Silver for Stepper Motor Nema 8 and Nema 14
